Studs on Shaper Table Insert

dusty · Post by **dusty** » Mon Oct 29, 2012 3:48 pm

[quote="JPG40504"]I am currently one state south of 'normal', but IIRC they be 3/8" and are 3/8-16 thread. Also IIRC they differ from a 'normal' screw thread in that the 'end of thread' is undercut creating a shoulder that provides a positive 'stop' when tightened in the insert. If that second 'IIRC' is incorrect, that is the way they 'should' be!]

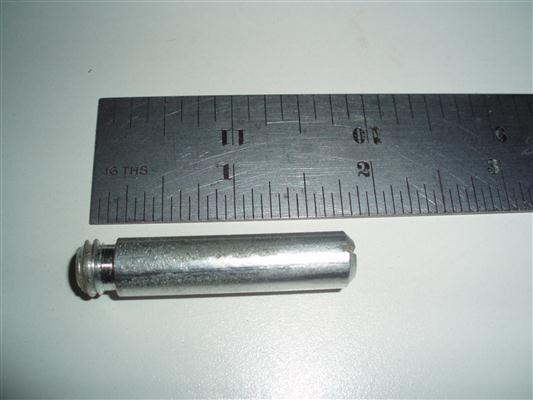

[ATTACH]18930[/ATTACH] is photo evidence that JPG is right on.

lightnin · Post by **lightnin** » Mon Oct 29, 2012 7:16 pm

dusty wrote:is photo evidence that JPG is right on.

Never doubted it....
But a picture is worth a lot of words

delong94 · Post by **delong94** » Tue Sep 30, 2014 5:47 pm

Are there part numbers to get replacement screw-in starter pins for the sander/shaper insert? Thanks.

JPG · Post by **JPG** » Tue Sep 30, 2014 6:06 pm

delong94 wrote:Are there part numbers to get replacement screw-in starter pins for the sander/shaper insert? Thanks.

Either call CS or make a couple from screws(remember to under cut the threads).
