A couple of newb. questions

jheflin · Post by **jheflin** » Thu Jun 24, 2010 6:49 pm

I have finally nearly finished my 510 upgrades via ebay. I just received my upper saw guard and I can't for the life of me figure out how it attaches to the table. Help?

Secondly, I just purchased the dado arbor and table insert. My question is how does the arbor stay together under load, since it is not reverse threaded?

Thanks!

Jeff

dusty · Post by **dusty** » Thu Jun 24, 2010 7:39 pm

jheflin wrote:I have finally nearly finished my 510 upgrades via ebay. I just received my upper saw guard and I can't for the life of me figure out how it attaches to the table. Help?

Secondly, I just purchased the dado arbor and table insert. My question is how does the arbor stay together under load, since it is not reverse threaded?

Thanks!

Jeff

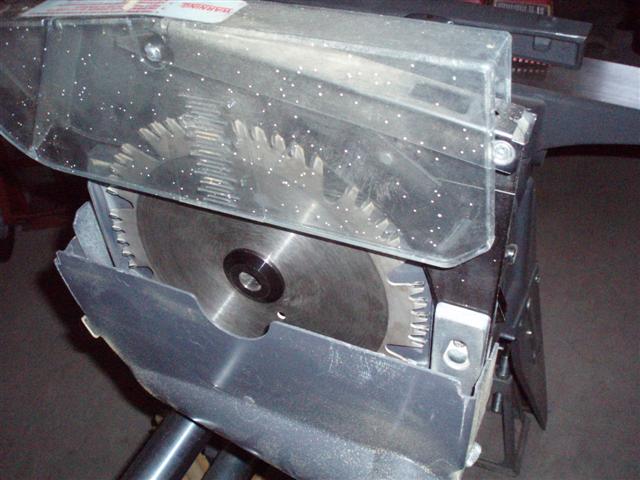

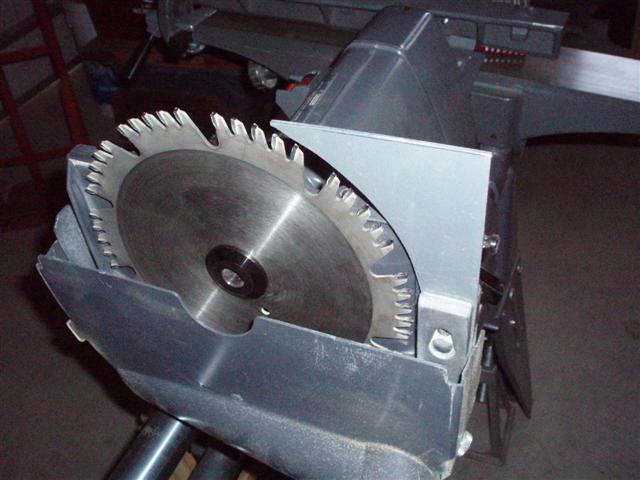

I hope a couple pictures answer your question. The two that follow show my saw guard installed (with the headstock moved away from the main table for clarity). One shows the upper saw guard and the other shows a home made riving knife installed rather than the saw guard.

Hope these help!

[ATTACH]9340[/ATTACH]

[ATTACH]9341[/ATTACH]

JPG · Post by **JPG** » Thu Jun 24, 2010 7:51 pm

jheflin wrote:I have finally nearly finished my 510 upgrades via ebay. I just received my upper saw guard and I can't for the life of me figure out how it attaches to the table. Help? It attaches to the lower saw guard, not the table.

Secondly, I just purchased the dado arbor and table insert. My question is how does the arbor stay together under load, since it is not reverse threaded? The reverse thread(left hand thread) is only necessary when the nut is on the headstock side of the blade.

Thanks!

Jeff

The force of the blade against the arbor will tend to tighten the nut, not loosen it.

SDSSmith · Post by **SDSSmith** » Thu Jun 24, 2010 8:46 pm

JPG40504 wrote:The force of the blade against the arbor will tend to tighten the nut, not loosen it.

One other point on the dado arbor (assuming you bought a new or complete one) is that it has a keyway cut in it to accept a keyed (or tongue) washer. With this anti-rotation washer in place under the nut you can use the arbor on the other side of the headstock (or on the quill in reverse with the Power Pro). Boy I hope you folks did not throw away those keyed washers.

jheflin · Post by **jheflin** » Fri Jun 25, 2010 5:32 pm

Thanks for the pics Dusty! I guess it couldn't have been more obvious:)

JPG, I will take your word for it, it just seems counter intuitive to me, since the nut tightens in the opposite direction from the blade rotation. It must work since none of you are being killed by flying dado blades.

Thanks for the quick responses! I will be posting pics of my greenine restoration soon, I hope, now that the 510 is mostly done.

timster68 · Post by **timster68** » Fri Jun 25, 2010 5:36 pm

I have a "new" upper guard of sorts, but I need to realign the riving knife behind the blade. Where is the mechanism to do that?

dusty · Post by **dusty** » Fri Jun 25, 2010 6:07 pm

timster68 wrote:I have a "new" upper guard of sorts, but I need to realign the riving knife behind the blade. Where is the mechanism to do that?

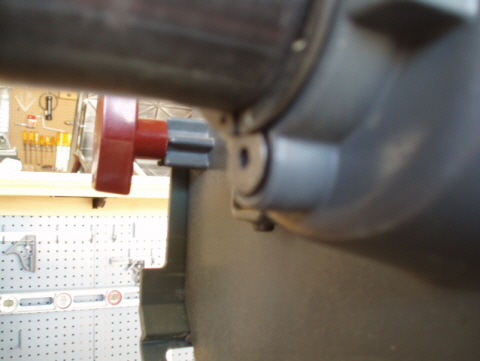

This is not a very good picture but I think it shows the adjustment screw well enough to locate it on your machine.

The screw is on the lower saw guard and is shown here with the quill extended.

[ATTACH]9359[/ATTACH]
sorry about the fuzzy picture

The adjustment is something of a hit and miss. I run the screw in until it is flush and then check the riving knife alignment. Then back it out as required until the blade and the riving knife are in the same plane.

timster68 · Post by **timster68** » Fri Jun 25, 2010 6:20 pm

OH ok, I think I see it. I'll give it a whirl tonight. Thanks!

dusty · Post by **dusty** » Fri Jun 25, 2010 7:13 pm

timster68 wrote:OH ok, I think I see it. I'll give it a whirl tonight. Thanks!

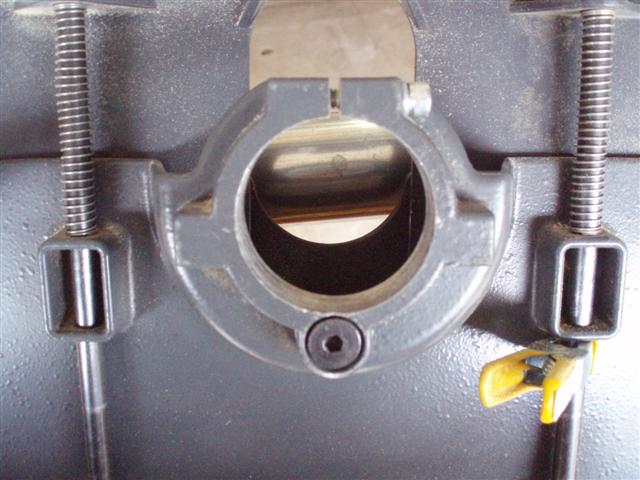

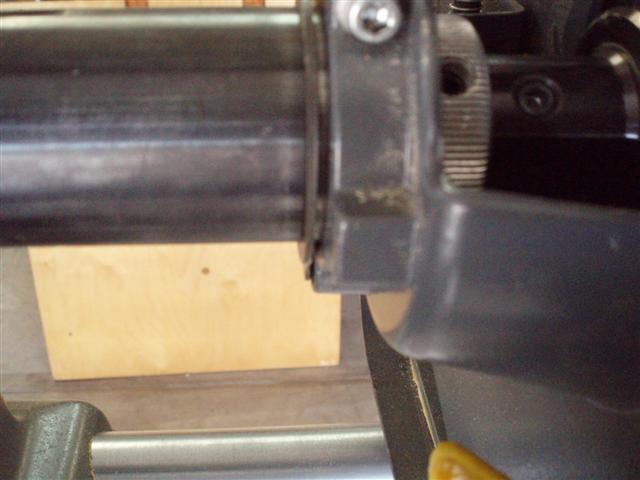

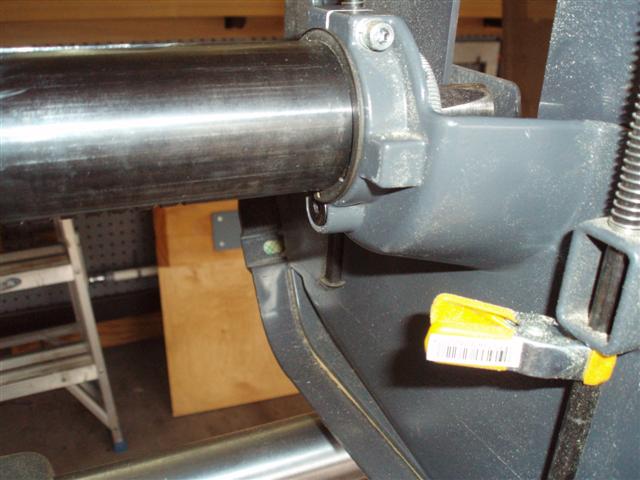

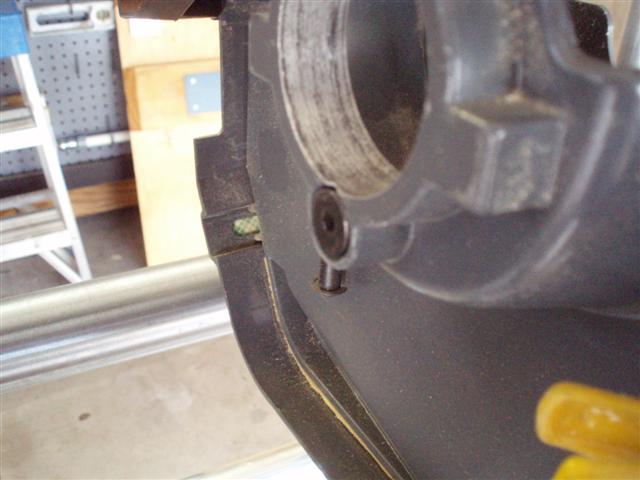

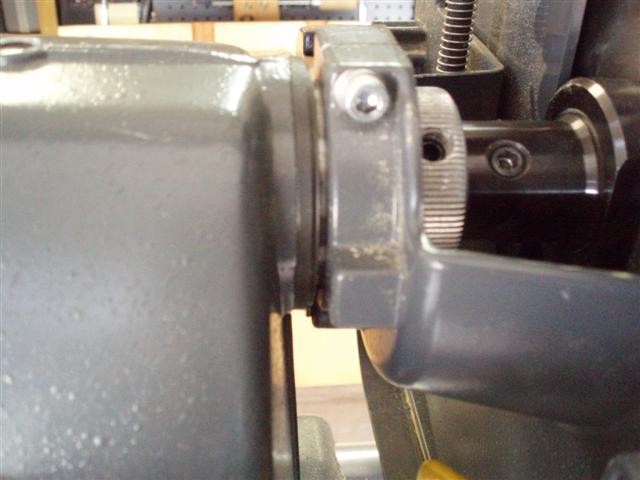

A couple of slightly better pictures.

[ATTACH]9360[/ATTACH]

[ATTACH]9361[/ATTACH]

[ATTACH]9362[/ATTACH]

[ATTACH]9363[/ATTACH]

[ATTACH]9364[/ATTACH]
