One advantage of a molder head over a shaper cutter is that the cutting edge is moving much faster at the same RPM than a shaper cutter cutting edge is moving. On a mower that would be expressed in feet per minute at blade tip with the FPM increasing as the blade length increases.
A molder will work fine on an edge as long as the board is properly and securely guided. I would likely use two fences (both with a sacrificial face) and have them snugly against the board with the board sandwiched between them. If there is any variation in the thickness of the boards I would only move one fence to increase or decrease space between the fences then one face would all be even and any variation would all fall in the opposite face.
Saw blade, moulder and arbors...what to get?
Moderator: admin
-
robinson46176
- Platinum Member
- Posts: 4182
- Joined: Mon Mar 09, 2009 9:00 pm
- Location: Central Indiana (Shelbyville)
--
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
I think it is fairly accurate to describe a shaper as an 'edging' tool.
However the molder is also an 'edging' tool(glue joints, drop leaf, door lip...)
The advantage of a molder is the ability to face cut and angle of cut(shallower 'ripples') and edge speed(as Farmer mentioned).
That comes at the price of more risky if not used properly.
However the molder is also an 'edging' tool(glue joints, drop leaf, door lip...)
The advantage of a molder is the ability to face cut and angle of cut(shallower 'ripples') and edge speed(as Farmer mentioned).
That comes at the price of more risky if not used properly.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
That comes at the price of more risky if not used properly
It can be used safely I hope as I've just bought one.
Stay out of missile path, use push stick/block and have 2 fences to prevent sideways movement. Anything else?
I'm toying with the idea of having some 20mm and 30mm saw blade arbors made. The design seems simple enough apart from there being a mix of metric and Imperial measurements.
It can be used safely I hope as I've just bought one.
Stay out of missile path, use push stick/block and have 2 fences to prevent sideways movement. Anything else?
I'm toying with the idea of having some 20mm and 30mm saw blade arbors made. The design seems simple enough apart from there being a mix of metric and Imperial measurements.
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Non aggressive cut depth and feed rate. Workpiece held securely. Stay out of the 'red zone'!jm51 wrote:That comes at the price of more risky if not used properly
It can be used safely I hope as I've just bought one.
Stay out of missile path, use push stick/block and have 2 fences to prevent sideways movement. Anything else?
I'm toying with the idea of having some 20mm and 30mm saw blade arbors made. The design seems simple enough apart from there being a mix of metric and Imperial measurements.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange

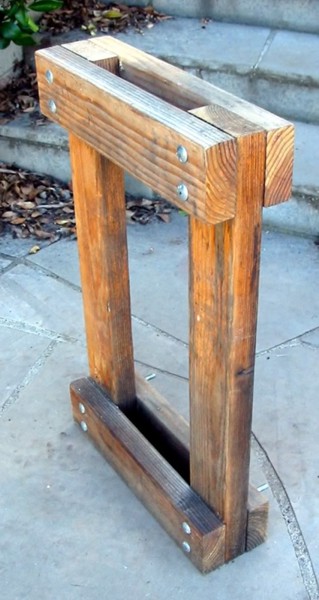

Press???? You would be surprised what you can accomplish with some 2x4's and a hydraulic bottle jack.
[ATTACH]12859[/ATTACH]
This has gotten a fair amount of use on motors and drive sleeves. I make hardwood accessories bored for the appropriate shaft size. So far so good.
[ATTACH]12859[/ATTACH]
This has gotten a fair amount of use on motors and drive sleeves. I make hardwood accessories bored for the appropriate shaft size. So far so good.
