Box joint question

wannabewoodworker · Post by **wannabewoodworker** » Wed May 11, 2011 8:24 am

nuhobby wrote:Dispatch from Rube Goldberg:

Here's another way to address box-joints:
http://www.shopsmith.net/forums/showpos ... ostcount=8

Those joints came out quite nice another way to skin a cat so to speak. nice job!

charlese · Post by **charlese** » Wed May 11, 2011 11:00 pm

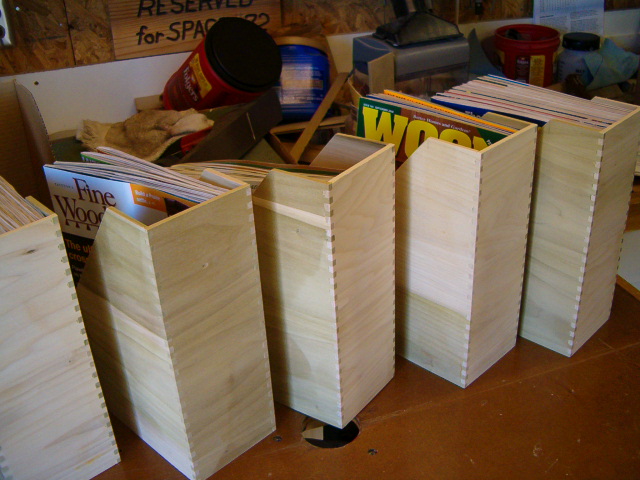

Here's a couple projects made with 1/4" box joints. Found out that to make 12" joint, it takes a bit of adjusting.

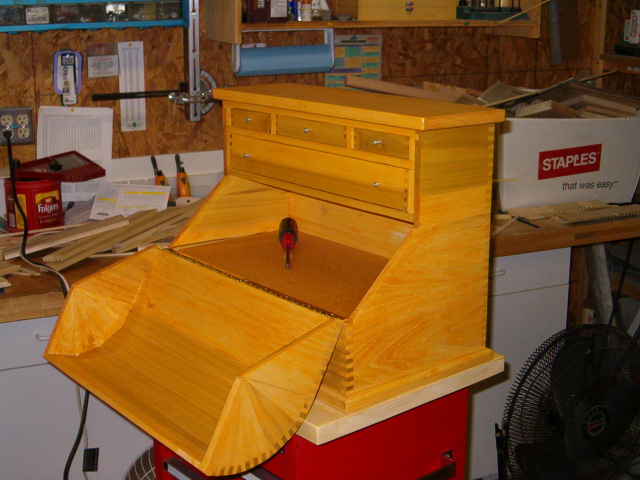

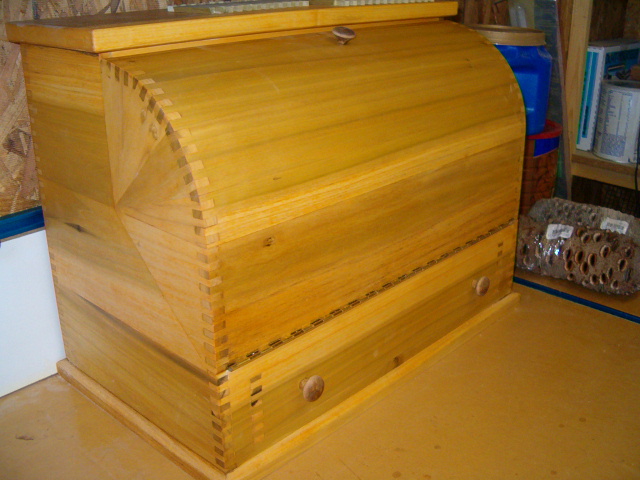

The last two show 1/4" box joints around a curved area. It is one of my tool boxes.

garys · Post by **garys** » Thu May 12, 2011 12:14 am

Those jigs are the simple answer. I built two of them about 20 years ago for my Shopsmith. Somewhere in the old information, Shopsmith had the instructions for them. I made a 1/4" one and a 3/8" one for larger boxes. Then you simply set your dado blade to the correct width to cut each slot just right with one pass.
I've made dozens of boxes over the years using my homemade jigs.

mrhart · Post by **mrhart** » Thu May 12, 2011 10:08 am

charlese wrote:Here's a couple projects made with 1/4" box joints. Found out that to make 12" joint, it takes a bit of adjusting.

The last two show 1/4" box joints around a curved area. It is one of my tool boxes.

Sir that is an awesome piece of work.
I can't imagine the hours into that.

mrhart · Post by **mrhart** » Thu May 12, 2011 10:09 am

wannabewoodworker wrote:I was interested in box joints as well after watching this Saw Dust session http://www.shopsmithacademy.com/SS_Archives/SS102/SS102_Finger_Joints.htm. It seemed like a pretty good jig to make and I have made it but not actually used it yet. I used some leftover birch ply and a piece of walnut for the locating pin. I need to redo the walnut pin as I glued it in the wrong direction.......DUH! It seems to be an idiot proof jig as long as you get it precise when you build it which is not exactly easy for me. Specifically how do you get the pin exactly 1/2" x 1/2" for making 1/2" box joints? Also I have to play around with my dado blade thickness to see if I can get it exactly 1/2" wide. When I set it up the way it says to for 1/2" it is not 1/2" exactly. But like everything it is a learning process for me.

When watching the video again I remembered I could not figure out exactly how he was keeping the jig attached to the mitre guage? Is he just using the hold down to do that? Also his jig is slightly different than the plan shows as the through bolts are offset on his jig.

Sir can you attach this as a pic or pdf so I can save it for a future project?

beeg · Post by **beeg** » Thu May 12, 2011 10:31 am

Like this one?

[ATTACH]12956[/ATTACH]

JPG · Post by **JPG** » Thu May 12, 2011 12:52 pm

beeg wrote:Like this one?

[ATTACH]12956[/ATTACH]

Orrrrr the one in post #2 this thread!:D;)

mrhart · Post by **mrhart** » Thu May 12, 2011 2:01 pm

beeg wrote:Like this one?

[ATTACH]12956[/ATTACH]

Thankyou sir!

I guess I could have seen the link in post #2....dah

So where can a guy find more of these wonderful PDF jigs-tips ect???

JPG · Post by **JPG** » Thu May 12, 2011 2:52 pm

mrhart wrote:Thankyou sir!

I guess I could have seen the link in post #2....dah

So where can a guy find more of these wonderful PDF jigs-tips ect???

FWIW: You can right click on any pix displayed on this forum and save it to your computer.

If it is not a pix, you can save the 'page' as an html file.

mrhart · Post by **mrhart** » Thu May 12, 2011 2:57 pm

JPG40504 wrote:FWIW: You can right click on any pix displayed on this forum and save it to your computer.

If it is not a pix, you can save the 'page' as an html file.

Thanks sir.
Is there a site I can go to specifically with more of these "Nick" publications?
