Shopsmith vice vs the 500 main table

reible · Post by **reible** » Mon Oct 01, 2012 11:47 pm

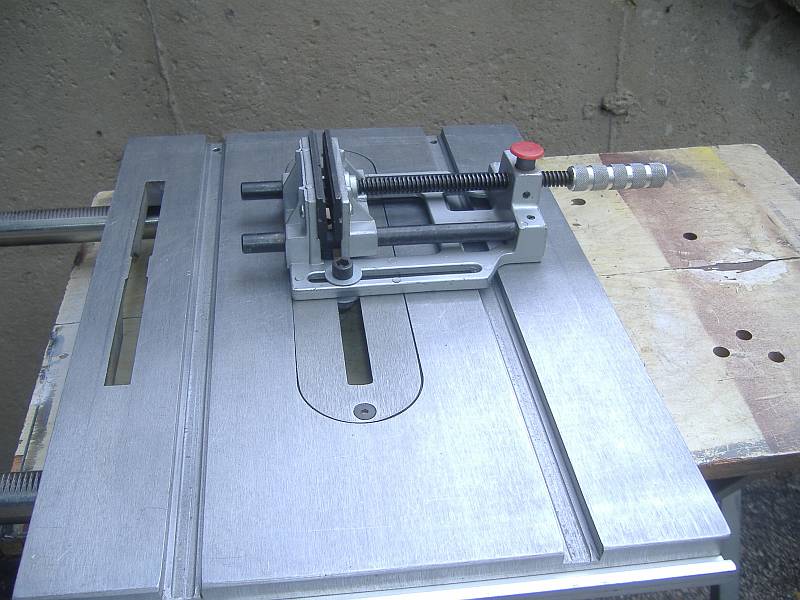

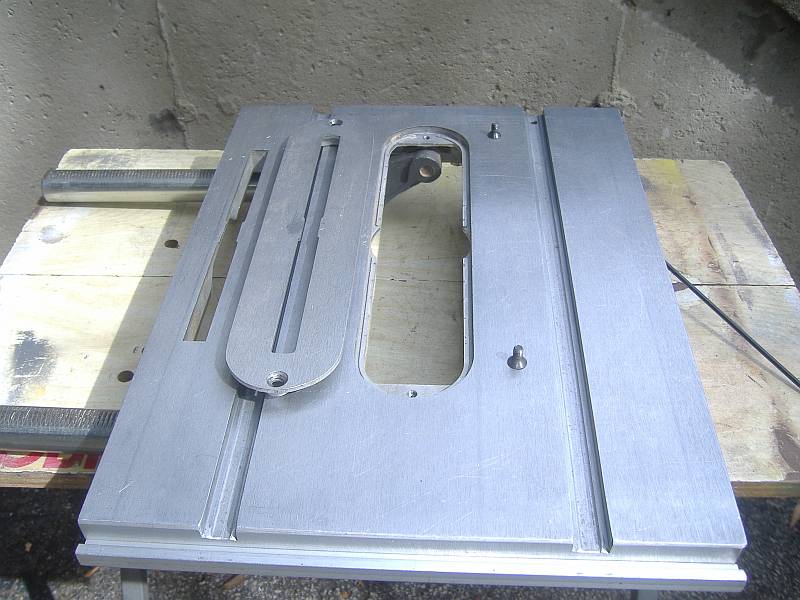

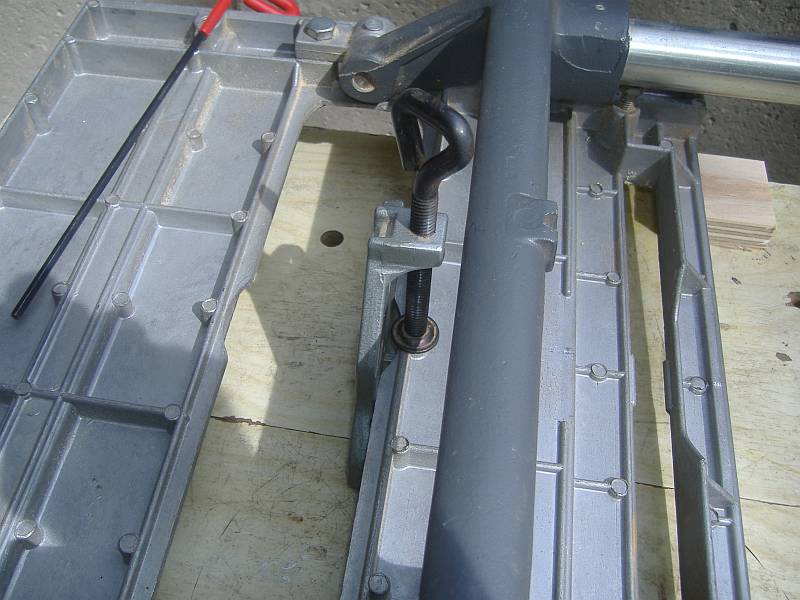

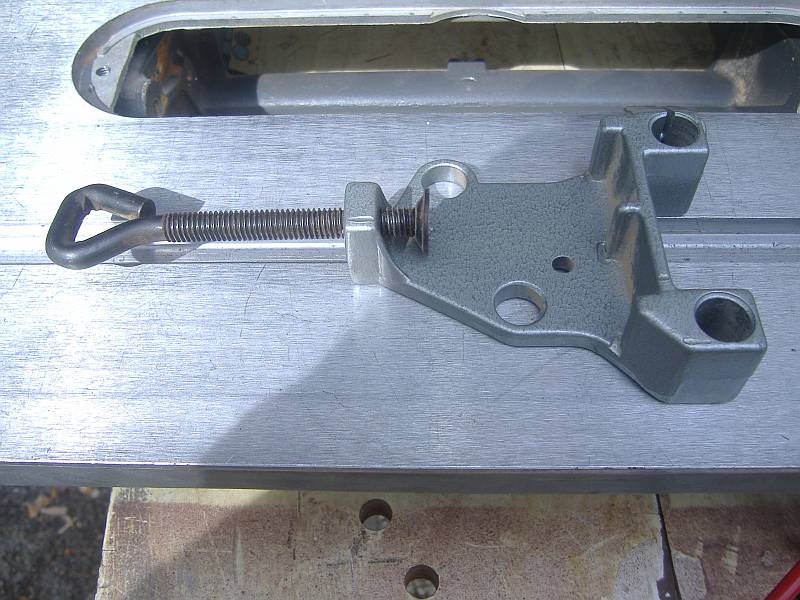

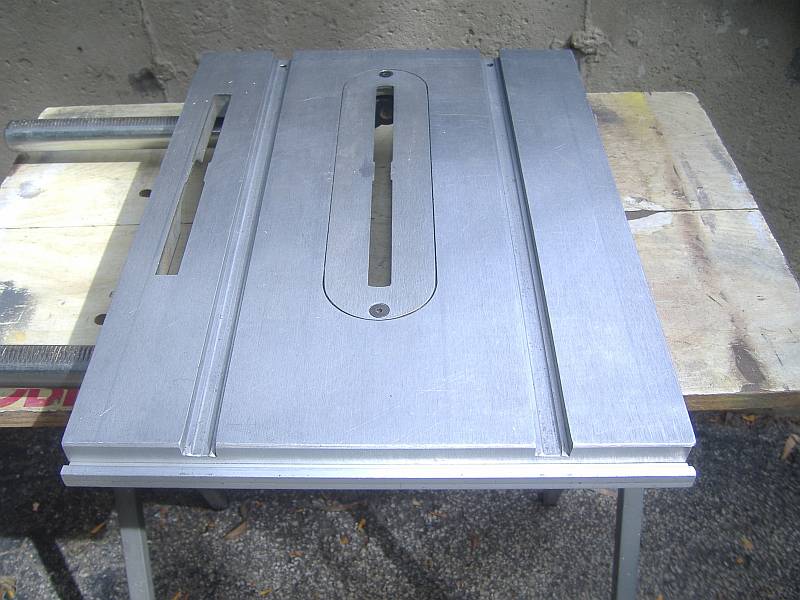

I know how most of you like pictures so lets take a look at some.

[ATTACH]18620[/ATTACH]

[ATTACH]18621[/ATTACH]

[ATTACH]18622[/ATTACH]

[ATTACH]18623[/ATTACH]

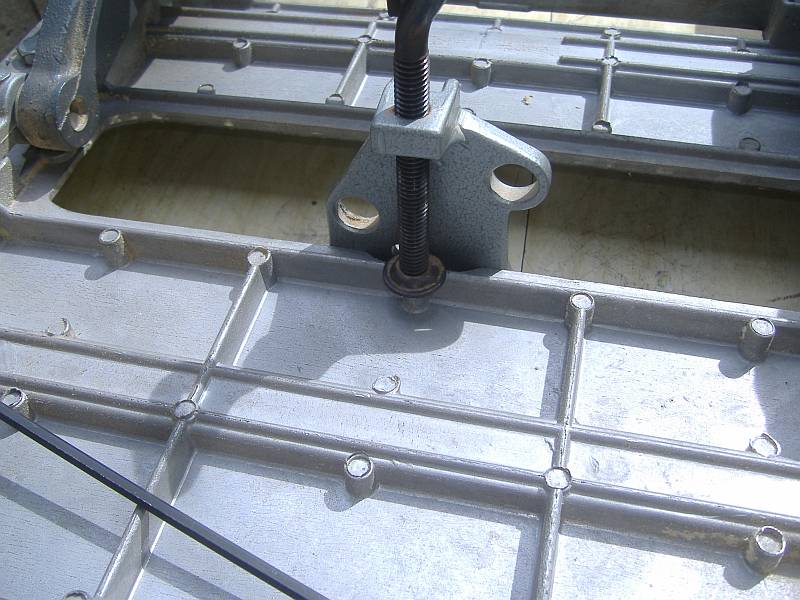

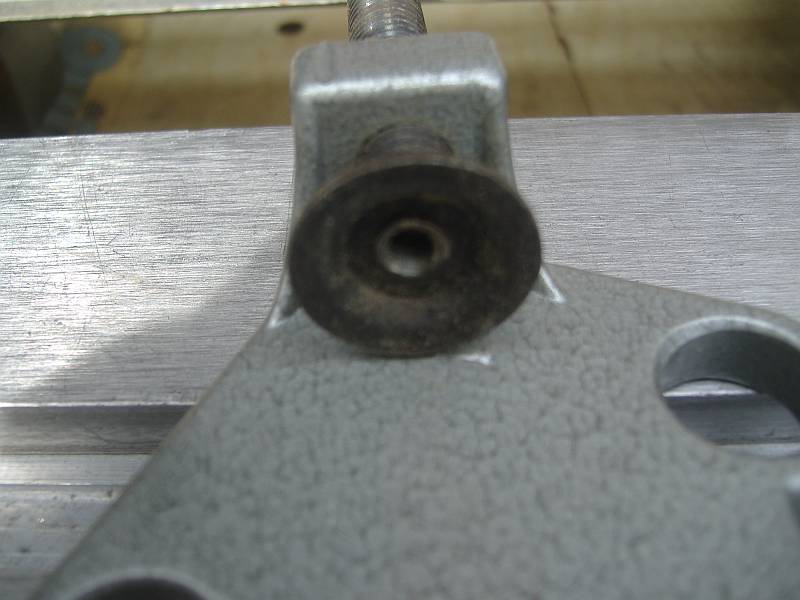

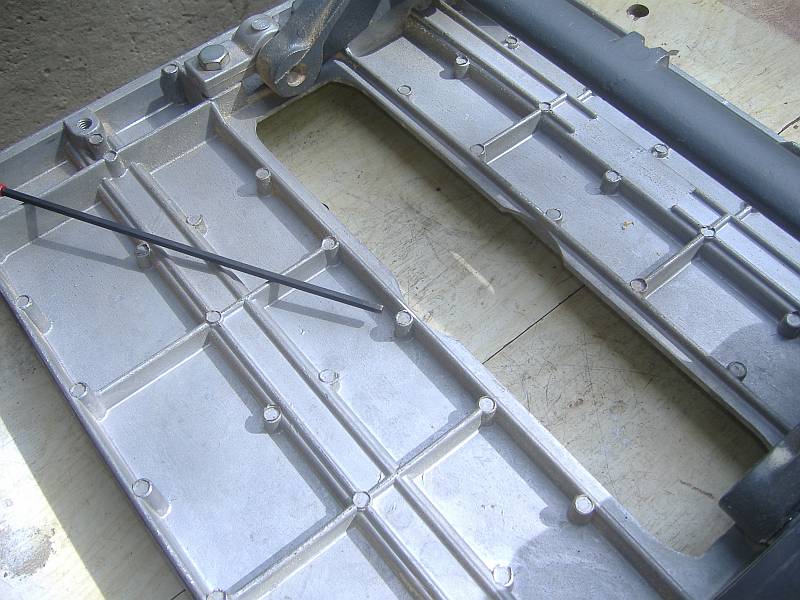

Notice the cup nature of the end of the screw.

[ATTACH]18624[/ATTACH]

Feel free to ask questions if you need to.

Ed

reible · Post by **reible** » Mon Oct 01, 2012 11:56 pm

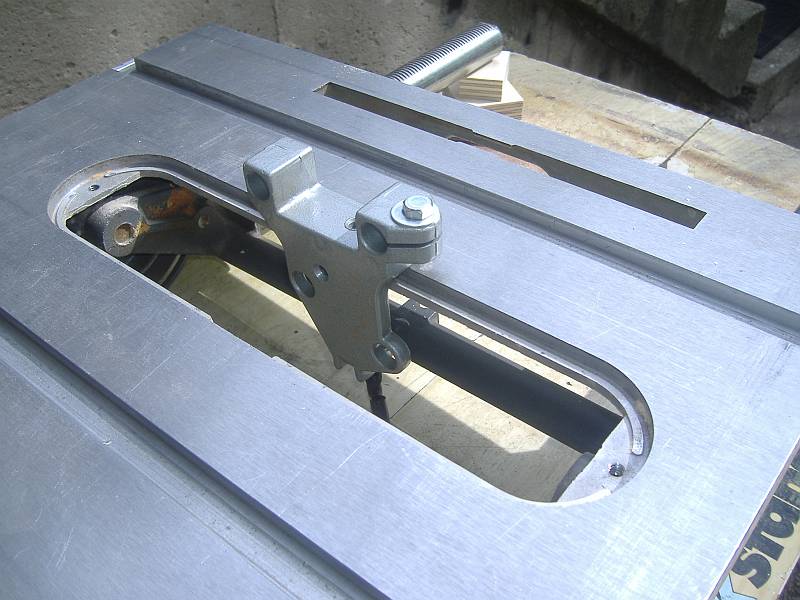

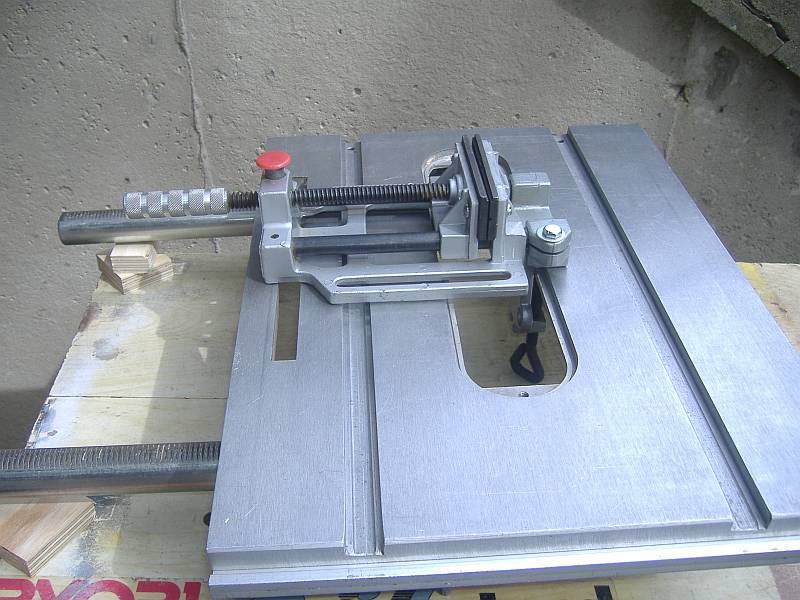

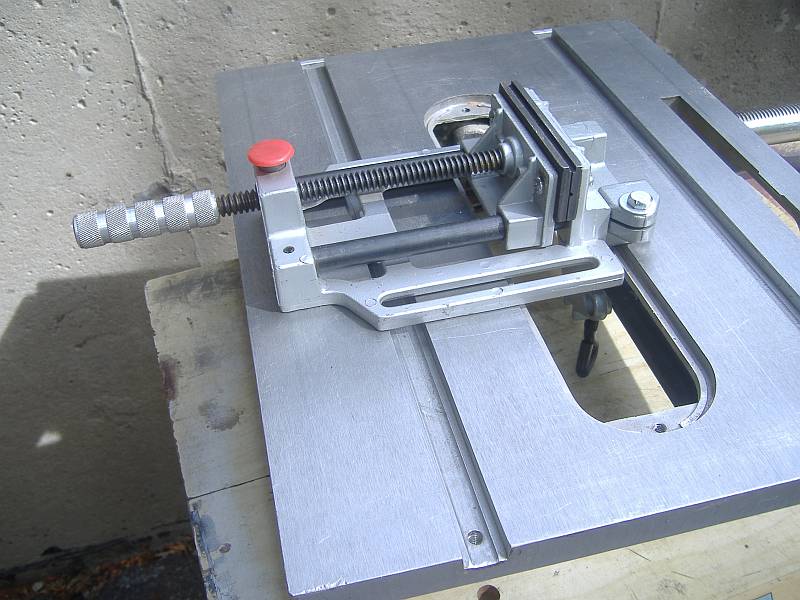

Vice/clamp can go on either side.

[ATTACH]18625[/ATTACH]

[ATTACH]18626[/ATTACH]

[ATTACH]18627[/ATTACH]

[ATTACH]18628[/ATTACH]

[ATTACH]18629[/ATTACH]

Ed

reible · Post by **reible** » Tue Oct 02, 2012 12:04 am

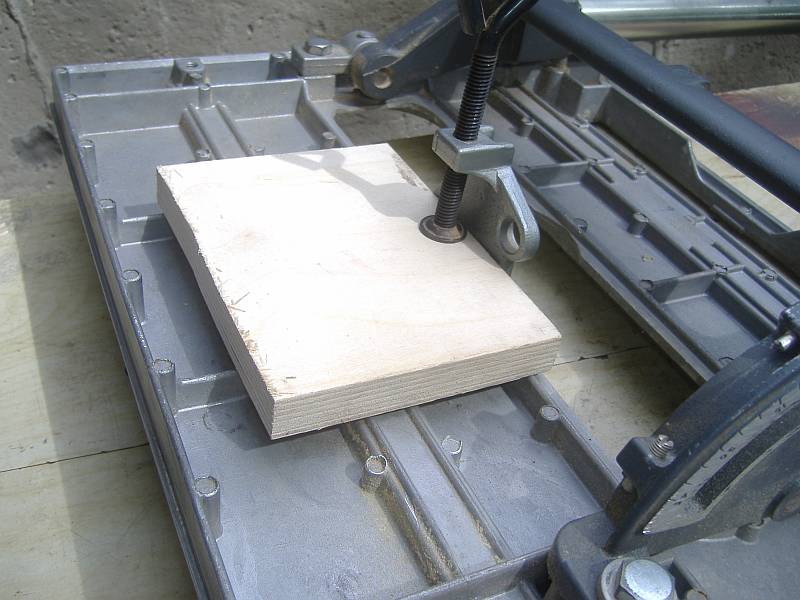

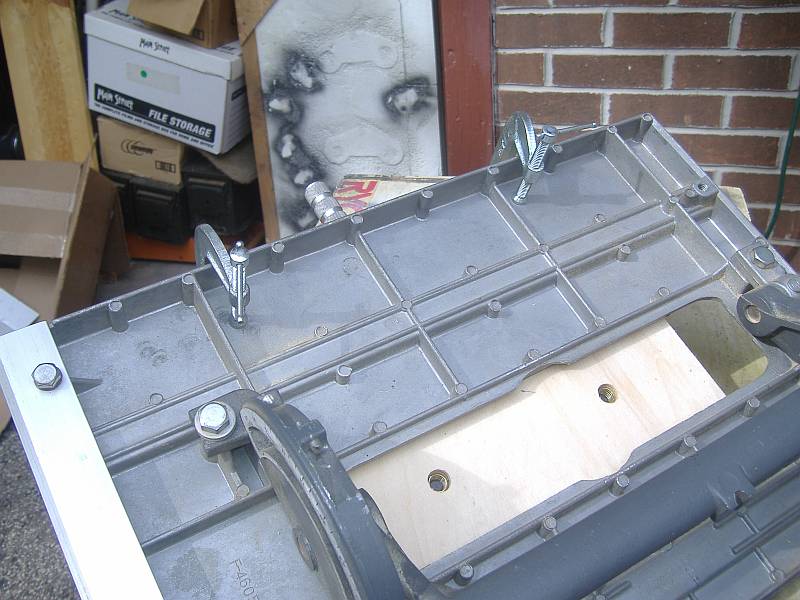

The other option is simply a piece of scrap added to the bottom of the table then clamp to that.

[ATTACH]18630[/ATTACH]

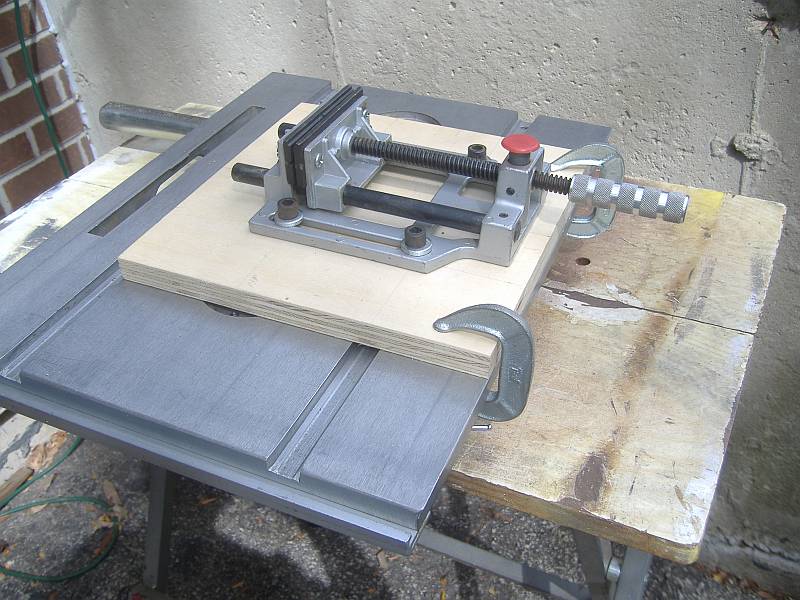

Here is another option.

[ATTACH]18631[/ATTACH]

[ATTACH]18632[/ATTACH]

[ATTACH]18633[/ATTACH]

[ATTACH]18634[/ATTACH]

Ed

reible · Post by **reible** » Tue Oct 02, 2012 12:15 am

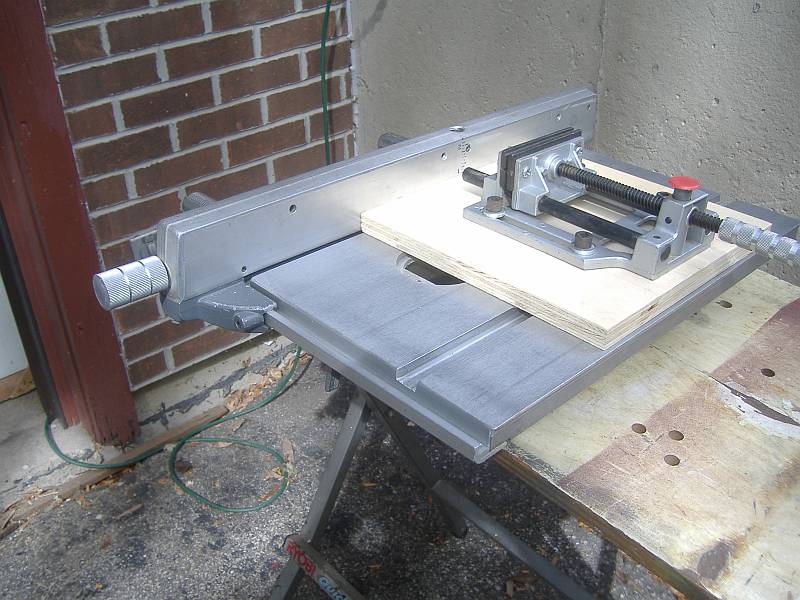

Shown below is the rip fence to control movement. You can also do this with the miter gauge or with both at the same time.

[ATTACH]18635[/ATTACH]

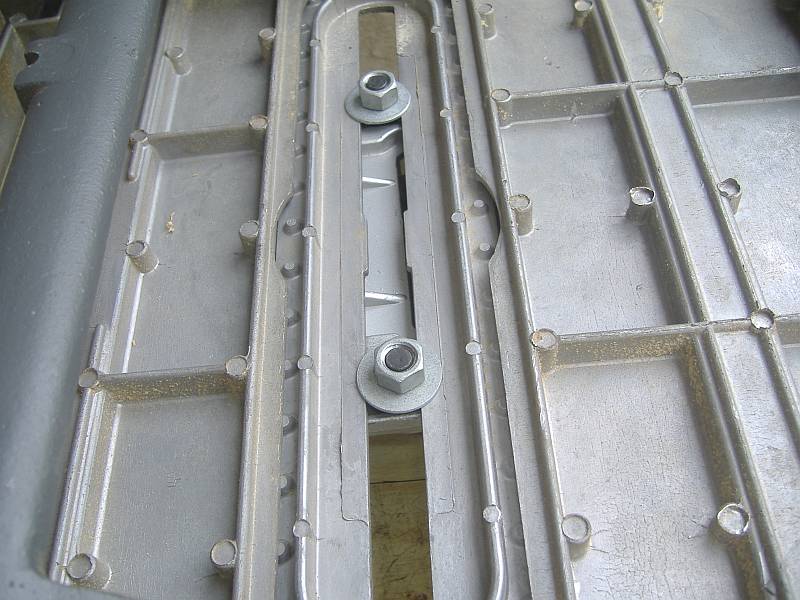

Next is a way to use the table insert to mount the vice.

[ATTACH]18636[/ATTACH]

[ATTACH]18637[/ATTACH]

I'm sure some of you are now thinking "hey I could make a special insert and use that" yes you can!

I'm thinking I could come up with another 10 ways but then I think some of you might like to go off and do that yourself, so have at it.

Ed

marcp1956 · Post by **marcp1956** » Tue Oct 02, 2012 12:41 am

Very informative, thanks!

bcone1381 · Post by **bcone1381** » Tue Oct 02, 2012 2:00 am

Tell me the product names and model numbers of the hardware you used.

Brooks

dusty · Post by **dusty** » Tue Oct 02, 2012 5:59 am

A great set of pictures that tell a very interesting and informative story. I think it shows that the vise is certainly useable on the 500 and in my opinion most suitable there.

Thank you, Ed. Again,*you rock.

*Vernacular from an age other than mine.

dusty · Post by **dusty** » Tue Oct 02, 2012 11:36 am

There are times that the t-nuts and the Shopsmith vise cannot be located right where I want it (on the drill press table).

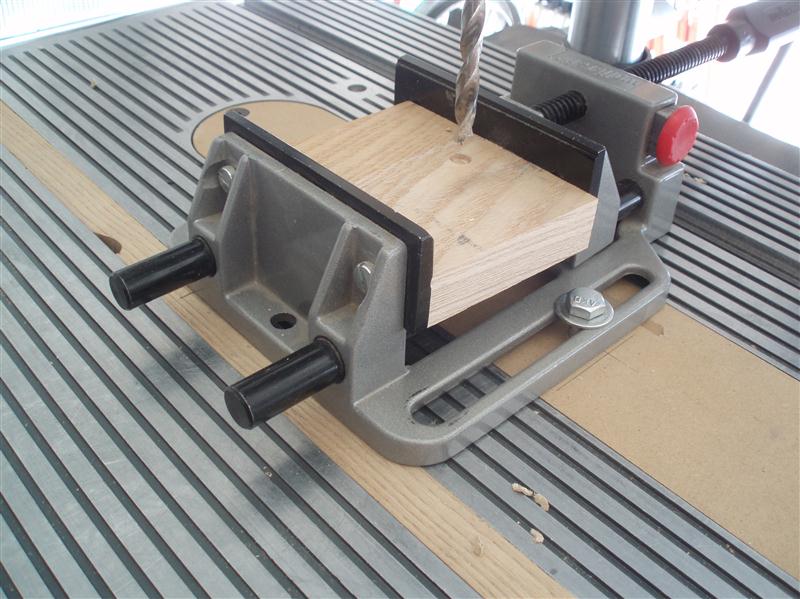

I simply drilled a couple holes in the table insert and I secure the vise using those. This is not near as elegant a solution as yours, Ed but it was the best I could come up with.

My inserts are made from 1/4" hard board and in the center section they are double thickness (1/2").

[ATTACH]18644[/ATTACH]

reible · Post by **reible** » Tue Oct 02, 2012 12:24 pm

bcone1381 wrote:Tell me the product names and model numbers of the hardware you used.

Brooks

The vice can be found here:

http://www.shopsmith.com/ownersite/cata ... onvise.htm

Ed

reible · Post by **reible** » Tue Oct 02, 2012 12:47 pm

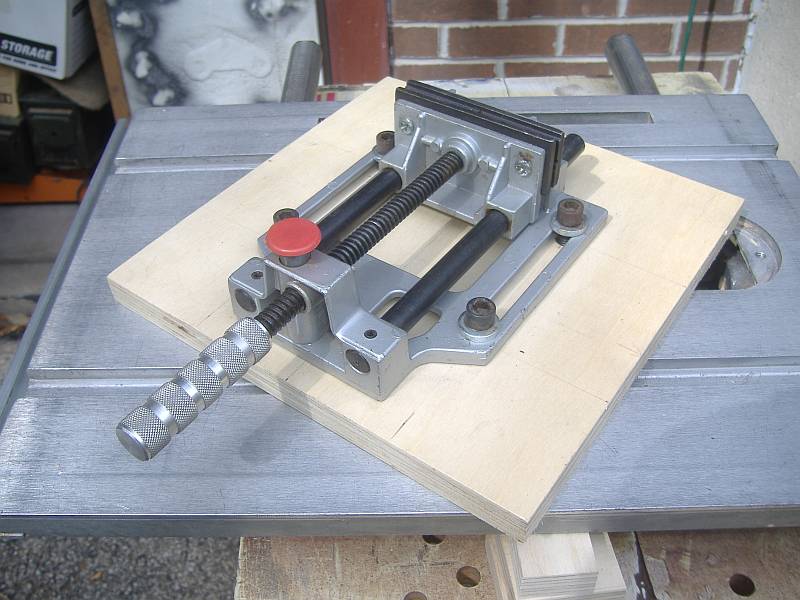

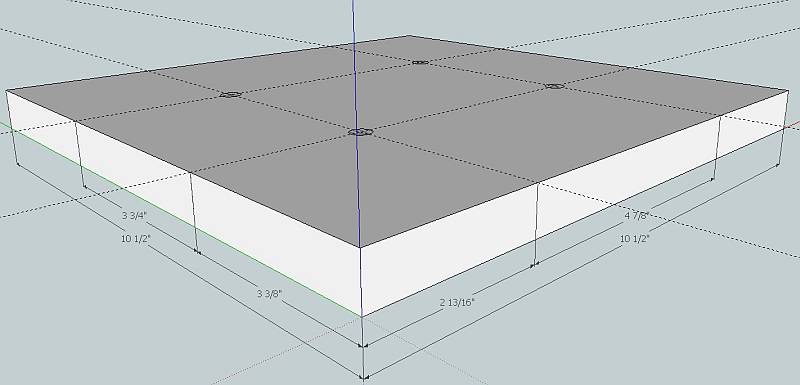

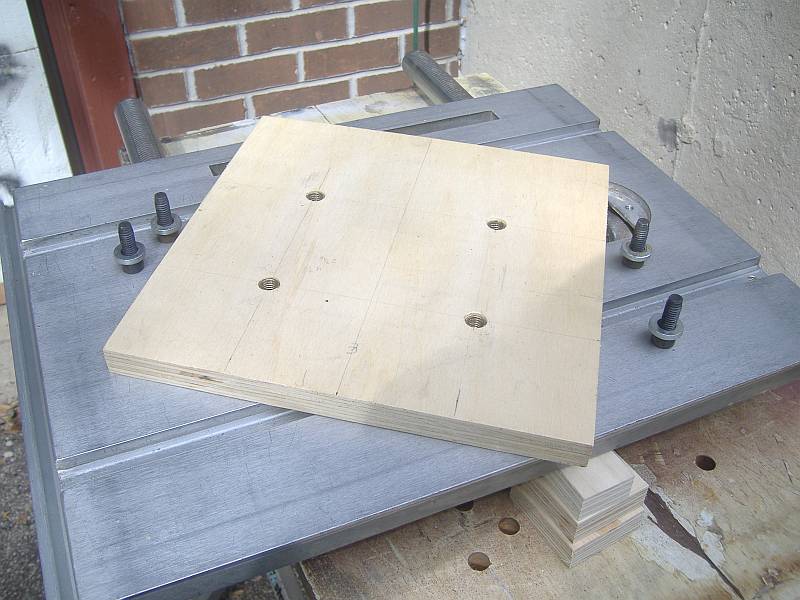

To give you an idea of the size of the vice mounting board I've shown:

[ATTACH]18645[/ATTACH]

You can go larger or smaller and while I add threaded inserts (3/8") you could use any number of other ways. I like to use plywood for this sort of thing but you can do as you wish with materials as well.
