Ripping a 22.5° bevel.
Moderator: admin
Ripping a 22.5° bevel.
I'm working on a project, a serving tray. That the sides are 5/16" thick, 2" wide and 16" long. I have to rip a 22.5° bevel on one edge. HOW wood you do this SAFELY?
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
Beeg.
Set the table to 22.5 deg. I use a Wixey cube to set the table. Then position the rip fence so that the saw blade teeth just touch edge of the piece where the teeth break through the top of the workpiece. Then rip as you normally would. The offcut will be on the upside of the blade but should be very small and will not really be a problem with kickback.
I generally rip my pieces to almost the finished width then make the bevel cut and finish by putting the top of the bevel against the fence to make the final cut when the table is returned to 90 deg.
Bill V
Set the table to 22.5 deg. I use a Wixey cube to set the table. Then position the rip fence so that the saw blade teeth just touch edge of the piece where the teeth break through the top of the workpiece. Then rip as you normally would. The offcut will be on the upside of the blade but should be very small and will not really be a problem with kickback.
I generally rip my pieces to almost the finished width then make the bevel cut and finish by putting the top of the bevel against the fence to make the final cut when the table is returned to 90 deg.
Bill V
-
dusty
- Platinum Member
- Posts: 21530
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
I can't answer your question. Need input.

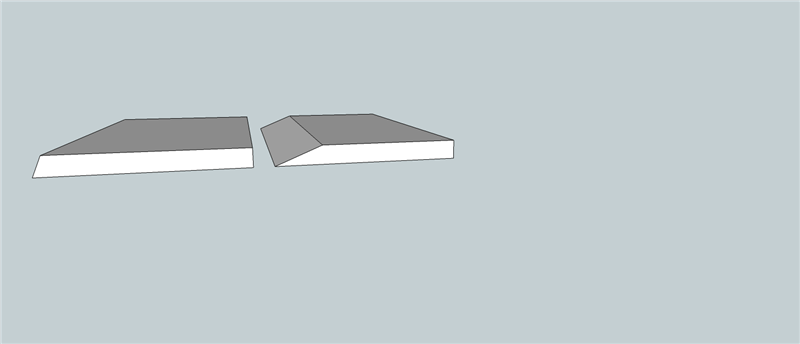

Which of the following represents what you need when done?
[ATTACH]23776[/ATTACH]
Both are cut at 22.5° depending on how you measure.
The one on the left can be done as Bill just described. I would prefer, however, to cut the bevel in an over sized board (say 3 1/2" and then rip it down to finished width.
[ATTACH]23777[/ATTACH]

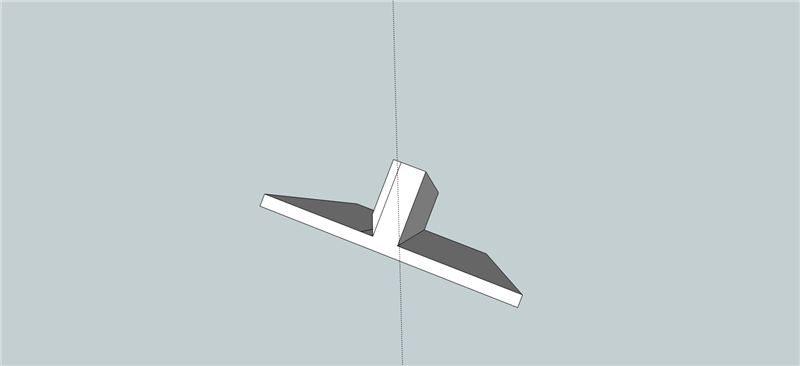

This is the way I would rip it.
Which of the following represents what you need when done?
[ATTACH]23776[/ATTACH]
Both are cut at 22.5° depending on how you measure.
The one on the left can be done as Bill just described. I would prefer, however, to cut the bevel in an over sized board (say 3 1/2" and then rip it down to finished width.
[ATTACH]23777[/ATTACH]
This is the way I would rip it.
- Attachments
-
- Beegs Bevel Cut (Custom).png (12.28 KiB) Viewed 3865 times
-
- Bevel Cut at 22.5 degrees (Custom).png (17.05 KiB) Viewed 3848 times
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
Start over again if necessary. Make a board 5/16" thick (or thicker), 4 1/2" wide, 17" long. Rip your bevel on each long (outside) edge. Now rip the center to desired width and sand or plane to proper thickness. Last thing is to cross cut to length.beeg wrote:I'm working on a project, a serving tray. That the sides are 5/16" thick, 2" wide and 16" long. I have to rip a 22.5° bevel on one edge. HOW wood you do this SAFELY?
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Chuck in Lancaster, CA
dusty wrote:Which of the following represents what you need when done?
[ATTACH]23776[/ATTACH]
It's your pic on the right or it's along the length of 16".
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
-
edflorence
- Platinum Member
- Posts: 689
- Joined: Thu Jul 20, 2006 8:14 pm
- Location: Idaho Panhandle
My experience with these bevels along the long edge is that the cut-off piece, which will be on the "uphill" side of the blade is, if wide enough, restrained by the kickback pawls and the blade guard, so kicking back of the cut-off should not be an issue, unless the cut-off is very narrow in which case it might be thrown back. In that case, you might consider ripping the bevel with the jointer.
Ed
Idaho Panhandle
Mark 5 of various vintages, Mini with reversing motor, bs, dc3300, jointer, increaser, decreaser
Idaho Panhandle
Mark 5 of various vintages, Mini with reversing motor, bs, dc3300, jointer, increaser, decreaser
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Band Saw???????????????
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
BuckeyeDennis
- Platinum Member
- Posts: 3814
- Joined: Tue Jul 24, 2012 10:03 pm
- Location: Central Ohio
IIUC, you need to make the acute bevel cut, as per Dusty's second illustration. In which case:
If using the table saw with a sacrificial fence, it seems to me that you would need some sort of guide for the top (square) edge of the board. I say this because, as you near the end of the cut, you would have cut away most of your support on the edge against the main table. How you would reliably hold the board against that top-side guide, I don't know.
Instead of ripping on the table saw, how about making a rough bevel cut with the bandsaw, or just rip it to 45 degrees on the table saw to remove most of the waste? Then finish the bevel with the SS in vertical mode, using a rotary planer (e.g. a Wagner Safe-T-Planer). It adds an extra step to the process, but it can be done safely and accurately.
You might be able to use a conical sanding disc instead of a rotary planer, but I'm not sure if you could get the required clearances. Or you could probably find a panel-raising router bit that would work.
EDIT: Aha! I just realized that Dusty proposed a table-saw setup that does not actually cut away the acute edge of the bevel. In which case, my concern about cutting away all of your bottom-side support is unfounded.
If using the table saw with a sacrificial fence, it seems to me that you would need some sort of guide for the top (square) edge of the board. I say this because, as you near the end of the cut, you would have cut away most of your support on the edge against the main table. How you would reliably hold the board against that top-side guide, I don't know.
Instead of ripping on the table saw, how about making a rough bevel cut with the bandsaw, or just rip it to 45 degrees on the table saw to remove most of the waste? Then finish the bevel with the SS in vertical mode, using a rotary planer (e.g. a Wagner Safe-T-Planer). It adds an extra step to the process, but it can be done safely and accurately.
You might be able to use a conical sanding disc instead of a rotary planer, but I'm not sure if you could get the required clearances. Or you could probably find a panel-raising router bit that would work.
EDIT: Aha! I just realized that Dusty proposed a table-saw setup that does not actually cut away the acute edge of the bevel. In which case, my concern about cutting away all of your bottom-side support is unfounded.
