Miter Gauge Parts

davemcghee · Post by **davemcghee** » Sat Mar 28, 2015 11:35 am

I noticed that my miter gauge has a bent or broken part. The pin that you push to set at 90° and 45° stops is bent or broken and cannot be pushed in or out without tremendous force. I know this should be easier. Is there a replacement part for this or does someone have an extra part I can buy from them that works?

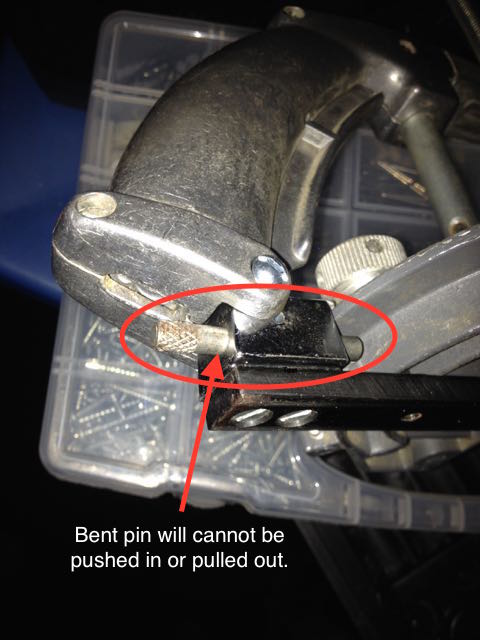

: IMG_2752.jpg (50.65 KiB) Viewed 5264 times

Gene Howe · Post by **Gene Howe** » Sat Mar 28, 2015 2:19 pm

You'll have to remove it to replace it. I'd try straightening it once I got it out.

Mike907 · Post by **Mike907** » Sat Mar 28, 2015 2:55 pm

Looks like it not available separately, part 276A, but is available in the block, part 276.

http://www.shopsmith.com/service/mark/m ... s_list.htm

Mike

JPG · Post by **JPG** » Sat Mar 28, 2015 2:57 pm

Gene Howe wrote:You'll have to remove it to replace it. I'd try straightening it once I got it out.

Me Too. BTDT

There are two versions. The older version is bigger.

IIRC it is the same as the table tilt stop pin.

rjent · Post by **rjent** » Sun Mar 29, 2015 12:18 am

Absolutely try to straighten it out. The one that came with the 500 was bent as well. It works perfect now. I had to do a lot of "repair" on the miter to get it to work, but it is fine now ... FWIW

BuckeyeDennis · Post by **BuckeyeDennis** » Sun Mar 29, 2015 10:14 am

+1 on having successfully straightening one.
