Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 3:17 pm
by SaturnMarkV
This tool came with my Shopsmith.
It doesn't look to me like a lathe chisel.
Is it a mortising chisel?
If so, how are they sharpened?
The handle is a bit loose. How can it be tightened?
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 4:10 pm
by reible
Yes that is a Marples mortising chisel. I have a more modern version with plastic handles. The width of the chisel is its size, ie 1/2" or 3/8" etc. They are often a set so check for at least 2 or 3 more of them.
The angle should be maintained and because of its thickness you will either have to hone by hand or purchase a special part for a honing tool. For the most part it is just honing needed with rare grinding needed.
Here are a couple of pictures of mine:

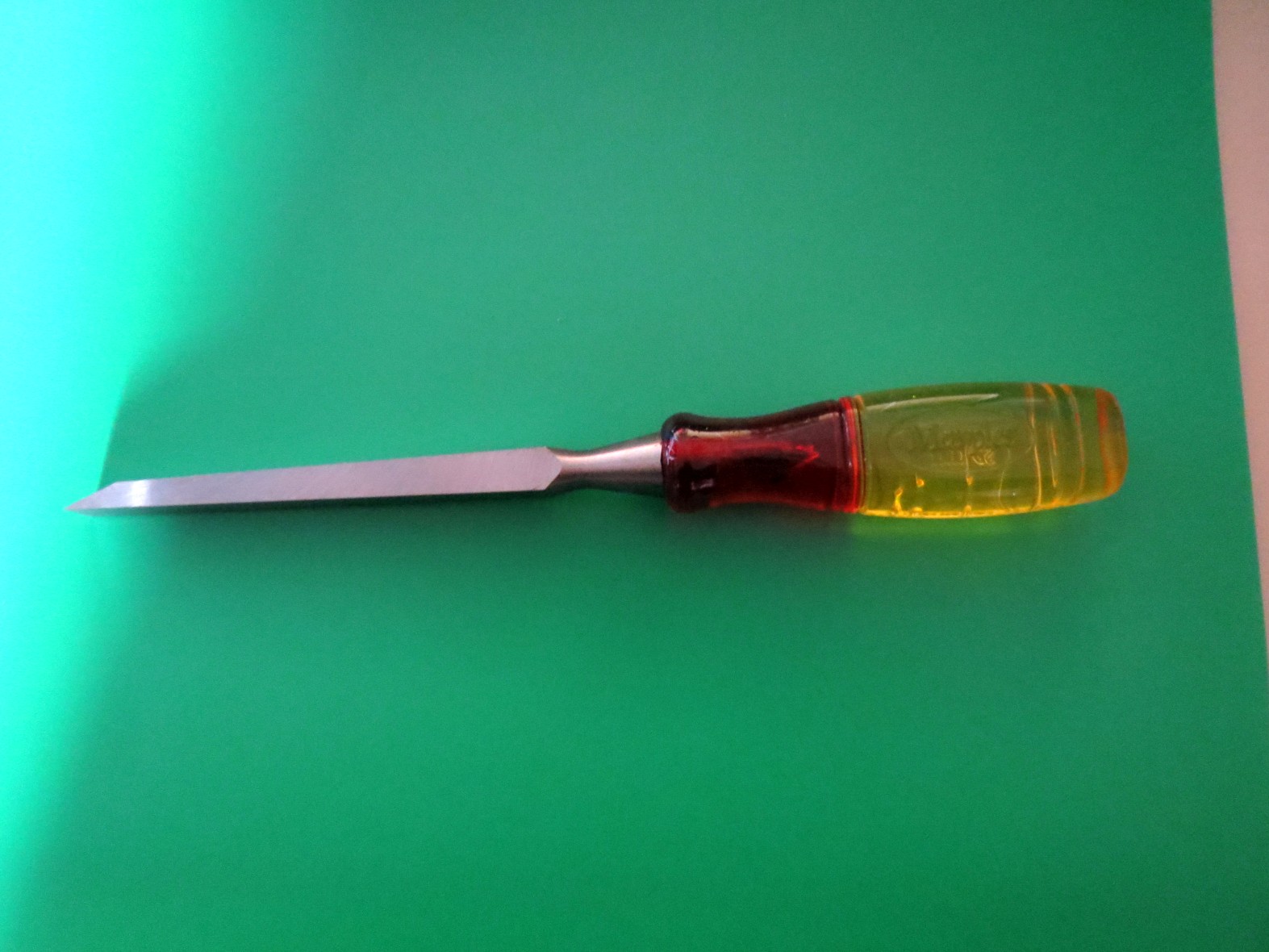

- IMG_3684sc.jpg (282.41 KiB) Viewed 9812 times

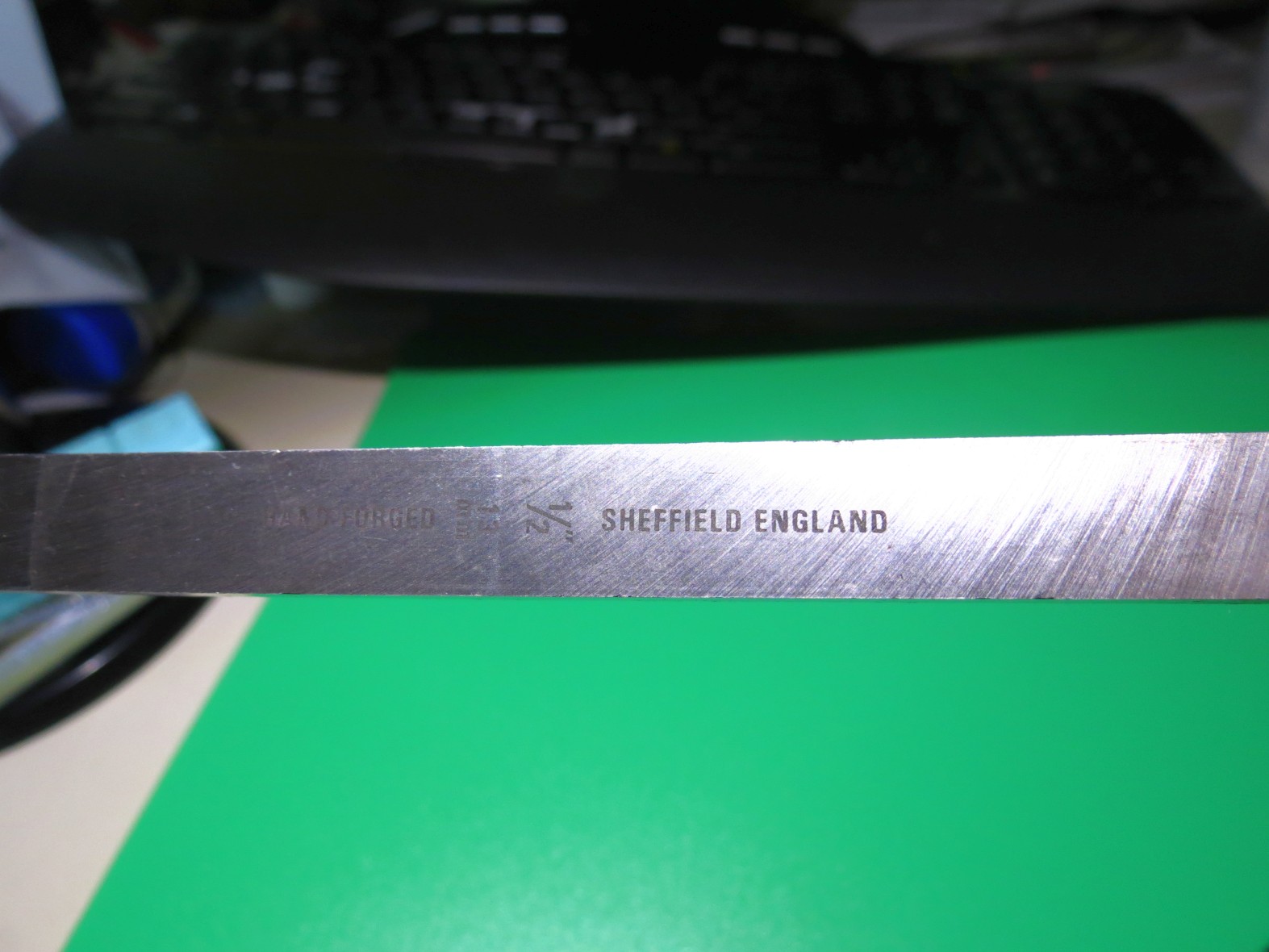

- IMG_3686sc.jpg (221.27 KiB) Viewed 9812 times
Ed
SaturnMarkV wrote:This tool came with my Shopsmith.
It doesn't look to me like a lathe chisel.
Is it a mortising chisel?
If so, how are they sharpened?
The handle is a bit loose. How can it be tightened?
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 4:18 pm
by SaturnMarkV
Thanks so much! I had wanted one for a while, so it's a nice surprise. I love old tools, too!
Thanks for the pics of yours! Sexy!
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 5:43 pm
by Hobbyman2
SaturnMarkV wrote:This tool came with my Shopsmith.
It doesn't look to me like a lathe chisel.
Is it a mortising chisel?
If so, how are they sharpened?
The handle is a bit loose. How can it be tightened?
==========================================
Does it come apart at the top of the handle ?
If so you might get away for a while by taking it apart and using 2 part epoxy .
Or you can make a new one

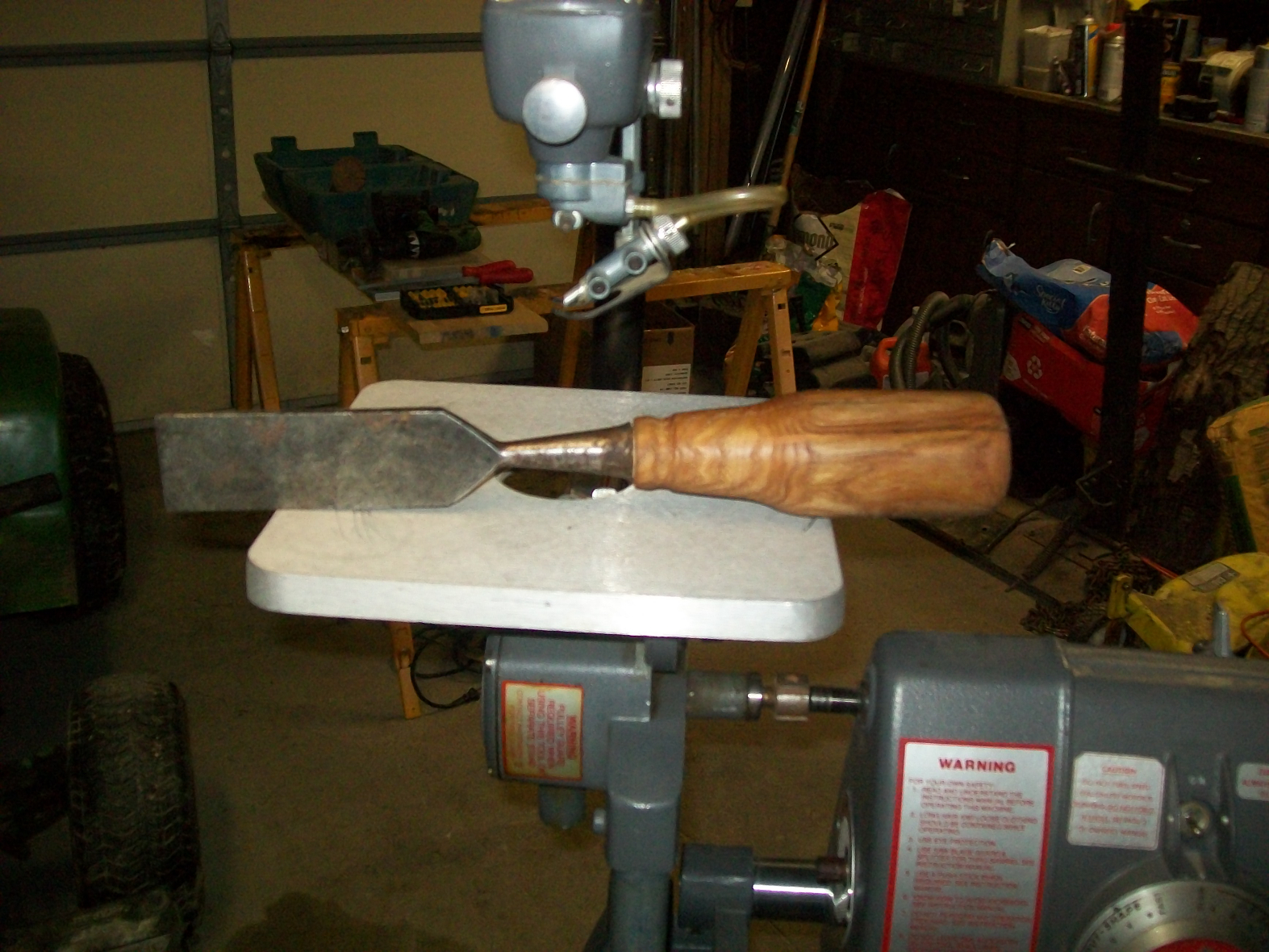

- 100_1178.JPG (1.68 MiB) Viewed 9794 times
This one was passed down ,,, didn't have a handle. .
Pretty sure ,,like yours ,,,it would have been used in timber framing.
Hobbyman2
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 5:52 pm
by JPG
Interesting jig saw/headstock power coupling!
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 6:07 pm
by Hobbyman2
they are just bumped together , not connected .
Hobbyman2
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 6:08 pm
by Hobbyman2
Hobbyman2 wrote:can you tell witch one doesn't have the coupler head ?
Hobbyman2
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 6:10 pm
by jsburger
JPG wrote:Interesting jig saw/headstock power coupling!
I don't think they are coupled. The splined hub is not installed on the head stock quill shaft and it is just close to the jig saw shaft.
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 6:11 pm
by Hobbyman2
jsburger wrote:JPG wrote:Interesting jig saw/headstock power coupling!
I don't think they are coupled. The splined hub is not installed on the head stock quill shaft and it is just close to the jig saw shaft.
=======
You get a A for today!!
Hobbyman2
Re: Is this a Mortising Chisel?
Posted: Sat Feb 25, 2017 6:13 pm
by JPG
How come the hub is so far out on the shaft?
