What is this tool for?
Posted: Sun May 11, 2025 12:53 am
by Cheechako
New Forum User here....
I found this adapter in the parts I acquired when I purchased a used ShopSmith Mark V 510.
Does anyone know what this tool is for?
It clearly fits on the 5/8 spindle shaft but what is it for?
TIA

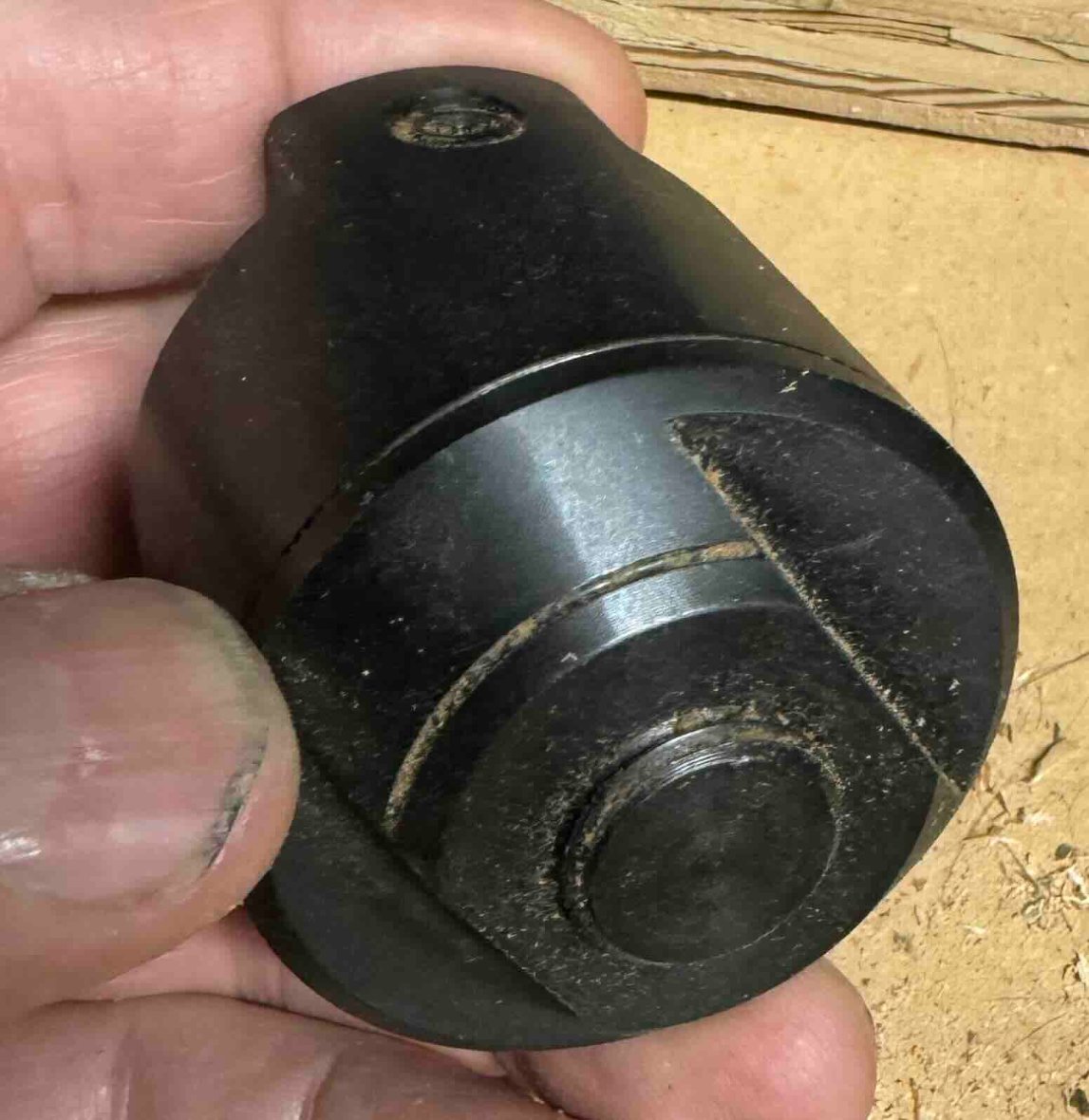

- UnknownTool.jpg (174.95 KiB) Viewed 156004 times
Re: What is this tool for?
Posted: Sun May 11, 2025 3:35 am
by JPG
5/8" saw arbor.
Re: What is this tool for?
Posted: Sun May 11, 2025 11:26 am
by chapmanruss
Cheechako,
Welcome to the Shopsmith Forum.
As JPG said it a 5/8" Saw Blade Arbor. It allows you to use Saw Blades from other manufacturers that have a 5/8" Arbor hole as opposed to the 1-1/4" Arbor Shopsmith Saw Blades. It is one of many Arbors that have been available over the years to use on the Shopsmith tools. The pictures below show the different Arbors and yours is the one on the lower right in the first picture.
_

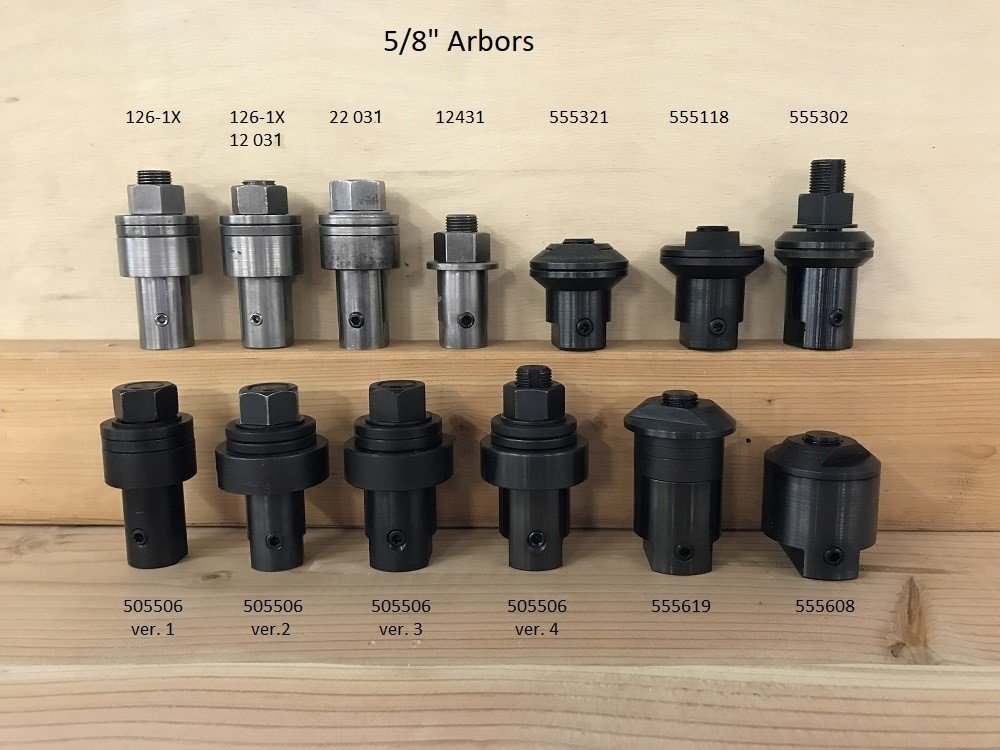

- Arbors page 1 - labeled.jpg (150.85 KiB) Viewed 155777 times
.

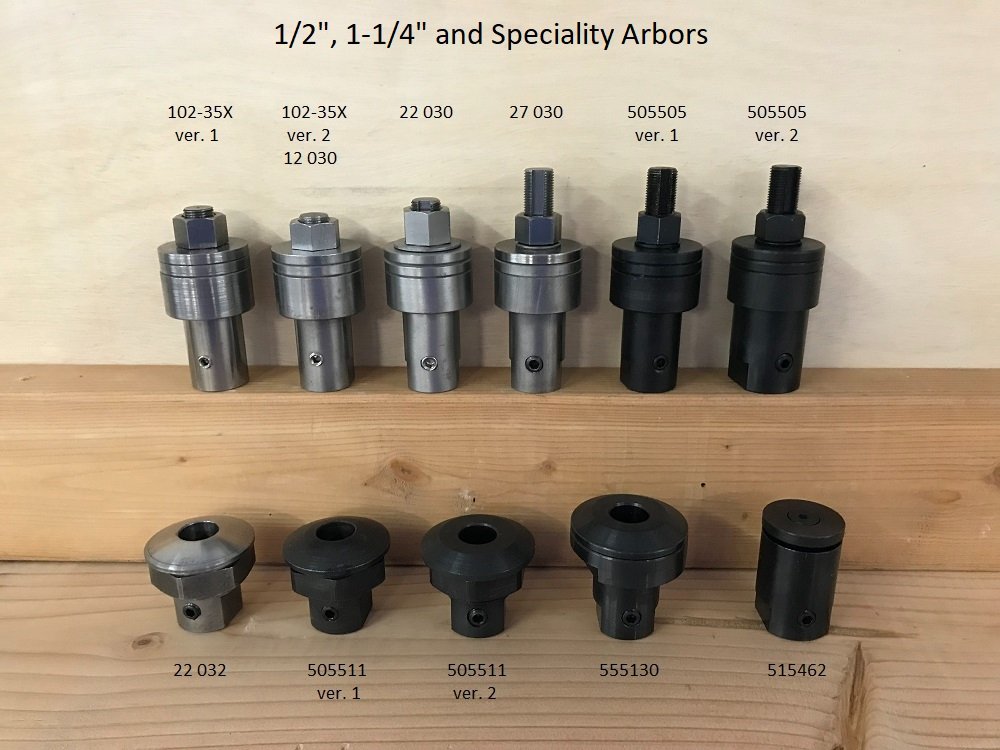

- Arbors page 2 - labeled.jpg (108.45 KiB) Viewed 155777 times
.
There are other Spindles (Shaping) and Chucks (Router, Drill) available for the Shopsmith tools.
Re: What is this tool for?
Posted: Tue May 13, 2025 12:10 am
by Cheechako
Thanks. I had no idea this was a saw arbor. That also explains why there is a this big honkin' wrench in the parts box.
Appreciate the guidance. Thanks again.

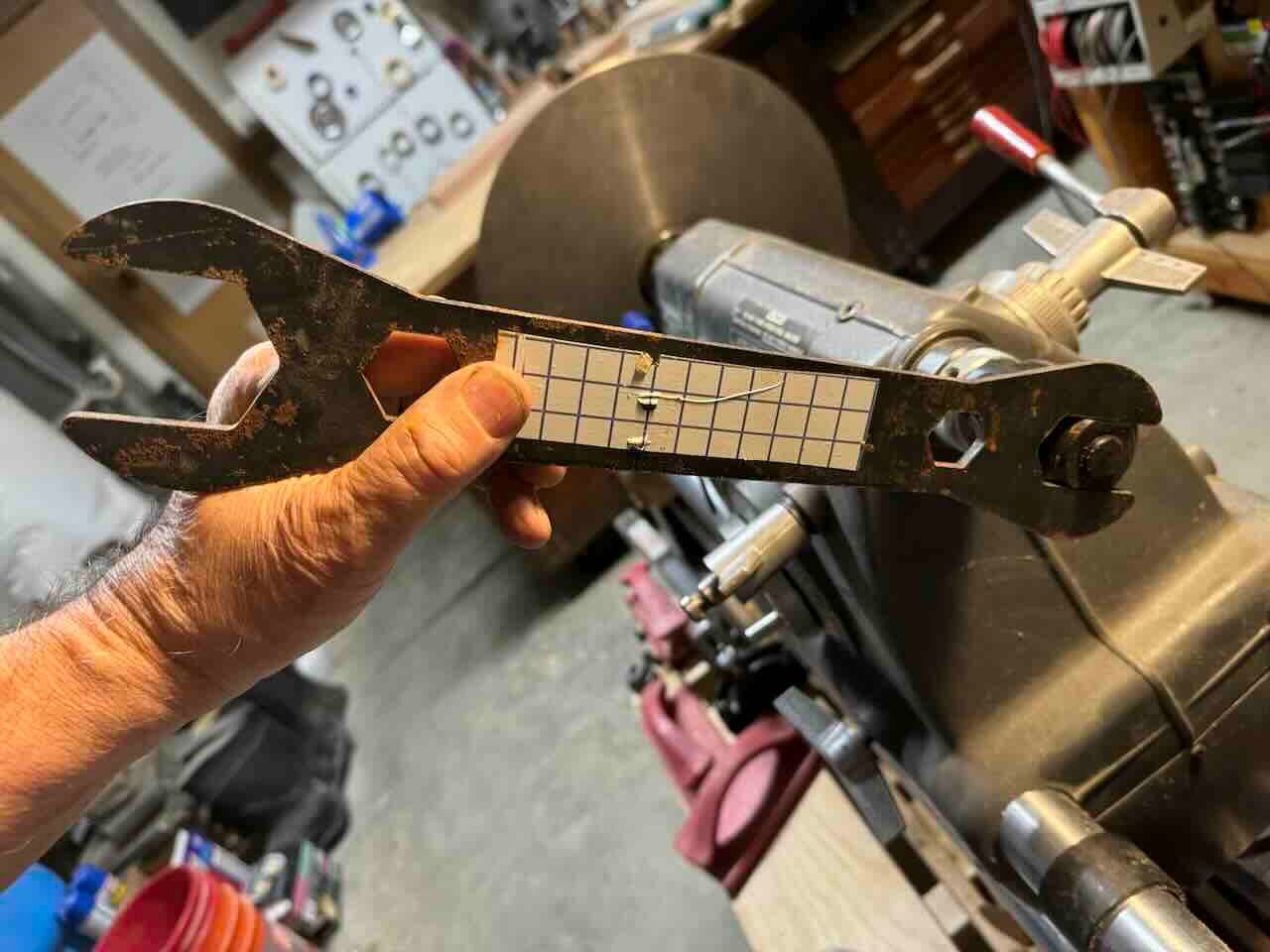

- HonkingWrench.jpg (100.04 KiB) Viewed 152907 times
Re: What is this tool for?
Posted: Tue May 13, 2025 1:11 pm
by JPG
THAT is definitely NOT SS oem.
Oh yes it is! see below
Re: What is this tool for?
Posted: Tue May 13, 2025 4:43 pm
by BuckeyeDennis
JPG wrote: Tue May 13, 2025 1:11 pm
THAT is definitely NOT SS oem.
No? I bought my circa 2005 520 used, but one of those was included with the accessories.

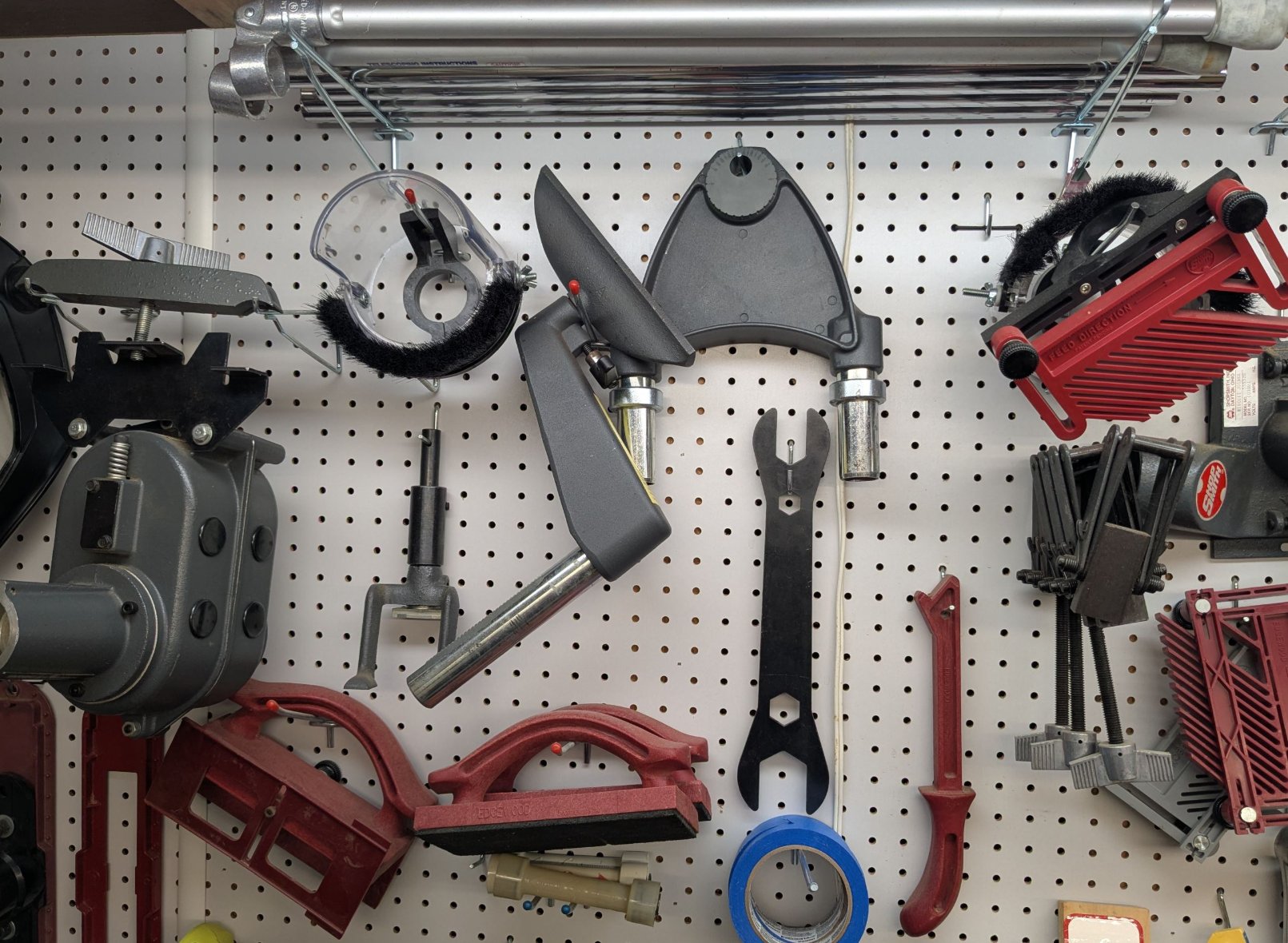

- Capture.JPG (351.28 KiB) Viewed 151714 times
Re: What is this tool for?
Posted: Tue May 13, 2025 4:59 pm
by DLB
If you search for "Arbor Wrench" on the improved SS website you get 59 matching products. But they do include that one on the second page:
https://www.shopsmith.com/product-page/universal-wrench
I'm reminded of searching on Amazon. The more specific I am, the worse the results.
- David
It ain't about Amazon. It is about the idiots that think they know a better way than ONLY looking for what you explicitly specify.
Try searching for a 7/16-20 tap. Ya get everything except.
Oh and that top of the page crap that somebody paid to get in the way of a straight answer.
Re: What is this tool for?
Posted: Tue May 13, 2025 6:22 pm
by RFGuy
Yeah, that is exactly what my SS arbor wrenches look like. One I got new from SS when I bought my 510 and I bought a 2nd one a few years ago. I prefer wrangling with saw arbors off the Mark V so a 2nd wrench is A LOT easier for me. Both look identical even though it had been a couple decades since I bought my 510.
Re: What is this tool for?
Posted: Tue May 13, 2025 6:43 pm
by JPG
Ahhh the foibles of buying stuff too long ago! Obviously I stand corrected!
Re: What is this tool for?
Posted: Tue May 13, 2025 6:52 pm
by RFGuy
JPG wrote: Tue May 13, 2025 6:43 pm
Ahhh the foibles of buying stuff too long ago! Obviously I stand corrected!
JPG,
No worries. Do you have a different looking arbor wrench that you got from SS? Just curious if the origin of these changed over time.
