Can a 12" Planer w/o feed motor be converted to manual feed?

everettdavis

Those both are valid motors.

Everett

Two of the Planer Feed Motors.jpg

JPG

jsburger wrote
JPG wroteI tempted fate!

1/4 x 5/16 x 1/2 Measured 0.246 x 0.309 x 0.477

Brush retaining cap appears to be 1/2 - 32 thread(about 3 threads).

I did NOT pull the brush holder from the motor.

I do not know anything re vintage nor any history as it was an E-bay purchase.

The part # on the tag is VO3537AA80.

Mine is V03537AD80

Did you make a typo? If not I will pull one and measure.

No typo.

However, I believe mine is from a SS mount planer in spite of it being black. History unknown(an e-bay purchase).

Additional info on the tag:

\gear ratio 29:1

Motor rpm 3300(at 90vdc I assume).

1/20 HP

90V .5A

Well Everett posted before I completed this post.

He posted a pix of MY motor tag!!! :cool: :D

JPG

I think the different gear head ratio illustrates the difference between the SS mount and the proplaner motor. Different speed range obtained.

jsburger

JPG wrote
jsburger wrote
JPG wrote
I tempted fate!

1/4 x 5/16 x 1/2 Measured 0.246 x 0.309 x 0.477

Brush retaining cap appears to be 1/2 - 32 thread(about 3 threads).

I did NOT pull the brush holder from the motor.

I do not know anything re vintage nor any history as it was an E-bay purchase.

The part # on the tag is VO3537AA80.

Mine is V03537AD80

Did you make a typo? If not I will pull one and measure.

No typo.

However, I believe mine is from a SS mount planer in spite of it being black. History unknown(an e-bay purchase).

Additional info on the tag:

\gear ratio 29:1

Motor rpm 3300(at 90vdc I assume).

1/20 HP

90V .5A

Well Everett posted before I completed this post.

He posted a pix of MY motor tag!!! :cool: 😃

The other one is mine. At least it is the same serial number. So I will pull a brush and see if it is the same size as yours.

everettdavis

Here is a 3rd model V03537AC80

Everett

Planer Motor V03537AC80.JPG

Skizzity

And the B

jsburger

So it looks like the A and B models are the early SS mounted and Pro planer motors and the C and D models are the later models for the same planers.

The 29:1 ratio is the SS mount planer and the 18.48:1 is the Pro planer.

everettdavis

jsburger wrote
So it looks like the A and B models are the early SS mounted and Pro planer motors and the C and D models are the later models for the same planers.

The 29:1 ratio is the SS mount planer and the 18.48:1 is the Pro planer.

That sounds right to me as well.

V03537AA80 .5 A 1/20HP 90 VDC 29:1 RATIO 3300 RPM

V03537AB80 .5 A 1/20HP 115 VDC 18.48:1 RATIO 3300 RPM

V03537AC80 .5 A 1/20HP 115 VDC 29:1 RATIO 3300 RPM

V03537AD80 .5 A 1/20HP 115 VDC 18.48:1 RATIO 3300 RPM

There may be more motor model designators than these as Shopsmith sourced the motor(s) from multiple vendors. I am still searching for Brushes, Brush Holders and Caps that are in different vintages of DC Motors that we might could use to repair motors that simply have worn brushes.

I am not holding my breath, but someone, somewhere with a background in these types of motors may have the exact answer we need and clue us in. The labels are Shopsmith labels put on the motors likey by the vendors opposed to their own model numbers and OEM Manufacturer Name. If we knew those, we would know what parts to seek.

No one including Shopsmith would have had a complete motor series manufactured just for them due to the expense. Reduction gear variances were offered by many motor vendors in the day and Shopsmith could have selected an option there.

Everett

Here is another site that has brush holders etc. If someone near them in Whittier, Ca. cares to pick this up and take it forward by carrying in a sample or two.

http://store.eurtonelectric.com/brushholders.aspx

UPDATE:

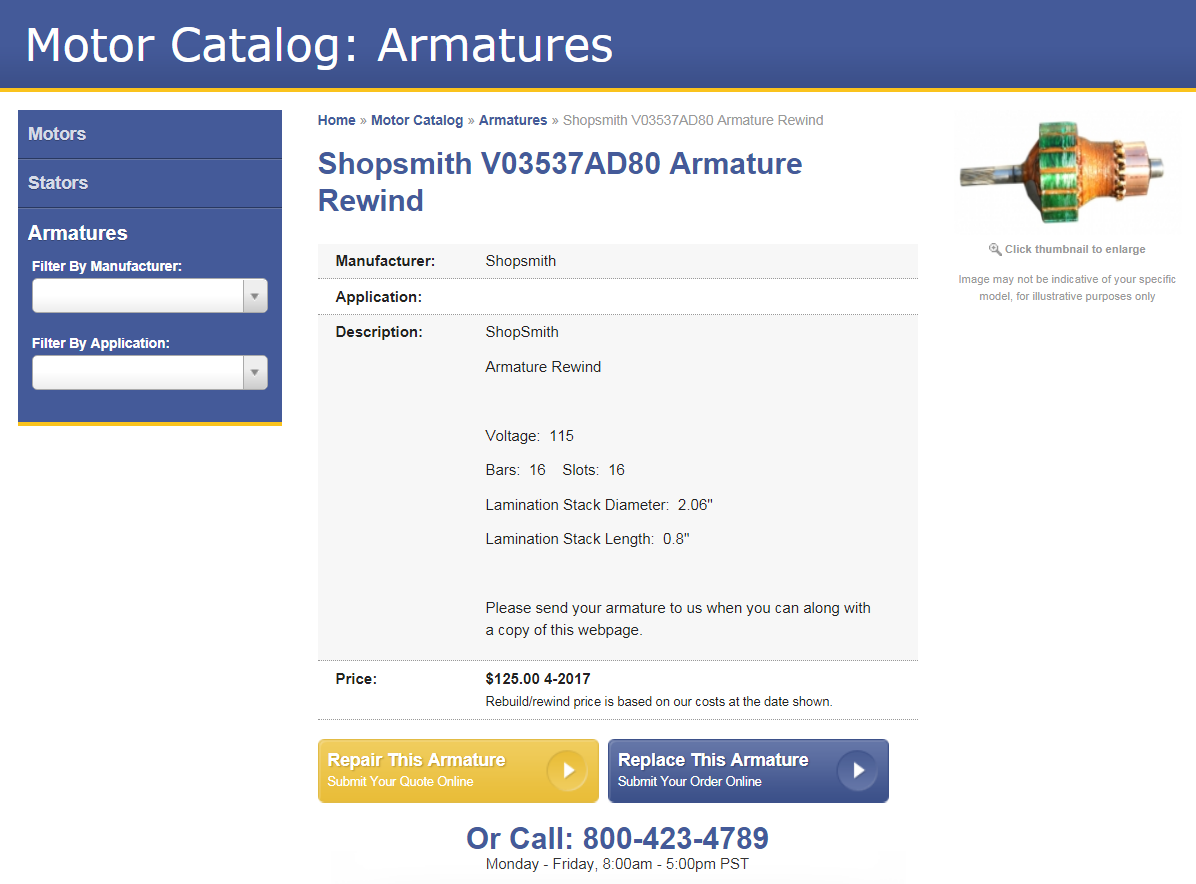

Didn't realize this was there until today! Shopsmith V03537AD80 Armature Rewind $125.00

http://eurtonelectric.com/catalog/armatures/shopsmith_v03537ad80_armature_rewind

If they can rewind the armature, then these motors are serviceable. I would bet they can match the brushes, brush holders, and caps too.

This could be a game changer....

Everett

Armature Rebuild for V03537AD80 125.00.png

jsburger

everettdavis wrote
jsburger wroteSo it looks like the A and B models are the early SS mounted and Pro planer motors and the C and D models are the later models for the same planers.

The 29:1 ratio is the SS mount planer and the 18.48:1 is the Pro planer.
That sounds right to me as well.

V03537AA80 .5 A 1/20HP 90 VDC 29:1 RATIO 3300 RPM

V03537AB80 .5 A 1/20HP 115 VDC 18.48:1 RATIO 3300 RPM

V03537AC80 .5 A 1/20HP 115 VDC 29:1 RATIO 3300 RPM

V03537AD80 .5 A 1/20HP 115 VDC 18.48:1 RATIO 3300 RPM

There may be more motor model designators than these as Shopsmith sourced the motor(s) from multiple vendors. I am still searching for Brushes, Brush Holders and Caps that are in different vintages of DC Motors that we might could use to repair motors that simply have worn brushes.

I am not holding my breath, but someone, somewhere with a background in these types of motors may have the exact answer we need and clue us in. The labels are Shopsmith labels put on the motors likey by the vendors opposed to their own model numbers and OEM Manufacturer Name. If we knew those, we would know what parts to seek.

No one including Shopsmith would have had a complete motor series manufactured just for them due to the expense. Reduction gear variances were offered by many motor vendors in the day and Shopsmith could have selected an option there.

Everett

Here is another site that has brush holders etc. If someone near them in Whittier, Ca. cares to pick this up and take it forward by carrying in a sample or two.

http://store.eurtonelectric.com/brushholders.aspx

UPDATE:

Didn't realize this was there until today! Shopsmith V03537AD80 Armature Rewind $125.00

http://eurtonelectric.com/catalog/armatures/shopsmith_v03537ad80_armature_rewind

If they can rewind the armature, then these motors are serviceable. I would bet they can match the brushes, brush holders, and caps too.

This could be a game changer....

Everett

Armature Rebuild for V03537AD80 125.00.png

I called Eurton Electric and talked to Heather. She was most helpful. She totally agreed with my premis that the brushes etc. are probably not unique although she did say some manufactures do use "oddball/non-standard" sizes.

She said you search for brushes by size not motor manufacturer. She said measure the brush and give them a call. They probably have them in stock and if not they can have them made if they are truly unique.

Here is the brush from JPG's A model motor.

http://store.eurtonelectric.com/25x31x61brush1403-2.aspx

Yes it is a little longer but a new brush should be longer. The only other variable is the cap on the end of the spring. That has to be matched since there are various shapes.

I asked the obvious question, "Who made the motor and do you have the prints?". No prints, they reverse engineer almost everything. The manufacturer is probably a VonWeeise or a Chinese knock off was the answer. Well, not Chinese from what we know about SS back then.

Here is the VonWeise web site.

http://www.vonweise.com/index.htm

They are in Eaton Rapids, MI. Notice the similarity of the part numbers on the web site to the SS motor part numbers.

VonWeise may not answer any questions due to a proprietary relationship between them and SS but it is worth asking.

everettdavis

I am working in the next two weeks to get some things rearranged in my shop and storage areas. This is enabled now as I retire next Friday after 28.8 years.

I have one Shopsmith Mounted Planer (New Old Stock).

It still has most of the white adhesive backed protector on the bed surface, which means both it, and the feed motor is unused beyond any factory testing when manufactured.

If I find time, I will take the feed motor off, remove and measure the new (at least never used) brushes, disassemble the end cap and show what is necessary to disconnect and remove the brush holders. I will measure those as well.

I also have a Pro Planer which will have a different feed motor. I will consider doing that one too. This would get 2 of the 4 known types.

Everett

jsburger

everettdavis wroteI am working in the next two weeks to get some things rearranged in my shop and storage areas. This is enabled now as I retire next Friday after 28.8 years.

I have one Shopsmith Mounted Planer (New Old Stock).

It still has most of the white adhesive backed protector on the bed surface, which means both it, and the feed motor is unused beyond any factory testing when manufactured.

If I find time, I will take the feed motor off, remove and measure the new (at least never used) brushes, disassemble the end cap and show what is necessary to disconnect and remove the brush holders. I will measure those as well.

I also have a Pro Planer which will have a different feed motor. I will consider doing that one too. This would get 2 of the 4 known types.

Everett

Given that all the feed motors were probably made by VonWeise I would expect the brushes and components to be the same. However, an actual measurement will prove that.

Skizzity

One of my B brushes....

BuckeyeDennis

If you drill down to replacement brushes on the VonWeise website, one of them is explicitly identifies as fitting the V03537AC80 and V03537AD80 motors. The dimensions match as well.

http://estore.vonweise.com/v00212aoajbrushkitcontains6k05618-005brushes-1-2-2-1.aspx

Not cheap, though.

JPG

BuckeyeDennis wroteIf you drill down to replacement brushes on the VonWeise website, one of them is explicitly identifies as fitting the V03537AC80 and V03537AD80 motors. The dimensions match as well.

http://estore.vonweise.com/v00212aoajbrushkitcontains6k05618-005brushes-1-2-2-1.aspx

Not cheap, though.

Excellent!!!

Now about the brush holder? ;)

BuckeyeDennis

JPG wrote
BuckeyeDennis wroteIf you drill down to replacement brushes on the VonWeise website, one of them is explicitly identifies as fitting the V03537AC80 and V03537AD80 motors. The dimensions match as well.

http://estore.vonweise.com/v00212aoajbrushkitcontains6k05618-005brushes-1-2-2-1.aspx

Not cheap, though.
Excellent!!!

Now about the brush holder? ;)

I didn’t see any other applicable parts on the website — figure that’s a “call and ask” thing. But I was idly curious if they might still sell the entire motors. However, given what the charge for the brushes, the Mothership’s price for a replacement motor might look pretty darned good.

Speaking of brushes, do you see any reason that one could’t buy a cheap generic brush in a larger size, and machine it down to fit?

For that matter, the Helwig brush below might fit without modification, aside from possibly cutting off the spring and lead wire. From playing with the brush-selection filters, I believe that it has a 0.5” concave radius (for the commutator) ... not sure what the motor actually needs.

https://www.helwigcarbon.com/catalog/carbon-brush/403

JPG

BuckeyeDennis wrote
JPG wrote
BuckeyeDennis wroteIf you drill down to replacement brushes on the VonWeise website, one of them is explicitly identifies as fitting the V03537AC80 and V03537AD80 motors. The dimensions match as well.

http://estore.vonweise.com/v00212aoajbrushkitcontains6k05618-005brushes-1-2-2-1.aspx

Not cheap, though.
Excellent!!!

Now about the brush holder? ;)
I didn’t see any other applicable parts on the website — figure that’s a “call and ask” thing. But I was idly curious if they might still sell the entire motors. However, given what the charge for the brushes, the Mothership’s price for a replacement motor might look pretty darned good.

Speaking of brushes, do you see any reason that one could’t buy a cheap generic brush in a larger size, and machine it down to fit?

For that matter, the Helwig brush below might fit without modification, aside from possibly cutting off the spring and lead wire. From playing with the brush-selection filters, I believe that it has a 0.5” concave radius (for the commutator) ... not sure what the motor actually needs.

https://www.helwigcarbon.com/catalog/carbon-brush/403

Remove both brushes. Measure to the commutator etc.. Calculate diameter. . . .

everettdavis

I found a source for the Von Wiese brushes at $2.50 ea. from http://www.carbonbrush.com/bostonbrush.htm

It is an industry part number K09128-0009

Thickness 0.250"

Width 0.312"

Length 0.625"

Drawing Style 4NS

Since the brushes are the things that most often wear and need replacement, this looks like a good candidate for a replacement brush.

I still have to find brush holders for them, but this is a far better price, and unless the holder is damaged, likely all that's needed to fix worn brushes on those two models, perhaps more once we document the size and type.

Everett

BuckeyeDennis

Nice sleuthing, Everett!!!

jsburger

everettdavis wroteI found a source for the Von Wiese brushes at $2.50 ea. from http://www.carbonbrush.com/bostonbrush.htm

It is an industry part number K09128-0009

Thickness 0.250"

Width 0.312"

Length 0.625"

Drawing Style 4NS

Since the brushes are the things that most often wear and need replacement, this looks like a good candidate for a replacement brush.

I still have to find brush holders for them, but this is a far better price, and unless the holder is damaged, likely all that's needed to fix worn brushes on those two models, perhaps more once we document the size and type.

Everett

As I posted above Eurton Electric has them also although not that cheap but half the price of the VonWeise brushes.

http://store.eurtonelectric.com/25x31x61brush1403-2.aspx

everettdavis

Unlike in the U.S. the Feed Motor European 240v Model Planer has the Von Weise Label on the motor opposed to a less descriptive Shopsmith Inc one.

It doesn't answer the Brush Holder Question, but it is another piece of the puzzle.

Everett

Feed Motor European 240v Model Planer.jpg
