Restoration Progress On My 1952 ER10

mickyd

mickyd wrote
Based on part geometry, drilling from the backside would be tricky.......

Plan of action is.....drill through the center of the button and remainder of part with a small pilot hole being real cautious when I get to the mounting hole countersunk surface. I'll put a center punch dimple on the countersunk surface for the drill to locate on and continue through the part. Then come in through the backside with a slightly larger bit stopping when I get to the beginning of the button hole . Then insert an appropriate sized dowel pin to butt up against the back of the button and then smash the beejeezes out of in with a 12 lb sledgehammer (or a small ball peen hammer, which ever is closer). If all successful, JB Weld to hide the evidence, slap on a coat of primer, hammered paint, badda-bing, badda bang, Houston, we have a functional miter gage indicator!!

Sound like a plan??

Stroke of luck / twist of fate, whatever you want to call it. I'll call it a miracle that occurred while putting the center punch dimple on the indicator button. I use a spring loaded punch and in order to get a pronounced dimple, I usually click it 4 or 5 times. I did that and noticed that the button moved slightly inward. The post a few back showed where it was to start. I had previously rapped this thing MANY times both during and after the Kroil bath using a hard plastic mallet and couldn't get it to budge. Happened to me with a pickle jar one time&#8230]

.

.

.

.

Here's the setup I used to get the hole drilled into the button. The walnut pieces were a generous donation by our own mrcabinetmaker...thanks again Mark .

.

.

.

From there, the gears started rolling away from the original plan of drilling completely through the part and coming back in with the dowel to tunk the button out. Instead, with [font=Verdana]judaspre1982’s post still in my mind about tapping into the button and using a screw to pull it out, I instead opted for Ed in Tampa’s favorite tool……aMain Woodworking Forum screw extractor.[/font]

[font=Verdana].[/font]

[font=Verdana].[/font]

[font=Verdana][/font]

[font=Verdana].[/font]

[font=Verdana].[/font]

[font=Verdana]Using a T-handle, I applied a torque that was less than the unpublished, undocumented, unknown maximum manufacturers recommended torque. I know it was less because the extractor didn’t snap. :p The button started to turn. It was real tight but it was turning. I was concerned about the extractor. I then pulled on and turned the extractor at the same time pair of vise grip and the button with the spring came out.[/font]

[font=Verdana].[/font]

[font=Verdana].[/font]

.

.

Next step was to get the thing looking like an indicator again. That will be another post.

mickyd

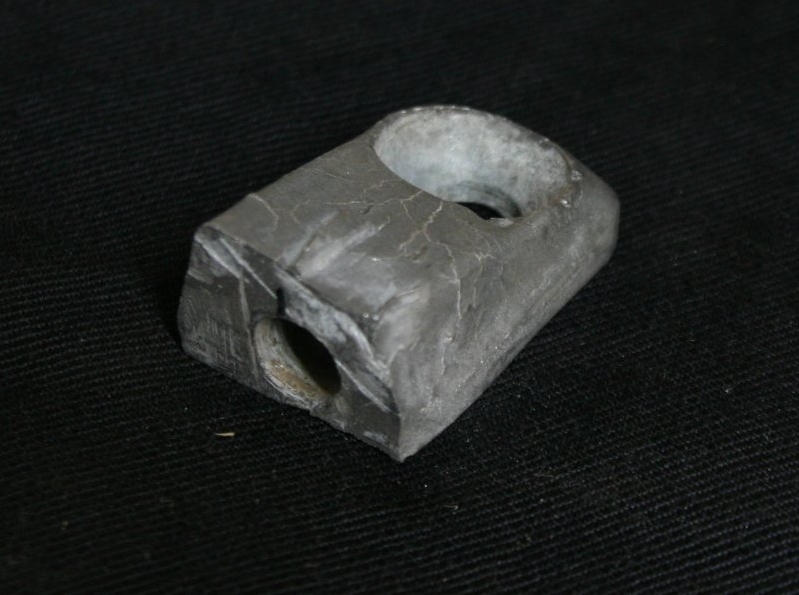

Here's the miter gage indicator restoration progress going from what I thought would be throw away to pretty respectable.

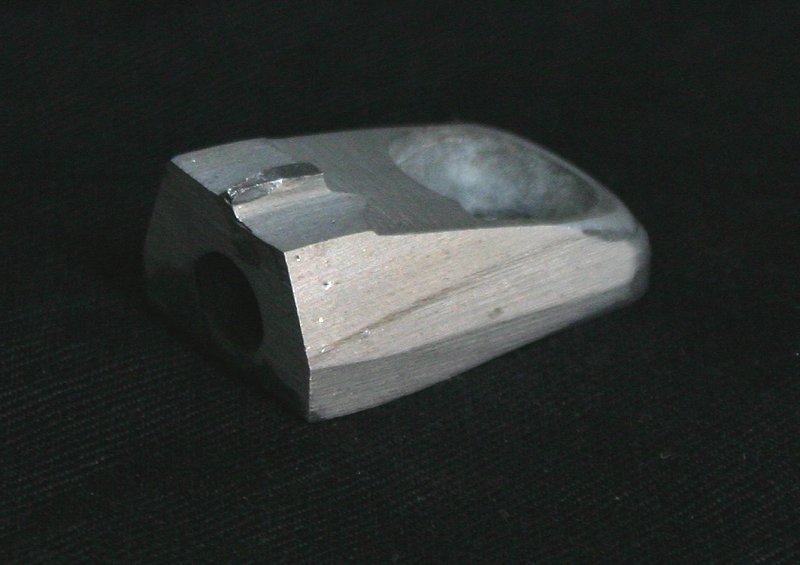

I first used a belt sander (upside down on my lap) with an 80 grit belt to reshape the piece the best I could. The belt cut very fast so I used caution.

Then went through progressive grit sanding using a finishing sander (again on my lap upside down) using 150, 220, 400, and finally 600 grit. From there, over to the 8" polisher with first spiral sewn wheel / black compound, then loose cotton / brown compound, and finally loose flannel / white compound. The Caswell Plating website is a great resource for all you need to know about polishing if your interested.

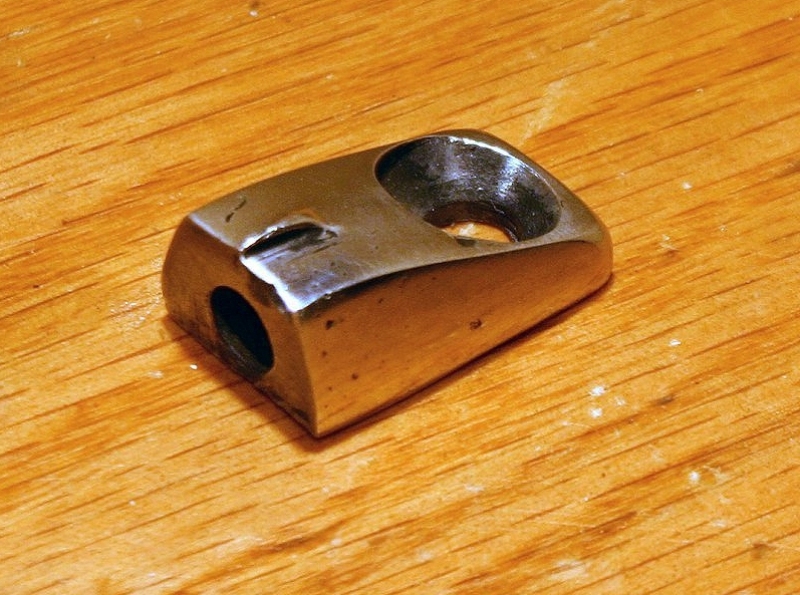

Here it is in all it's glory. Not too shabby considering what it looked like to begin with.

nuhobby

Impressive! Congratulations!

If it didn't work out, it would have been a good homage piece for the old Star Trek "Doomsday Machine":

JPG

mickyd wroteHere's the miter gage indicator restoration progress getting it from what I thought would be throw away to pretty respectable.

.

.

[ATTACH]7486[/ATTACH]

.

.

I first used a belt sander (upside down on my lap) with an 80 grit belt to reshape the piece the best I could. The belt cut very fast so I used caution.

.

.

[ATTACH]7487[/ATTACH]

.

.

Then went through progress grit sanding using a finishing sander (again on my lap upside down) using 150, 220, 400, and finally 600 grit. From there, over to the 8" polisher with first spiral sewn wheel / black compound, then loose cotton / brown compound, and finally loose flannel / white compound. The Caswell Plating website is a great resource for all you need to know about polishing if your interested.

.

.

Here it is in all it's glory. Not too shabby considering what it looked like to begin with.

.

.

[ATTACH]7488[/ATTACH]

But But But . . . It is NOT 'Original':D

Good save!;)

mickyd

JPG40504 wroteBut But But . . . It is NOT 'Original':D

Good save!]

Slap some paint on it and driving by 60 mph you'd never know the difference. (ER's my custom beast, especially since it's painted pink and purple :p ...Greenie, now she's original)

judaspre1982

=========================

DT aka Agent Orange is a POS

Liar Liar his wonky comb over is on fire

bluekayak

Congratulations Mike. This was a day brightener, and I'm glad you were able to save it.

Jerry Floren

St. Peter, MN

etc92guy

Congrats - The condition of the M5 is envious. And your USING it. The lack of sawdust is immaterial.............;)

mickyd

Geez, while buttoning up the loose ends on the ER restoration today, listening to Pandora internet radio on my itouch, guess who came to mind??? 😃

judaspre1982

========================

mickyd

:eek:

judaspre1982 wrote
[font=Book Antiqua]Looks like a dead ringer for Cincinnati's avatar. -----Dave[/font]

For some peculiar reason Dave, I had a feeling that you would be the one to post!!

p.s. Notice the volume control :eek: "I'm givin' her all she's got Captain, if I push it any harder, the whole thinig will blow!!" Let the link page load fully, refresh if you hear nothing OR just turn you speakers on....you figure it out!! (copyrite Scotty, Star Trek, 1969)

judaspre1982

========================

------------------------

Hey Mike!

If you want to send me that piece that you have slaughtered, I will swap it for one of my 3. Under an inch of dust I will never notice it.

Mark

mickyd

mark-b wrote
Hey Mike!

If you want to send me that piece that you have slaughtered, I will swap it for one of my 3. Under an inch of dust I will never notice it.

Mark

Don't you mean "repaired"???? It's not pretty, but it is functional!! 'Drivin' by 60 mph.......'

cincinnati

JusT something about Shopsmith and Judas Priest. They should go on tour together. The Judas P. Shopsmith tour. 😃

http://www.youtube.com/watch?v=8K7CNzFhnCE

You also got to love the boys in the U.S. Air force.

heathicus

A buddy of mine have this ongoing thing with Judas Priest's "Breaking The Law." I was riding with him one day and he went through a yellow light a little late and I started singing "Breaking the law! Breaking the law!

judaspre1982

=====================

------------------------

Hey Mike!

I am all about function, but if you decide to swap let me know.

Mark

judaspre1982

=====================

mickyd

mark-b wroteHey Mike!

I am all about function, but if you decide to swap let me know.

Mark

Gee Mark, nice offer. Thanks. The perfectionist side of me is saying "Do it". I'll let you know tomorrow. Too focused on getting all my photography done for post later tonight....11:59 PM PST.
