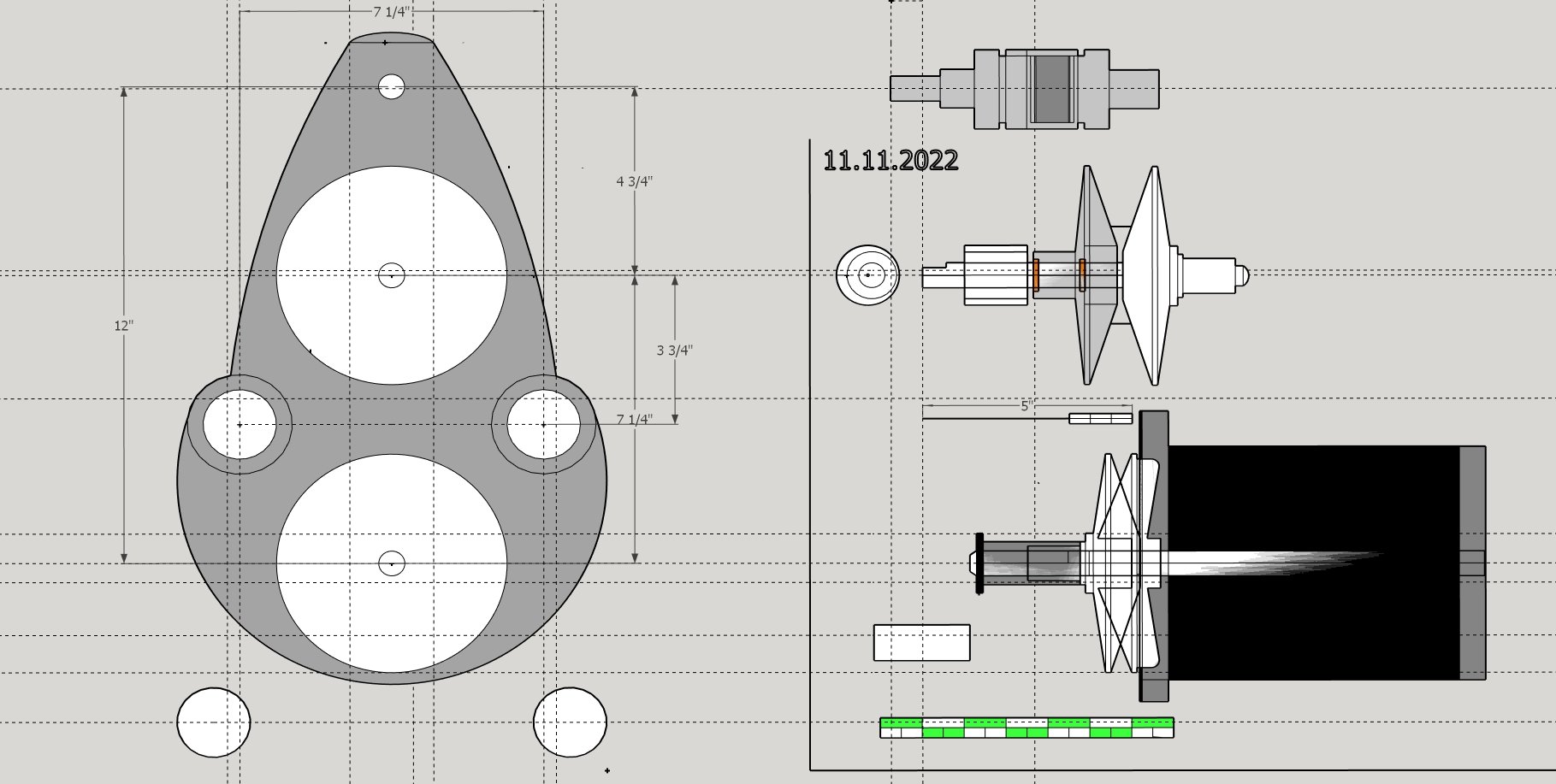

- Where Is the Idler Shaft.jpg (185.61 KiB) Viewed 3173 times
Search found 21486 matches
- Tue Jan 14, 2025 6:53 am
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
- Sun Jan 12, 2025 12:24 pm
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
After all of the chit chat...do we know why the drive belt contacts the way tube on the OPs Mark V?
The last image posted by the OP shows the motor to be way off center. Maybe he needs to examine the motor mount and/or the motor pan.
The last image posted by the OP shows the motor to be way off center. Maybe he needs to examine the motor mount and/or the motor pan.
- Sat Jan 11, 2025 6:44 am
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
What I wish I had was clarification of where a plumb bob dropped off the rear edge of the idler sheave would be with respect to the inside circumference of the upper, rear way tube. I didn't use a plumb bob. My measurement is perpendicular to the tops of the way tubes rather than to the center of m...
- Fri Jan 10, 2025 7:11 am
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
Considering the new (to me) information on the motor position it seems clear that minimum clearance occurs at maximum speed. (Also, that's as shown in Steve's latest drawing.) On my machine, that clearance is less than 1/16", the smallest drill bit in the set I was using to gauge clearance. I ...
- Thu Jan 09, 2025 12:26 pm
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
This has been interesting for me. Just wish I could get hands on the machine in question. After dwelling on the issue (using a Sketchup model) I can see only one possible cause (assuming the machine is assembled properly). TYhe second image in this thread got me thinking about this. I conclude from ...
- Wed Jan 08, 2025 4:01 pm
- Forum: Maintenance and Repair
- Topic: Eccentric issue with power pro
- Replies: 9
- Views: 4999
Re: Eccentric issue with power pro
I’ve installed my Power Pro and everything seemed to go ok. However, the eccentric keeps sliding back in the headstock casting when using my jointer. I’ve been able to move it back into position by loosening the bolt and nut in the headstock casting and then retighten everything. I did the speed te...
- Mon Jan 06, 2025 10:19 am
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
I am unable (at this moment) to do this in the shop (on a machine) but I have modeled this in Sketchup, Using the Sketchup model I I can see that if the drive belt does not move properly (smoothly and equally) within the sheaves during speed change the belt could certainly rub the tubes but NOT on a...
- Sun Jan 05, 2025 11:56 am
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
I still cannot see how, even in the worst case, that a Shopsmith Mark V drive belt could contact a way tube. Even when the eccentric is set to the 3 or 9 o'clock positions, the closest the belt comes to the way tube is 1/2". Could the motor mounting position be off? You requested a dimension e...
- Thu Jan 02, 2025 3:46 pm
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
To avoid being misleading I should probably delete all of the posts/comments that I have made in this thread. They are wrong, wrong, wrong as are posts on this general topic I have made elsewhere. The three shafts MAY NOT align in the verticle plane as I have previously stated. I do not no where or ...
- Thu Jan 02, 2025 1:18 pm
- Forum: Maintenance and Repair
- Topic: Belt hitting way tube
- Replies: 43
- Views: 19111
Re: Belt hitting way tube
I sure wish we could put these three machines together in the same shop. I cannot imagine why the differences. David, if you drop a plumb bob from the upper shaft does it reveal the same differences.
