As you know Ive been restoreing my ss mark V11 the last two parts i need are the501236 backing plate #45 in parts manual and507861 duct # 56 if anyone has one for sale i would like to buy

Bruce

If you could post the parts diagram it would help. Not everyone has them at the ready.

everettdavis

As many of you know, I am in the process of redoing the Mark VII manual for users who have those units.

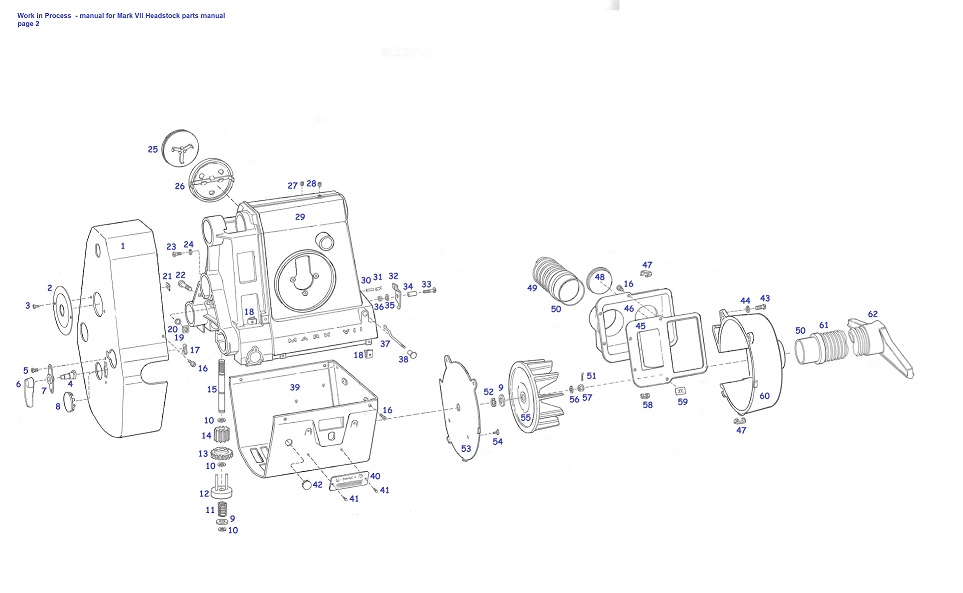

I have attached my work in process re-drawn parts illustration reflecting the parts he is referencing.

Also for those of you who are Mark VII owners, I would love to hear from you about how my approach is received. I do not personally own a Mark VII but am working to assist others who do, with what I can.

Still trying to find time to re-do the 3 different motor / wiring combinations for this project.

(This one is a much reduced size, but the finals will be in PDF and very large format.) The original was 8½ x 11. Mine will be at least a D size drawing, but will scale and print in high definition on your printer paper size.

I think he meant duct #46 opposed to 507861 duct #56 as he typed.

Everett

Mark_VII_parts_manual-2 Revision in Process smaller size.jpg

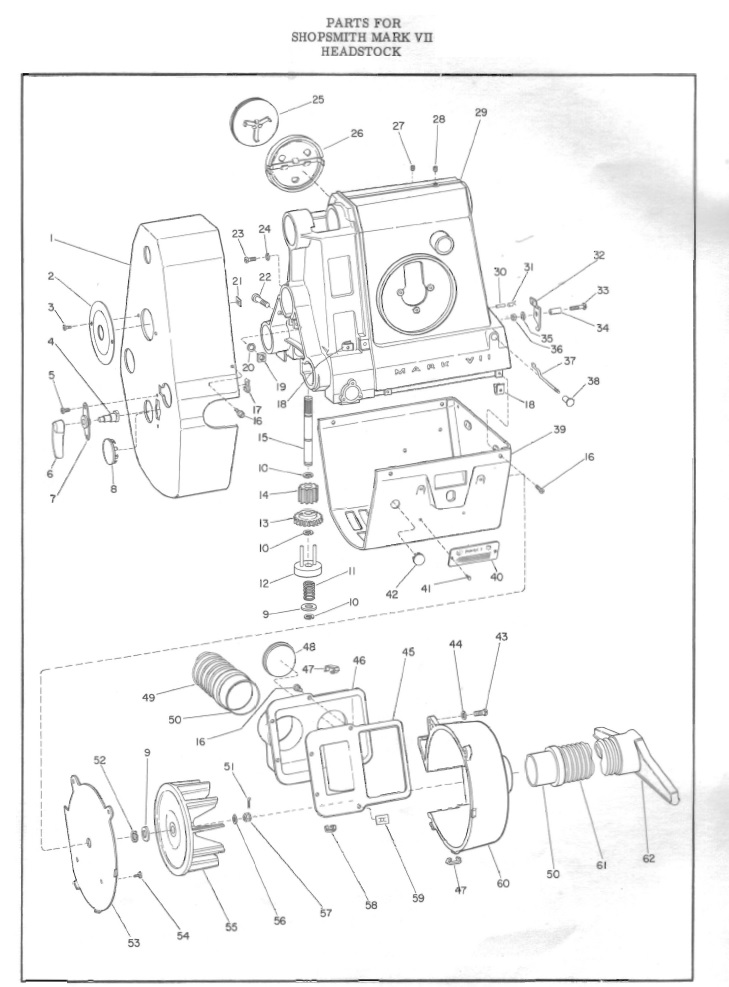

To put what I am doing in perspective here is shown the way it looked in the manual.

Original Page 2 for Mark VII Parts.jpg

JPG

I think that will be a hard one to find.

What is your intention re using it?

Making an adapter to connect the rectangular output to a 2" + hose may be what you need to do.

Since collection bags are essentially non-existent, I suggest merely connecting to a DC or shopvac. The motor driven blower will help them and provide hose coupling.

hobbies

I was planning on reuseing it. but like JP idea better thanks jp

hobbies

I think everett is doing a fine job of redoing the mark V11 manual
