Re: Refurbishing a MkV 510

Post by John4337 »

pWhile I'm waiting on the bearings, on to other things. My new belts and speed control quadrant arrived today, so I swapped it out. Also cleaned up and de rusted the metal parts of the saw guard.

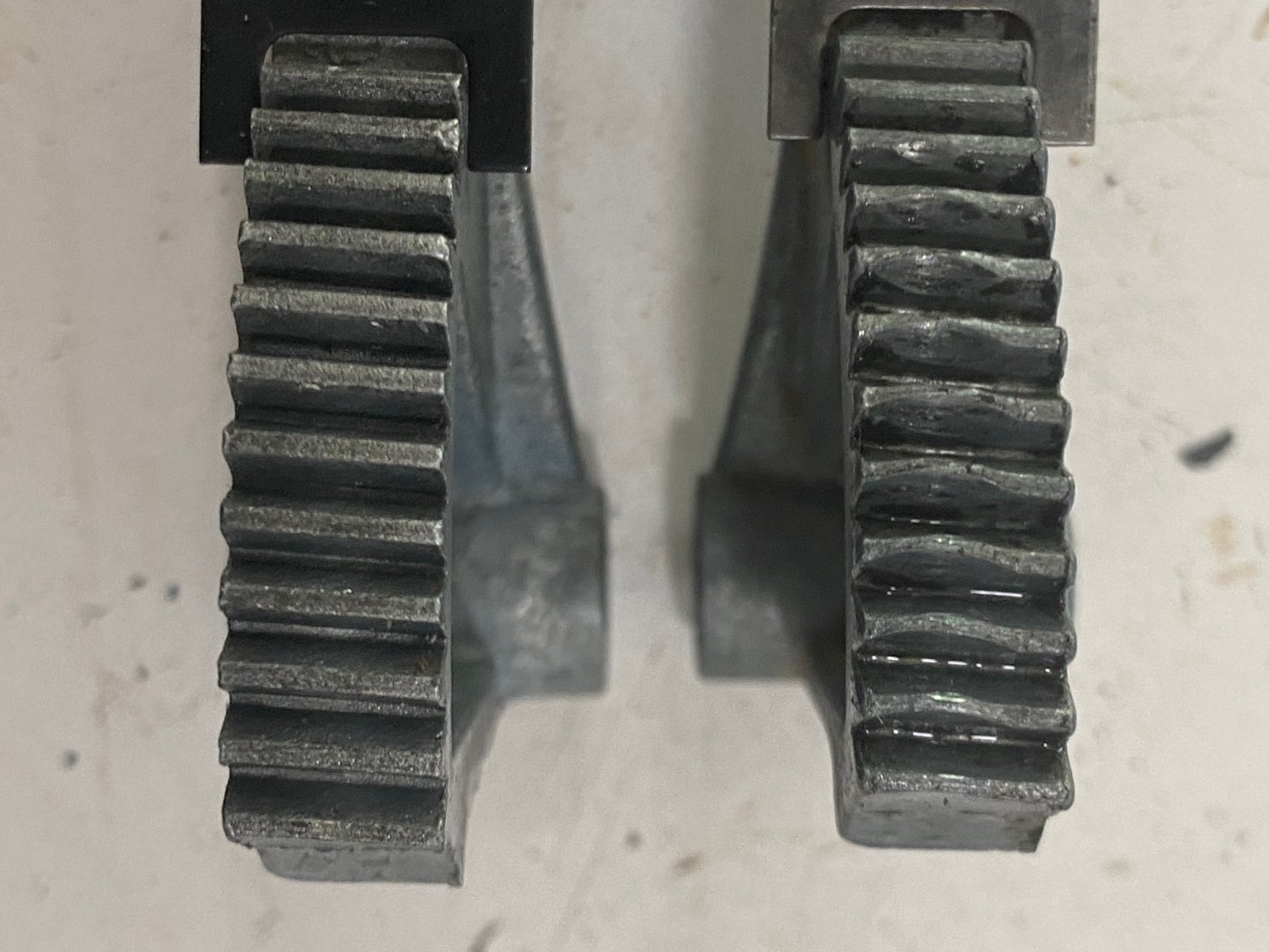

New and old
Speed Control 5.jpg
Speed Control 5.jpg (241.72 KiB) Viewed 266 times

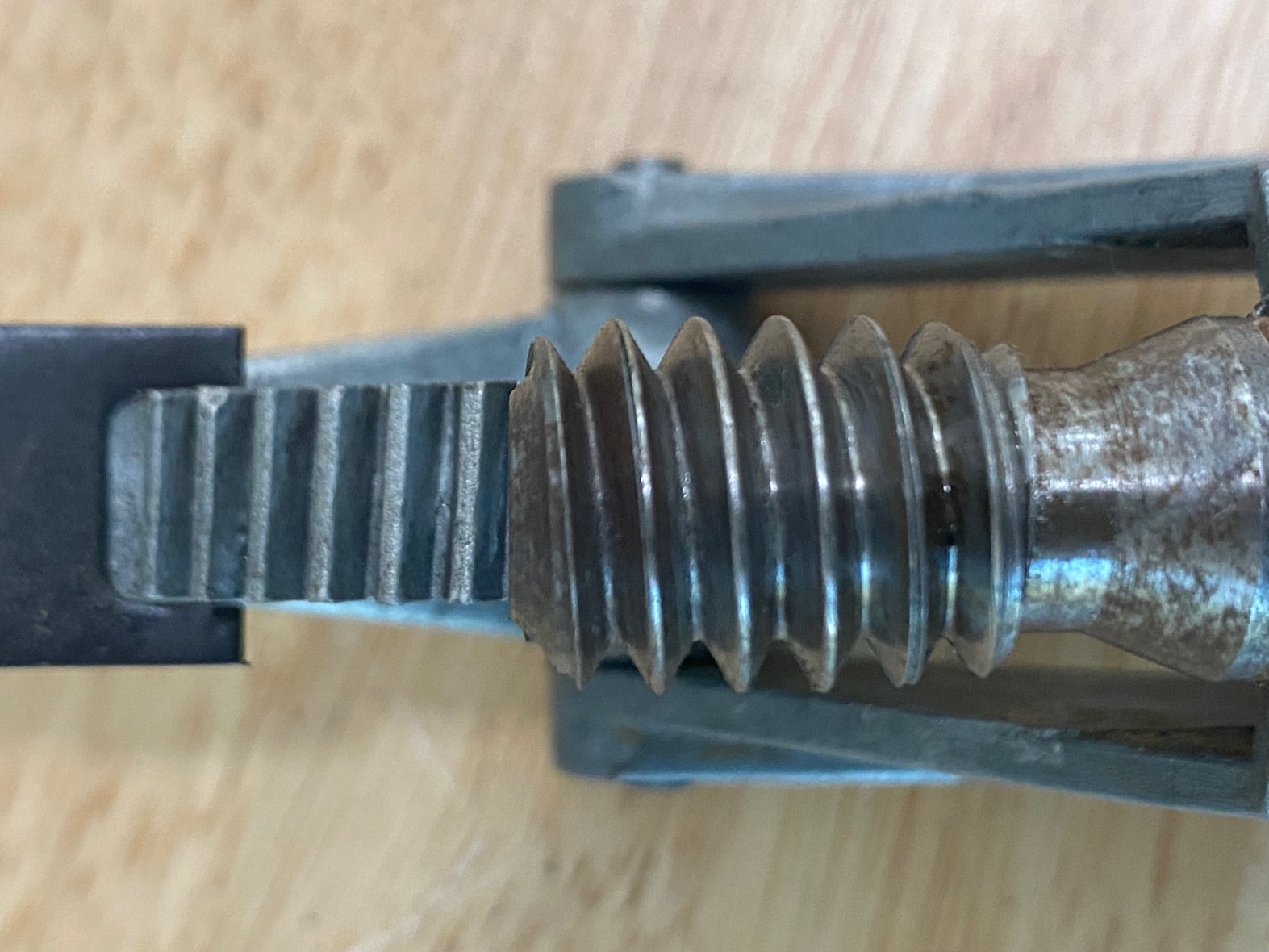

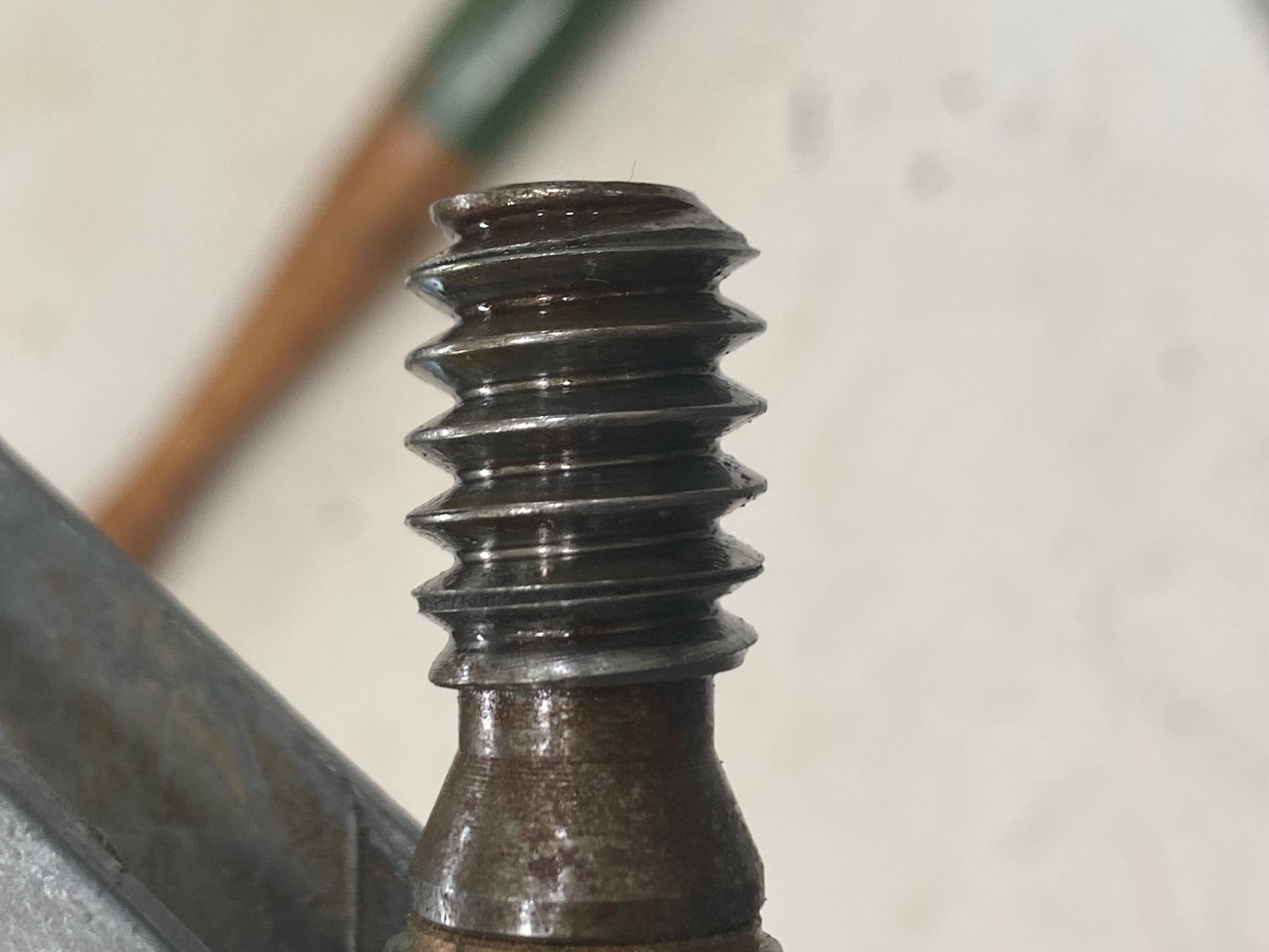

worm gear is straight
Speed Control 6.jpg
Speed Control 6.jpg (152.26 KiB) Viewed 266 times

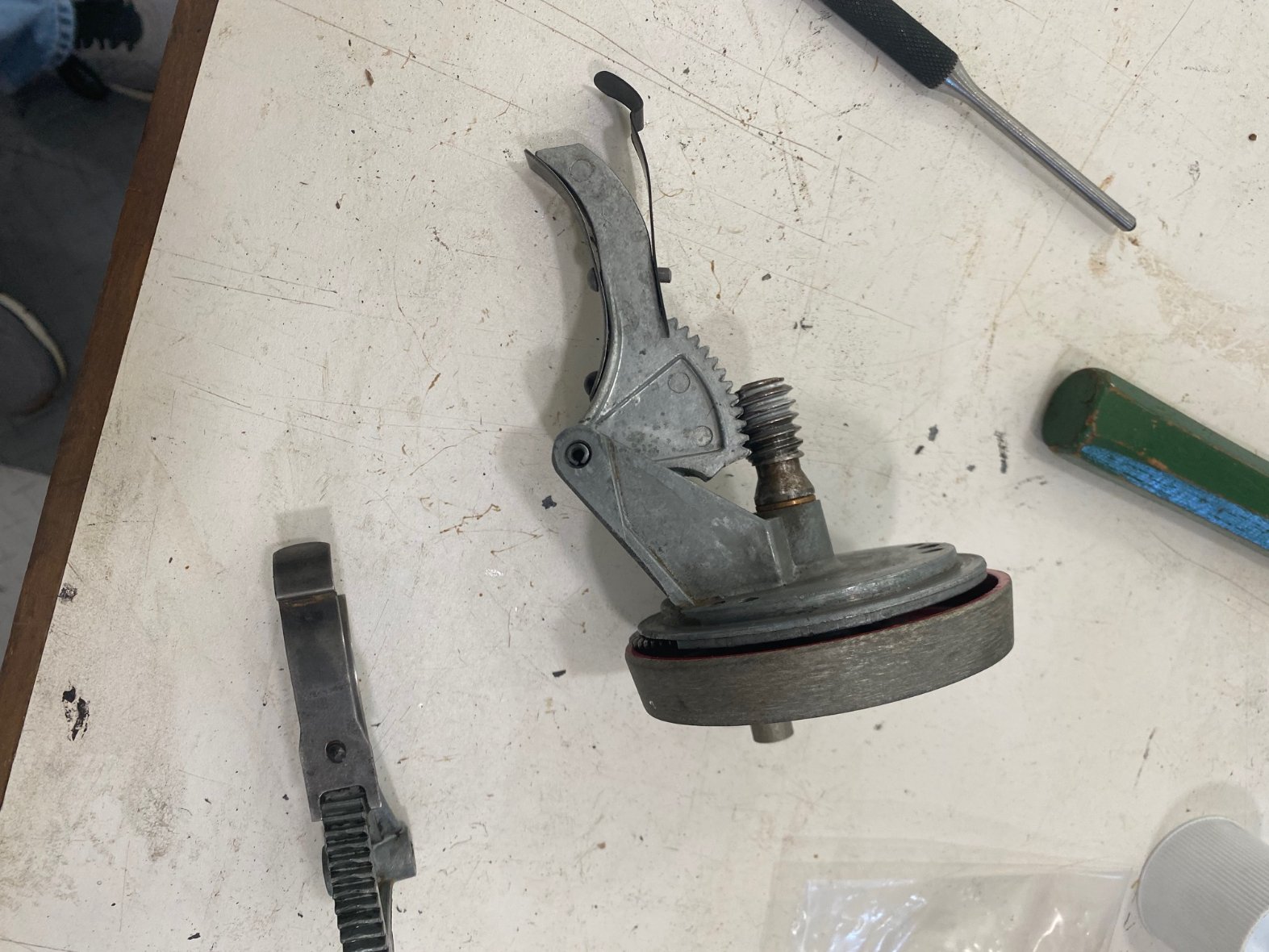

All back together
Speed Control 7.jpg
Speed Control 7.jpg (273.3 KiB) Viewed 266 times

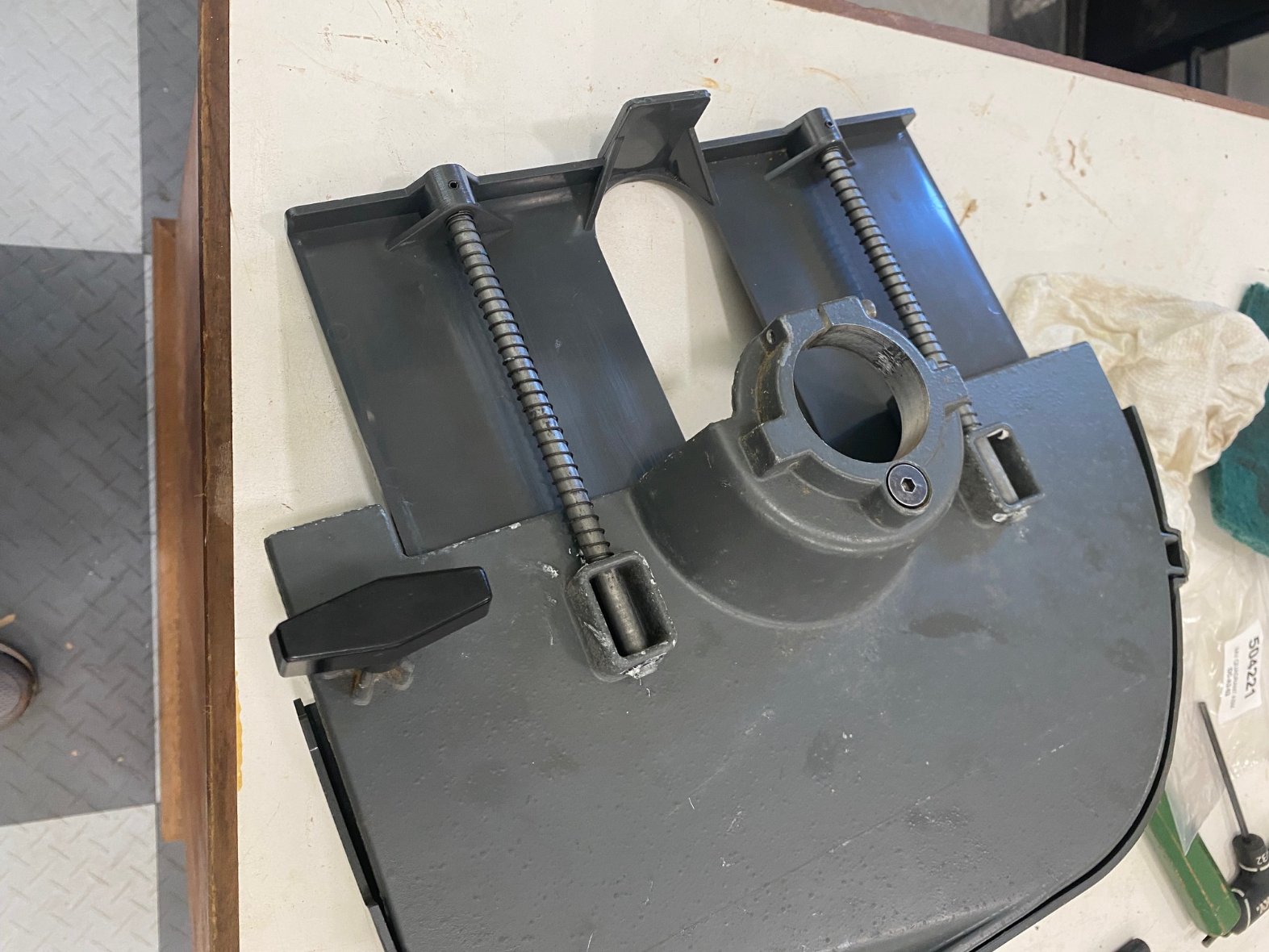

Guard ready to go
Saw Guard 1.jpg
Saw Guard 1.jpg (242.04 KiB) Viewed 266 times
User avatar
JPG
Platinum Member
Posts: 32611
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Refurbishing a MkV 510

Post by JPG »

Of interest to 'us' is the fit of the new quadrant on the roll pin pivot and the clearance between the new quadrant and the legs the pivot pin is mounted to. A pix showing the alignment of the worm gear to the quadrant gear also. Might prevent reoccurence of that wear.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
John4337
Gold Member
Posts: 69
Joined: Sun Jan 07, 2018 11:05 am
Location: Copperhill, TN

Re: Refurbishing a MkV 510

Post by John4337 »

JPG wrote: Thu Sep 23, 2021 3:56 pm Of interest to 'us' is the fit of the new quadrant on the roll pin pivot and the clearance between the new quadrant and the legs the pivot pin is mounted to. A pix showing the alignment of the worm gear to the quadrant gear also. Might prevent reoccurence of that wear.

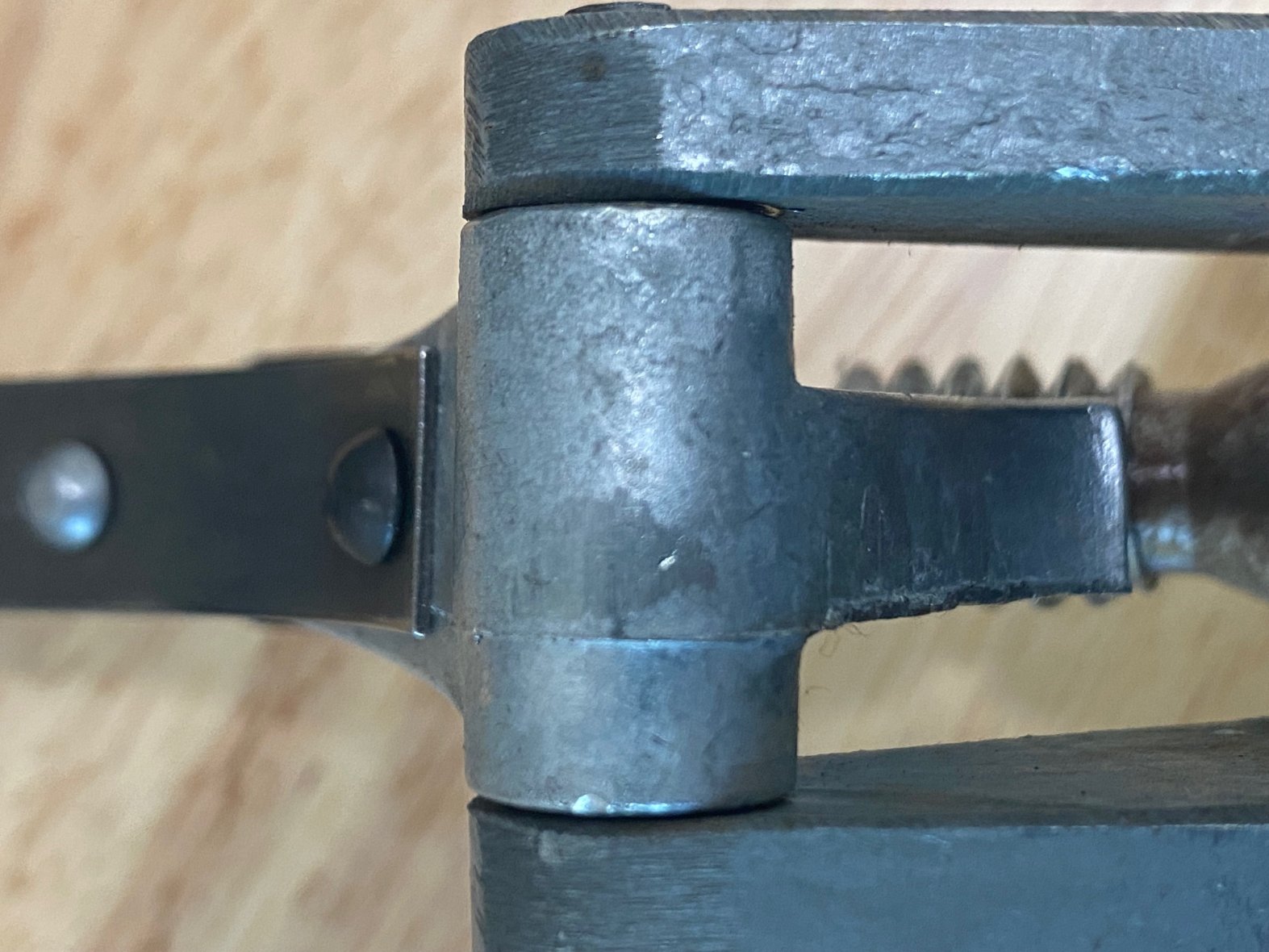

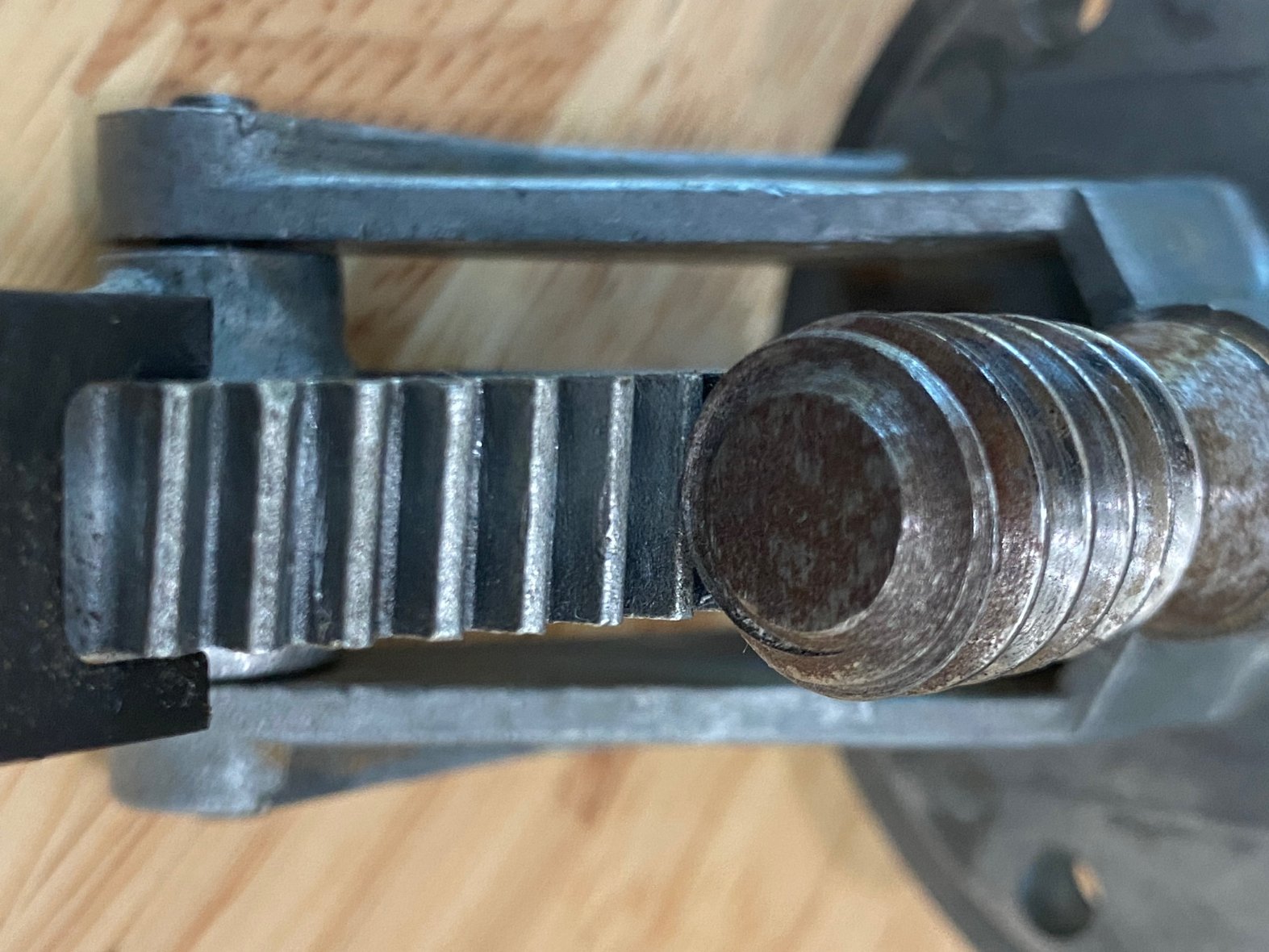

it seems to fit well, no real play
speed control 8.jpg
speed control 8.jpg (237.88 KiB) Viewed 252 times
Speed Control 9.jpg
Speed Control 9.jpg (249.27 KiB) Viewed 252 times
Speed Control 91.jpg
Speed Control 91.jpg (273.02 KiB) Viewed 252 times
User avatar
JPG
Platinum Member
Posts: 32611
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Refurbishing a MkV 510

Post by JPG »

Resist the temptation to force the speed adjustment towards slow and it may stay that well aligned.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
DLB
Platinum Member
Posts: 1017
Joined: Fri Nov 08, 2019 11:24 am
Location: Joshua Texas

Re: Refurbishing a MkV 510

Post by DLB »

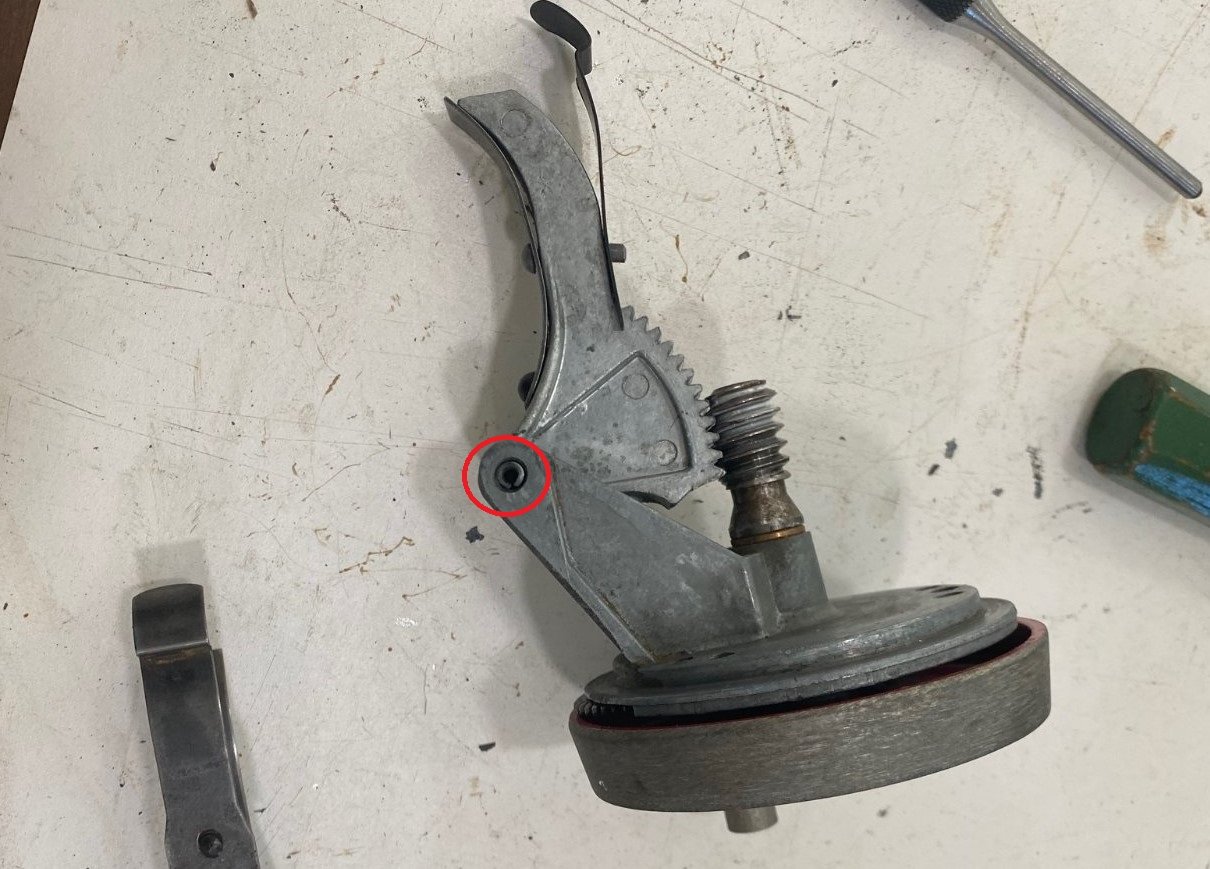

Earlier in this thread JPG recommended the Bill Mayo speed control improvement. Yes! It addresses a couple of things on the speed control to strengthen it and reduce wear. In your pic, I've circled one of the wear points as an example. Over time the hole in the legs sometimes gets enlarged by the reaming action of the spring tension (aka roll) pin being used as a hinge pin. Once there is wear in those holes the quadrant/porkchop can wobble a bit, accelerating the wear on both the gear and the holes.

Speed Control 7 (2).jpg
Speed Control 7 (2).jpg (180.06 KiB) Viewed 249 times

The Bill Mayo improvement deletes the roll pin and replaces it with a screw. The quadrant rotates on the hinge pin rather than the pin rotating with the quadrant, and it strengthens the legs by tying them together. I've used a variant of it (larger screw or bolt) to save a speed control assembly that was junk because the highlighted holes were so enlarged.
Bill Mayo Headstock Improvement: download/file.php?id=34357

- David
John4337
Gold Member
Posts: 69
Joined: Sun Jan 07, 2018 11:05 am
Location: Copperhill, TN

Re: Refurbishing a MkV 510

Post by John4337 »

Ingenious solution.
John4337
Gold Member
Posts: 69
Joined: Sun Jan 07, 2018 11:05 am
Location: Copperhill, TN

Re: Refurbishing a MkV 510

Post by John4337 »

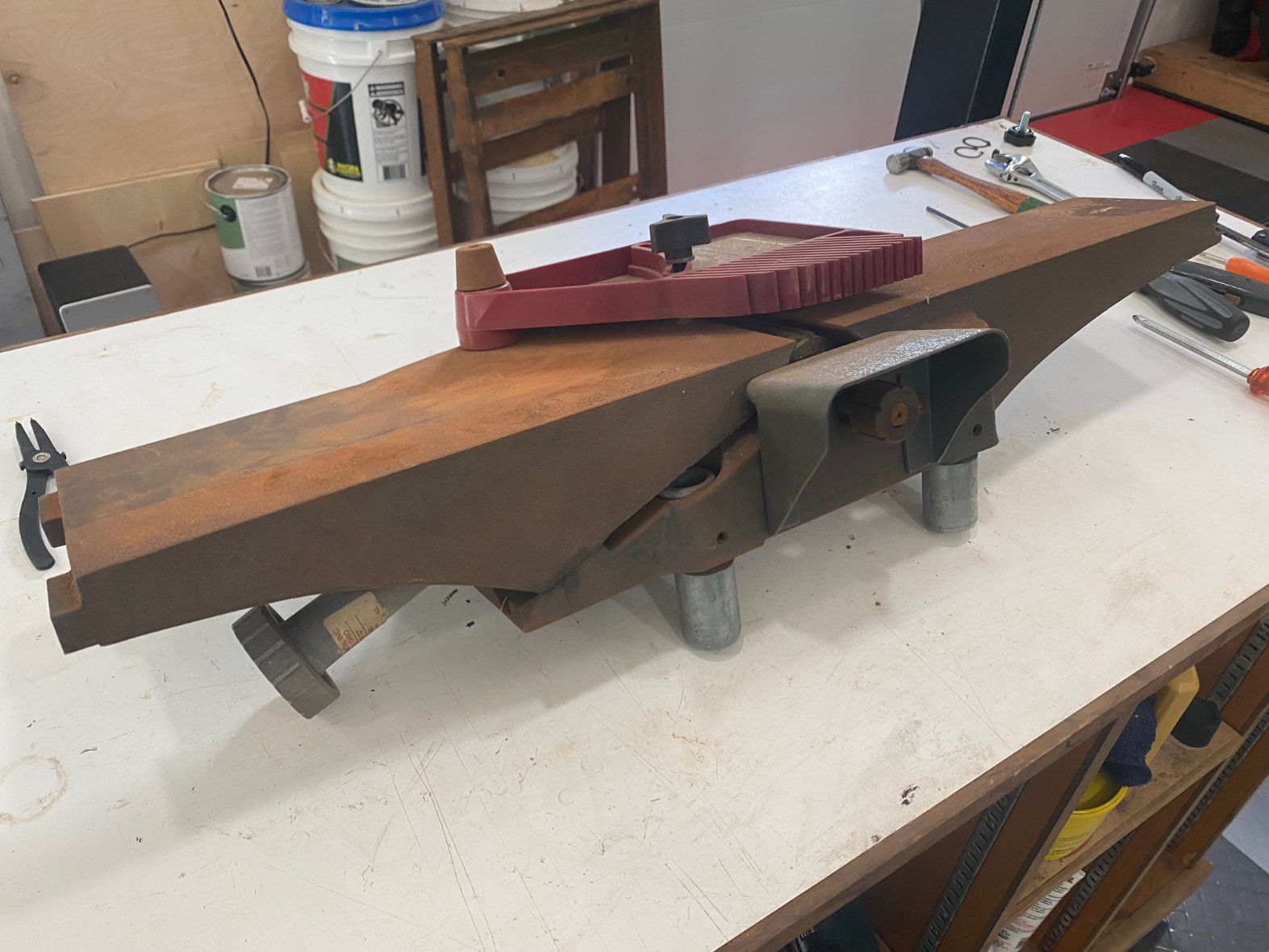

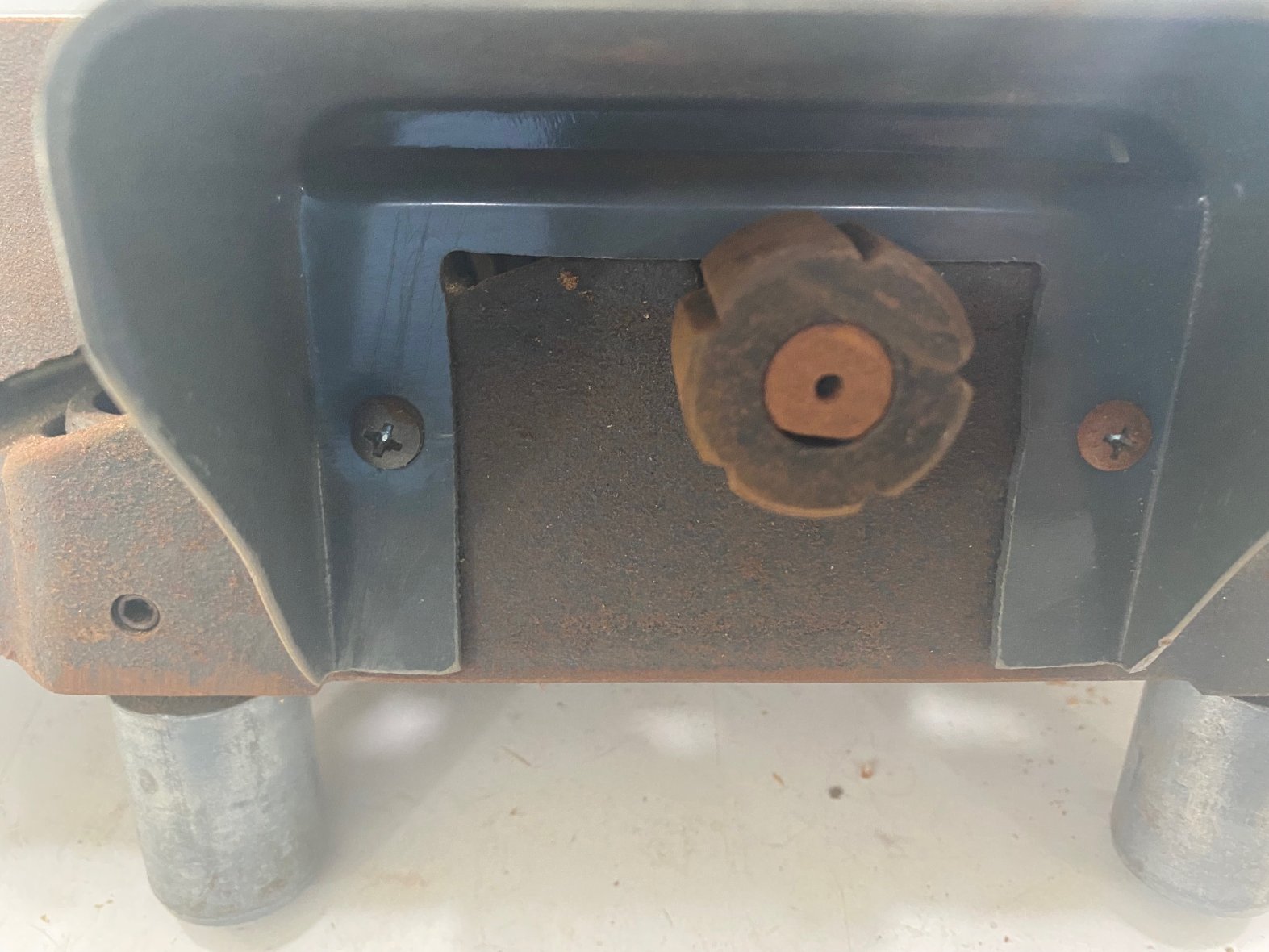

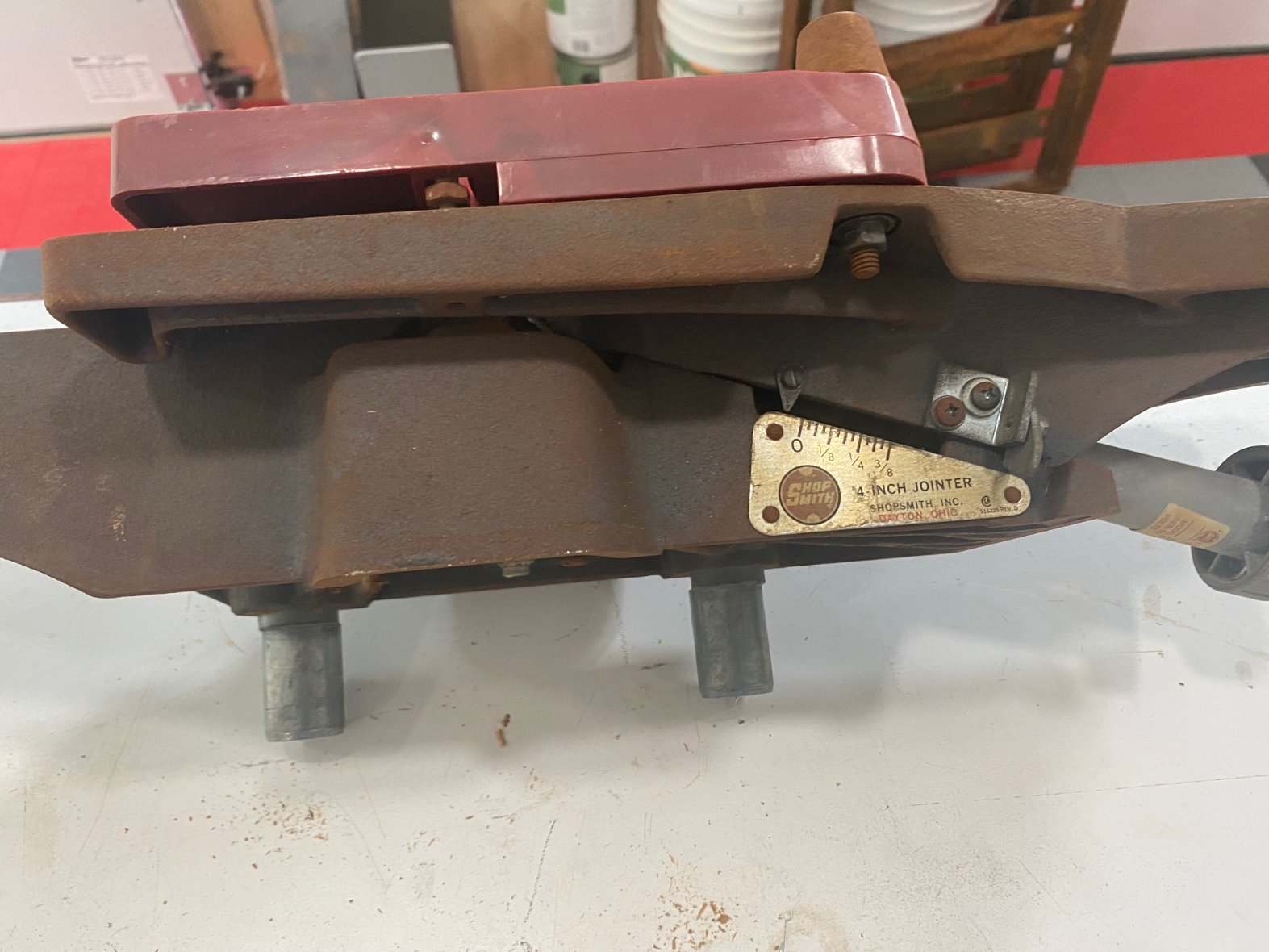

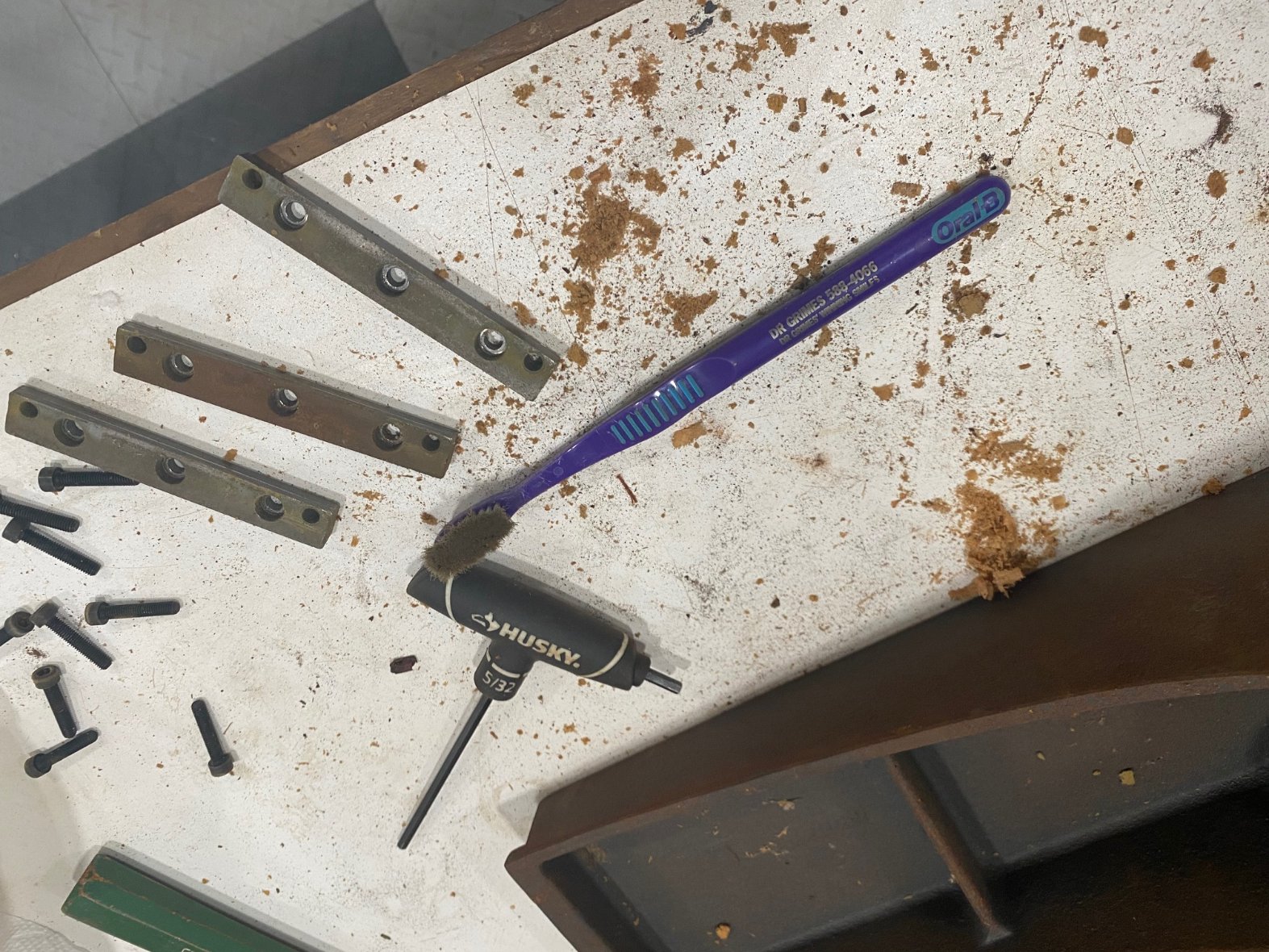

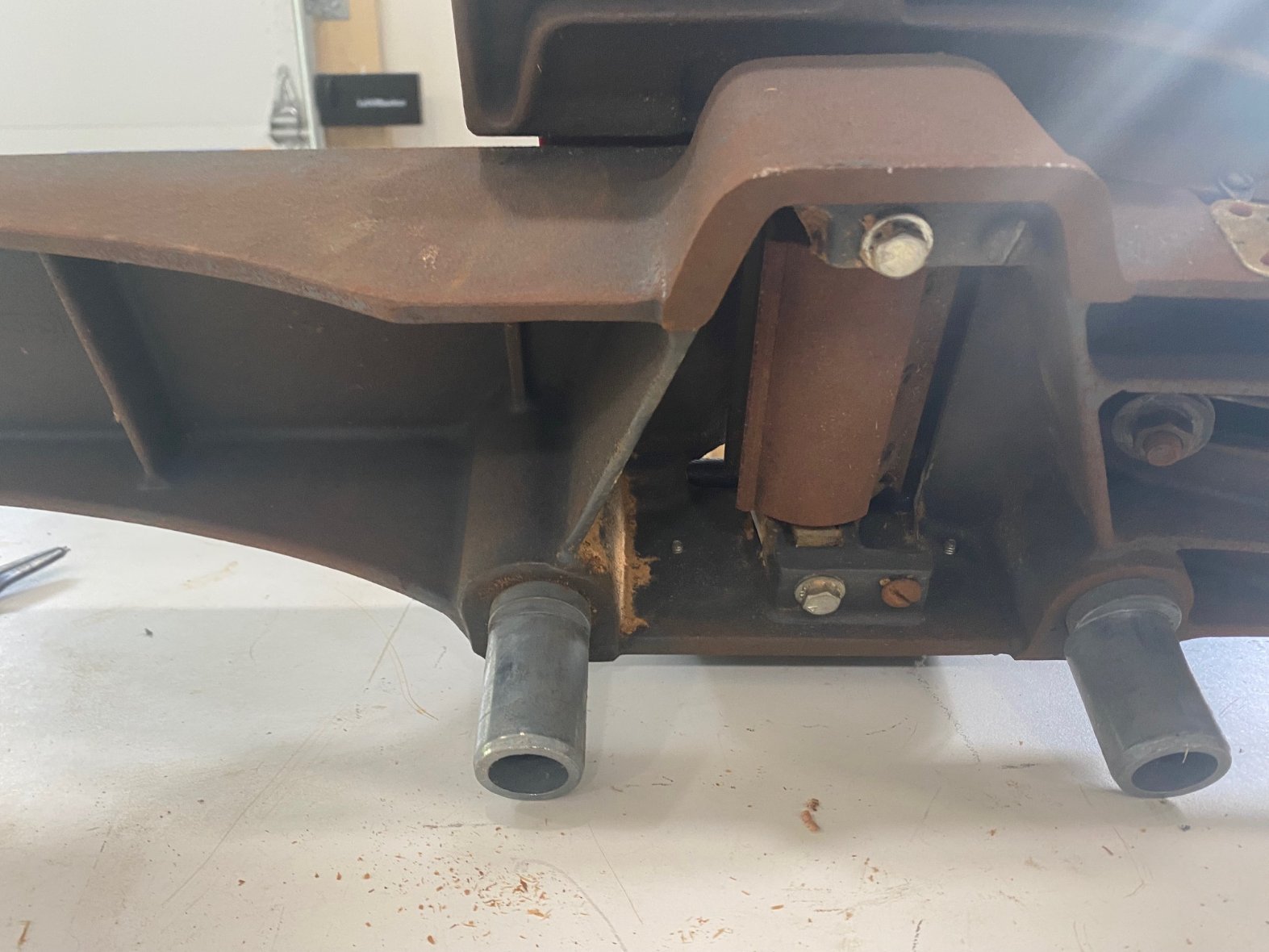

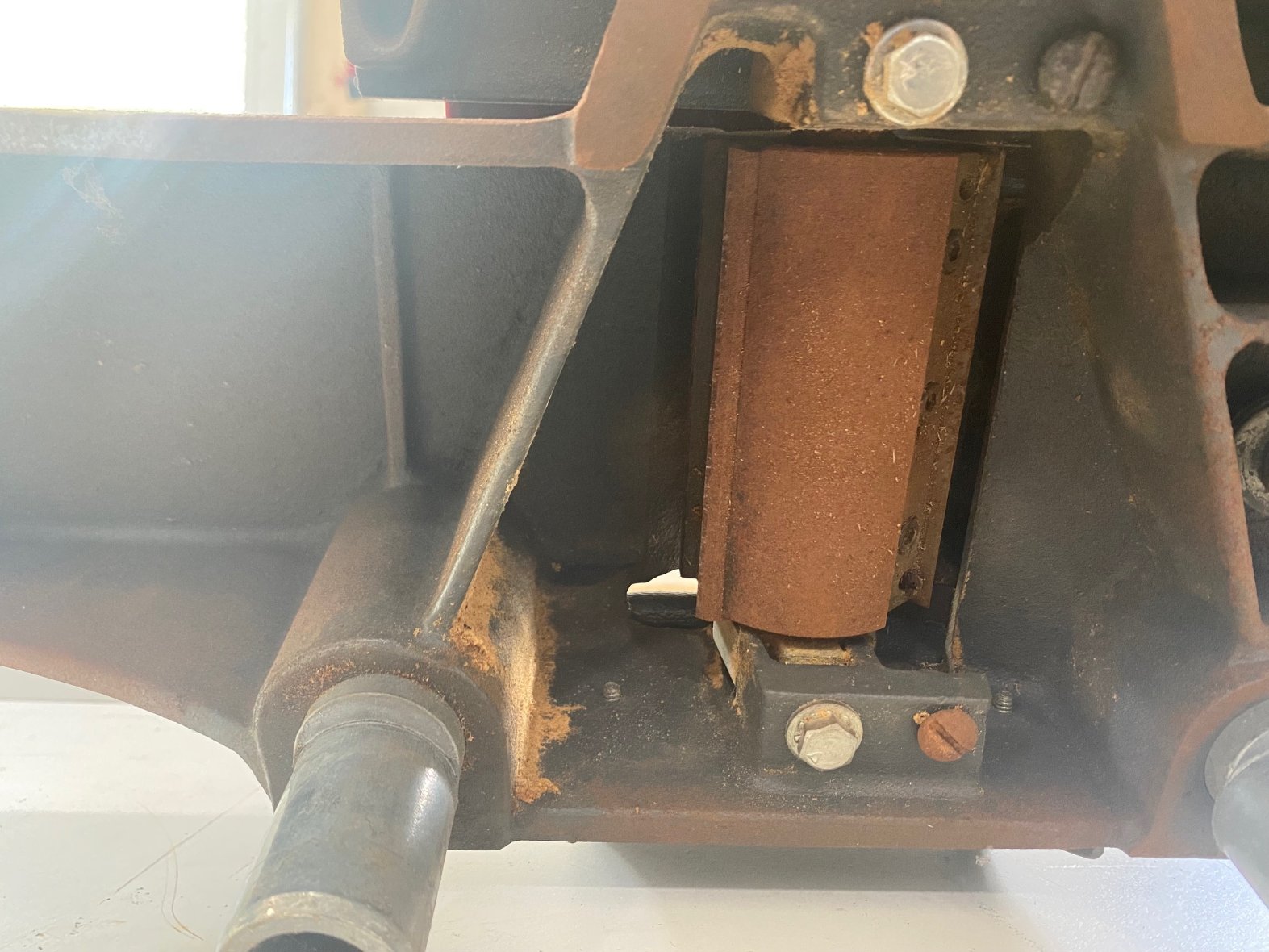

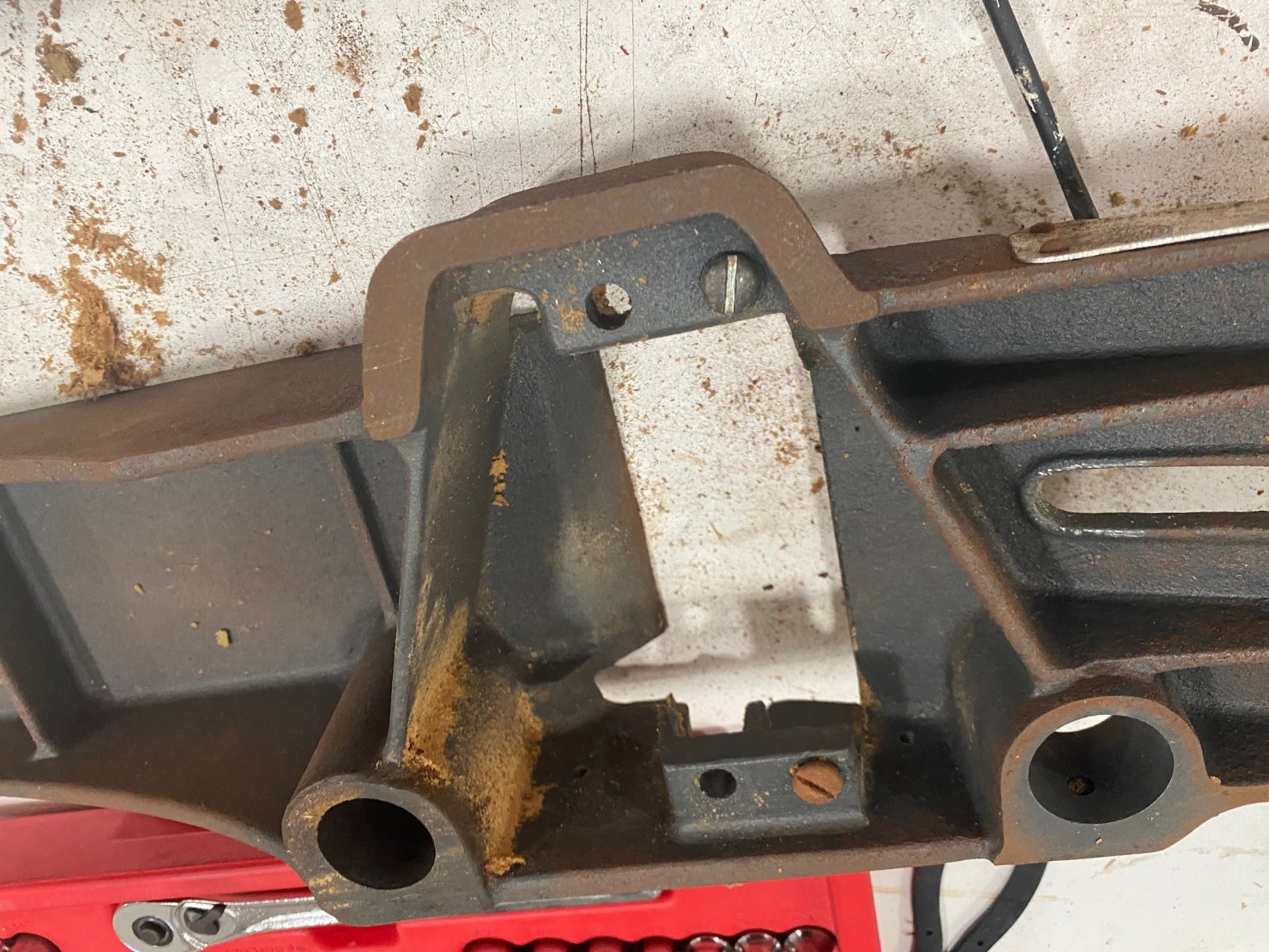

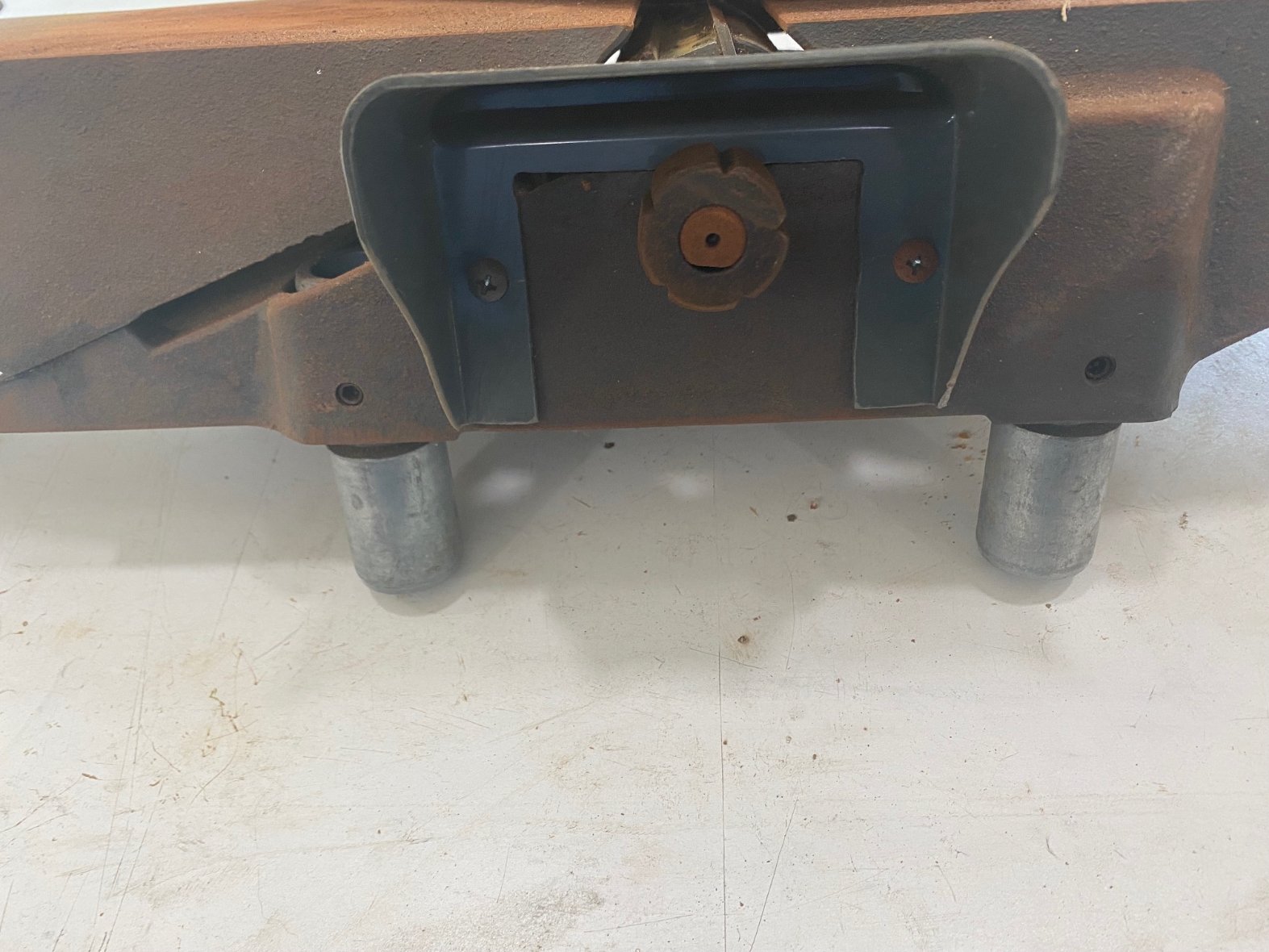

Some house stuff pulled me away, but I'm back at it. While waiting for new bearings for the power shaft and quill, I started in on the jointer.
Jointer 1.jpg
Jointer 1.jpg (243.17 KiB) Viewed 148 times
jointer 2.jpg
jointer 2.jpg (235.6 KiB) Viewed 148 times
jointer 3.jpg
jointer 3.jpg (211.69 KiB) Viewed 148 times
jointer 4.jpg
jointer 4.jpg (222.62 KiB) Viewed 148 times
jointer 5.jpg
jointer 5.jpg (194.31 KiB) Viewed 148 times
jointer 6.jpg
jointer 6.jpg (255.04 KiB) Viewed 148 times
jointer 7.jpg
jointer 7.jpg (369.92 KiB) Viewed 148 times
jointer 9.jpg
jointer 9.jpg (446.01 KiB) Viewed 148 times
After the evaporust bath
jointer 91.jpg
jointer 91.jpg (212.66 KiB) Viewed 148 times
John4337
Gold Member
Posts: 69
Joined: Sun Jan 07, 2018 11:05 am
Location: Copperhill, TN

Re: Refurbishing a MkV 510

Post by John4337 »

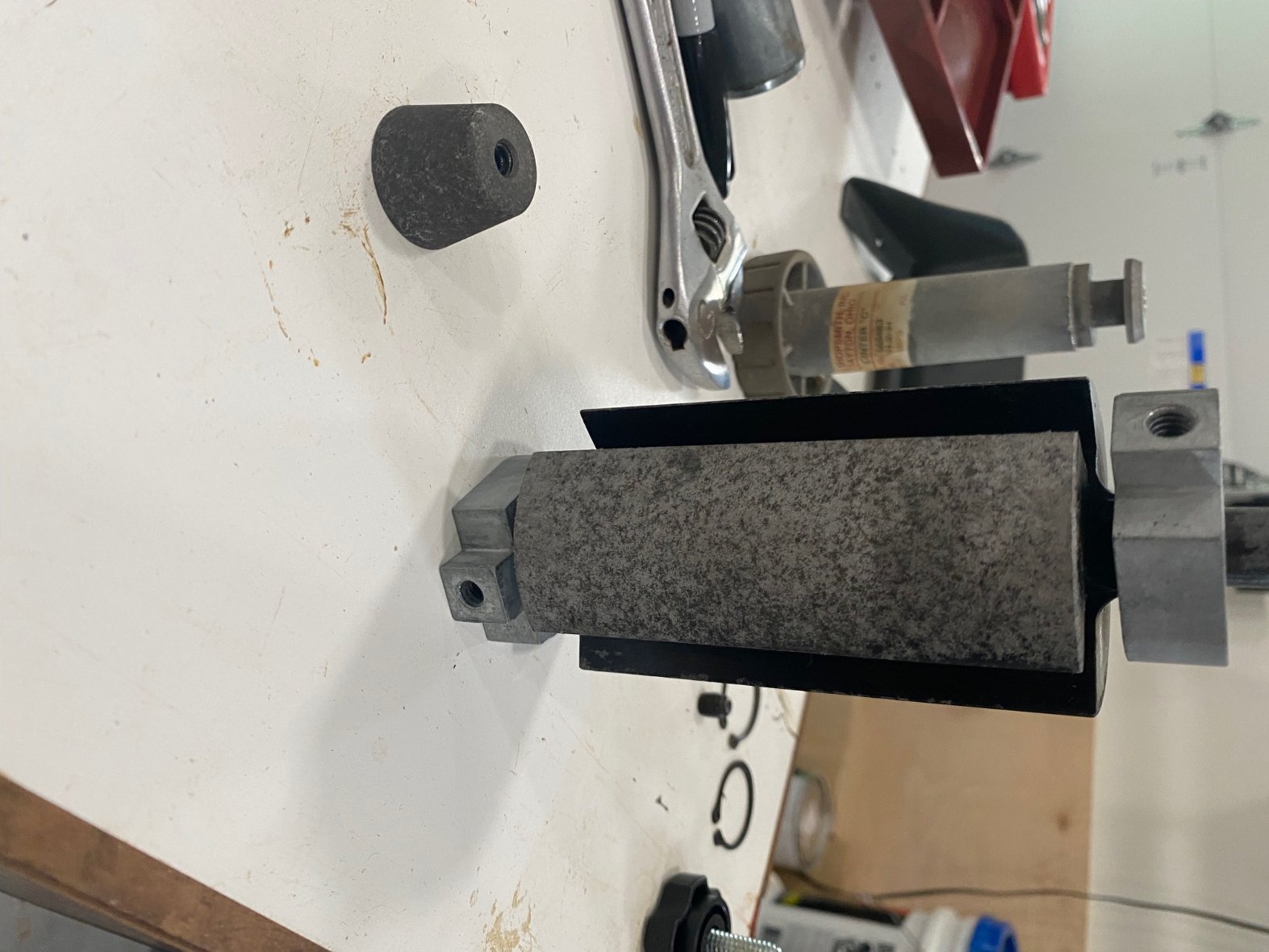

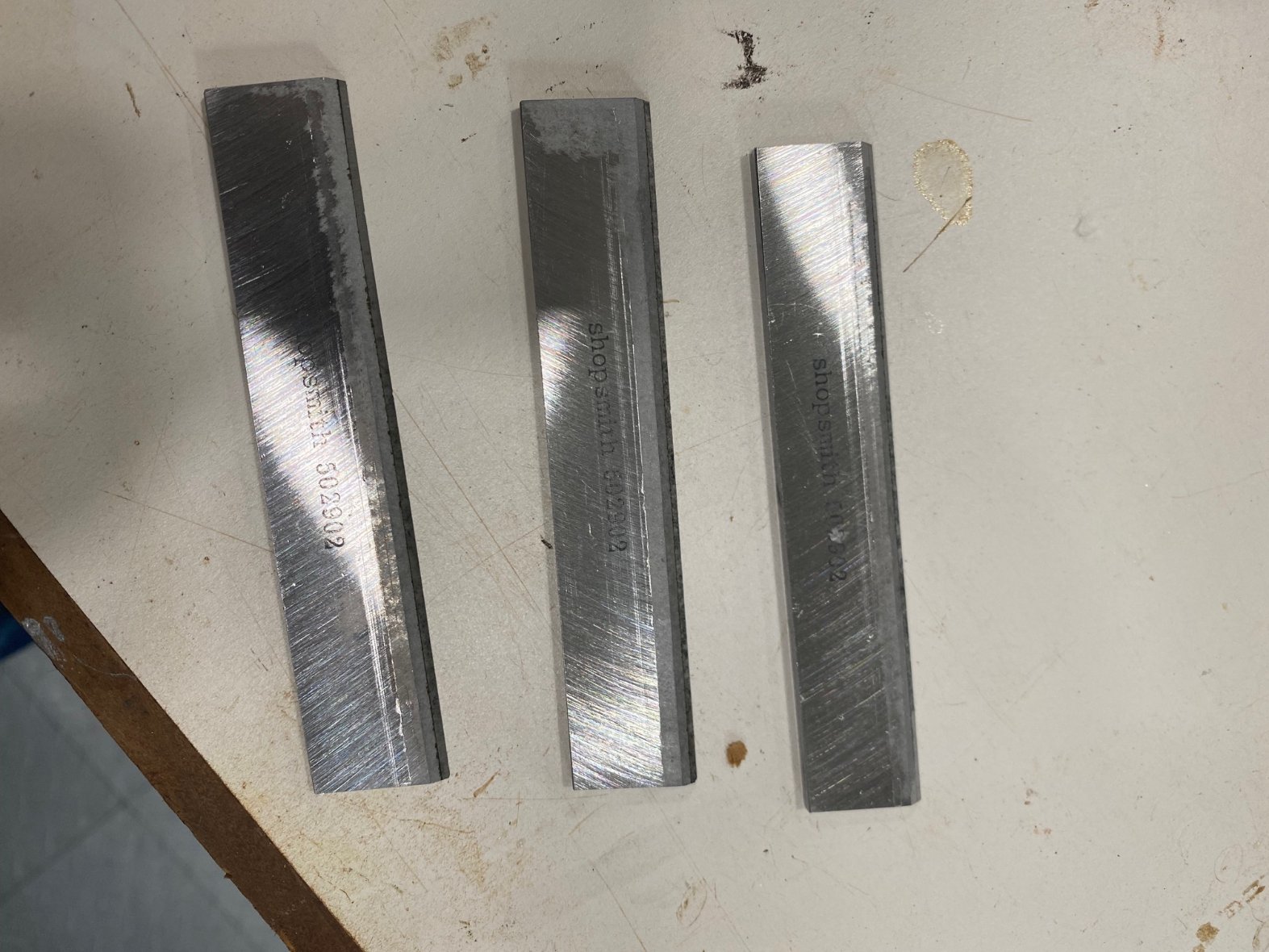

The knives cleaned up great. No nicks either.
jointer knives.jpg
jointer knives.jpg (277.01 KiB) Viewed 141 times
User avatar
chapmanruss
Platinum Member
Posts: 2196
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Refurbishing a MkV 510

Post by chapmanruss »

John,

It looks like you have gotten a good start on the Jointer. The rust looks like lighter surface rust only so it should clean up very well. Once the rust is removed, the bare metal is clean and any painting is done use that good ol' Johnsons Original Formula Paste Wax or similar to protect the bare metal. Do that before re-assembling the Jointer to get those spots that will be harder to protect once the Jointer is re-assembled. Wax on the contact surfaces between the Base/Outfeed Table and the Infeed Table will protect and provide lubrication there just as is desired on other surfaces having moving parts on them like the Way Tubes on a Mark V. Do make sure there isn't any paint on those surfaces. The Cutter Head can be waxed too including into the blade recesses. The knives are tapered and the wedges will hold them in even with the surface waxed. The benefit is rust protection.

The cleanup on the knives looks great but do sharpen them before using them.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1076 & Mark 2 to be restored plus others.
John4337
Gold Member
Posts: 69
Joined: Sun Jan 07, 2018 11:05 am
Location: Copperhill, TN

Re: Refurbishing a MkV 510

Post by John4337 »

Thanks Russ, that was my plan, I'm just happy the knives aren't all nicked up. looking forward to starting to put this thing back together. Bearings are slated to arrive Friday.
