Reborn 10ER

Post by rjent »

Well here are the pictures finally! LOL

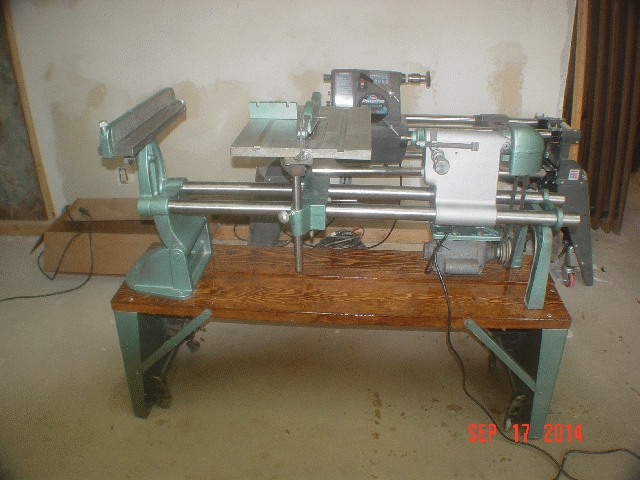

My "reborn" 10ER ..... :D

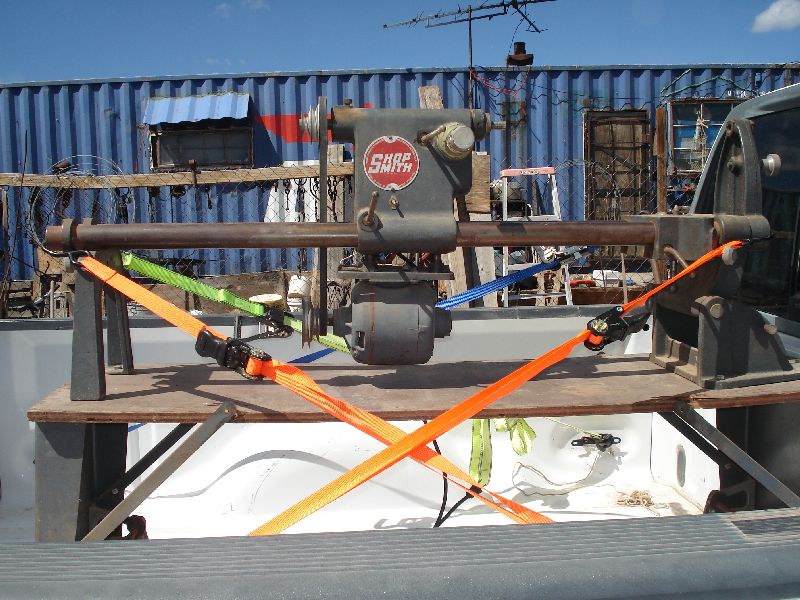

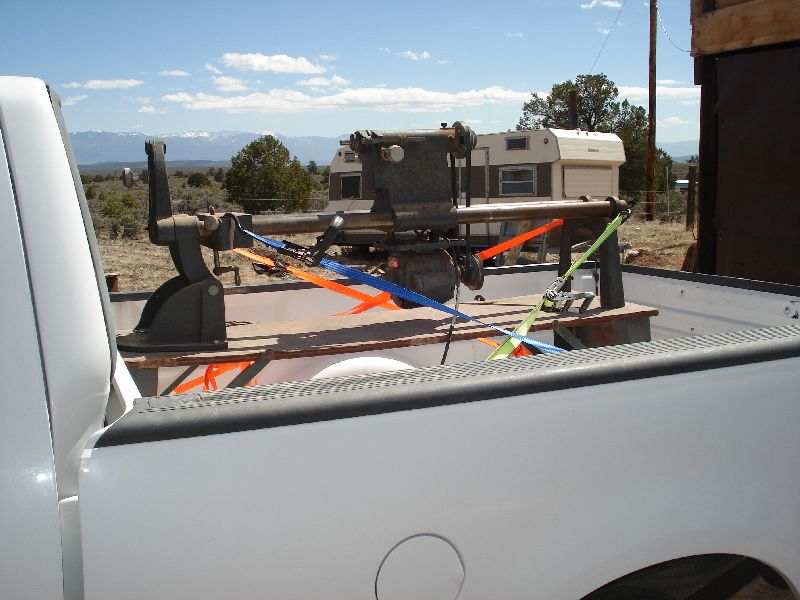

A "before" picture

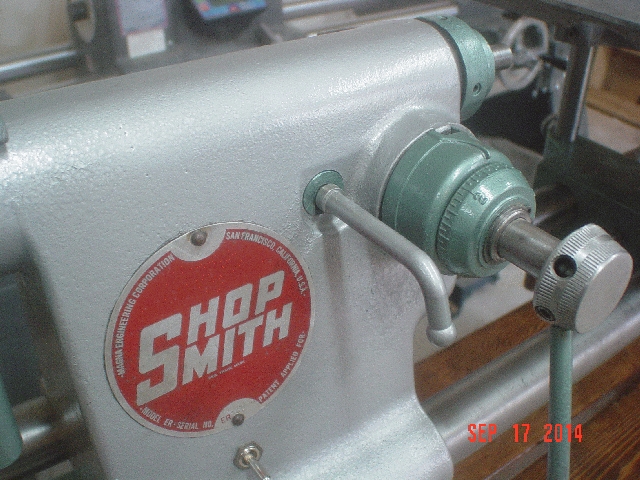

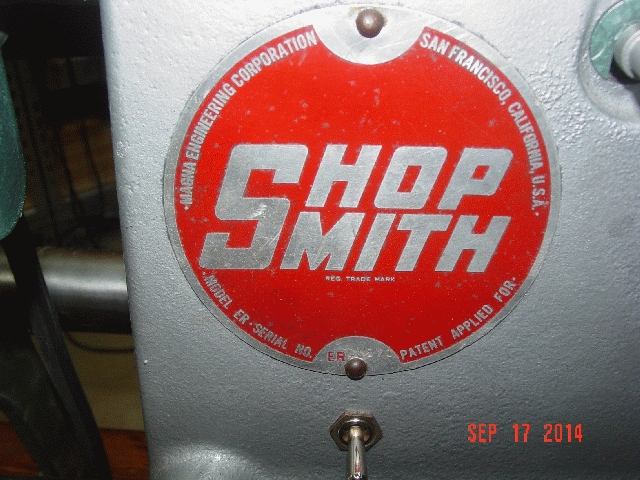

Badge and headstock

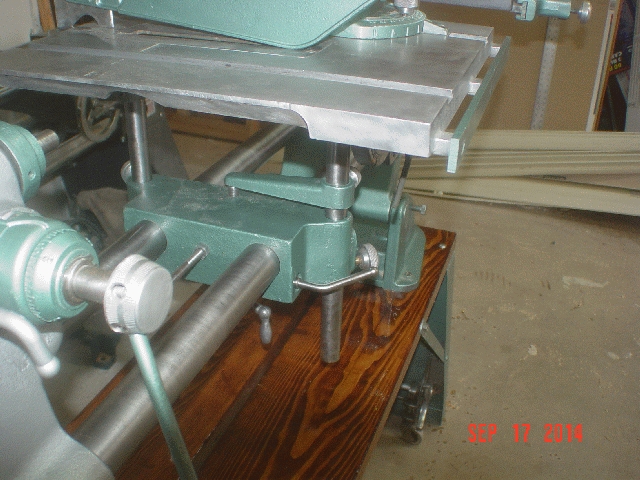

Back side

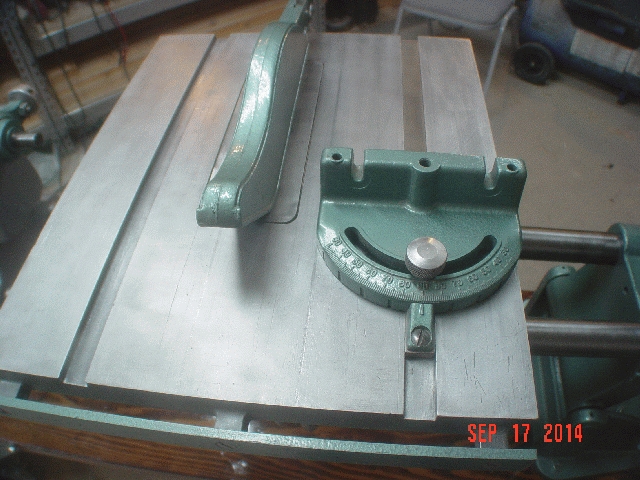

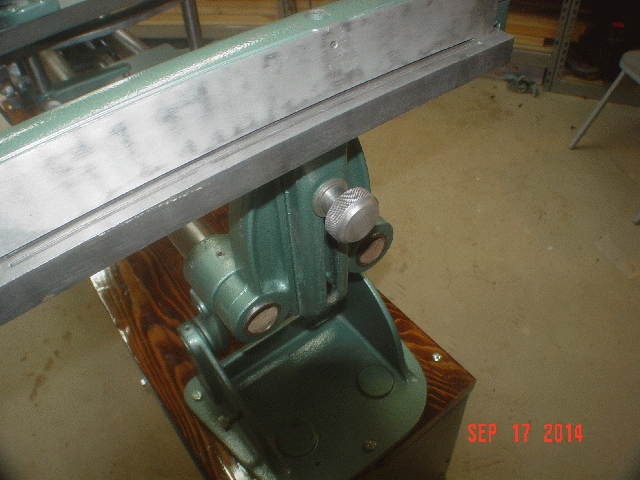

Table, miter, and fence
Thanks to all of our experts. I would not have been able to do this with out you guys.
Attachments
Last edited by rjent on Tue May 12, 2015 1:27 pm, edited 4 times in total.
Dick
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....[/size]

"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
User avatar
rjent
Platinum Member
Posts: 2107
Joined: Fri Mar 14, 2014 3:00 pm
Location: Hot Springs, New Mexico

Post by rjent »

A few more because of the picture limit.

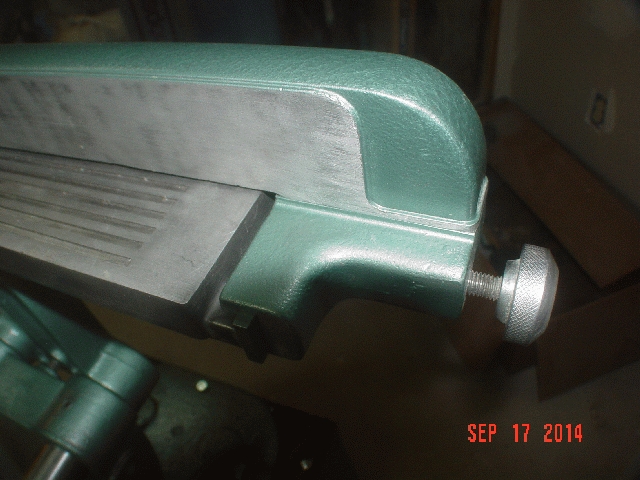

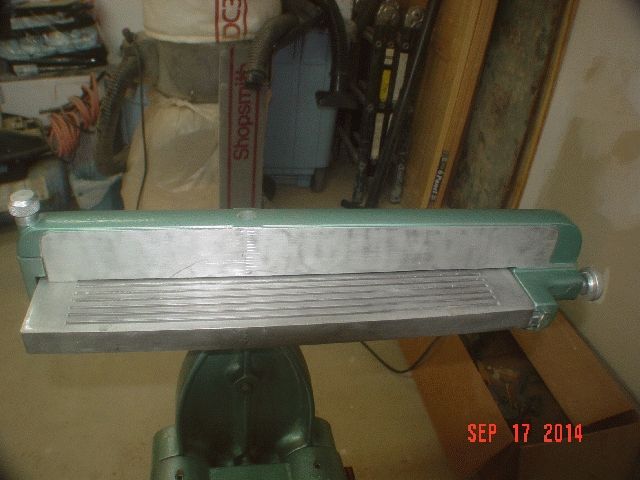

Fence detail
Let me know what you think!

Thanks Heath for the color design and MickyD for the inspiration!
Last edited by rjent on Thu Mar 26, 2015 1:09 pm, edited 1 time in total.
Dick
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....[/size]

"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
User avatar
joedw00
Platinum Member
Posts: 1956
Joined: Thu Jul 20, 2006 7:01 pm
Location: Wichita, Kansas

Post by joedw00 »

Looks good, you did a excellent job.
Joe

520, Bandsaw, Beltsander, Delta Drill Press, Delta Lathe, Craftsman Planner/Jointer, Delta Planner, Mini "Greenie" Shorty 500

Being a VETERAN is an honor
Being a GRANDPA is priceless
User avatar
dusty
Platinum Member
Posts: 20028
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Post by dusty »

Looks absolutely fantastic. You can park yours right along side of Mickyd's and feel right proud.

Great Job
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
heathicus
Platinum Member
Posts: 2648
Joined: Wed Oct 22, 2008 1:02 am
Location: WhoDat Nation

Post by heathicus »

Fantastic job! I especially like that fence detail!
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
User avatar
BuckeyeDennis
Platinum Member
Posts: 3191
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Post by BuckeyeDennis »

Great work!

It makes that PowerPro in the background look like an ugly stepsister. :eek: And I bet I know why the PowerPro has a brush chucked up.
User avatar
idcook
Gold Member
Posts: 472
Joined: Wed Mar 06, 2013 4:48 pm
Location: New York (Alley cat country), New York

Post by idcook »

Oh my. That’s beautiful. That fence detail gives it an unexpected nice flair.

An inspiration to 10ers yet to come. (Such as moi!)
User avatar
rjent
Platinum Member
Posts: 2107
Joined: Fri Mar 14, 2014 3:00 pm
Location: Hot Springs, New Mexico

Post by rjent »

Thanks guys! I am pretty happy how it came out. I had a good machine to start with, some rusting on the way tubes, knobs, levers, bolts, and table rods, but they cleaned up pretty well, all with a wire brush of some size or another. I went through three of those wire brush wheels in the project Dennis LOL. Nothing was really all that bad, just dirty. I felt guilty at times painting over the original paint, because it was so good after I had clean it up, but I just wanted the "Greenie" 10ER, just a beautiful scheme, again, thanks Heathicus, great idea!

The Mark 7 was very handy because of it's speed control and reversing. I use it in lathe mode at 250 RPM and then had a hand drill with the wire brush going opposite direction of rotation braced against the tool rest. It took some time, but as you see they cleaned up pretty well. A few pits are left, but the headstock and the table carriage work like butter. I found a LOT of sawdust and just grime packed in the carriage locks in both the table carriage and the headstock locks. It was actually acting as a brake material in conjunction with the rough surface of the way tube. A pleasure to operate now. I forgot to put a picture of my tube turning solution (I will get a pic later and include it here). I just took a 4x4 block and turned it down to a cone. Then, with a BFH (Big Ferrous Hammer :) ) drove the tube onto the cone. I figured that at 250 RPM the tube would be easy to control. I was right. The other end of the tube was just riding on the crate pallet that the M7 was delivered on. I used a block screwed into the pallet to hold the tube into one place, the pallet had a couple of boards (not stock yet :p ) attached with wood screws at ninety degrees then another board secured to the end of the M7. It worked obviously :). The cone eventually "polished out" and would not hold the tube tight enough on the second tube, but my wife stepped in with another block I made with a "socket" that she used to press against the end of the tube with her hip to force it on the cone. I kept telling her to "put your weight into it!". She almost quit .... :D

It took me a lot of time to clean the tables. I really can't say why, it just did to get the "look" I was wanting. They are not perfect (nor finished yet) but good enough.

Dennis, I was thinking the same thing about the Mark 7. I was thinking if I walked into a showroom and was wanting to purchase a machine, the 10ER is more appealing ..... :eek:

The fence detail, was just an inspiration from my hot rod and classic car overhaul days. I saw that 50's looking line and something just told me that needed a paint line. I just used a small ball peen hammer and cut the masking tape like I used to do with gasket material, then painted it. I am pleased with how that worked out.

Anyway, she's done, I look forward to getting my new saw blade in a few days (Amazon). I will tell a secret if nobody will tell anyone. Right now, I like using the 10ER table saw better than the M7. The 7 was just doing a better job, but I think the new blade will change that. I know the PowerPro is far better for heavy and thick, but for small work pieces, I seem to drift to the 10ER more. I know, what can I say, I am a green horn ..... :rolleyes:

I can email any and all picture in their full 4 meg size if anyone wants them.

Dick
Dick
1965 Mark VII S/N 407684
1951 10 ER S/N ER 44570 -- Reborn 9/16/14
1950 10 ER S/N ER 33479 Reborn July 2016
1950 10 ER S/N ER 39671
1951 jigsaw X 2
1951 !0 ER #3 in rebuild
500, Jointer, Bsaw, Bsander, Planer
2014 Mark 7 W/Lift assist - 14 4" Jointer - DC3300
And a plethora of small stuff .....[/size]

"The trouble with quotes on the Internet is that you can never know if they are genuine." - Benjamin Franklin
User avatar
kablerj
Gold Member
Posts: 230
Joined: Sat Aug 23, 2014 3:33 pm
Location: Meyersdale PA

Post by kablerj »

That is amazing!! Great job.
Hello from Somerset in the beautiful Pennsylvania Laurel Highlands.

Mark 7, Mark VII, Mark V 520, Mark V 510 x 2, Mark V 500
SPT's - Band Saw, Jig Saw, Belt Sander, Jointer, strip sander, Oscillating Sander, Speed Increaser
SS Freestanding - Pro Planer, Scroll Saw, Overarm Pin Router, Power Station, DC3000 x 2
Made for SS - Incra iBox, Ring Master

"Honest dear, I can quit any time I want."
User avatar
Jack Wilson
Gold Member
Posts: 186
Joined: Tue Jul 09, 2013 10:40 pm
Location: Ponte Vedra, FL

Post by Jack Wilson »

Quit a transformation. Very nice.
