Off for another adventure

Post by ryanbp01 »

Well, this weekend I will be off to pick up the 10er for the purpose of restoration. Since I have converted my MarkV into a Mark VII, in addition to viewing other members efforts, I thought it would be a good challenge for me. It promises to be an interesting journey.
BPR
User avatar
chapmanruss
Platinum Member
Posts: 1888
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Off for another adventure

Post by chapmanruss »

WARNING it can be addicting

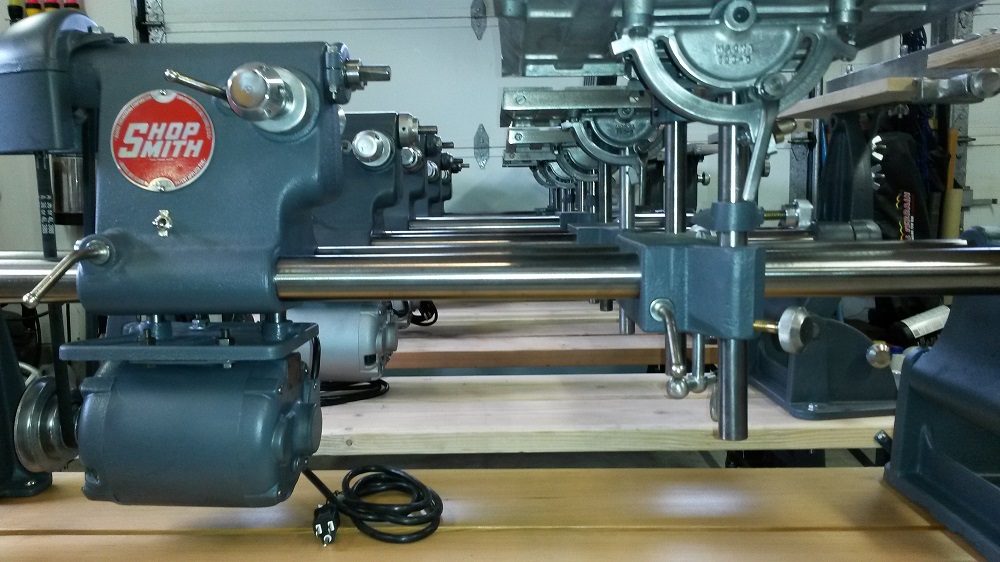

Five Restored Model 10's
Five Restored Model 10's
4708-8865-55582-R57376-R64000 r.jpg (201 KiB) Viewed 19908 times
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1033 & Mark 2 to be restored.
User avatar
ryanbp01
Platinum Member
Posts: 1479
Joined: Mon Jun 25, 2007 4:43 pm
Location: Monroeville, IN

Re: Off for another adventure

Post by ryanbp01 »

Well, I picked it up last Sunday. I plan to post pictures of it as is tomorrow. It does have a serial number of E5466. I think it may be 1952 based upon the manuals (Montgomery Ward and Magna) which came with it, however I don't know for sure.
BPR
User avatar
rpd
Platinum Member
Posts: 2756
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Off for another adventure

Post by rpd »

ryanbp01 wrote:Well, I picked it up last Sunday. I plan to post pictures of it as is tomorrow. It does have a serial number of E5466. I think it may be 1952 based upon the manuals (Montgomery Ward and Magna) which came with it, however I don't know for sure.
BPR
For a 1952 there should be five digits in the serial number. ;)
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
User avatar
ryanbp01
Platinum Member
Posts: 1479
Joined: Mon Jun 25, 2007 4:43 pm
Location: Monroeville, IN

Re: Off for another adventure

Post by ryanbp01 »

So, what year would it be?
BPR
User avatar
rpd
Platinum Member
Posts: 2756
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Off for another adventure

Post by rpd »

ryanbp01 wrote:So, what year would it be?
BPR
I would think E5466 would be 1948 made in the Eastern plant. The later manuals that came with it would suggest otherwise. The pictures should help bring more clarity.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
User avatar
chapmanruss
Platinum Member
Posts: 1888
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Off for another adventure

Post by chapmanruss »

I agree with what Ron said. The E in the serial number denotes it was made in the Eastern Plant and the serial number being that low puts it not long after the Eastern Plant went into production.

Your 10E has version 2 of the headstock, the larger Base and the 4 Bolt Headrest. It also has the Wood Extension Table and version 2 of the Tailstock. This information comes from the pictures I saw of it. 10ER's did not have the Wood Extension Table and it is one of the changes that occurred shortly before the 10E became the 10ER.

None of the 10E Manuals I have or have seen have a date on them. For a manual for it check under the Maintenance and Repair section for Shopsmith Large Format Drawings, Illustrations and More by Everett Davis. This will be one of the first three topics. In it you will find a wealth of information on the Shopsmith tools. Some are directly linked there and others are on “My Google Drive” with documents too large to be directly linked. Look for the restored Model 10E Manual.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1033 & Mark 2 to be restored.
User avatar
ryanbp01
Platinum Member
Posts: 1479
Joined: Mon Jun 25, 2007 4:43 pm
Location: Monroeville, IN

Re: Off for another adventure

Post by ryanbp01 »

Well, after working outside getting stuff finished before the weather turns, I thought I would post some pics on the 10er before I start taking things apart for restoration:
Attachments
User avatar
ryanbp01
Platinum Member
Posts: 1479
Joined: Mon Jun 25, 2007 4:43 pm
Location: Monroeville, IN

Re: Off for another adventure

Post by ryanbp01 »

I forgot to mention I got it for $25.
BPR
User avatar
BuckeyeDennis
Platinum Member
Posts: 3274
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: Off for another adventure

Post by BuckeyeDennis »

ryanbp01 wrote:I forgot to mention I got it for $25.
BPR
Nice steal!

The right-side-up ones usually sell for a little bit more. ;)
