Mark V Lower Saw Shield Question

Post by Jswan93426 »

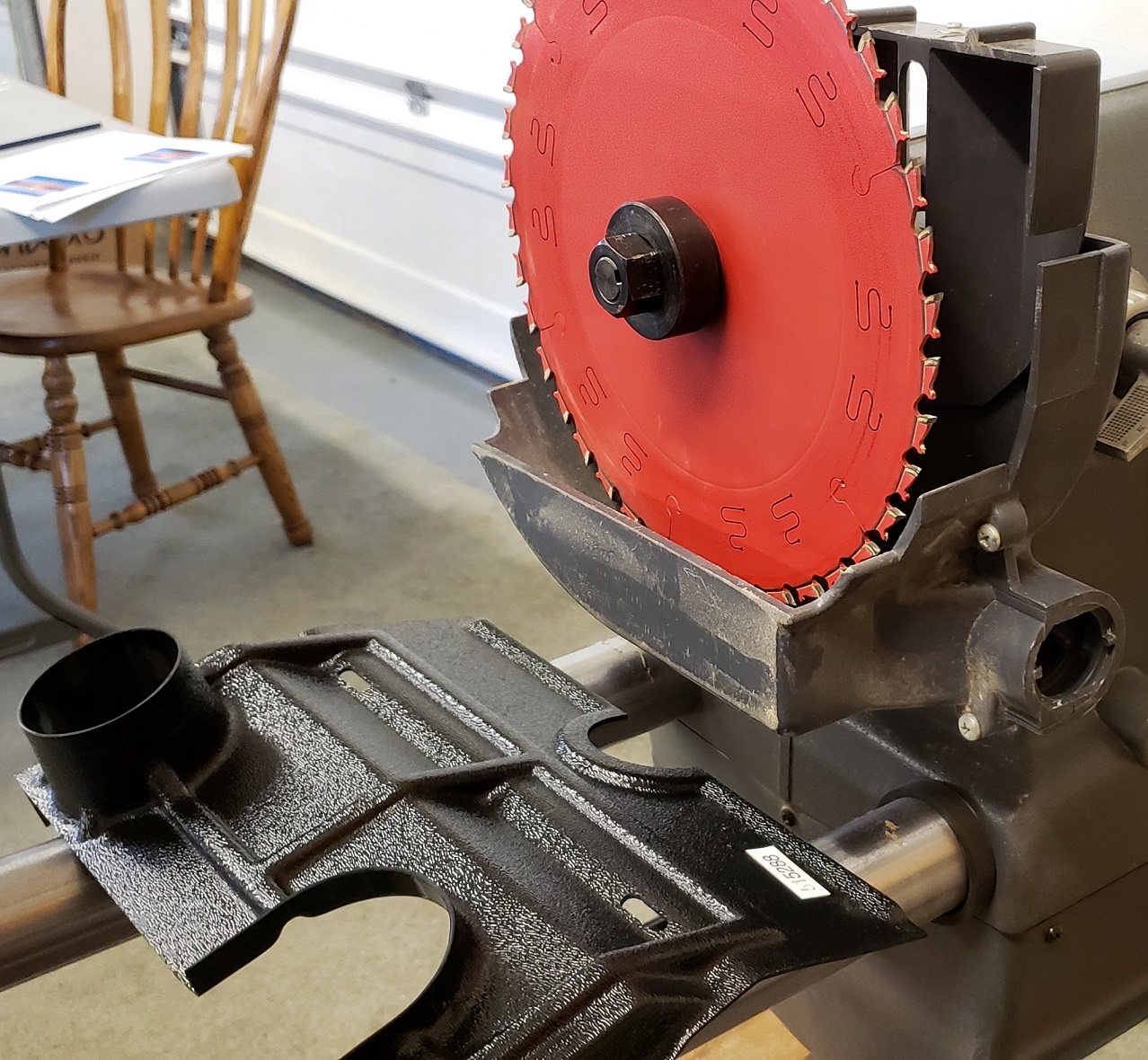

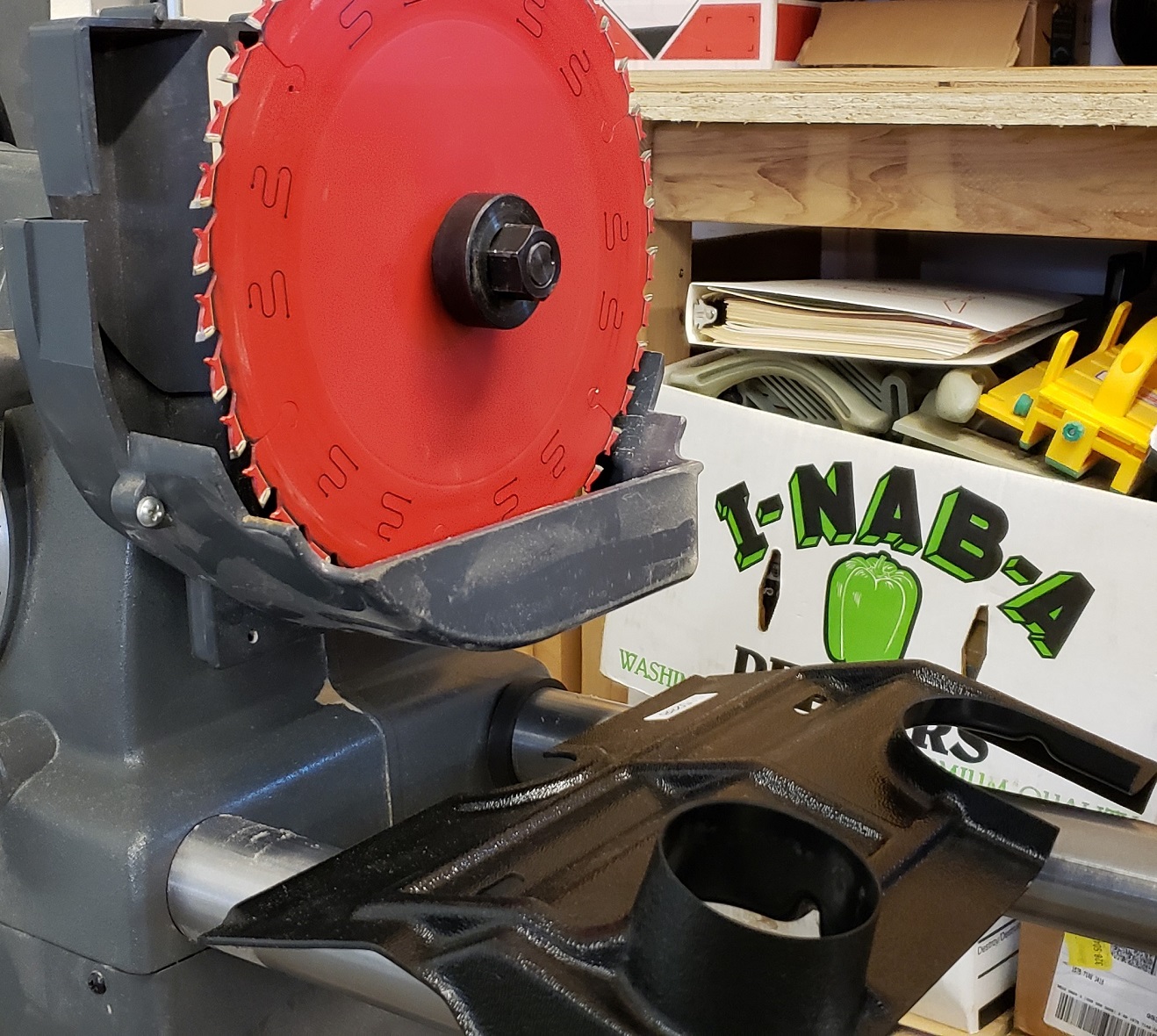

Bought a previously owned Mark V. Based on Ser.# I was told it's a Model 500. Missing parts of lower saw shield. Customer Service told me I needed Tie Bar Shield 515288. It's not a fit. See attached photos. Based on these, what do I need to complete the lower saw shield? Please advise. I've asked Customer Service again, but have had no response yet. My goal is to minimize sawdust. Thanks!
User avatar
rpd
Platinum Member
Posts: 2638
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Mark V Lower Saw Shield Question

Post by rpd »

The shield they sent you does go with that lower guard, It mounts on the tie bar under the table.
See the lower guard manual for how it mounts.
http://www.lhdigest.com/SS/MANUALS/OTHE ... 555294.pdf
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Jswan93426
Bronze Member
Posts: 3
Joined: Tue Jun 30, 2020 3:07 pm

Re: Mark V Lower Saw Shield Question

Post by Jswan93426 »

Thanks Ron! Hadn't seen that manual or the rest of the kit. Much appreciated.
User avatar
chapmanruss
Platinum Member
Posts: 1531
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Mark V Lower Saw Shield Question

Post by chapmanruss »

Your Saw Blade Guard is the original version of that set P/N 505875 that had only a 1-1/4" dust collection connection. It was upgraded and the tie bar shield you show is only part of the upgrade to two 2-1/2" dust collection ports. The first picture below shows the original Saw Blade Guard set. The second picture is the upgrade. Note the upper Blade Guard remained the same.

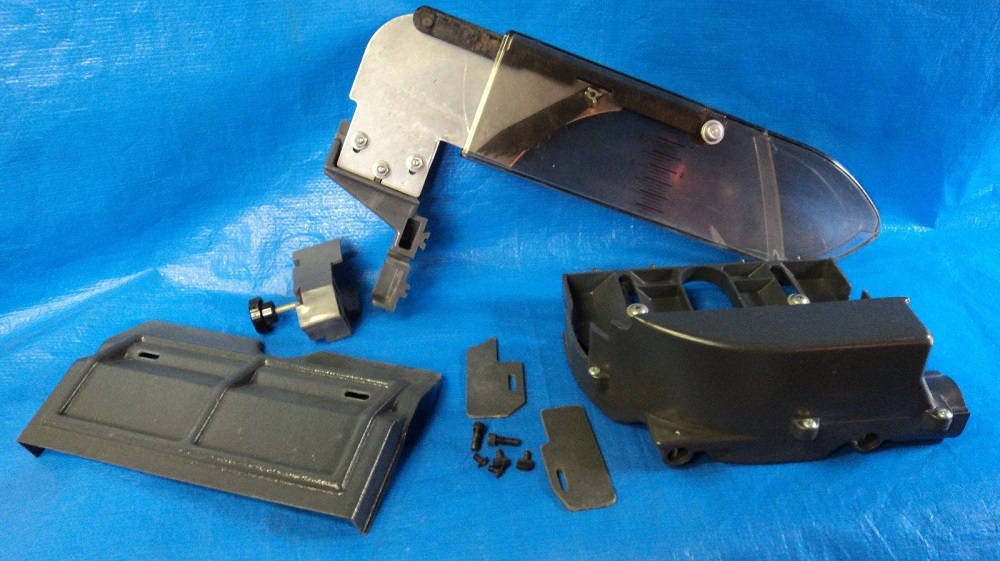

505875 V1 500 Saw Blade Guard Assembly 1980s r.jpg
505875 V1 500 Saw Blade Guard Assembly 1980s r.jpg (207.59 KiB) Viewed 3485 times

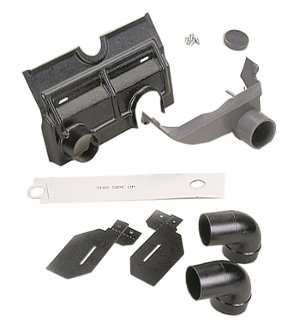

555294 - 505875 lower sawguard upgrade.jpg
555294 - 505875 lower sawguard upgrade.jpg (14.68 KiB) Viewed 3485 times
Without the complete upgrade package the part that attaches to the tie bar doesn't work well with the old lower part of the original guard.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1033 & Mark 2 to be restored.
Jswan93426
Bronze Member
Posts: 3
Joined: Tue Jun 30, 2020 3:07 pm

Re: Mark V Lower Saw Shield Question

Post by Jswan93426 »

Thanks!
