I have an opportunity to make a bunch of flag cases for a company that sells to some military stores. From the measurements furnished the miters are 68.8 degrees on the bottom and 47.7 degrees on the top. I need make the stock, cut the groove for the glass and dado for the back then stain and finish the stock in lengths before cutting. I would then need to install the glass in a saw groove and come up with some type system to assemble other than just glue and clamps. Anyone have ideas on some type hidden fastener?
[ATTACH]10139[/ATTACH]
[ATTACH]10140[/ATTACH]
Memorial flag cases
Moderator: admin
-
mbcabinetmaker
- Platinum Member
- Posts: 1627
- Joined: Thu Jul 20, 2006 6:18 am
- Location: Greer SC
Memorial flag cases
- Attachments
-
- Template.jpg (57.08 KiB) Viewed 1971 times
-
- 21CgJHju85L._SL500_AA300_.jpg (7.79 KiB) Viewed 1968 times
****************
****************
Mark
2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
****************
Mark
2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
How about a pin nailer or maybe biscuits?
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
-
JPG
- Platinum Member
- Posts: 35429
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Does the underside and back need to be 'clear'? Screws thru the bottom into the side pieces? The bottom is the most vulnerable joint in spite of its length(unless it will be picked up by the apex!).
Blind dowels at the apex would be easier to make a fixture for than biscuits.
Dowels at bottom joints = same as apex.
Blind dowels at the apex would be easier to make a fixture for than biscuits.
Dowels at bottom joints = same as apex.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
mbcabinetmaker
- Platinum Member
- Posts: 1627
- Joined: Thu Jul 20, 2006 6:18 am
- Location: Greer SC
My concern with he dowels would be getting enough clamping force to pull it together. The screws in the bottom and biscuits on the top may be the way to go. Got to figure it out looks like I have about 8 to do for a start. I quoted them in lots of 4 or more. Next step will be to build the jigs for the cutting the miters.
****************
****************
Mark
2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
****************
Mark
2017 Power Pro Mark 7
2002 50th anniversary model 520
and a few other woodworking tools.
-
dusty
- Platinum Member
- Posts: 21481
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
I never said that mathematics of any kind was my strong suit but I did think I understand geometry. The angles that you have stated, are they interior or external measurements.mbcabinetmaker wrote:I have an opportunity to make a bunch of flag cases for a company that sells to some military stores. From the measurements furnished the miters are 68.8 degrees on the bottom and 47.7 degrees on the top. I need make the stock, cut the groove for the glass and dado for the back then stain and finish the stock in lengths before cutting. I would then need to install the glass in a saw groove and come up with some type system to assemble other than just glue and clamps. Anyone have ideas on some type hidden fastener?
[ATTACH]10139[/ATTACH]
[ATTACH]10140[/ATTACH]
What has me by the short hair is a belief that the sum of the interior angles of a triangle will always equal 180 degrees.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
-
mickyd
- Platinum Member
- Posts: 2999
- Joined: Mon Feb 09, 2009 1:18 pm
- Location: San Diego, CA
- Contact:
Rule only applies to a right triangle which always has one angle equal to 90 degrees. The design is an isosceles triangle, two angle the same and two sides the same but no 90 degree angle.dusty wrote:I never said that mathematics of any kind was my strong suit but I did think I understand geometry. The angles that you have stated, are they interior or external measurements.
What has me by the short hair is a belief that the sum of the interior angles of a triangle will always equal 180 degrees.
Mike
Sunny San Diego
Sunny San Diego
-
shipwright
- Platinum Member
- Posts: 1165
- Joined: Tue Dec 15, 2009 7:28 pm
- Location: Vancouver Island, Canada
- Contact:
mbcabinetmaker wrote:My concern with he dowels would be getting enough clamping force to pull it together. The screws in the bottom and biscuits on the top may be the way to go. Got to figure it out looks like I have about 8 to do for a start. I quoted them in lots of 4 or more. Next step will be to build the jigs for the cutting the miters.
Clamping pressure for this would be simple with a custom jig.
I originally thought that you needed them to be dis-assemble-able and re-assemble-able with no visible fastenings and a strong hold. I was going to suggest rare earth magnets in conjunction with some little indexing bumps like dowel ends.
Paul M
Paul M ........ The early bird gets the worm but the second mouse gets the cheese
Memorial Flag Case
How about using splines and biscuits for structural support.
Mark V 520,Mark V 510(2),Mark V 500(2) Dust Collector(2), Jointer(2), bandsaw(2), jigsaw, beltsander, biscuit joiner(2) Lathe Duplicator, RingMaster, Pro planer
-
shipwright
- Platinum Member
- Posts: 1165
- Joined: Tue Dec 15, 2009 7:28 pm
- Location: Vancouver Island, Canada
- Contact:
mickyd wrote:Rule only applies to a right triangle which always has one angle equal to 90 degrees. The design is an isosceles triangle, two angle the same and two sides the same but no 90 degree angle.
Are you SURE Mike?
Paul M
Paul M ........ The early bird gets the worm but the second mouse gets the cheese
Hi,
I've been working a box design that might be of interest as I was planning on using splines along the outside edge. Contrasting wood might make in interesting...
Anyway this is a square box but I think you could do the same thing with a flag box.

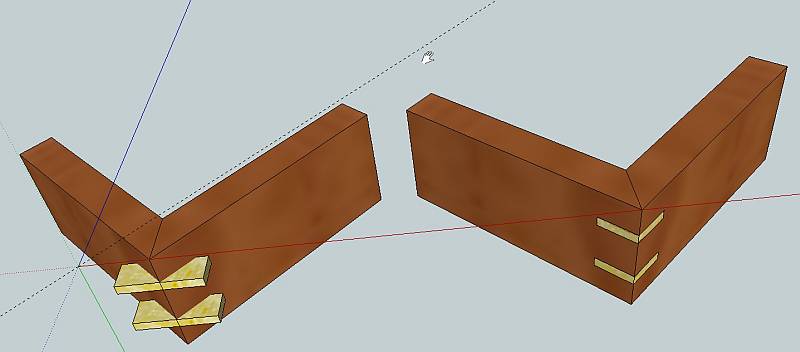

[ATTACH]10141[/ATTACH]
[ATTACH]10142[/ATTACH]

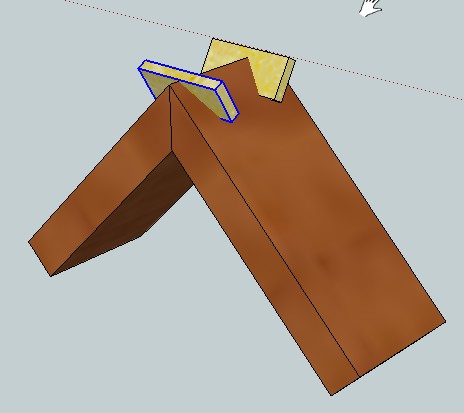

The second one leaves a interesting angle, they can be tipped in or out to ones liking or left square as shown in the first image.
Ed
