Pickup Topper? The Furniture experiment

Post by nuhobby »

This was shown in earlier stages on another thread where I was showing off a lot of resawn lumber, courtesy the SS Bandsaw. The project is still a long ways from done, but it's fun to go down and mess with it every so often.

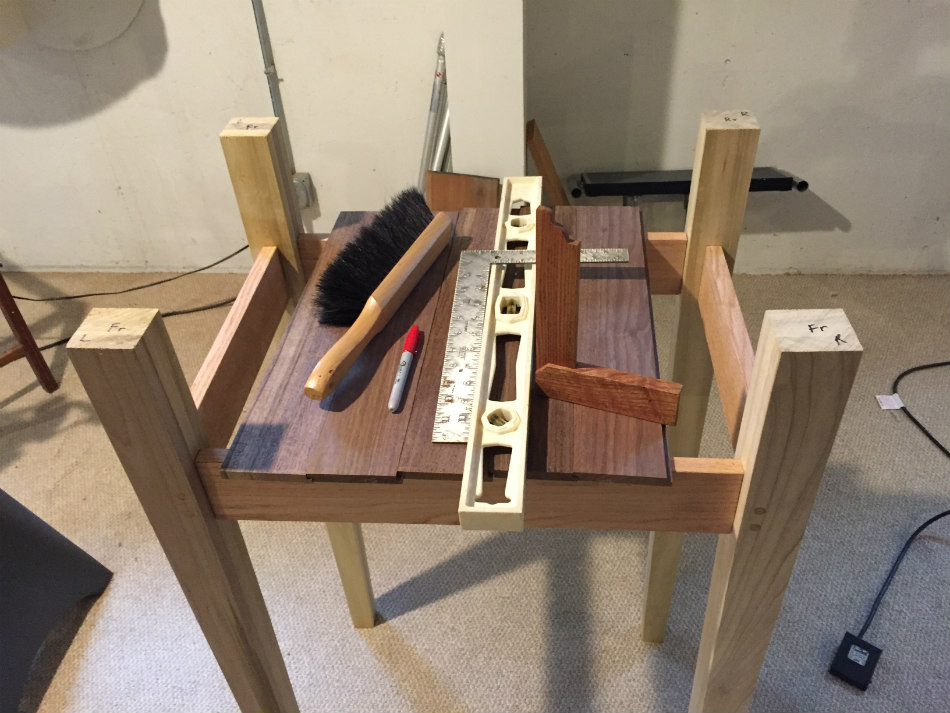

Here was a Base for a cabinet, sized mainly to use up pieces of poplar and oak I had. Also some nice resawn walnut will be a cabinet floor soon:
Lower Legs portion.jpg
Lower Legs portion.jpg (143.17 KiB) Viewed 29729 times

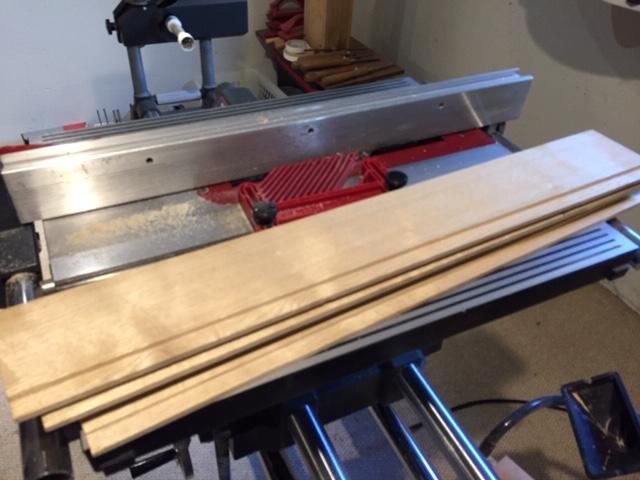

The SS Table Saw was plied into rabbeting chores, quite a few times, for lapped pieces:

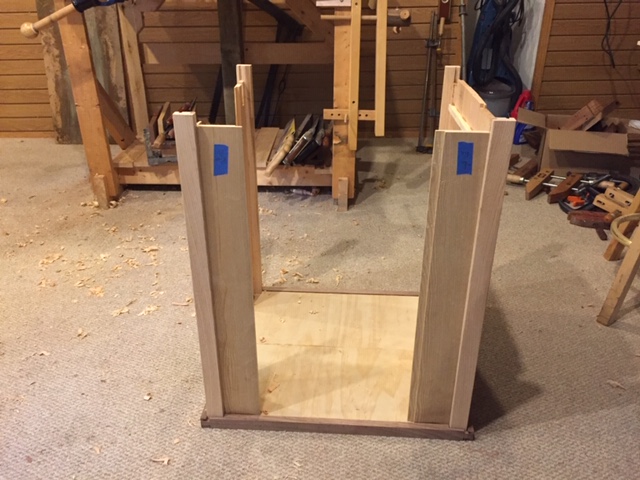

Here, a "Topper is being pieced together, upside down, a bit at a time:

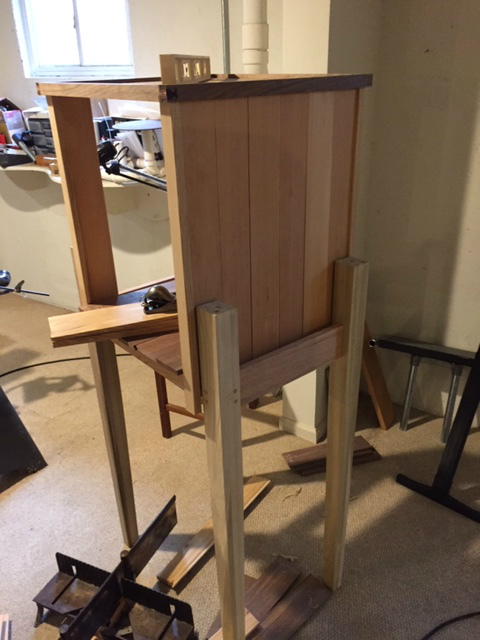

Here is when a Topper gets test-fit on a Base:

As time goes on I will be completing and refining some more! It may be a wine cabinet, it may be something else.

Happy woodworking,

Chris
User avatar
jsburger
Platinum Member
Posts: 5551
Joined: Fri Jul 21, 2006 4:06 pm
Location: Hooper, UT

Re: Pickup Topper? The Furniture experiment

Post by jsburger »

Very nice Chris! Anyone that says a SS can't do accurate work never used one.
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Hobbyman2
Platinum Member
Posts: 2043
Joined: Wed Feb 01, 2017 12:52 am
Location: Ohio

Re: Pickup Topper? The Furniture experiment

Post by Hobbyman2 »

+1 nice job, whats the taper deg on the legs?
Hobbyman2 Favorite Quote: "If a man does his best, what else is there?"
- General George S. Patton (1885-1945)
User avatar
nuhobby
Platinum Member
Posts: 2170
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Re: Pickup Topper? The Furniture experiment

Post by nuhobby »

Hobbyman2 wrote:+1 nice job, whats the taper deg on the legs?
Thanks!
Actually the legs had been a work in progress -- long bandsaw cuts followed by hand planing. I actually have a significant taper on the inner leg faces, and a minor taper (from vertical) on the outer leg faces as well. I haven't measured the angles as such.

Chris
User avatar
JPG
Platinum Member
Posts: 31990
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Pickup Topper? The Furniture experiment

Post by JPG »

jsburger wrote:Very nice Chris! Anyone that says a SS can't do accurate work never used one.
To say nothing about the miter saw(sitting on the floor). ;)
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
bainin
Gold Member
Posts: 298
Joined: Mon Apr 22, 2019 11:09 pm
Location: NC

Re: Pickup Topper? The Furniture experiment

Post by bainin »

The gentle taper really adds elegance !
User avatar
nuhobby
Platinum Member
Posts: 2170
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Re: Pickup Topper? The Furniture experiment

Post by nuhobby »

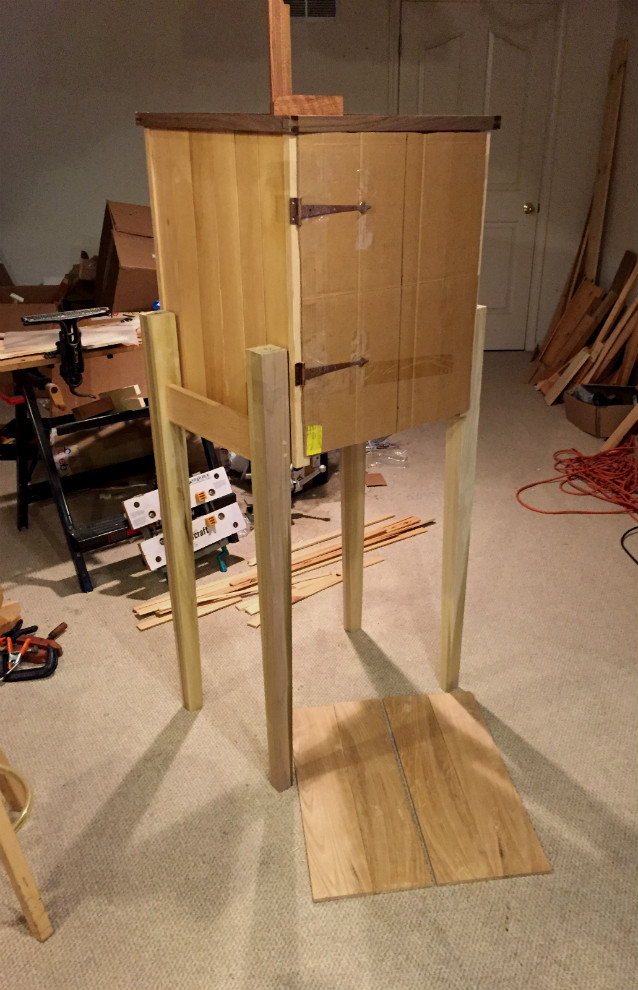

I have been able to 90% lay-in the lapped cabinet sideboards... this may or may not have been my best idea, but it has certainly allowed me to use up a lot of tight-grained resawn wood. The overall carcass has needed a number of small trims and adjustments, but generally is going to (mental) plan.

I am now mocking-up the front-door sizes in cardboard; the nice resawn Ash planks on the floor will be applied as those doors.

Again the photo shows the 4 legs to be mainly paint-grade poplar, which is what I'll do some time (brown or black range of color).
thanks for watching

Chris
User avatar
nuhobby
Platinum Member
Posts: 2170
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Re: Pickup Topper? The Furniture experiment

Post by nuhobby »

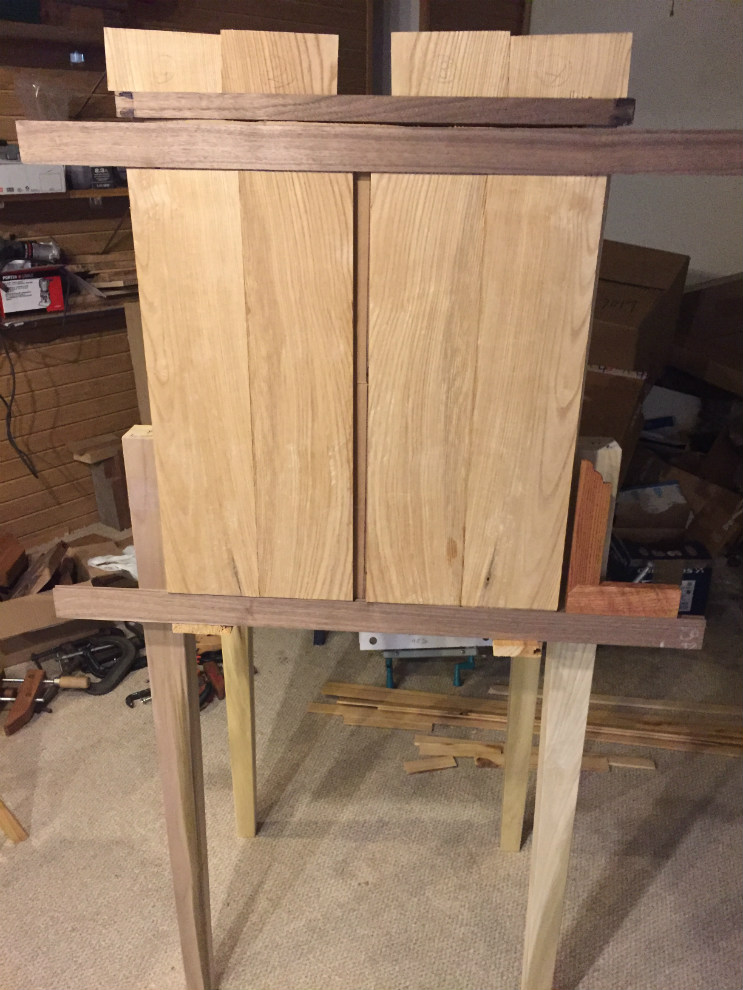

I have done some preliminaries on matching up the ash door-stock and fitting it to some walnut "breadboard end" stock. The "ash cutoffs" sitting atop the cabinet were my reminder to where each board ultimately goes:

More later!

Chris
User avatar
nuhobby
Platinum Member
Posts: 2170
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Re: Pickup Topper? The Furniture experiment

Post by nuhobby »

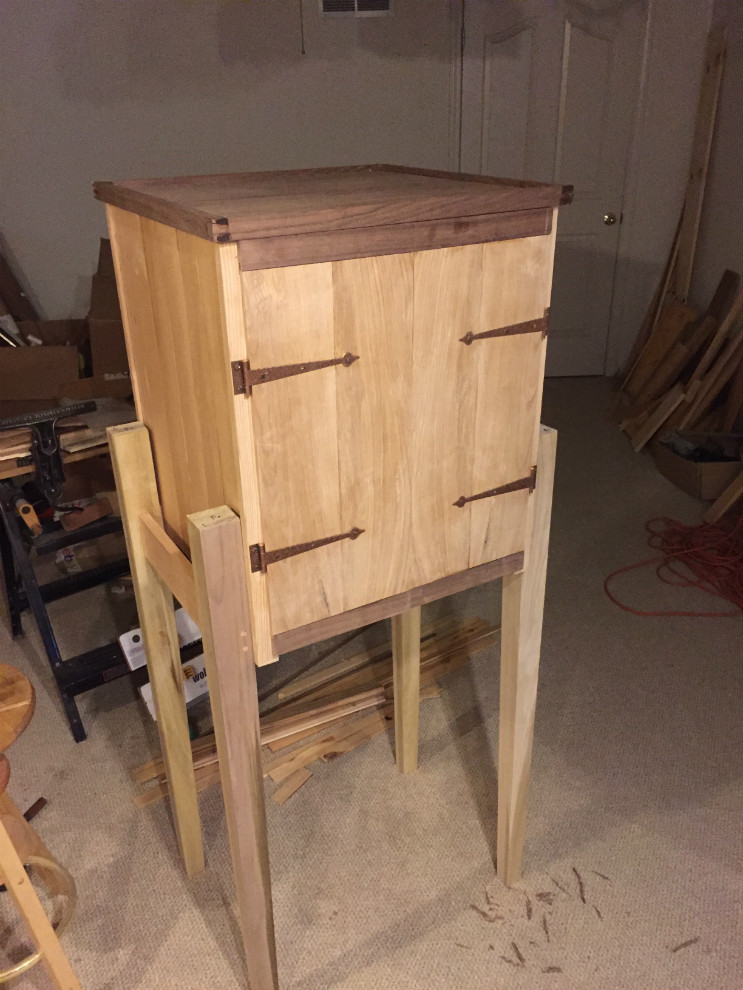

I had a couple of hours on July 4 before the rest of the events pulled me away. These doors are now hinged and working, with a slight lap-joint intersection on the center-line:

More later!

Chris
Hobbyman2
Platinum Member
Posts: 2043
Joined: Wed Feb 01, 2017 12:52 am
Location: Ohio

Re: Pickup Topper? The Furniture experiment

Post by Hobbyman2 »

Looks good !
