Branding/Emblems

This is a forum for intermediate to advanced woodworkers. Show off your projects or share your ideas.

Moderator: admin

Post Reply
bainin
Gold Member
Posts: 294
Joined: Mon Apr 22, 2019 11:09 pm
Location: NC

Branding/Emblems

Post by bainin »

I've been considering ways to stamp or mark my "works of art" and I came across a fairly simple method.
I had considered burning a stamp with a branding iron, but having investigated this path-it seemed expensive and
difficult to change your brand without more $$.

I came across a youtube video which used an inkjet or laserprinter and wax paper that you then transfer the image
onto your workpiece. The wax paper is pressed onto a wet surface , either polyurethane or (what i used) a gel medium. Details here- if nothing else-Crafsman is fun to listen to :) You can see some leftover gel medium in the hole in the wood-it dries clear.

https://www.youtube.com/watch?v=h7FKdW5ndLw

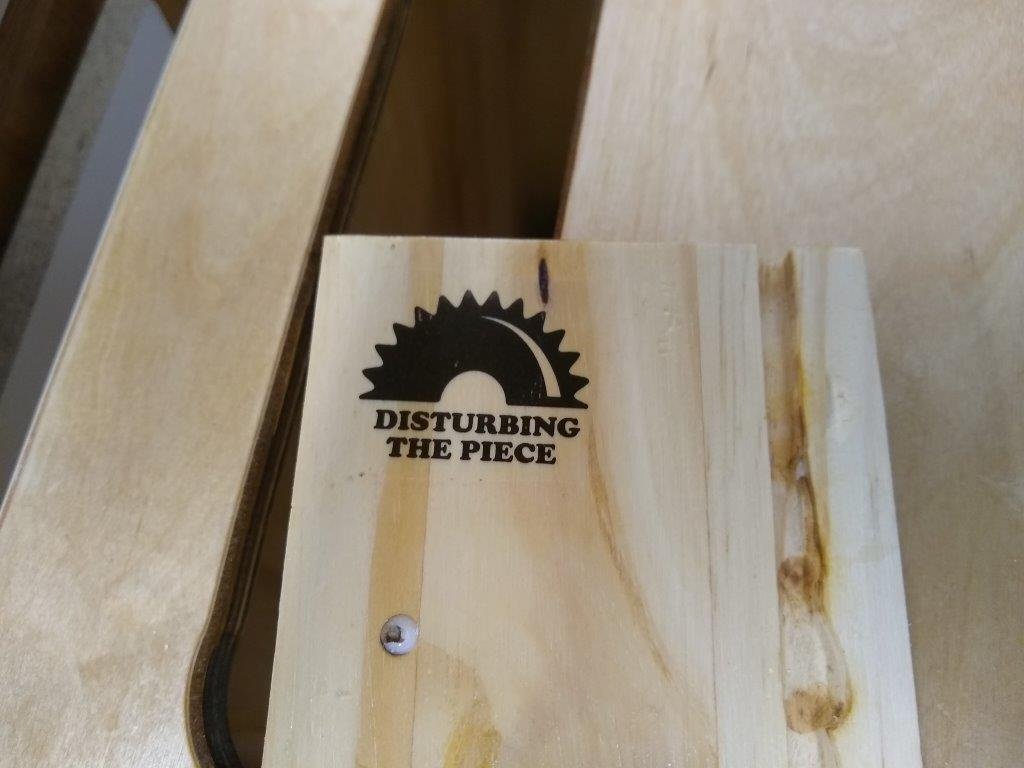

The result isnt too bad..good contrast, good tack, no bleed. he shows pretty amazing results on color transfer even which is pretty cool.

I have tried going directly onto the wood, and also on a dried polyurethane layer-both seemed to work. As well, once dry-you can overcoat again with polyurethane. A lot cheaper than a branding iron !

I think the outlay was about $20 for the paper and gel medium-plus some time to get it right on the PC and print it.

b
RFGuy
Platinum Member
Posts: 1336
Joined: Mon Dec 31, 2018 8:05 am
Location: a suburb of PHX, AZ

Re: Branding/Emblems

Post by RFGuy »

Thanks. This looks very interesting. Any idea how long it might last? I know pictures printed on inkjet printers have a limited lifetime and will fade with light exposure, but if this is used for logos that are often hidden underneath then it will probably last for a very long time. Much easier than getting a logo dialed in for a branding iron and you can easily change it at anytime.
📶RF Guy

Mark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
bainin
Gold Member
Posts: 294
Joined: Mon Apr 22, 2019 11:09 pm
Location: NC

Re: Branding/Emblems

Post by bainin »

I think if the ink is the top layer, it may be subject to degradation-or more forms of degradation - scratches/dings/and smudging.

With a top coat protecting it like a polyurethane-you would still have the potential solarization degradation (inks for ink jets especially color-tend to fade under UV/Blue light exposure over time) ..but this may not be a big issue for just black.

b
RFGuy
Platinum Member
Posts: 1336
Joined: Mon Dec 31, 2018 8:05 am
Location: a suburb of PHX, AZ

Re: Branding/Emblems

Post by RFGuy »

Thanks. Good points. Poly should definitely protect it.
📶RF Guy

Mark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
roy_okc
Platinum Member
Posts: 627
Joined: Tue Jan 16, 2007 7:15 pm
Location: Moore, OK

Re: Branding/Emblems

Post by roy_okc »

Thanks for posting this. I'll have to give it a try.
Roy

Mark V/510, Mark V/500 with parts for 510 upgrade, bandsaw, jointer, belt sander, DC3300 w/1 micron bag
Sawstop 3HP 36" PCS w/router table insert
Home designed and built CNC router, another CNC router :D desktop size
Laser engraver
Way too much other stuff and not enough space :rolleyes:
