New member here...

Forum for people who are new to woodworking. Feel free to ask questions or contribute.

Moderator: admin

Post Reply
Mrjlr
Bronze Member
Posts: 1
Joined: Sat Nov 14, 2020 8:52 pm

New member here...

Post by Mrjlr »

Hello all.....I'm Jeff

I'm new here.

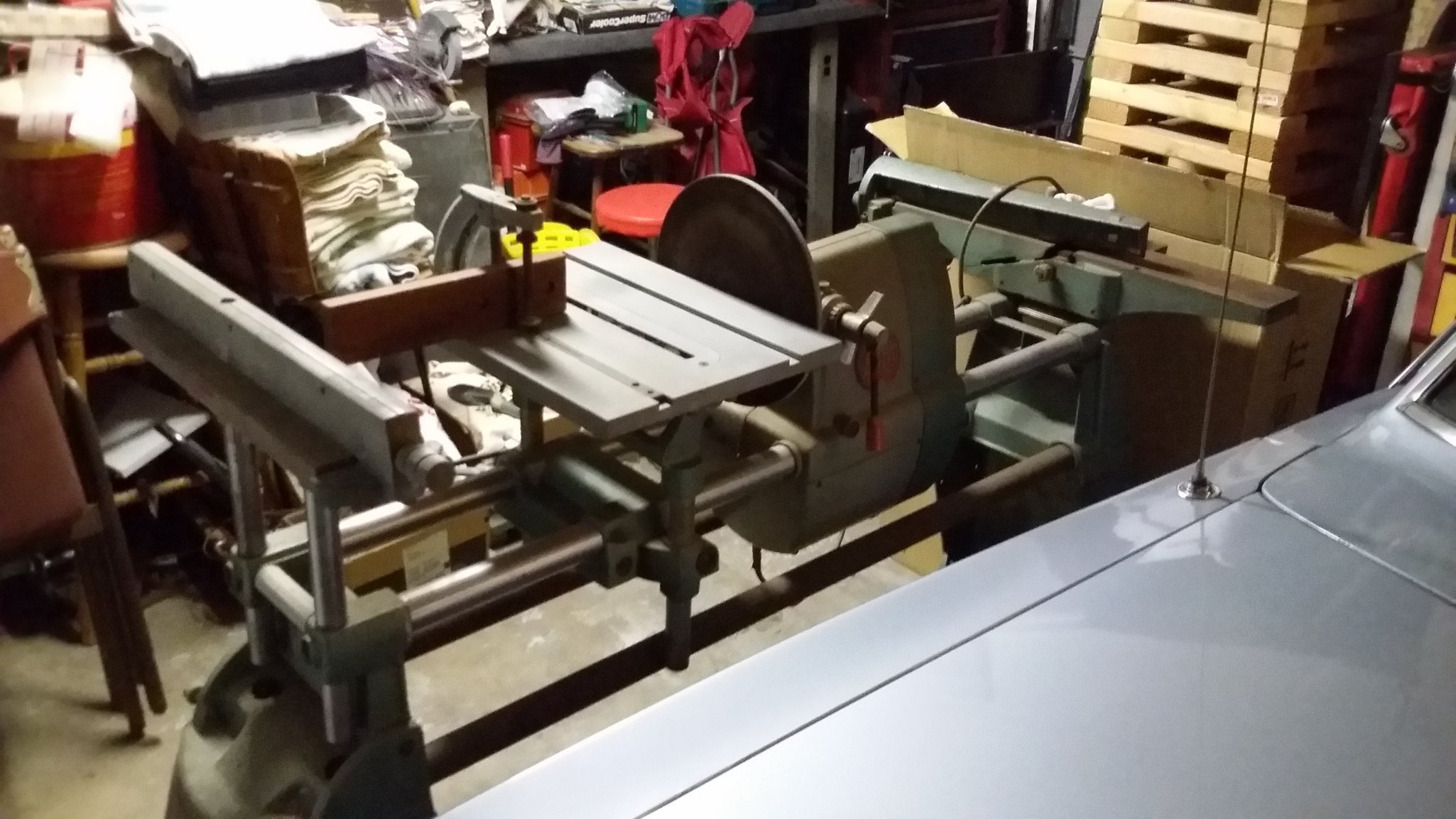

I just brought home my father's 1966 (I believe) Shopsmith Mark V after my father's passing...
I was born in '66 and remember this thing as long as I can remember anything!
My dad did a lot of really nice turning on it....bowls, legs, misc....it was my introduction to lathes and for 35 years I've made my living as a machinist - CNC lathes and mills...
Anyway, she's in my garage now next to my 'Cuda and it needs some love I'm more than happy to give her.
She needs a drive belt, new power cord, a good cleaning and misc that I don't know yet.

I'm not much of a wood worker...metal is easy, wood is quite different!

Just introducing myself....I'll have questions I'm sure!
Jeff
User avatar
SkullsquadronX
Gold Member
Posts: 108
Joined: Fri Apr 26, 2019 10:43 am
Location: Honesdale, Pennsylvania

Re: New member here...

Post by SkullsquadronX »

Welcome to the Shopsmith forum Jeff and good luck with your father’s greenie.
bainin
Gold Member
Posts: 214
Joined: Mon Apr 22, 2019 11:09 pm

Re: New member here...

Post by bainin »

I'll take that old -in the way- Cuda out of there for you- then you'll have all the room you need !

Welcome :)
DLB
Gold Member
Posts: 484
Joined: Fri Nov 08, 2019 11:24 am
Location: Joshua Texas

Re: New member here...

Post by DLB »

Welcome to the forum Jeff. The "Greenie" color scheme on your Shopsmith dates it about a decade older than you are thinking, 1950's. If you want a better estimate there is a Serial Number on the vent plate surrounding the lower auxiliary drive shaft that will lead to a manufacturing date or close approximation. Depending on maintenance and upgrades over the years, yours will most likely have the original 3/4 HP motor, Gilmer upper belt, single bearing quill... Lots of experience and expertise here for any questions you may have. A great place to start is this thread for new owners: viewtopic.php?f=10&t=7092 This will help with regular maintenance as well as the all-important do's and don'ts. One thing to know, especially for a new woodworker, is these older machines did not come with the sort of safety features that one would expect today (though some were available as options). I have a similar Greenie, lacking upper and lower saw guards as a prime example.

Beautiful car, from what I can see.

- David
User avatar
chapmanruss
Platinum Member
Posts: 1555
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: New member here...

Post by chapmanruss »

Jeff,

Let me add a welcome to the Forum also. As David has already said your Shopsmith Mark 5 "Greenie" was made in the 1950's. The "Greenie" colors were used from the introduction of the Mark 5 in 1954 to 1960 when it changed to the "Goldie" paint colors. By 1966 the Mark 5 was already out of production.

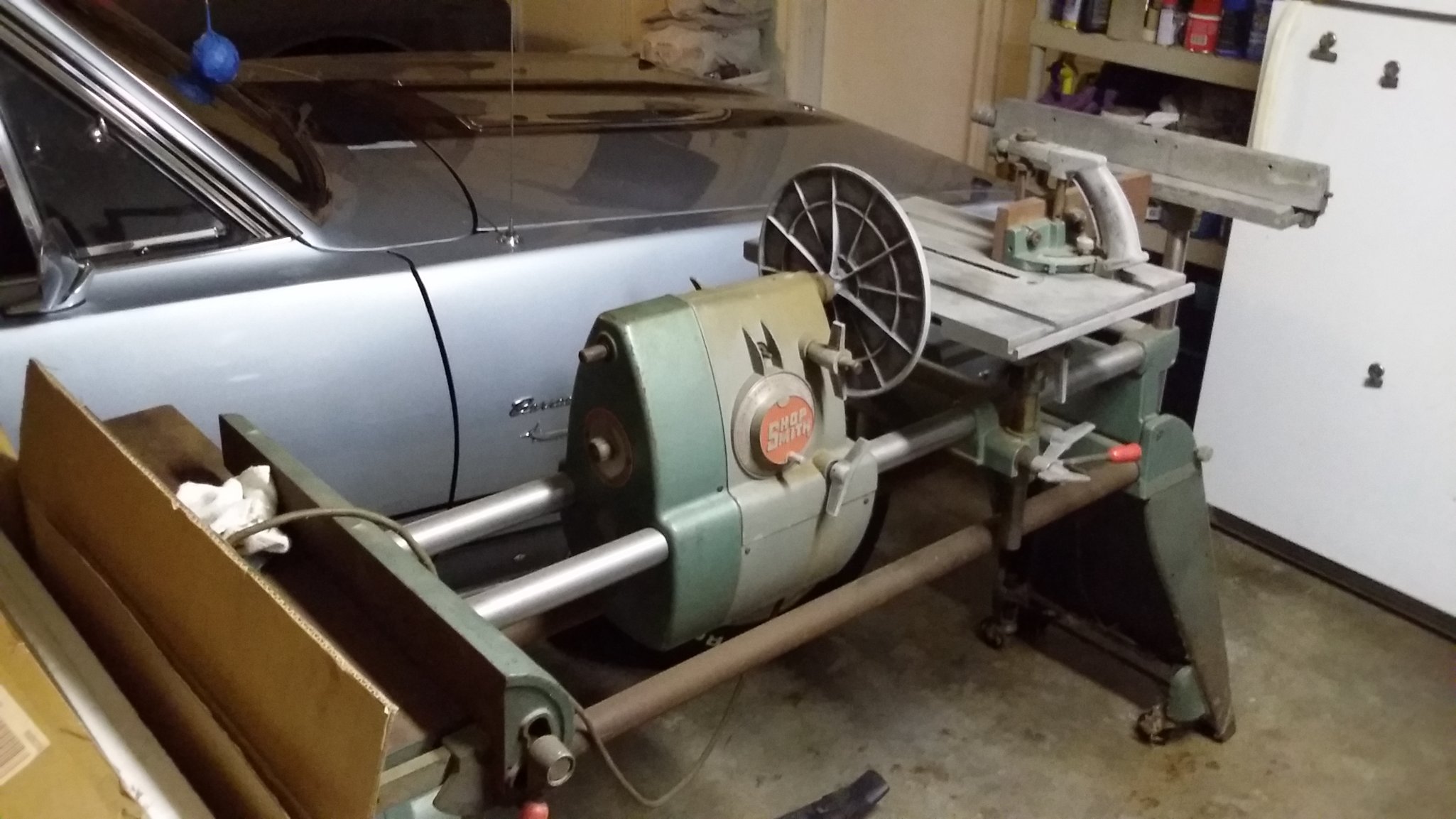

From the pictures I see it is the "B" headstock and has only 2 screws holding on the belt cover. That and other things I see make me believe it was made around 1957 or 1958. As David said the serial number would tell more. Being over 60 years old replacing the power cord is a good idea as the insulation gets brittle with age. Shorts from broken insulation are not a good thing.

Over all it looks to be in pretty good shape. Read the manuals, service it and enjoy. We are always here to help.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1033 & Mark 2 to be restored.
User avatar
beeg
Platinum Member
Posts: 4674
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis, Mo.

Re: New member here...

Post by beeg »

Clean it up, oil it, then align it and your ready to go.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.

Bob
cham-ed
Gold Member
Posts: 110
Joined: Fri Feb 06, 2015 6:35 pm

Re: New member here...

Post by cham-ed »

Mrjlr I had to chuckle you reflect a lot of the things I heard with from machinists or years in manufacturing. One of my best friends said the thing he couldn't cope with was you could cut a piece of wood and tomorrow it might 2 or 3 thou different than what it was today.
User avatar
robinson46176
Platinum Member
Posts: 4162
Joined: Mon Mar 09, 2009 9:00 pm
Location: Central Indiana (Shelbyville)

Re: New member here...

Post by robinson46176 »

Welcome.
One of the early things that you will notice about this group is the level of knowledge and willingness to help.
The second thing you will notice will be how many of us will blow up your pictures and study your shop area down to the tiniest details including reading the labels on containers. :D :D :D
We are a diverse bunch with all kinds of interest and different things are important to each of us. Some of us are only interested in woodworking and some of us have more hobbies and activities than should be allowed. :)
I've been just lurking a lot this year but still trying to follow along. I hope to get more woodshop time in this winter.
There are a number of restoration threads posted here and I'm sure someone knows where they are and will post their location. I don't recall right now but then I have been known to misplace a truck... :rolleyes: :o :D

.
--
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
1 1988 - Mark V 510 (bought new), 4 Poly vee 1 1/8th HP Mark V's, Mark VII, 1 Mark V Mini, 1 Frankensmith, 1 10-ER, 1 Mark V Push-me-Pull-me Drillpress, SS bandsaw, belt sander, jointer, jigsaw, shaper attach, mortising attach, TS-3650 Rigid tablesaw, RAS, 6" long bed jointer, Foley/Belsaw Planer/molder/ripsaw, 1" sander, oscillating spindle/belt sander, Scroll saw, Woodmizer sawmill
User avatar
JPG
Platinum Member
Posts: 31377
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: New member here...

Post by JPG »

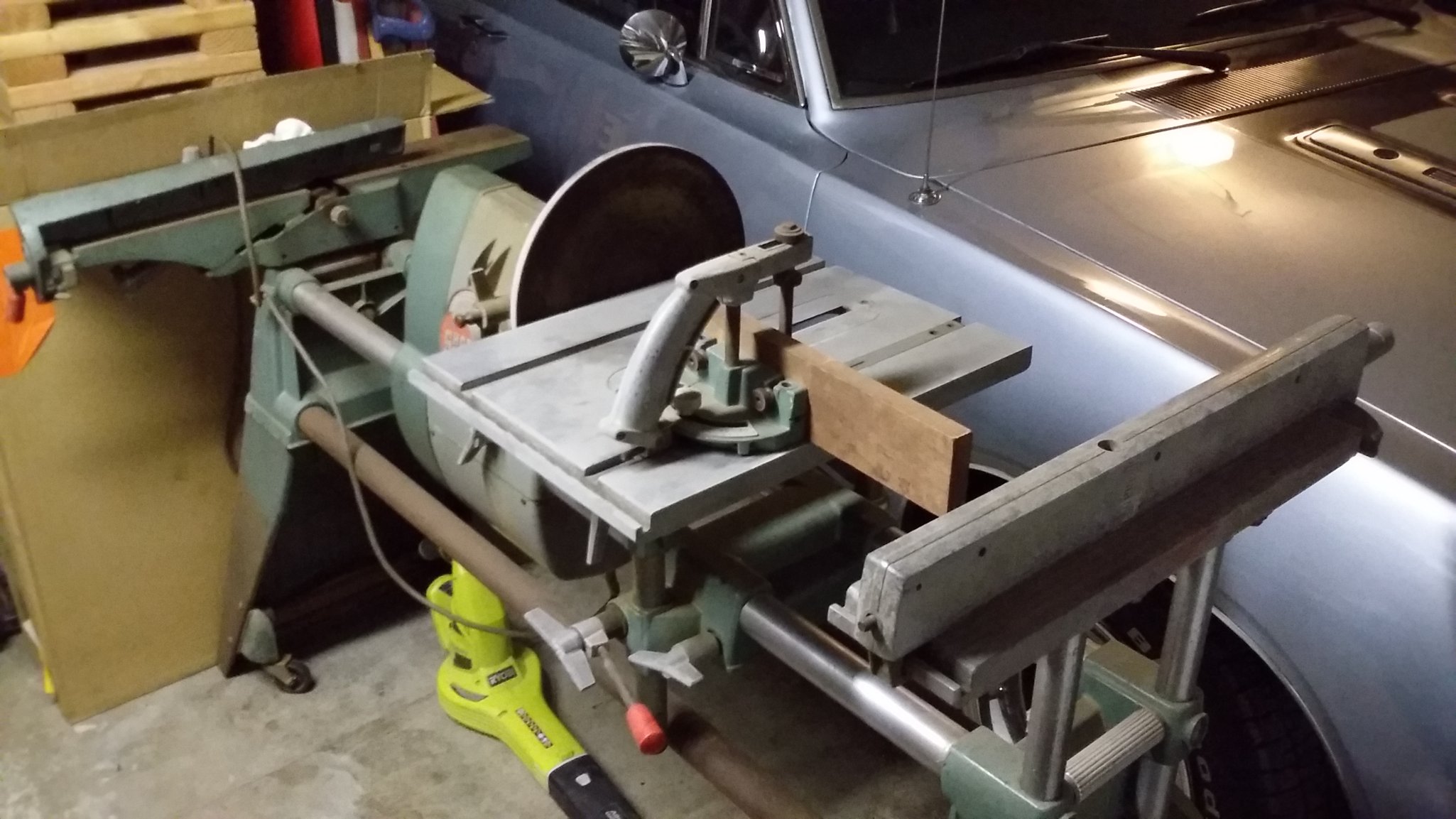

The first nit picking suggestion is to mount the rip fence correctly. ;)
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
