Re: Preventing cat scratching new mission style recliners

Post by Majones1 »

DLB wrote: Fri Oct 15, 2021 6:28 pm
Majones1 wrote: Thu Oct 14, 2021 11:40 am Plus, I had never used my bandsaw since getting it from MickyD, and doing some clean up on it. It worked great. I had purchased some eccentric mounting posts and got it aligned perfectly with the headstock. The original posts had it misaligned about 1/4" so the power connection will have less stress on it.
I presume that means the original mounting posts were straight posts.(?) If I had 1/4" error with straight posts I would want to make sure I understood why. That's a pretty big error. To me it suggests a problem in the base alignment. That can be caused by the big set screw in the Headrest being out of adjustment (if you have one) or something wrong. Others would disagree with me on this, to some extent the eccentrics eliminate the need for accurate base alignment.

Side note: IIRC dust collection can be easily and inexpensively added to any bandsaw. It ain't perfect, but it's an improvement. You do have to cut a hole in the cover, so some purists may be opposed for that reason.

- David
Hmmm, I’m going to have to think about that alignment and check it out. After I did the initial maintenance on this Mark 5, and was ready to use it, the first thing I did was go through a full alignment procedure, as instructed. But it might be worth checking again. How much can that power shaft (idler shaft) move off center as you adjust the eccentric to tighten the gilmer belt?

I bought the dust port upgrade and plan to install it soon. This was the first time I’ve used the band saw so I just work a good face mask to keep from breathing the dust. Then I vacuumed the bandsaw out and everything around it. Everything in my shop (garage/laundry room) is covered with dust now, again. It’s almost as bad as the sanding disk, and that took a while to (mostly) clean up.
Marc Jones

Model 10ER (1952), s/n: 72883 (MickyD restored in 2009/10) / Variable Speed Changer / A-34 Jigsaw / Jointer-Shaper Fence
Mark 5 Model 500 (1955), s/n: 309828 (MickyD restored in 2008/09) / Magna Jigsaw Model 610, s/n 65001 / Yuba 11” Bandsaw Model 630, s/n 39807 / Magna Jointer Model 620, s/n 17792 (restored in 2021) / Magna 6” Belt Sander Model 640, s/n 13742 (to be restored)
Professional Planer Model M5082, s/n 003918
DC3300 Dust Collector (circa 1998)
User avatar
JPG
Platinum Member
Posts: 32756
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Preventing cat scratching new mission style recliners

Post by JPG »

The alignment of the base casting to the tubes affects the alignment.(angular twist of the base relative to the long axis of the tubes).

I would never adjust the big set screw for this(that is for way tube twist). This is where I disagree with SS.(Nick, jointer instructions)

The eccentric belt tension adjustment guarantees altering alignment. That is why the eccentric mounting tubes are a good approach. They can compensate without affecting other alignment. They shift laterally like the shaft eccentric.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
DLB
Platinum Member
Posts: 1117
Joined: Fri Nov 08, 2019 11:24 am
Location: Joshua Texas

Re: Preventing cat scratching new mission style recliners

Post by DLB »

Majones1 wrote: Fri Oct 15, 2021 6:45 pm Hmmm, I’m going to have to think about that alignment and check it out. After I did the initial maintenance on this Mark 5, and was ready to use it, the first thing I did was go through a full alignment procedure, as instructed. But it might be worth checking again. How much can that power shaft (idler shaft) move off center as you adjust the eccentric to tighten the gilmer belt?
I think it can move about 1/10" off center horizontally at the 'worst case' position (9:00). But the position of the upper drive does not move. In this case the Idler offset for belt tension isn't a factor. [There was a period in which SPTs connected to the Idler (Jointer, for example) had eccentric mounts but SPTs driven by the upper shaft (Bandsaw) did not.] So I think 1/4" error for the bandsaw is pretty high, though within the range correctable with the eccentrics. (Barely, IIRC, aren't they +/- 1/4"?)

Just to be clear, I'm not advocating adjusting the big set screw and 'aligning' to any SPT. I'm suggesting that if the base is well aligned this error won't be present. Simply adjusting the setscrew can make it look right without being right. For example, one thing I found was that it was difficult to hold the headrest casting true/square while clamping it to the bench tubes. Unlike the base casting, the headrest seems happy to clamp to the tubes with or without angular errors in two axes. So in some cases the big setscrew will offset for an error rather than correcting it, and it will usually then show up somewhere else (like the lathe).

- David
Majones1
Gold Member
Posts: 325
Joined: Sun Jun 06, 2021 1:11 am
Location: San Diego, CA

Re: Preventing cat scratching new mission style recliners

Post by Majones1 »

DLB, sorry, I temporarily forgot that I had been talking about the bandsaw, and of course you are correct about it using the top power shaft. I got new eccentric posts for both my bandsaw and the jointer, and installed them within a couple of days of each other.

At some point I’ll take a look at the alignment, but it’s going to have to wait. I think things seem to be working pretty well and I’ve been working on the machines so much for the past few months that I now want to try to keep focused on making sawdust. I have a few projects I want, and need, to make.

I do want to make sure I acknowledge you and everyone else who has been helping me out since I first got my ShopSmiths. While I might have been able to do some of this without you all, some of it certainly couldn’t have been done with out your experience, and many tasks would have taken much longer and not been performed as well. I am very glad to be able to help someone else here, and pay it back.
Marc Jones

Model 10ER (1952), s/n: 72883 (MickyD restored in 2009/10) / Variable Speed Changer / A-34 Jigsaw / Jointer-Shaper Fence
Mark 5 Model 500 (1955), s/n: 309828 (MickyD restored in 2008/09) / Magna Jigsaw Model 610, s/n 65001 / Yuba 11” Bandsaw Model 630, s/n 39807 / Magna Jointer Model 620, s/n 17792 (restored in 2021) / Magna 6” Belt Sander Model 640, s/n 13742 (to be restored)
Professional Planer Model M5082, s/n 003918
DC3300 Dust Collector (circa 1998)
User avatar
JPG
Platinum Member
Posts: 32756
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Preventing cat scratching new mission style recliners

Post by JPG »

You have already helped others!!!
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Majones1
Gold Member
Posts: 325
Joined: Sun Jun 06, 2021 1:11 am
Location: San Diego, CA

Re: Preventing cat scratching new mission style recliners

Post by Majones1 »

Thanks JPG. My last line didn’t come out quite like what I meant. I was trying to say that the level of support you all provide on this forum encourages me to try to do what I can to add value to it also. I am glad to be able to participate when I can, in gratitude for what I have been given. So I was trying to say thanks to everyone who participates in this forum to make it so valuable.
Marc Jones

Model 10ER (1952), s/n: 72883 (MickyD restored in 2009/10) / Variable Speed Changer / A-34 Jigsaw / Jointer-Shaper Fence
Mark 5 Model 500 (1955), s/n: 309828 (MickyD restored in 2008/09) / Magna Jigsaw Model 610, s/n 65001 / Yuba 11” Bandsaw Model 630, s/n 39807 / Magna Jointer Model 620, s/n 17792 (restored in 2021) / Magna 6” Belt Sander Model 640, s/n 13742 (to be restored)
Professional Planer Model M5082, s/n 003918
DC3300 Dust Collector (circa 1998)
User avatar
JPG
Platinum Member
Posts: 32756
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Preventing cat scratching new mission style recliners

Post by JPG »

We got that message. :) Did you get mine? ;)
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Majones1
Gold Member
Posts: 325
Joined: Sun Jun 06, 2021 1:11 am
Location: San Diego, CA

Re: Preventing cat scratching new mission style recliners

Post by Majones1 »

Yes, I did. :)
Marc Jones

Model 10ER (1952), s/n: 72883 (MickyD restored in 2009/10) / Variable Speed Changer / A-34 Jigsaw / Jointer-Shaper Fence
Mark 5 Model 500 (1955), s/n: 309828 (MickyD restored in 2008/09) / Magna Jigsaw Model 610, s/n 65001 / Yuba 11” Bandsaw Model 630, s/n 39807 / Magna Jointer Model 620, s/n 17792 (restored in 2021) / Magna 6” Belt Sander Model 640, s/n 13742 (to be restored)
Professional Planer Model M5082, s/n 003918
DC3300 Dust Collector (circa 1998)
Majones1
Gold Member
Posts: 325
Joined: Sun Jun 06, 2021 1:11 am
Location: San Diego, CA

Re: Preventing cat scratching new mission style recliners

Post by Majones1 »

Was finally able to het back to work on this cat scratching post project this weekend, and it is starting to come together.

.

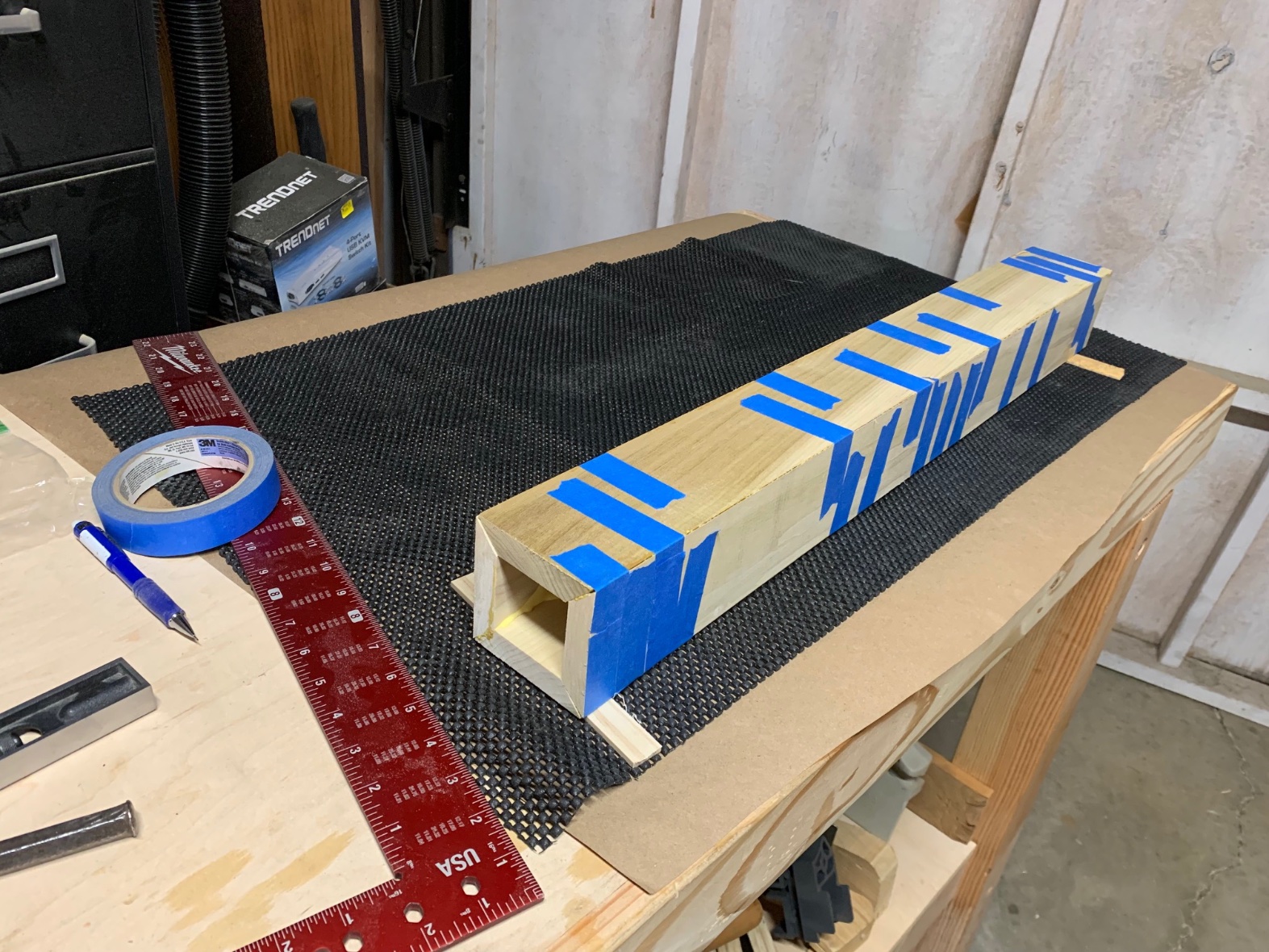

Inner support structure, will hold the threaded rods in place.
Inner support structure, will hold the threaded rods in place.

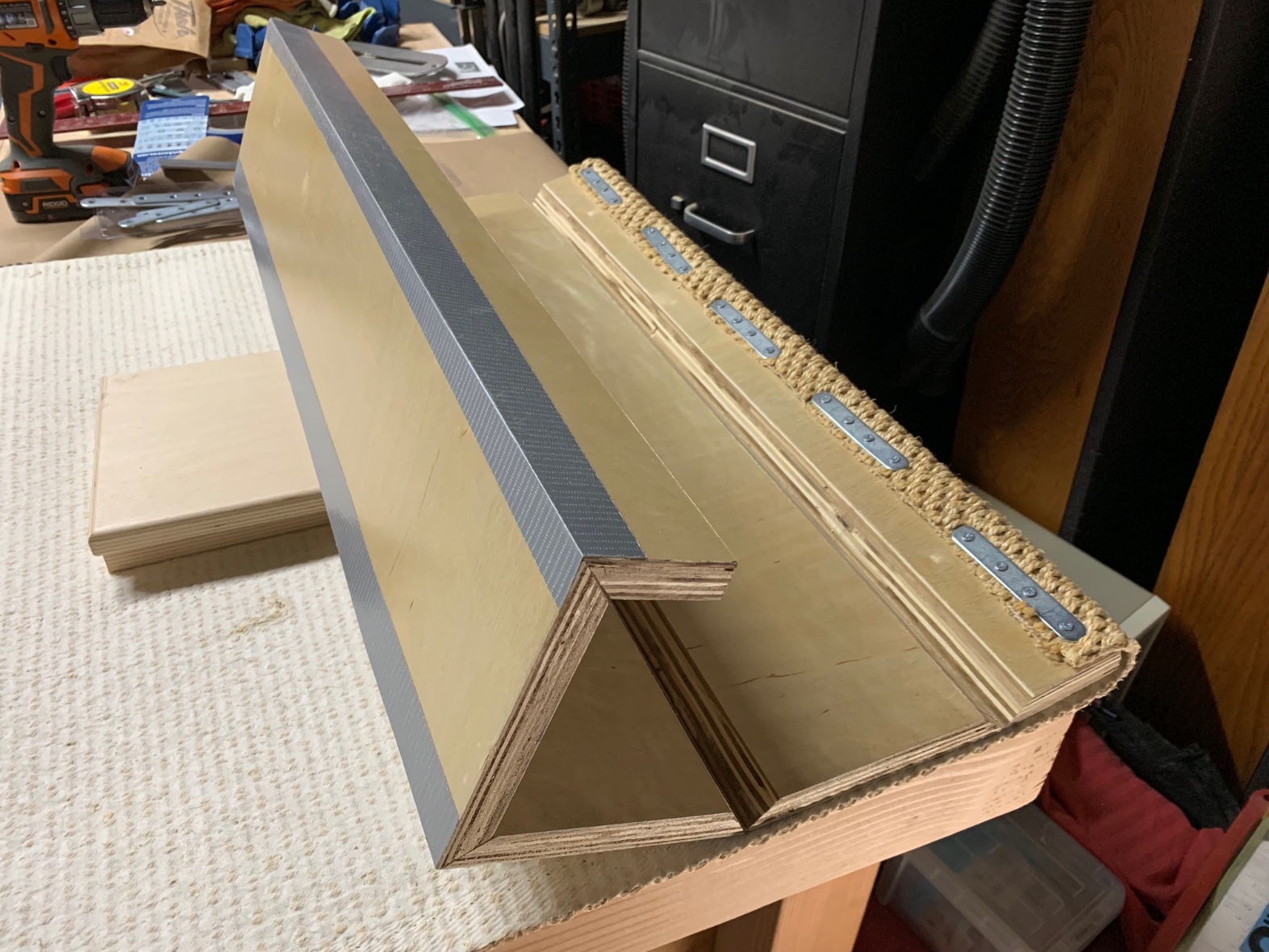

Attaching the Sisal fiber carpet to the post.
Attaching the Sisal fiber carpet to the post.
Post is successfully carpeted, stretched very tight.
Post is successfully carpeted, stretched very tight.

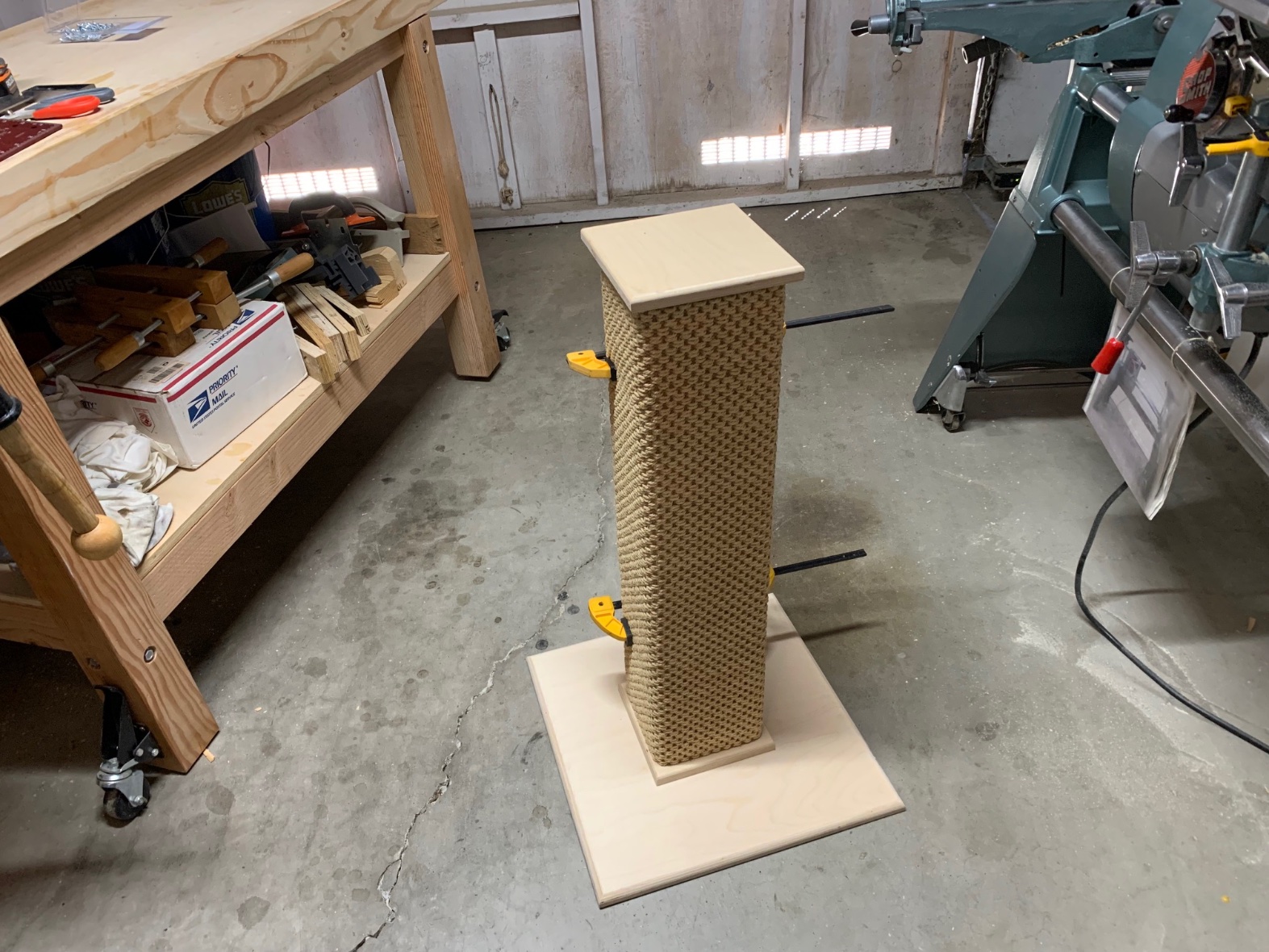

Uncompleted parts, just set in place to show what it will look like.
Uncompleted parts, just set in place to show what it will look like.
Marc Jones

Model 10ER (1952), s/n: 72883 (MickyD restored in 2009/10) / Variable Speed Changer / A-34 Jigsaw / Jointer-Shaper Fence
Mark 5 Model 500 (1955), s/n: 309828 (MickyD restored in 2008/09) / Magna Jigsaw Model 610, s/n 65001 / Yuba 11” Bandsaw Model 630, s/n 39807 / Magna Jointer Model 620, s/n 17792 (restored in 2021) / Magna 6” Belt Sander Model 640, s/n 13742 (to be restored)
Professional Planer Model M5082, s/n 003918
DC3300 Dust Collector (circa 1998)
User avatar
dusty
Platinum Member
Posts: 20724
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Preventing cat scratching new mission style recliners

Post by dusty »

It looks real good. I just hope the cat(s) will use it. We had some scratchers that would not, Thankfully they used the carpet.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
