stew

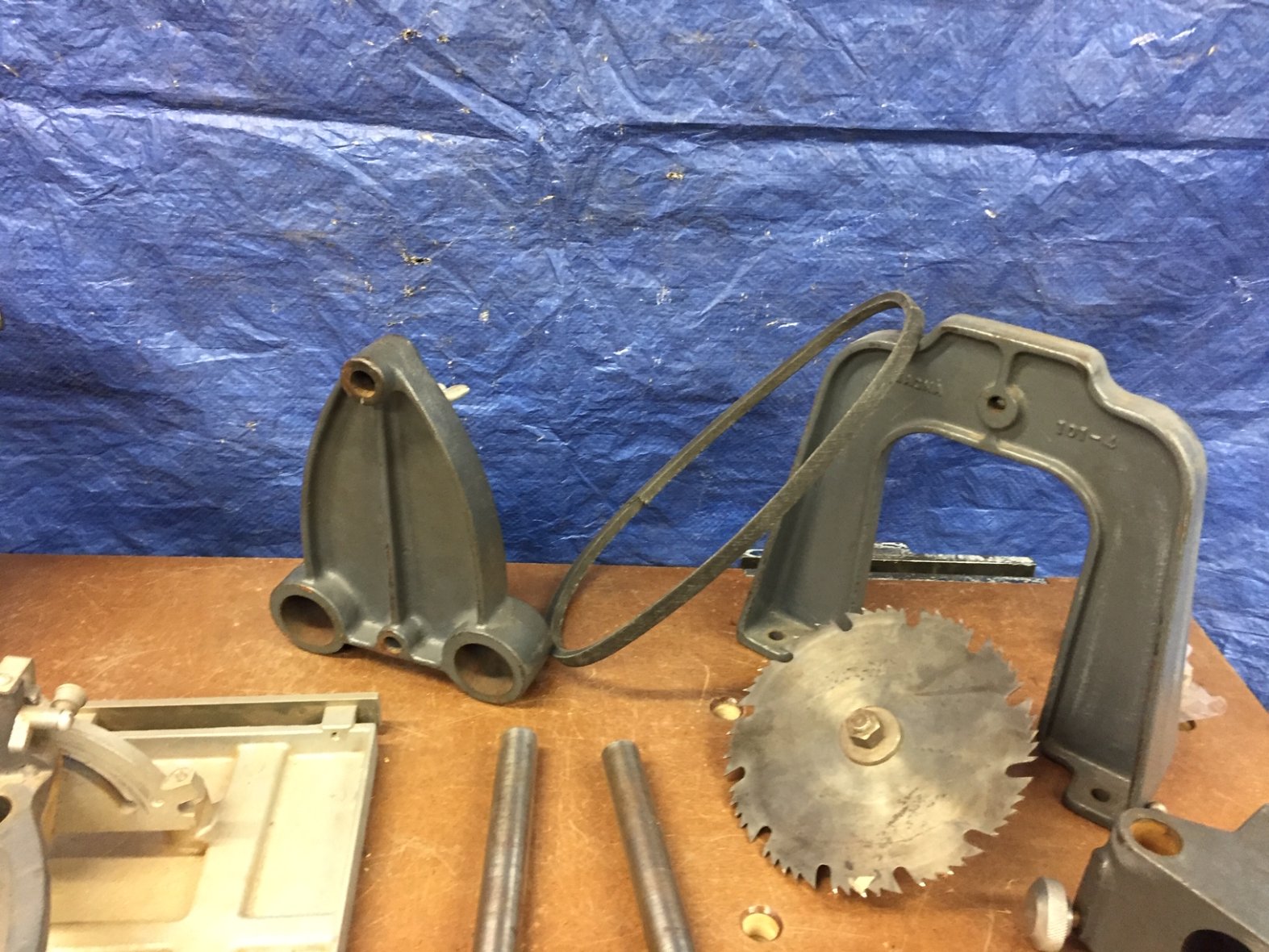

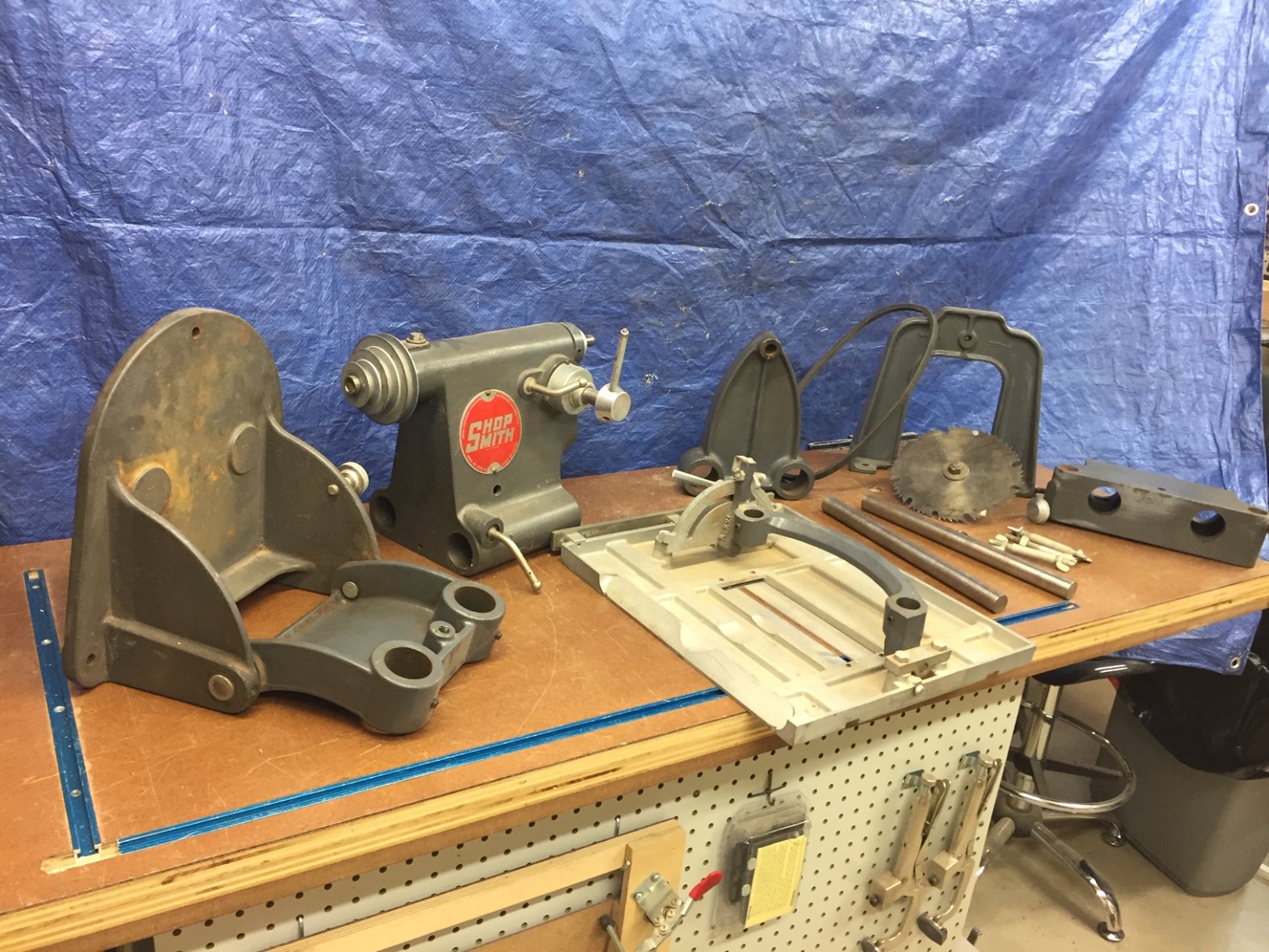

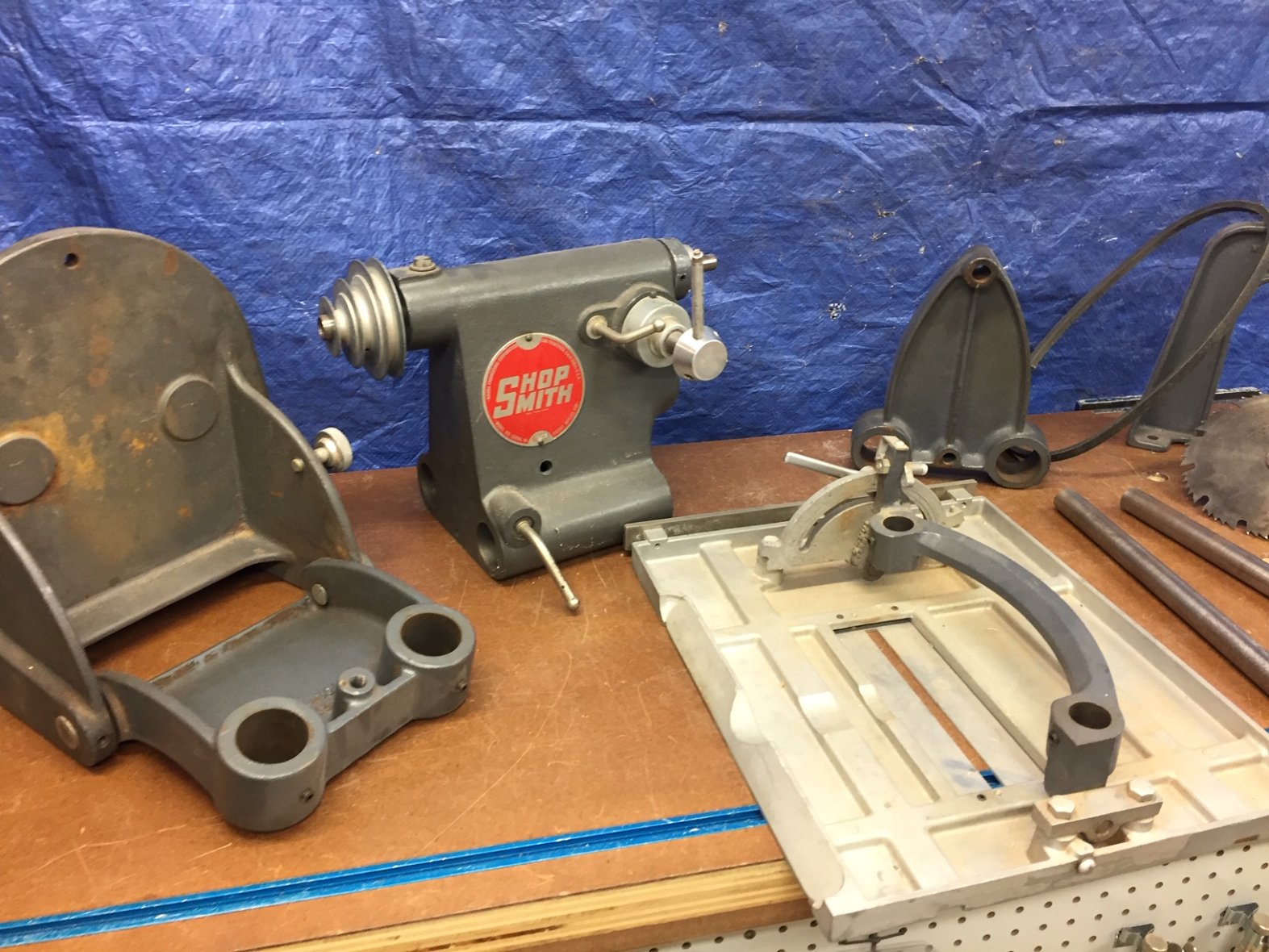

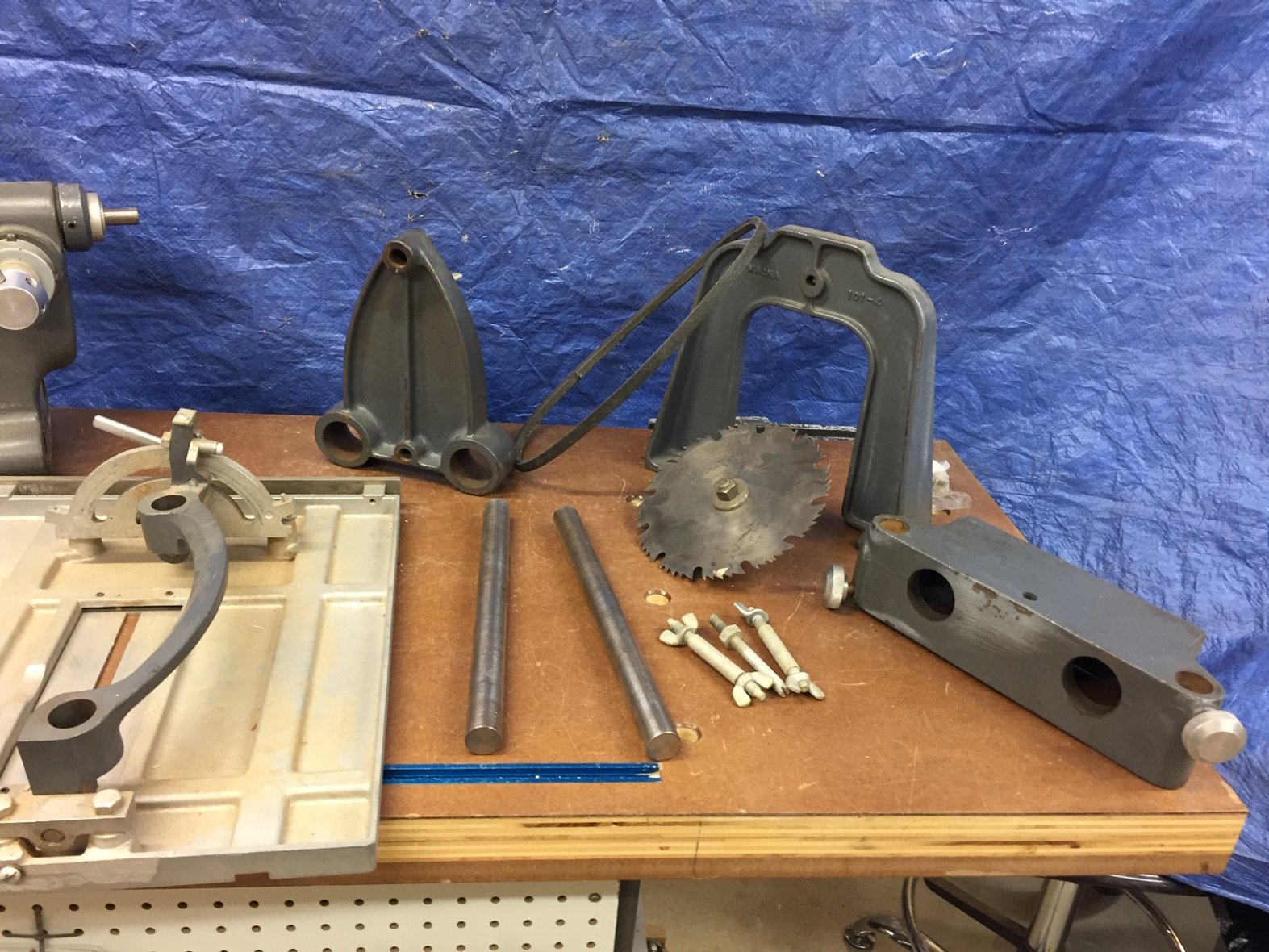

I have several 10E or 10ER parts available for FREE to anyone that is interested. I am in the western suburbs of the Chicago Area and pickup of the parts would be ideal because of their weight. They seem to be in good condition but I am a 500 addict so I don't know much about the 10er. If you want more pictures of a specific item just let me know.
JPG
If no one else desires the two studs with a wing nut on each end, I will pay shipping to me. 10E parts fer sure.
stew
Sold to JPG- just PM me your info and I will mail it out.

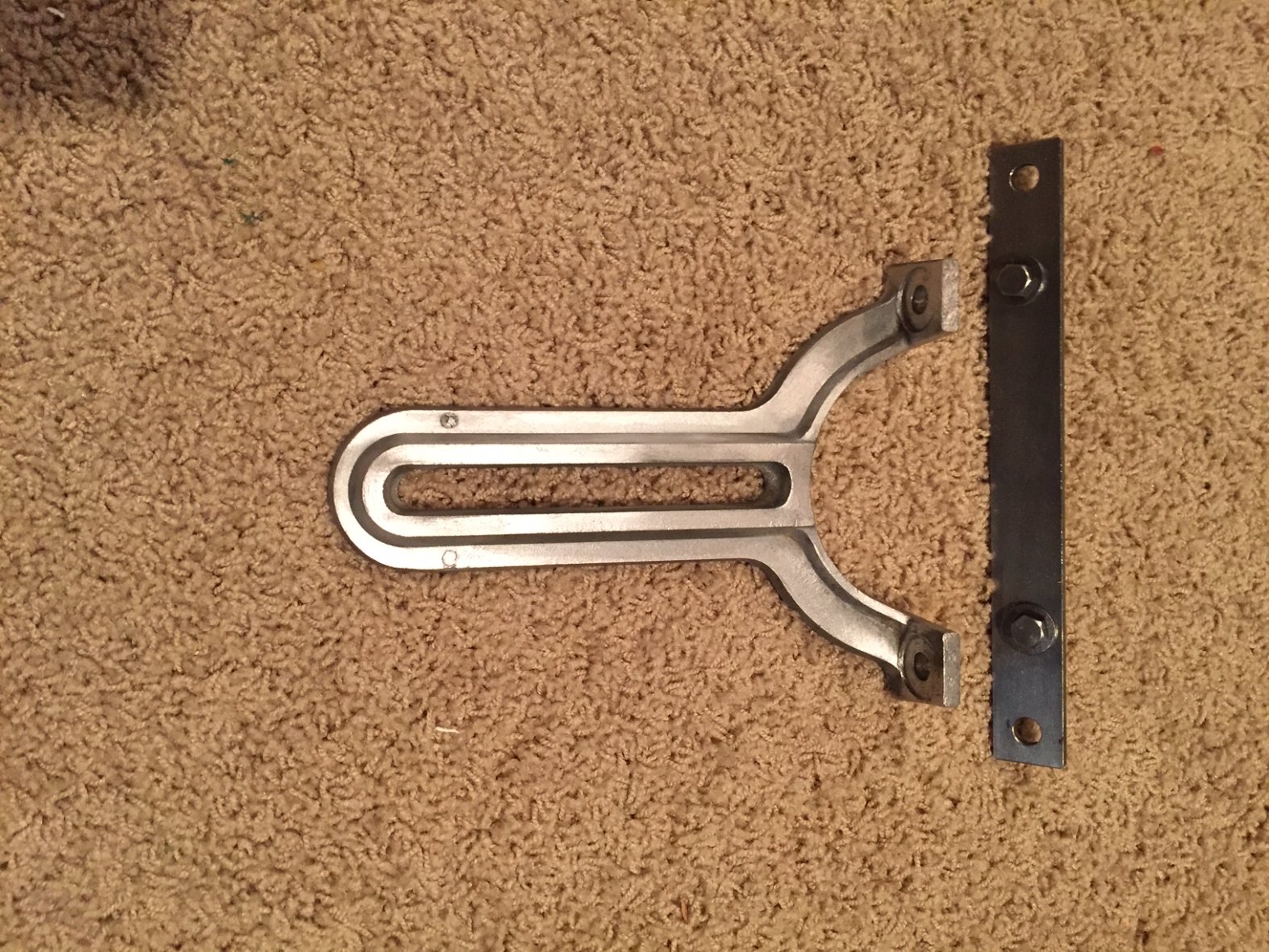

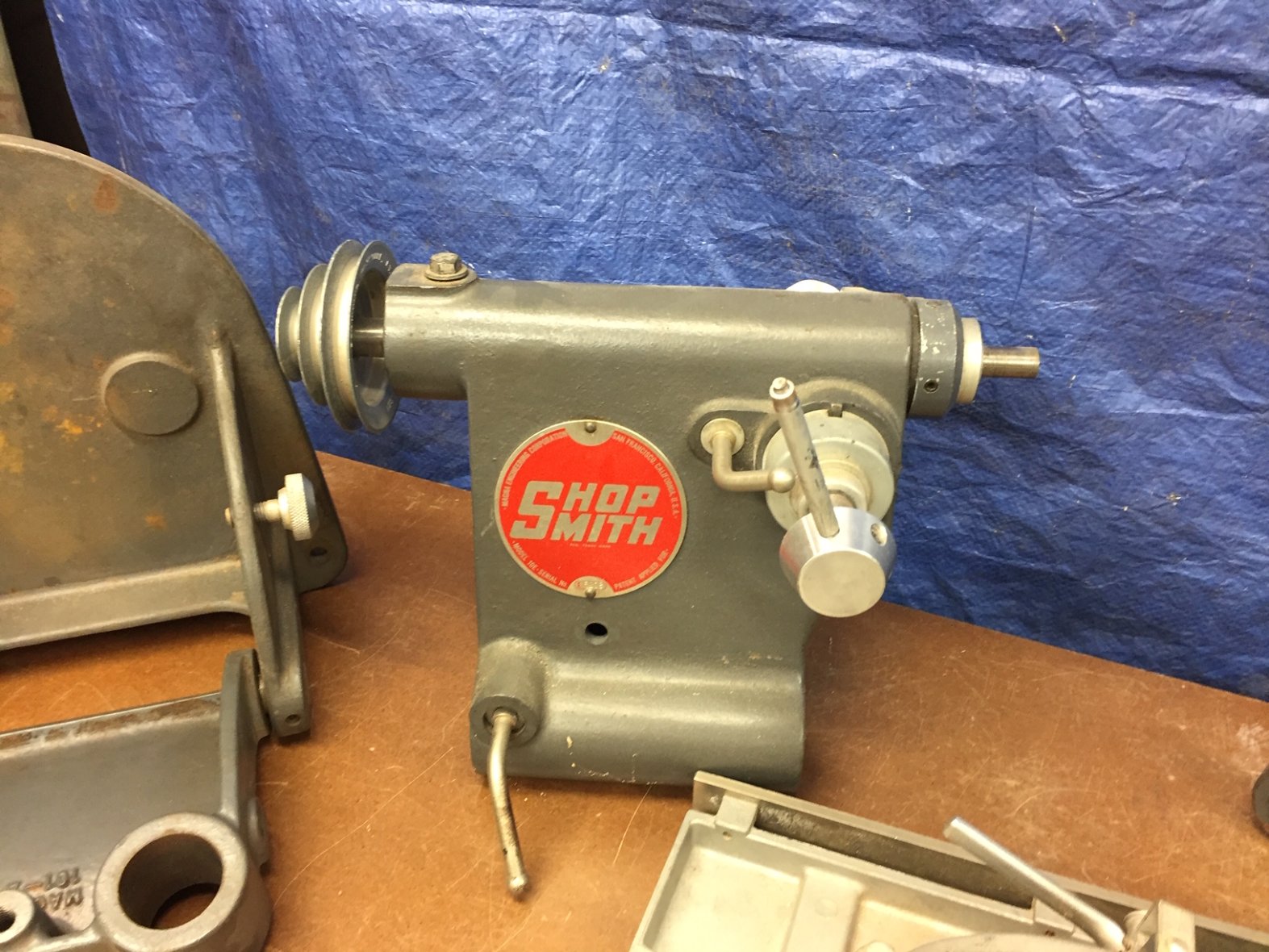

I forgot, here is a picture of another part that was not in my original post.
JPG
Again if no one else wants it, the 'added' parts are also of interest since they are akin to the wing nut thingies. Give others some time to respond before I will pm thee my address etc.
stew
For all you do for this forum that is yours too.
Panther66
Hi 1st time here, I just got a 10 e , I think these are so cool and was cleaning it up to see if it can live again. It has most of it ,but in need of a few, do you still have any parts? If yes please let me know, Thanks , hopeful, Paul in Az.
stew
Hi Paul welcome to the forum- I do have the parts in the picture except the ones JPG wanted. Let me know what you need and you can have them but you will have to pay the shipping or arrange a pickup, I am in the Chicago area and these are heavy. I also require pictures after you get it back to life and running.
ETEcco
I can't drive to Chicago to pick up the parts, so could I pay you to ship them to me? I just want some parts off the table if you still have it.
stew
sure let me know what you want and I will figure out the cost to ship it to you. PM me your address
Jwillbrick

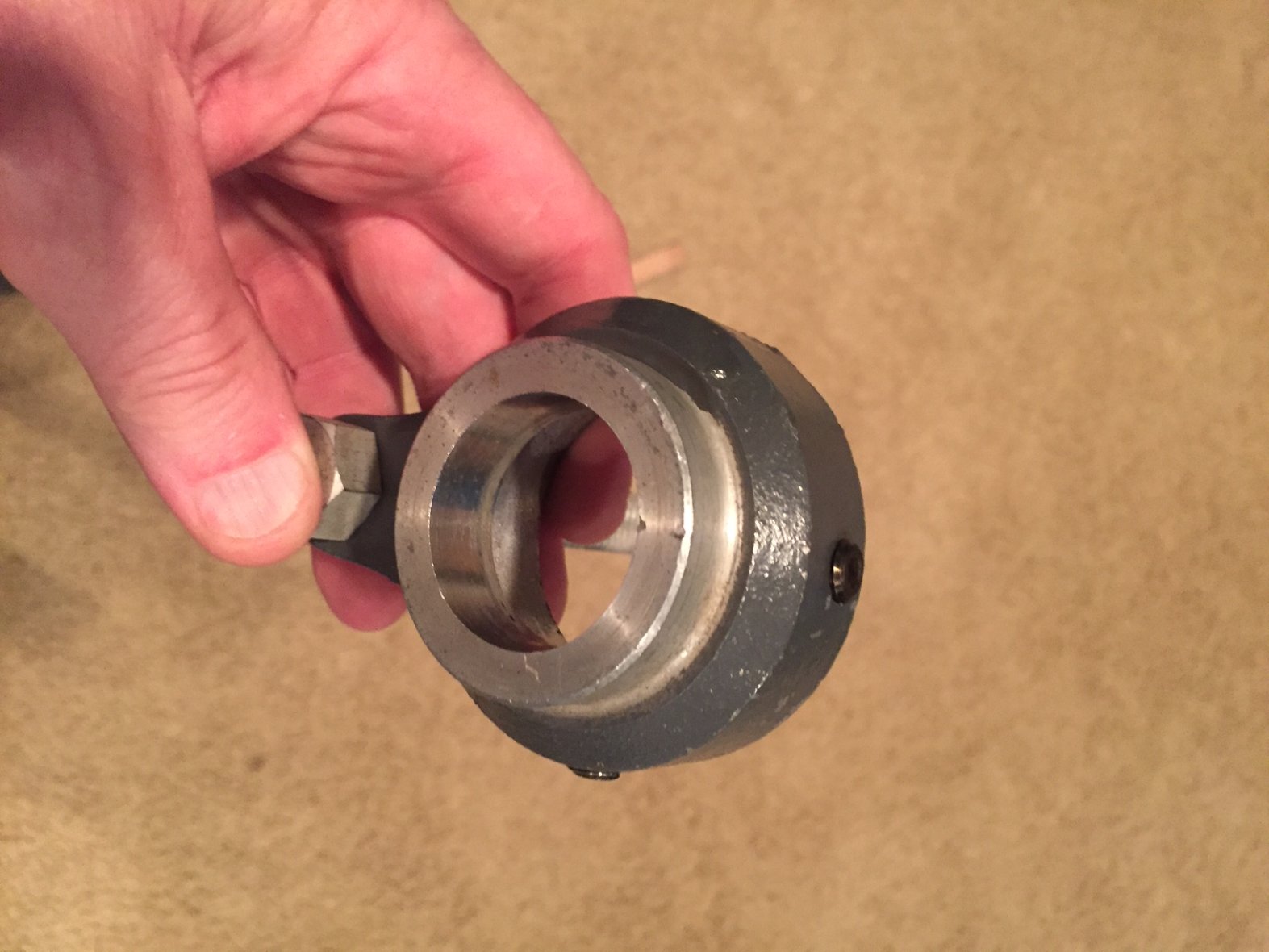

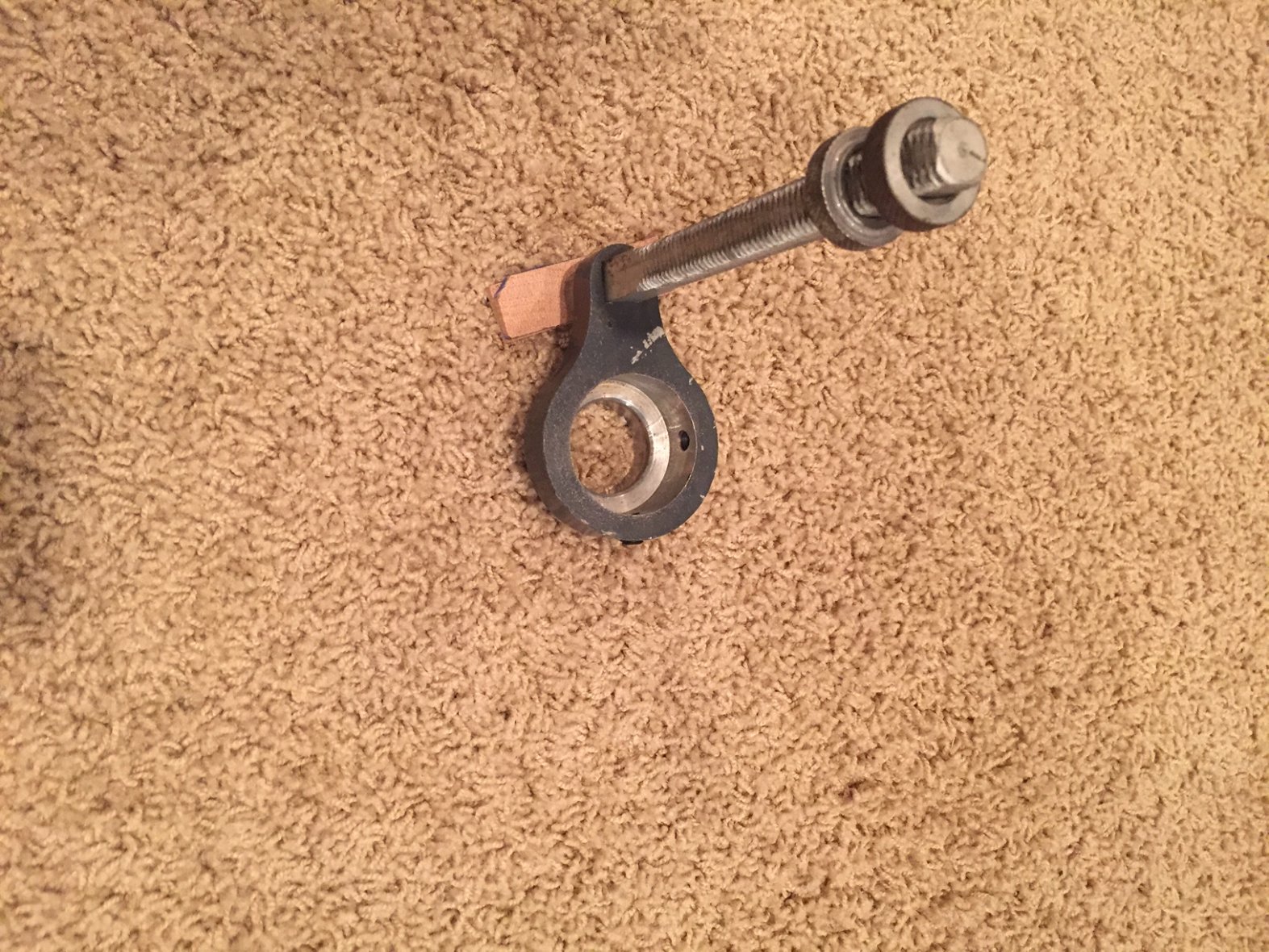

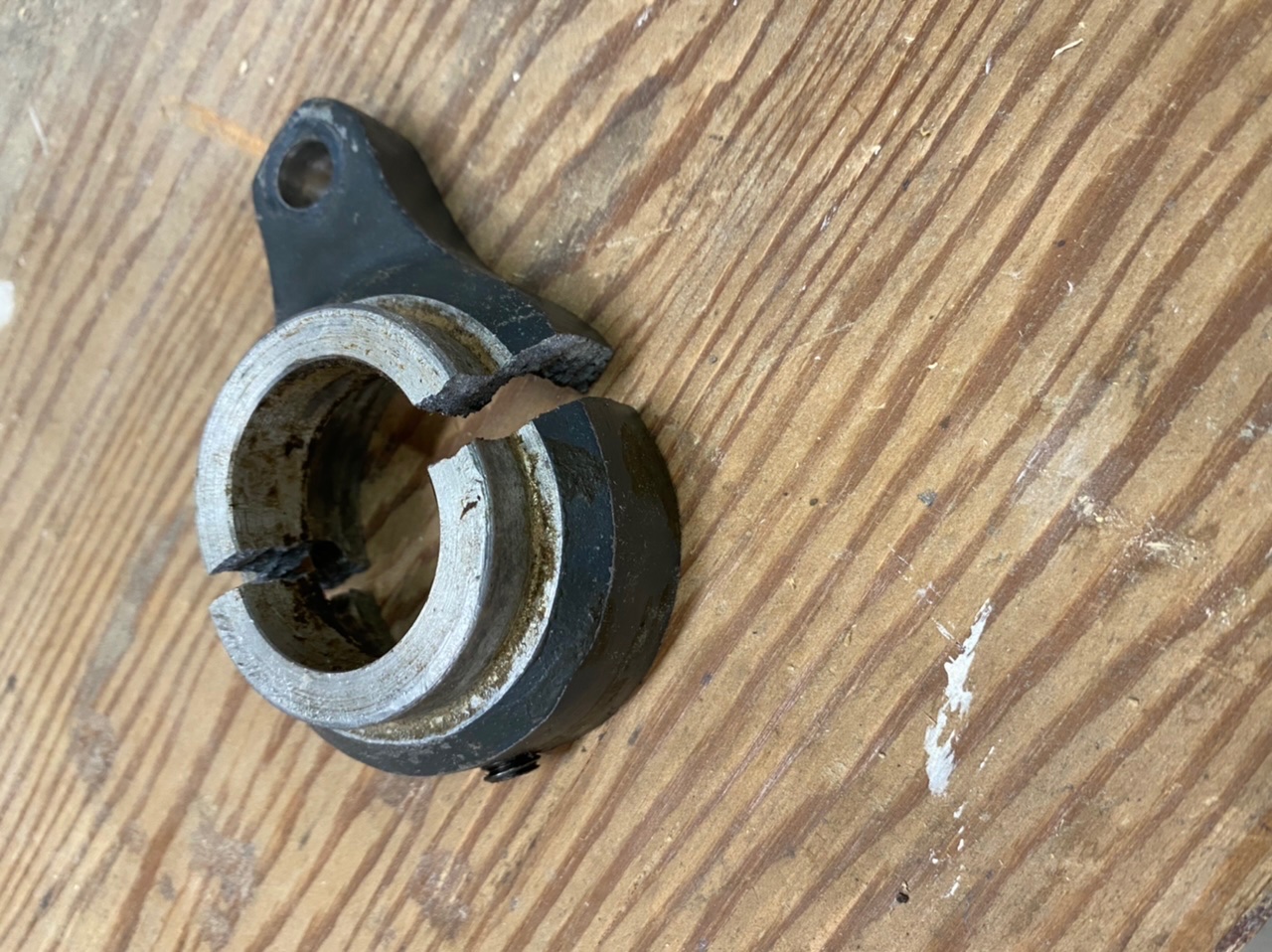

Not sure if this is still available but I’m looking for the collar that attaches to main shaft behind chuck that allows you to move shaft out ?
I’d be more that willing to by and pay shipping
Cheers
chapmanruss
Jwillbrick,
Welcome to the Shopsmith Forum. The Gauge Collar is often up for sale at online auctions. I found some with the Gauge Rod and nuts for sale currently on ebay. There is a Gauge Collar for sale by itself but is priced way more than the Gauge Collars with the Gauge Rod.
stew
I do have the part you need- Private Message (PM) me so we can figure out how to get it to you.
Stew
Jwillbrick
Wow that’s fantastic Stew!
I’m kinda new to this site , not sure how the messaging works . My email is
jwillbrick@yahoo.ca
Let me know how we can arrange this and I can send you some funds.
Cheers
Jwillbrick
Hey Stewart !

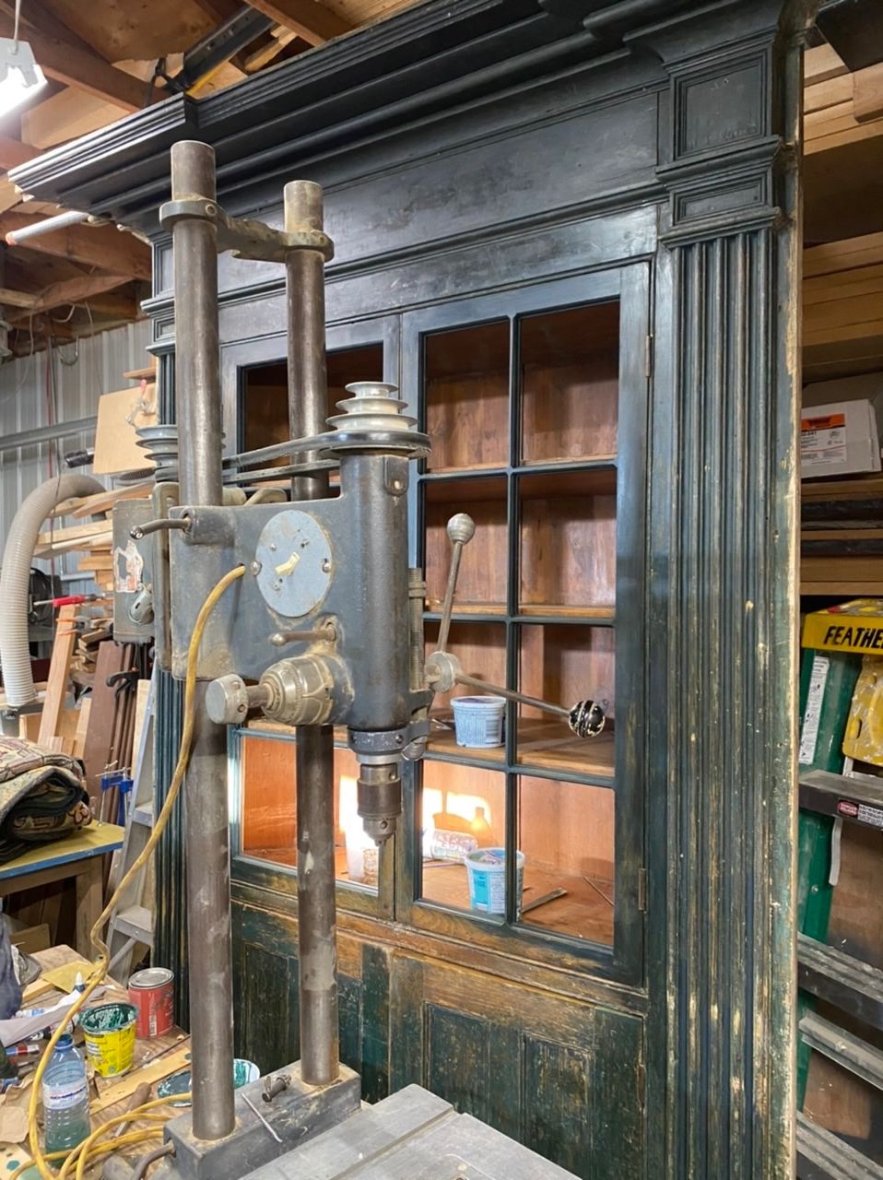

Just received the collar today !
Thanks again for your help to get me back running again!
Cheers
JPG
2.3.4.5 pulleys?
Jwillbrick
Was like that when I got it from my father .
Different size pulley for different speeds
JPG
IIRC OEM pulleys are 2.3.4. You have a greater speed range. Take care of the headstock pulley - it has a non-standard bore(assuming the quill shaft is still OEM).
chapmanruss
Jwillbrick.
Great to hear you got it back together. JPG is correct about the pulleys not being the OEM 2", 3" and 4" step pulleys that originally came on the Model 10E and 10ER. The Headstock pulley may be a custom made one to have the 13/16" bore required for the Drive Sleeve. It looks like the largest pulley slot is 4" and the smallest is 2" with the other two slots somewhere in between. This still has your highest speed at 3450 RPM's and the slowest at 860 RPM's with the others speeds somewhere in in the middle. The Model 10's were listed as a three-speed tool with an RPM of 1725 or direct motor speed having the belt on both 3" pulley slots. It is interesting, at least to me, is that there was never anything about using different pulley matchups to get additional speeds. The OEM three step pulleys are capable of 7 different speeds not just the three listed in all the Owner's Guides and other printed materials of 860, 1725 and 3450 RPM's. This only requires realigning the pulleys to matchup the 3"-4" or 2"-3" slots for additional speeds. On your Model 10ER having 4 step pulleys you have even more possible speeds. One thing I have found matching up the 3" and 4" slots on the OEM pulleys is that a 1 inch longer belt is needed. The attached PDF chart may be helpful in determining speeds for the different pulley combinations you may have. I am interested to know what the actual pulley step sizes are that you have.
_
Table of Speeds for Pulleys.pdf
Jwillbrick
The pulley size are 4”,3.5”,2.75” ,and 2”
NickLPlated
Zombie thread alert! :D
Stew,
I just came across your thread while searching the web for 10ER parts. I'm looking for the tail leg, the one that pivots. I'm going to make my 10ER a dedicated lathe and do not plan to ever use the tilt feature, as I already have a nice 15-1/2" Craftsman drill press. As such, I want to stabilize the ways as much as possible, and thought to just put a tail leg on both ends, the benefit being the larger way tube clamping surface and much larger table attachment surface. In keeping the old parts, I can always change it back if I change my mind, the excellent wonder of the SS. I also need a motor step pulley, if you have one.
I realize shipping will be pricey, but I can't find parts for these anywhere near here- it was a minor miracle finding this one in the first place. Please shoot me a PM with a shipping estimate to 65702, and we can proceed from there.
Many thanks,
Nick
Macomb, MO
1982 Shopsmith Mark V (s/n 117333)
1950 (?) Shopsmith 10ER (s/n R60967)
