Driving around in a Shopsmith?

Post by algale »

My new car is a Subaru Outback with a Continuous Variable Transmission (CVT). As best I can tell (I'm no gear head), the heart of the CVT is two conical pulleys connected by a belt. Sound like a Reeves pulley system by any other name.
Last edited by algale on Sun Aug 02, 2020 9:34 am, edited 1 time in total.
Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!

User avatar
nuhobby
Platinum Member
Posts: 2175
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Re: Driving around in a a Shopsmith?

Post by nuhobby »

Yep!
My wife drove a Jeep Compass for nearly 10 years, having the CVT. I thought the same! No problems ever with that powertrain.

Chris
User avatar
JPG
Platinum Member
Posts: 32043
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Driving around in a Shopsmith?

Post by JPG »

I assume the ratio control[control sheave] is output load determined[quill shaft torque]? :cool:
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
BuckeyeDennis
Platinum Member
Posts: 3283
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: Driving around in a Shopsmith?

Post by BuckeyeDennis »

I've heard that some CVT's can run the belt in compression. That's a pretty neat trick. But per this article, the Subaru CVT does indeed look like a Reeves drive. The belt is steel, so perhaps it can transmit power on the compression side?

I test-drove some Subaru's when I was new-car shopping back in 2015. I knew they had CVT's, and was surprised to find that they rev & shift pretty much like a conventional automatic transmission. So I asked the salesman about that. He told me that the initial versions of the transmission did keep the torque and RPM optimized as you would expect, with no discrete ratio shifting. But customers didn't like that, as it felt and sounded odd to them. So Subaru wound up programming the transmission controller to emulate a conventional transmission, so that it felt "normal" to people.
User avatar
wa2crk
Platinum Member
Posts: 3011
Joined: Sat Jul 22, 2006 7:37 am
Location: Leesburg, Fl

Re: Driving around in a Shopsmith?

Post by wa2crk »

Two variable pulleys equals Reeves Drive. If you do a search for CVT Transmissions you will see the system and one of the narrators refers to it as a Reeves Drive. The belt in the system is very unique in that it is an assembled steel belt and is also directional. The system varies the pulleys using hydraulic pressure. U Tube has a bunch of informative videos about CVT's. I just got a Kia Soul S with Kia's intelligent CVT which is said to have a chain instead of a belt. Most CVT failures seem to involve belt failure. picked up my new baby on July 31(my birthday) so I have only had a couple of days but I really like it so far.
Bill V
edma194
Platinum Member
Posts: 511
Joined: Fri Jun 19, 2020 4:08 pm

Re: Driving around in a Shopsmith?

Post by edma194 »

wa2crk wrote:I just got a Kia Soul S with Kia's intelligent CVT which is said to have a chain instead of a belt.
They call it a chain belt, apparently to differentiate it from a 'push belt', but it is still just simulating a flat belt. It resembles a chain in the sense of a set of links connected with rollers rather than the segment and ring construction of the push belts, although it's still quite different from a conventional chain.

The sheave concept is also used in lower tech forms in a lot of lawn tractors with pulleys like this: https://www.amazon.com/MTD-956-04015B-V ... B0017OPOBI

It's very much like the spring loaded lower sheave on a Shopsmith, but these are used as a intermediary between two other fixed pulleys.
Ed from Rhode Island

Mark V 510 with PowerPro headstock, Mark V Greenie with 510 headstock, Mark V 500 in progress
Sawsmith 2000 Ultra, 10ER in progress, 10ER undetermined future
User avatar
JPG
Platinum Member
Posts: 32043
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Driving around in a Shopsmith?

Post by JPG »

edma194 wrote:
wa2crk wrote: . . .

It's very much like the spring loaded lower sheave on a Shopsmith, but these are used as a intermediary between two other fixed pulleys.

ala Power Station.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
dusty
Platinum Member
Posts: 20362
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Driving around in a Shopsmith?

Post by dusty »

dusty wrote:
dusty wrote:
JPG wrote:

ala Power Station.
Where are the two fixed pulleys in a Power Station?

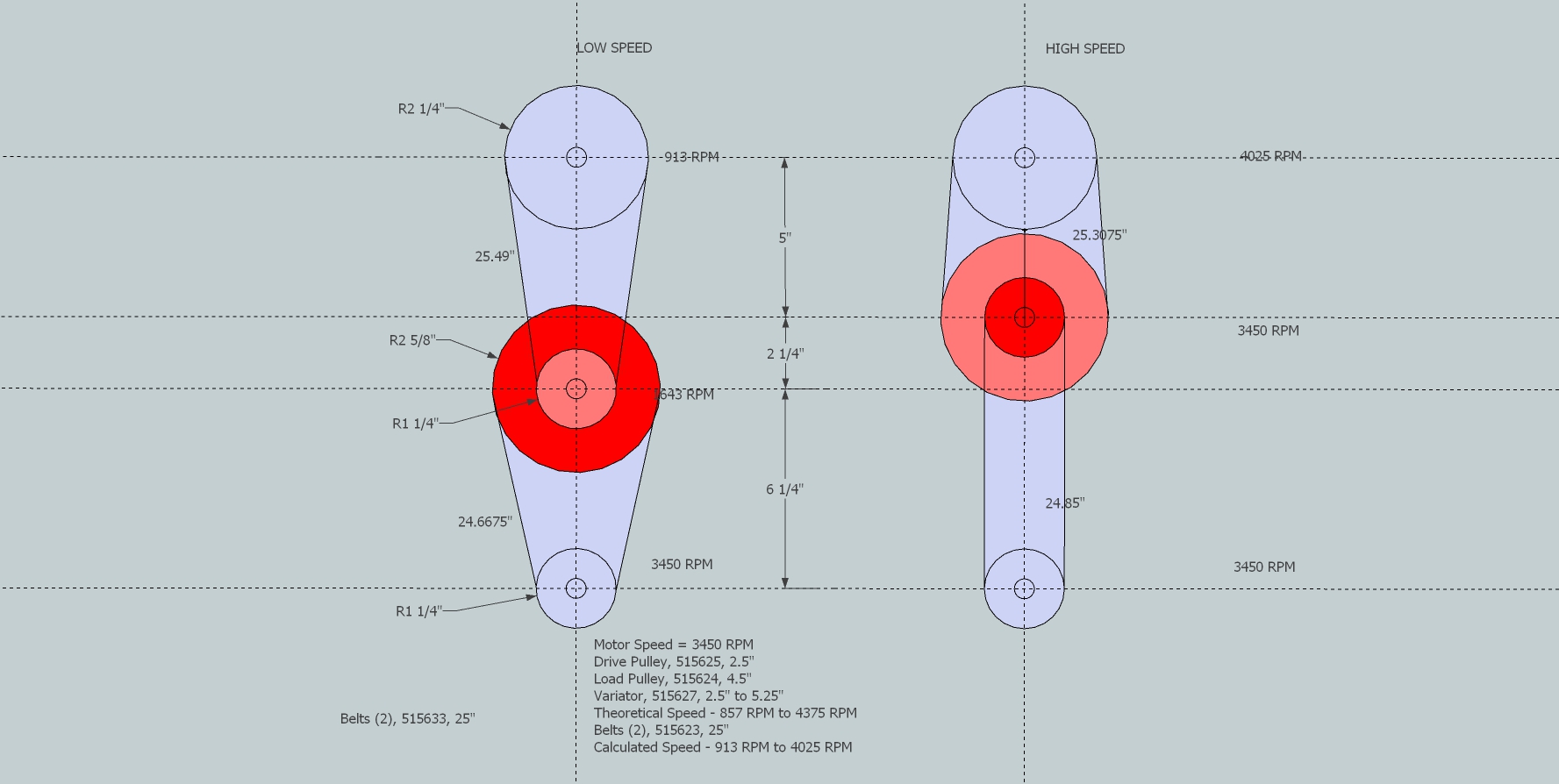

Power Station Pulley Arrangement
Power Station Pulley Arrangement
Power Station, Drive Statistics for Editing.jpg (275.46 KiB) Viewed 4225 times
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
edma194
Platinum Member
Posts: 511
Joined: Fri Jun 19, 2020 4:08 pm

Re: Driving around in a Shopsmith?

Post by edma194 »

That diagram is great to see. Never seen a Power Station but wondered about using a pulley like that to make my own variable speed control. Considered that for my Delta bandsaw but it was easier to buy an old Shopsmith. The linear inline pattern of pulleys seemed to make sense, so that confirms it for me. Lawn tractors tend to have the variable pulley at the end of big swinging arm for some reason. I am impressed that pulley works with much higher HP than we'll see in shop machines.

I did get what I think is a Power Stand with a SS bandsaw I got for parts. No speed changer in the box, just a couple of stacked pulleys. Did they sell those directly or was that just for 3rd party sales?
Ed from Rhode Island

Mark V 510 with PowerPro headstock, Mark V Greenie with 510 headstock, Mark V 500 in progress
Sawsmith 2000 Ultra, 10ER in progress, 10ER undetermined future
User avatar
wa2crk
Platinum Member
Posts: 3011
Joined: Sat Jul 22, 2006 7:37 am
Location: Leesburg, Fl

Re: Driving around in a Shopsmith?

Post by wa2crk »

The Power Station and the Power Stand are two different animals. The Power Station has a variable speed power unit similar to the Shopsmith although the innards are a bit different. The Power Stand is only a stand with the cast metal mounting foot and it comes with stepped pulleys and the ratios are selected for the application. Bandsaw, belt sander, jointer etc.
