Shopsmith crosscut Stop for 520/Mark7

Create a review for a woodworking tool that you are familiar with (Shopsmith brand or Non-Shopsmith) or just post your opinion on a specific tool. Head to head comparisons welcome too.

Moderator: admin

User avatar
ryanbp01
Platinum Member
Posts: 1479
Joined: Mon Jun 25, 2007 4:43 pm
Location: Monroeville, IN

Shopsmith crosscut Stop for 520/Mark7

Post by ryanbp01 »

I purchased the item for $10.99. As always, instructions were clear. However, when I attempted to attach it to the fence, I noticed the knob was difficult to thread onto the bolt; however a bit of powdered graphite fixed that issue. What I didn't like was when I tried to slide the sliding nut into the fence channel, it would not slide into position. I tried a little bit of paste wax and buffed the fence and tried to slide the nut into position again. It wasn't as bad but I did notice a deep scratch on the fence face. Needless to say I am disappointed with item as received, but I am going to attempt belt sanding the nut see if I can get the thing to slide better.
BPR
User avatar
dusty
Platinum Member
Posts: 20359
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Shopsmith crosscut Stop for 520/Mark7

Post by dusty »

Is it the Shopsmith Cross Cutter that you have? If so, what a deal. Only $10.99.

https://www.shopsmith.com/ownersite/cat ... cutter.htm

This is unusual, however. The sliding "T"-nut typically moves quite easily in the t-slot. Try the t-nut without the bolt.

Did you buy this from Shopsmith?
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
ryanbp01
Platinum Member
Posts: 1479
Joined: Mon Jun 25, 2007 4:43 pm
Location: Monroeville, IN

Re: Shopsmith crosscut Stop for 520/Mark7

Post by ryanbp01 »

Dusty,
Yes, it did come from Shopsmith and is what you referenced. I did try a t-nut without a bolt and it fit nicely. Since the t-nut in question already has the bolt attached, I am still going to attempt sanding the bottom of the t-nut in order for it to slide easier. I just don't want to leave scratches in the t-slot.
BPR
User avatar
ChrisNeilan
Platinum Member
Posts: 1454
Joined: Sun Oct 27, 2013 5:30 pm
Location: Waterford, Connecticut
Contact:

Re: Shopsmith crosscut Stop for 520/Mark7

Post by ChrisNeilan »

Interesting. I had that same problem. It would not fit into my 520 fence. I have two 520 table systems so I tried it in the other fence. Fit was perfect! Left me scratching my head!
Chris Neilan

Shopsmith Mark 7, Shopsmith Mark V 1982, shortened, Shopsmith 10 ER; Craftsman table saw (1964); Powermatic 3520B lathe
User avatar
dusty
Platinum Member
Posts: 20359
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Shopsmith crosscut Stop for 520/Mark7

Post by dusty »

ChrisNeilan wrote:Interesting. I had that same problem. It would not fit into my 520 fence. I have two 520 table systems so I tried it in the other fence. Fit was perfect! Left me scratching my head!
Really? The t-nut doesn't fit in the t-slot.

One fence is different than the other...maybe.

Old fence or new? Does a straight edge reveal anything?

Pictures, guys. Pictures.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
JPG
Platinum Member
Posts: 32028
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Shopsmith crosscut Stop for 520/Mark7

Post by JPG »

Is it possible the knob screw is too long and is extending proud of the 'back' of the t-nut?
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
ryanbp01
Platinum Member
Posts: 1479
Joined: Mon Jun 25, 2007 4:43 pm
Location: Monroeville, IN

Re: Shopsmith crosscut Stop for 520/Mark7

Post by ryanbp01 »

I have 2 520 fences as well. Didn't fit in either. JPG, I felt the back of the t-nut and couldn't tell if the bolt may be proud. As soon as I can get out of my wrist splint, I figure I can either use my strip or belt sander to sand remove enough metal to make the t-nut slide better.
User avatar
JPG
Platinum Member
Posts: 32028
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Shopsmith crosscut Stop for 520/Mark7

Post by JPG »

Picture picture picture




Please
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
User avatar
dusty
Platinum Member
Posts: 20359
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Shopsmith crosscut Stop for 520/Mark7

Post by dusty »

JPG wrote:Is it possible the knob screw is too long and is extending proud of the 'back' of the t-nut?
NO! Not unless there has been a redesign.

The t-nut is built differently than other t-nuts.

"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
ChrisNeilan
Platinum Member
Posts: 1454
Joined: Sun Oct 27, 2013 5:30 pm
Location: Waterford, Connecticut
Contact:

Re: Shopsmith crosscut Stop for 520/Mark7

Post by ChrisNeilan »

I solved my issue! If I had taken a minute I would have seen that one roll pin had been proud. A quick trip to the strip sander fixed that. I still find it odd that it would fit one fence (from the Powerpro) and not the fence I got from Ebay.
Attachments

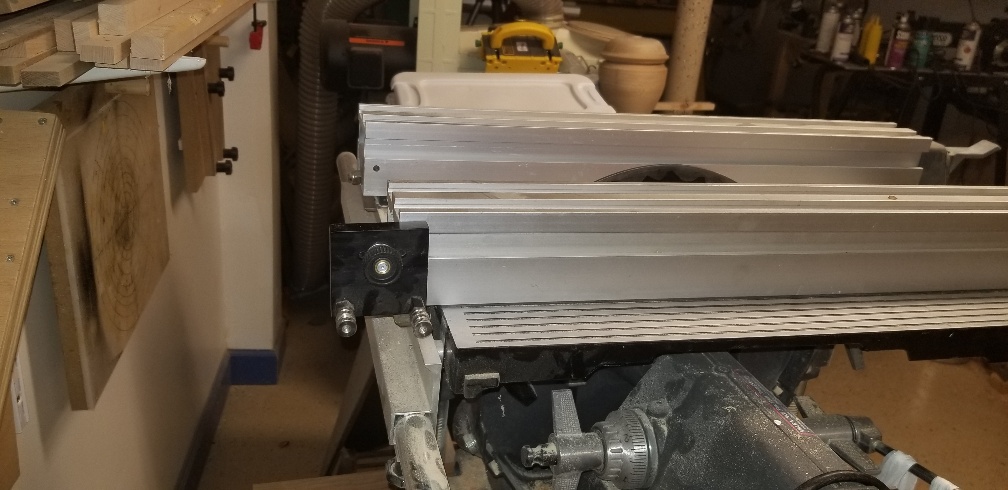

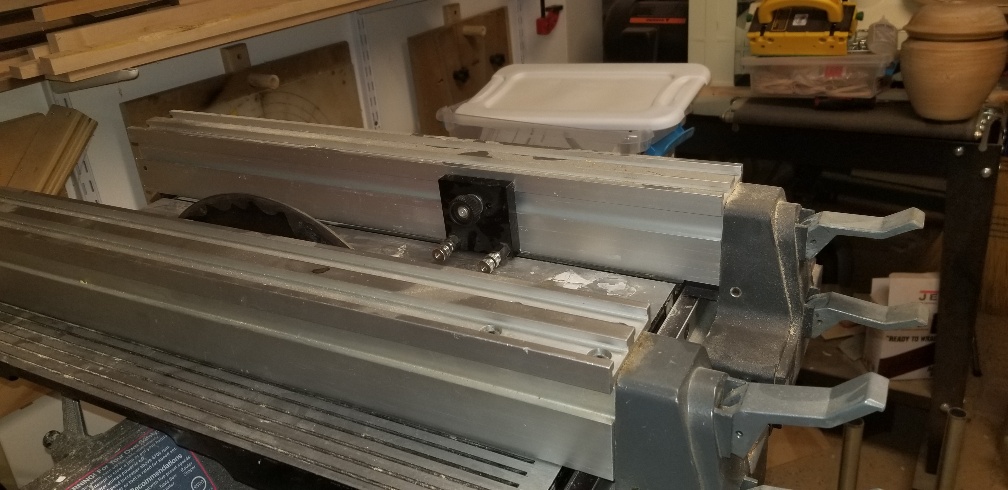

This is the crosscut jig on the Powerpro fence.
This is the crosscut jig on the Powerpro fence.

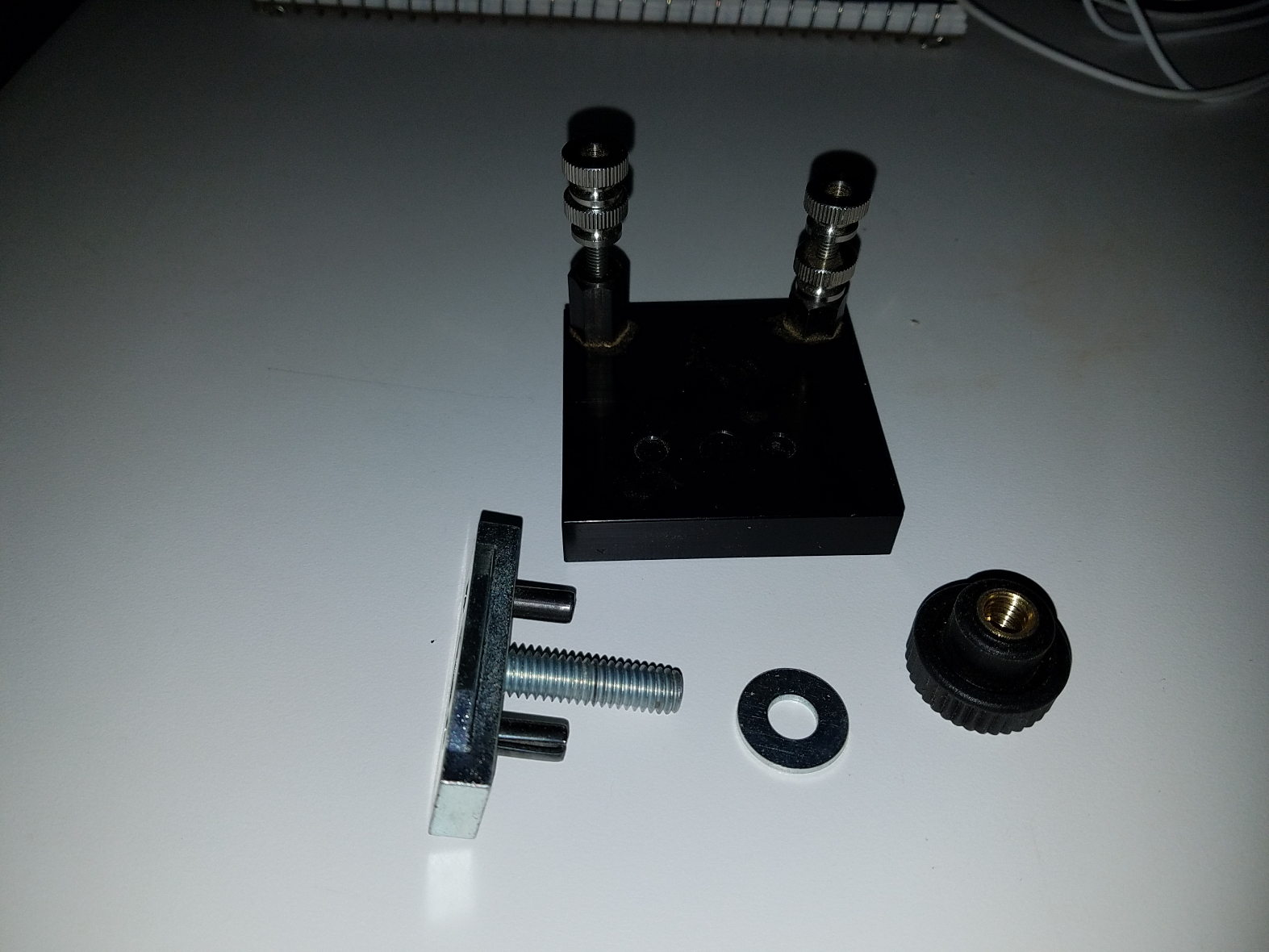

Won't go on the older 520 fence
Won't go on the older 520 fence

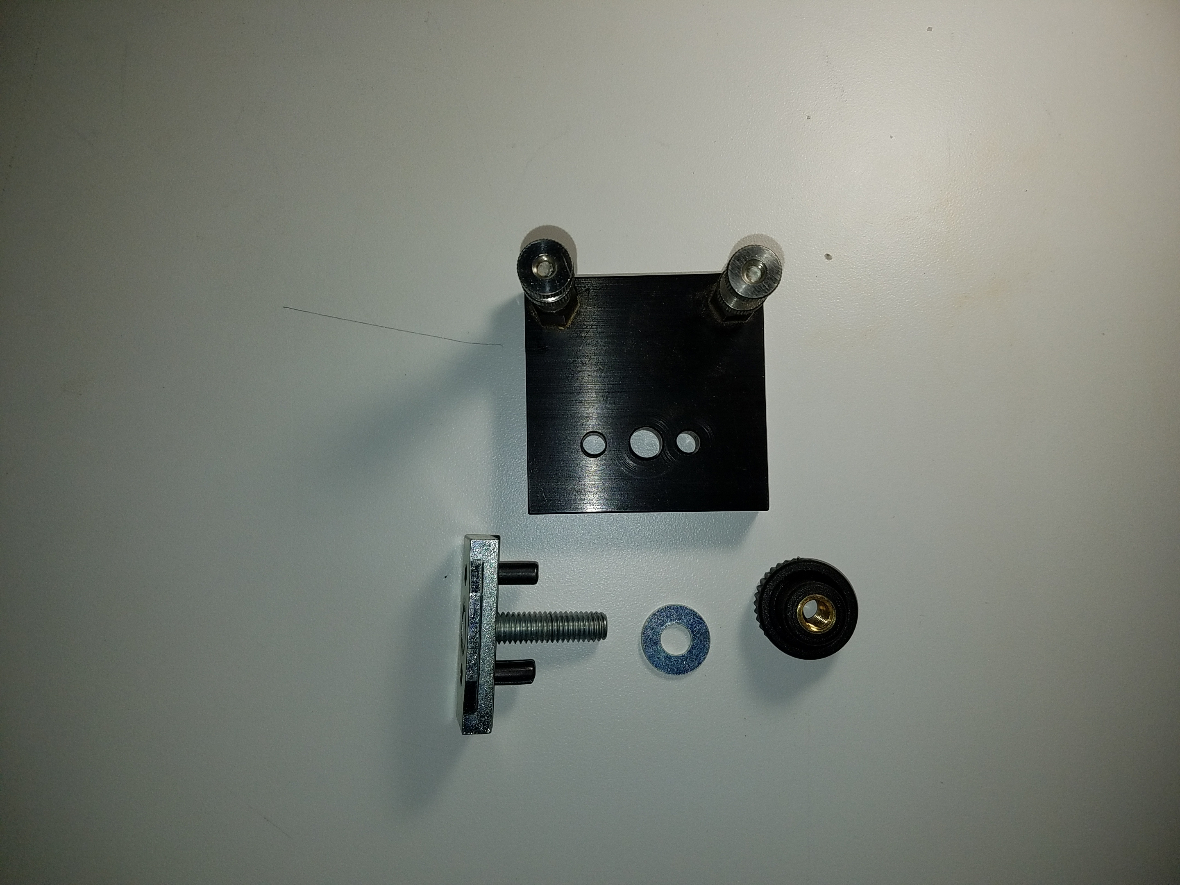

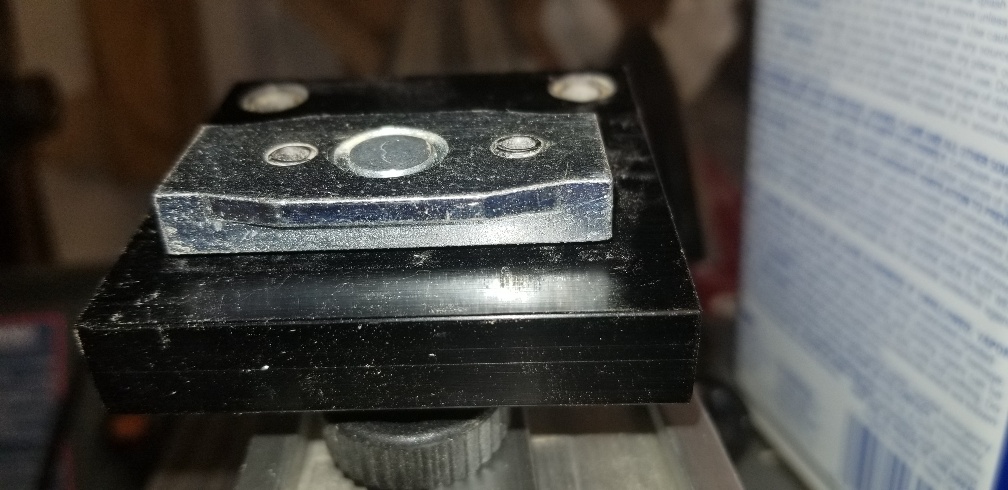

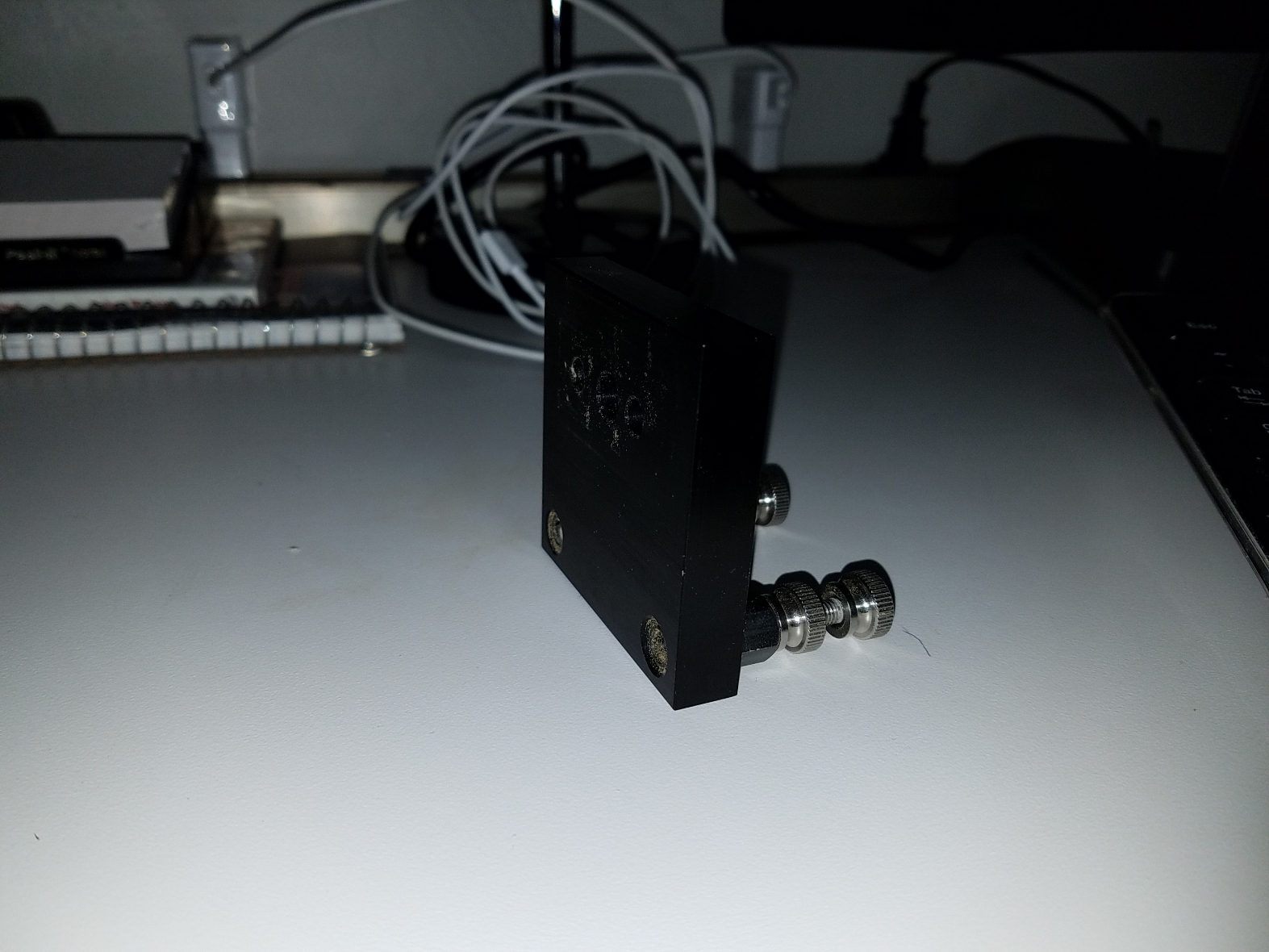

Pin is proud
Pin is proud

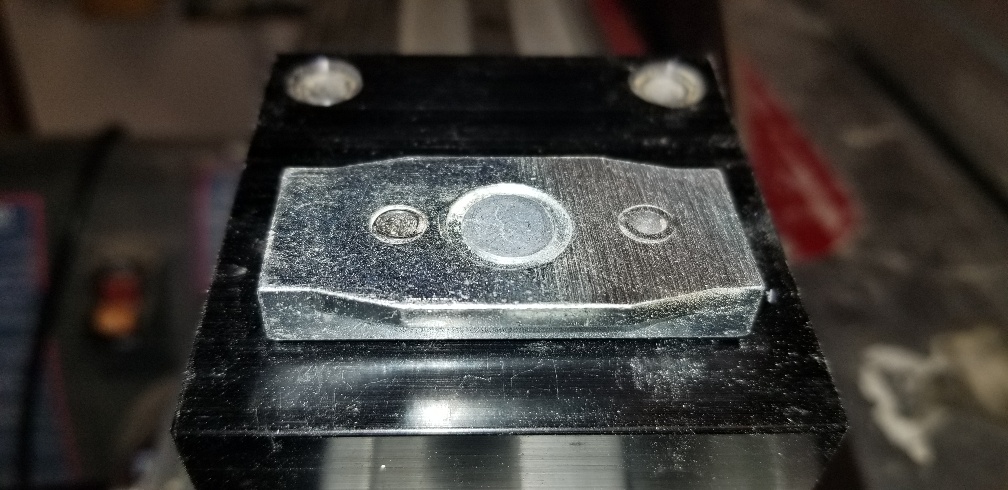

Sanded off the proud part. All is well!
Sanded off the proud part. All is well!
