Re: Bandsaw: New style table vs. old style table?

Post by algale »

baburao wrote:I just have the more seasoned cast iron table and I truly haven't utilized it enough to frame an assessment, yet I'd prefer to hear what others need to state. Apparently, overhauling from it to the aluminum table is as yet an open alternative.
This question is frequently asked. Each has some relative advantages and disadvantages. Aluminum larger and lighter but must remove to go vertical. Cast iron smaller and heavier but can be left in place to go vertical. You can add a rip fence to the aluminum table for $$$. Cast iron can use the miter gauge as a rip fence at no additional cost. On balance, I don't think it is worth upgrading.
Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!

P89DC
Gold Member
Posts: 148
Joined: Fri Dec 29, 2017 11:23 am
Location: Greeley, CO

Re: Bandsaw: New style table vs. old style table?

Post by P89DC »

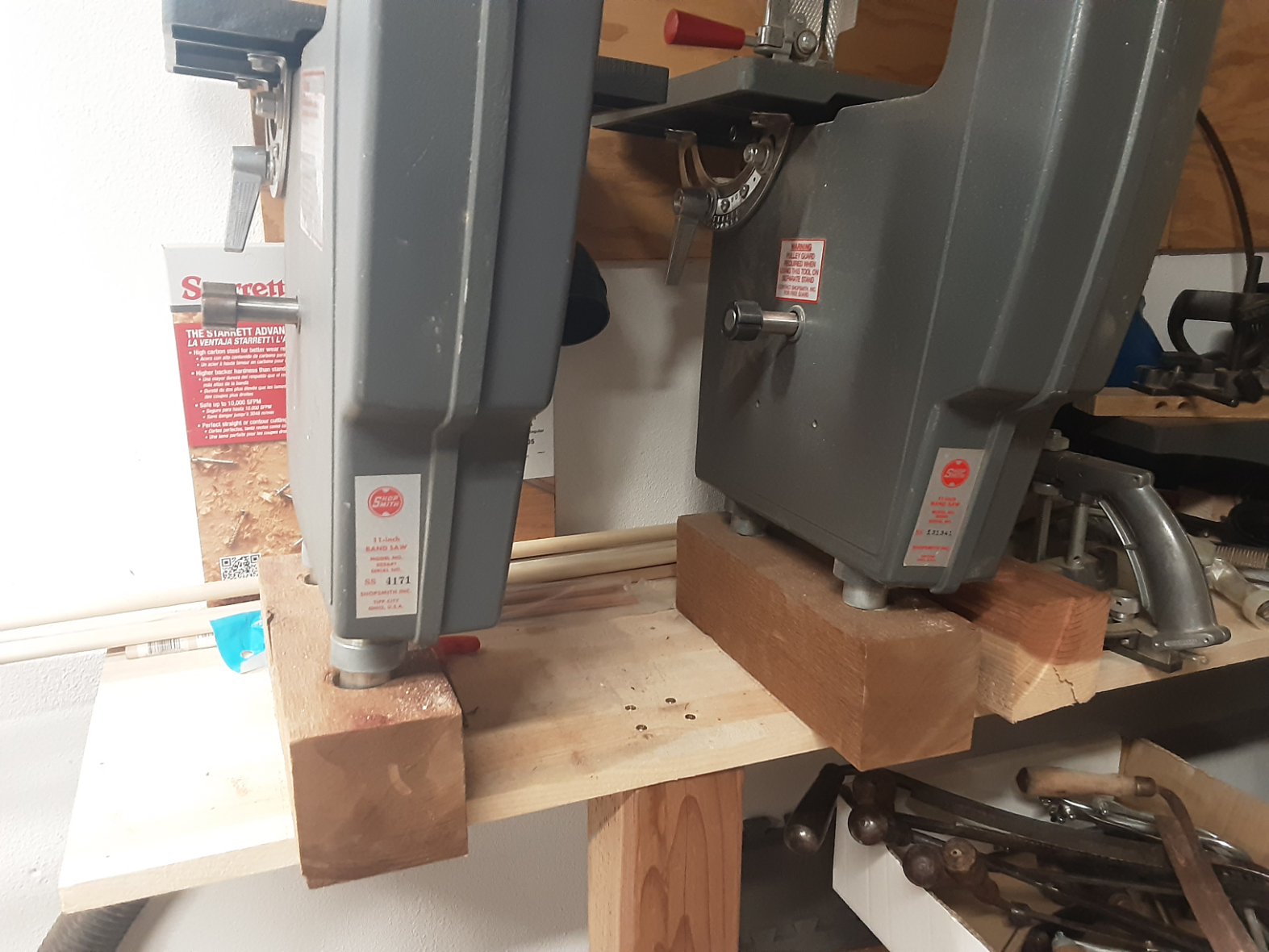

I have two cast iron tabled bandsaws and for storage the limit of closeness is the table. If I had the larger aluminum tables I'd need more space on my SPT shelf.
Attachments
1986 510, jointer, bandsaw, belt sander, scroll saw, jigsaw and lots of accessories. Shopsmith woodworking bench too!
AEA
Gold Member
Posts: 62
Joined: Sat Sep 12, 2020 9:41 pm
Location: Spring Creek, NV (by Elko) Northern Nevada

Re: Bandsaw: New style table vs. old style table?

Post by AEA »

I had the cast iron for years and have recently acquired another bandsaw with the aluminum table.

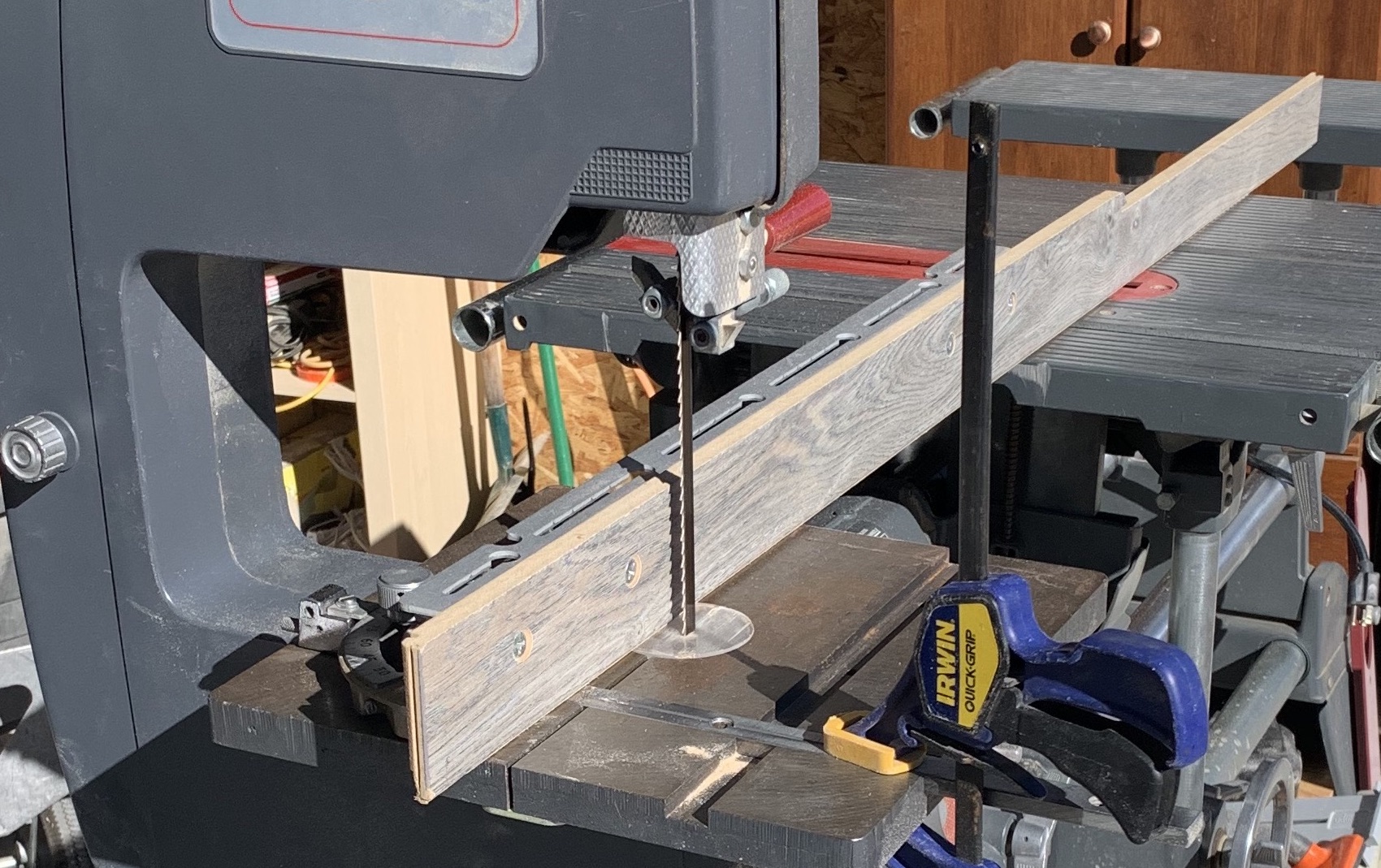

I use the the cast iron one with a 5/8" blade for resawing and use the aluminum with a 1/4" blade for curves and such.
I have no fence for my aluminum table.
I use a miter gauge and extension with a piece of straight composite flooring for a fence. It works great!
I still prefer the cast iron over the "upgrade".
Dan
User avatar
chapmanruss
Platinum Member
Posts: 1888
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Bandsaw: New style table vs. old style table?

Post by chapmanruss »

Dan,

I notice you have an Irwin Quick Clamp holding the end of the Miter Gauge Bar. Do you have a problem with it trying to lift up out of the slot?
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1033 & Mark 2 to be restored.
AEA
Gold Member
Posts: 62
Joined: Sat Sep 12, 2020 9:41 pm
Location: Spring Creek, NV (by Elko) Northern Nevada

Re: Bandsaw: New style table vs. old style table?

Post by AEA »

Rus:
no, not lifting out. I use the clamp to keep it from sliding forward or back.
User avatar
rpd
Platinum Member
Posts: 2756
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: Bandsaw: New style table vs. old style table?

Post by rpd »

AEA wrote:Rus:
no, not lifting out. I use the clamp to keep it from sliding forward or back.
The set screw in the middle of the miter bar is tapered, if you tighten it, it will make the bar wider and lock it in the slot.

edit, actually the setscrew is straight, the hole is tapered.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
AEA
Gold Member
Posts: 62
Joined: Sat Sep 12, 2020 9:41 pm
Location: Spring Creek, NV (by Elko) Northern Nevada

Re: Bandsaw: New style table vs. old style table?

Post by AEA »

Russ,
Oh good grief, thanks. That will certainly help when I do wider stuff.
Of course I feel a bit silly, I guess I need another lesson in humility. :)
Thanks,
Dan
User avatar
chapmanruss
Platinum Member
Posts: 1888
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Bandsaw: New style table vs. old style table?

Post by chapmanruss »

Dan,

Don't feel bad. We all have to learn these things somewhere. Thanks to Ron for this one. I still find things out about these tools that I have missed before or just plain forgot. :eek:
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E S/N 1077 oldest one I have restored. 10E S/N 1033 & Mark 2 to be restored.
AEA
Gold Member
Posts: 62
Joined: Sat Sep 12, 2020 9:41 pm
Location: Spring Creek, NV (by Elko) Northern Nevada

Re: Bandsaw: New style table vs. old style table?

Post by AEA »

Thanks Ron,
I usually have a screwdriver with me (leatherman). I have to go get a squeeze clamp.
Much handier all the way around.
