When I upgraded from the 510 to the 520 I had to make an adapter for the 520 fence. Also the fence straddler doesn't fit well on the old style shelf.

Does anyone have the plan for the 520 accessory shelf?

Jim in Tucson
User avatar
manvelar
Gold Member
Posts: 51
Joined: Tue Apr 10, 2007 9:20 pm
Location: Bellbrook OH
Contact:

Post by manvelar »

The slots for the fence straddler are not far enough apart - other than that it should work.
james.miller
Gold Member
Posts: 303
Joined: Thu Jul 20, 2006 2:16 pm

Post by james.miller »

Sorry for the reply to such an old post.

I just received the new Shopsmith Accessory Shelf. If you want to make one it is 1.125" thick and follow the photo.

[ATTACH]288[/ATTACH]

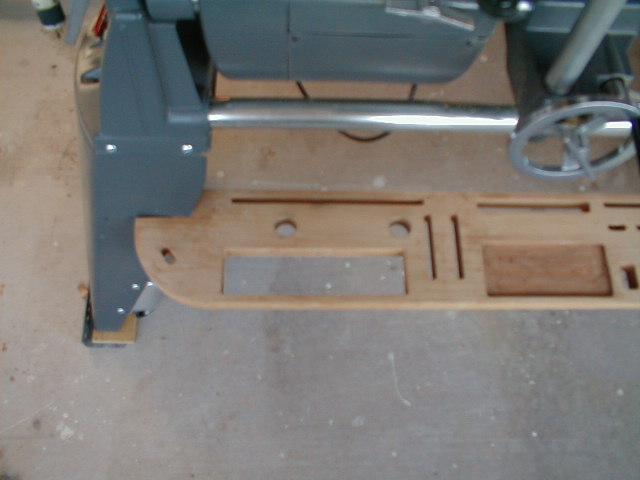

new 520 shelf

[ATTACH]289[/ATTACH]

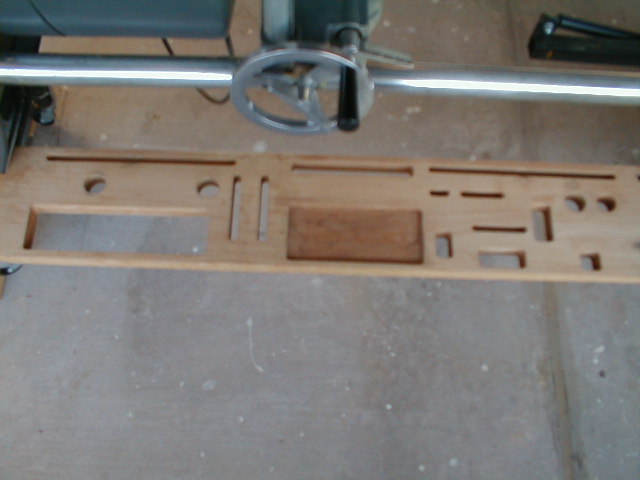

510 shelf with adapter for 520 fence
Attachments
520 Acc.jpg
520 Acc.jpg (40.47 KiB) Viewed 14490 times
520 & Convert.jpg
520 & Convert.jpg (54.21 KiB) Viewed 14503 times
User avatar
dusty
Platinum Member
Posts: 19846
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Tool Shelf

Post by dusty »

jim

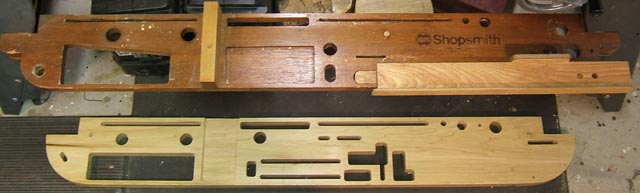

Ignoring the cutouts, are the physical dimensions of the shelf the same as the original 510 shelf? In the pictures, it appears to be same length but wider (infeed to outfeed).
james.miller
Gold Member
Posts: 303
Joined: Thu Jul 20, 2006 2:16 pm

Post by james.miller »

510 shelf is 4' 10" x 7-1/8" and 1-1/64" thick.

The new shelf is 4' 10-1/4" x 7-1/2" and 1-1/8" thick, it works with all mark-V's.

The new shelf looks like it may be made of Poplar, not sure about the old shelf.

Jim in Tucson
User avatar
dusty
Platinum Member
Posts: 19846
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Tool Shelf

Post by dusty »

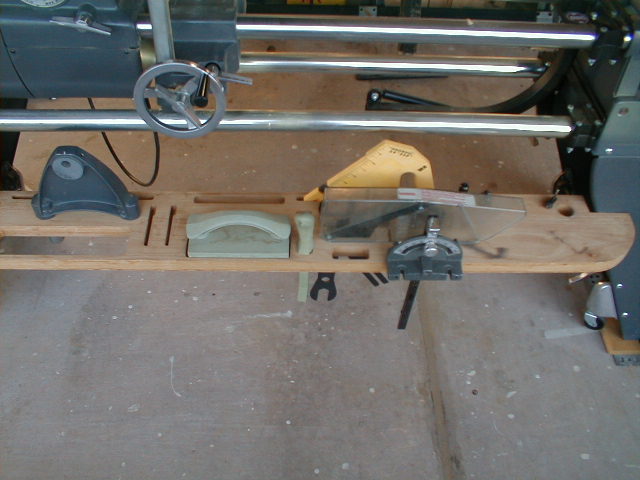

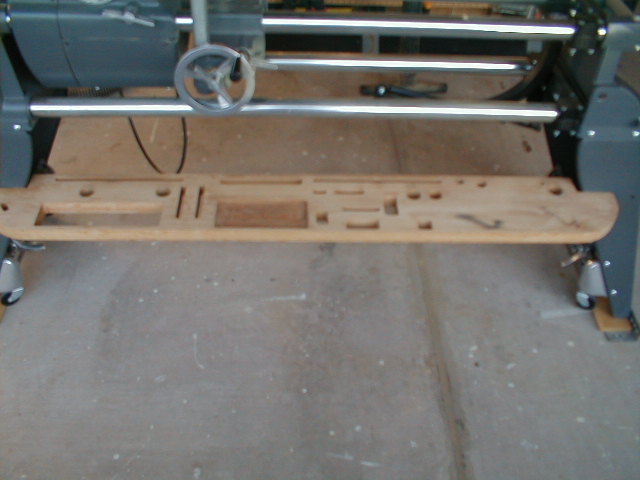

I have still another version of the tool shelf.

I don't have either of the "L" shaped cutouts in mine and the routed out area for push blocks is the size of a single push block.

Mine was new in the early 90's. A few changes have occured since then.

Mine is only 7 1/2" wide and the layout is quite different.

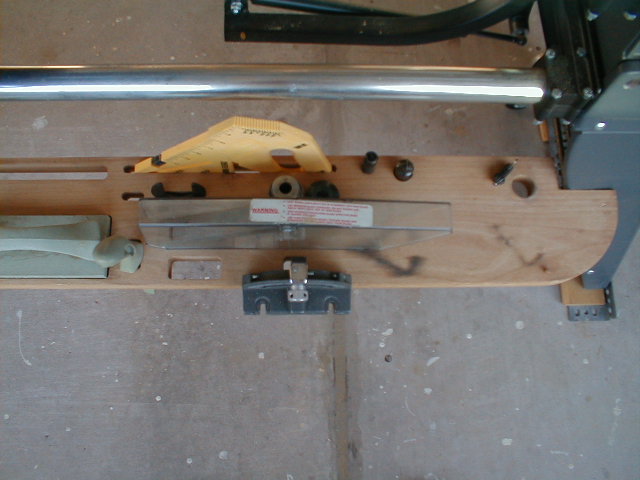

PS: Some pictures posted earlier in this thread show the fence straddler on a new 520 tool shelf. It looks to me as though the fence straddler still doesn't fit (one leg in and one leg out).
Attachments
SS Tools 1.JPG
SS Tools 1.JPG (57.57 KiB) Viewed 14439 times
SS Tools 2.JPG
SS Tools 2.JPG (56.39 KiB) Viewed 14435 times

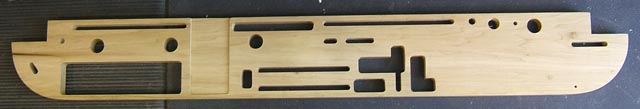

Tool Shelf Full View.JPG
