Mark V 500 Carriage

dusty · Post by **dusty** » Mon Feb 25, 2008 7:53 pm

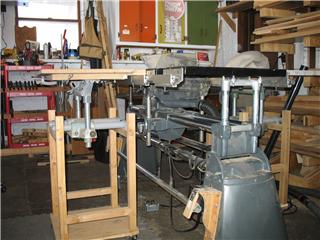

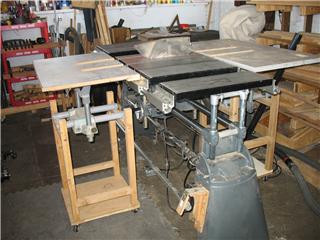

lives a new life as an infeed/outfeed table.

These photos are not mine, nor are the infeed/outfeed tables. They belong to Doc (chiroindixon). He has been trying to share them with the forum but is having technical difficulties with the posting process on the forum.

I have posted them, with his permission, just to verify that the procedure we have been discussing works. If you see no pictures with this post - you'll know it didn't.

These tables are really neat. They are not just infeed/outfeed tables. They are height adjustable, portable tables that could be used anywhere in the shop.

They have locking casters and could easily be modified to become cabinets or drawers.

Way to go, Doc.

a1gutterman · Post by **a1gutterman** » Mon Feb 25, 2008 9:28 pm

Those look pretty nice Doc.

charlese · Post by **charlese** » Mon Feb 25, 2008 11:16 pm

Glad to see your tables Doc! That's an interesting way to handle the in and out feed issue. Also glad you and Dusty found a way to post your photos. Thanks to both of you!

napaman · Post by **napaman** » Fri Feb 29, 2008 9:37 pm

great tables

pinkiewerewolf · Post by **pinkiewerewolf** » Thu Mar 06, 2008 11:05 pm

I like that idea too. I'm going to do something similar with the shorty chasis when it arrives.
Thanks for the photos!

Greenvilleguy · Post by **Greenvilleguy** » Fri Mar 07, 2008 9:06 am

What did you use as the "way tubes"?

I posted a jury rigged version earlier where I just stuck some 2 x 2 square stock through the holes and clamped them to a workmate, but I'd like to incorporate your solution into a Shopsmith cart that would hold the fence, miter gauge, spare tables, jointer, etc.

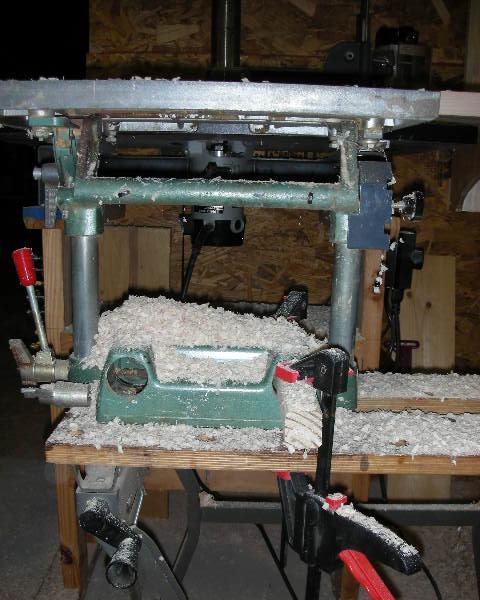

Oh, here is my jury rigged version. Sorry for the sideways view and all the sawdust, but you'll get the idea.

[ATTACH]978[/ATTACH]

dusty · Post by **dusty** » Fri Mar 07, 2008 9:47 am

Just had to do this to see if I could.

If you even see this after I post it, it is because I couldn't delete it once it was there.

chiroindixon · Post by **chiroindixon** » Fri Mar 07, 2008 11:13 am

Plan called for 1.5" EMT conduit pipe but I have 1 5/8" OD....you need two 18" lengths.....

If you have an old set of the stock way tubes, easy to get off Ebay....cut those. Some folks might have them left over from chopping a Mark V down to a mini...or even a midi per Bill Mayo....I don't know what is the leftover length from such a "chop job". Bill?

Doc
