SS Forum Comprades,

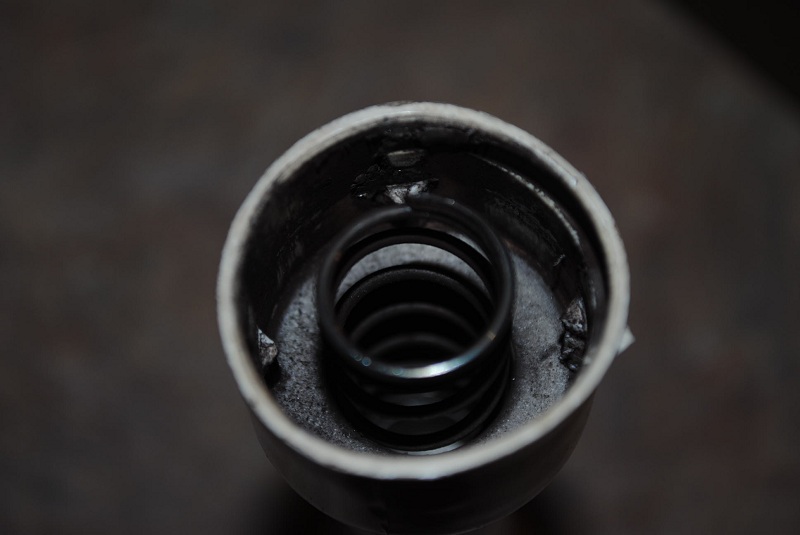

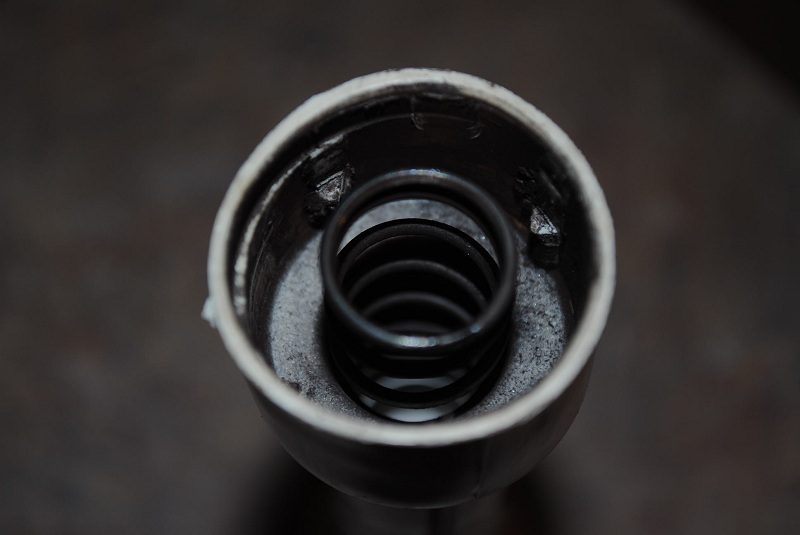

Here's a picture of the coupler that seems to be the issue. The internal teeth are worn/damaged about 50%, and it is out of round. I lined up the head stock and the band saw and they were perfect - I think the issue is obvious!
I'll be ordering a new coupler from SS!
Bad Coupler-?
Moderator: admin
-
woodshopflunky
- Silver Member
- Posts: 9
- Joined: Sun May 06, 2012 1:28 pm
Bad Coupler-?
- Attachments
-
- DSC_0361 (1).jpg (104.13 KiB) Viewed 3700 times
-
- DSC_0362.JPG (108.15 KiB) Viewed 3690 times
-
- DSC_0363 (1).jpg (98.84 KiB) Viewed 3671 times
-
dusty
- Platinum Member
- Posts: 21481
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
I can not tell from these photos but if you cannot maintain a smooth operation of SPT while coupled to the headstock - you do not want to use it.woodshopflunky wrote:SS Forum Comprades,
Here's a picture of the coupler that seems to be the issue. The internal teeth are worn/damaged about 50%, and it is out of round. I lined up the head stock and the band saw and they were perfect - I think the issue is obvious!
I'll be ordering a new coupler from SS!
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
Yep throw that one away. Look at the hubs to ,make sure there okay and wasn't the cause of the problem.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
-
woodshopflunky
- Silver Member
- Posts: 9
- Joined: Sun May 06, 2012 1:28 pm
-
JPG
- Platinum Member
- Posts: 35428
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Looks like insufficient insertion over the headstock hub. i.e, the spring must be compressed as far as possible so the hub bottoms out in the coupler.woodshopflunky wrote:Yep, it's in the garbage. Just ordered a new one from SS. I'm not sure what the previous owner did, the splines on the bandsaw and headstock look to be in perfect condition and line up to each other perfectly to the naked eye.
Thanks for all the friendly help and advice, this forum rocks!
Carl
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Just wanted to say "Welcome to the Forum."
You will find lots of friendly folks here and a wealth of information.
Welcome to Shopsmith Heaven!:)
You will find lots of friendly folks here and a wealth of information.
Welcome to Shopsmith Heaven!:)
----------------------------------------
Leonard
La Vernia, TX
Wood Goods - Custom Woodwork
EMAIL: woodgoods "at" lavernia "dot" net
PowerPro 520, PowerPro 500 (was my father's 500), SS jointer, SS Mark V mount planer, SS bandsaws (2), belt sander, scroll saw, SS jig saws (2), strip sander, Jointech system, 12" Delta Compound Miter Saw, a small collection of routers, a router table and a Delta Unisaw. All in a 24' x 24' shop.
Leonard
La Vernia, TX
Wood Goods - Custom Woodwork
EMAIL: woodgoods "at" lavernia "dot" net
PowerPro 520, PowerPro 500 (was my father's 500), SS jointer, SS Mark V mount planer, SS bandsaws (2), belt sander, scroll saw, SS jig saws (2), strip sander, Jointech system, 12" Delta Compound Miter Saw, a small collection of routers, a router table and a Delta Unisaw. All in a 24' x 24' shop.
Love Joy Power Coupler
I have used the Lovejoy couplers for years as Shopsmith had no supply of their coupler. They work out nice but I often loose the spider. Cheapest price that I have found is at use-enco.com.
I use the series L050 5/8 bore Hubs. Enco's Part# 990-4047
And I use the Buna-N Spider. It is a softer rubber meant for jars and soft starts. Various strength spiders are available. They are availble in 1/2" ID and 5/8" ID hubs.
Enco's Part #990-4042.
They are about half the price of the Shoppsmith coupler.
Of course. aligning the 2 shafts are very important to reduce vibration and wear.
I use the series L050 5/8 bore Hubs. Enco's Part# 990-4047
And I use the Buna-N Spider. It is a softer rubber meant for jars and soft starts. Various strength spiders are available. They are availble in 1/2" ID and 5/8" ID hubs.
Enco's Part #990-4042.
They are about half the price of the Shoppsmith coupler.
Of course. aligning the 2 shafts are very important to reduce vibration and wear.
Bill Mayo bill.mayo@verizon.net
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)
-
rlkeeney
- Platinum Member
- Posts: 746
- Joined: Fri Nov 14, 2008 5:53 am
- Location: Tallahassee FL
- Contact:
Bill,
I looked up the part numbers you posted and it seems to me that I would mount a hub on the bandsaw and the headstock with the spider in between.
Am I understanding you correctly?
I assume there a set screw that holds the hubs in place?
There is a photo in the Enco catalog that shows how these work but it isn't good enough for me to tell how it mounts.
I looked up the part numbers you posted and it seems to me that I would mount a hub on the bandsaw and the headstock with the spider in between.
Am I understanding you correctly?
I assume there a set screw that holds the hubs in place?
There is a photo in the Enco catalog that shows how these work but it isn't good enough for me to tell how it mounts.
-
JPG
- Platinum Member
- Posts: 35428
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Neither the enco nor the lovejoy site reveal the set screw size, but it is indicated on the drawing below the pix at the enco site linked to.rlkeeney wrote:Bill,
I looked up the part numbers you posted and it seems to me that I would mount a hub on the bandsaw and the headstock with the spider in between.
Am I understanding you correctly?
I assume there a set screw that holds the hubs in place?
There is a photo in the Enco catalog that shows how these work but it isn't good enough for me to tell how it mounts.
900-4046(5/8) and 900-4047(1/2) would be my choice(no key slot).
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Bill Mayo: Good thinking on your part. Then Lovejoy couplers are a standard motor to appliance coulping (used them many times in machine designs), and who would've thought an industrial type would be cheaper than some PVC fabrication? If I ever need a new coupler, that's the route I'll take. Thanks for that tip.
BTW: alignment between the two shafts is critical in both x & y axis. The Lovejoy may compensate for about a degree of angular misalignment, but not any more than that.
I might have chosen the nect size up though, as the motors are rated at 3/4 HP and 1.125 HP, just to have a more substantial coupling. YMMV
BTW: alignment between the two shafts is critical in both x & y axis. The Lovejoy may compensate for about a degree of angular misalignment, but not any more than that.
I might have chosen the nect size up though, as the motors are rated at 3/4 HP and 1.125 HP, just to have a more substantial coupling. YMMV
