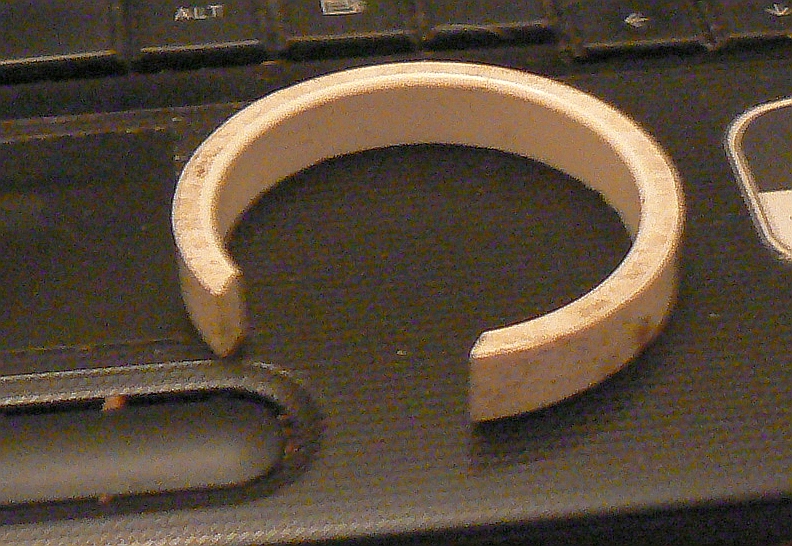

[ATTACH]21636[/ATTACH]
id 1 7/8"
notch 1"
width .370(same as 50 yr old Goldie original)
cut from 2" pvc id shrank when notch cut.
Easily installed/removed
Make two - one for each way tube!
Forget precise centering in blade slot. Relevant thing is repeatability.
width of spacer?
