Turned my first pen

Post by rpd »

I turned my first pen today.

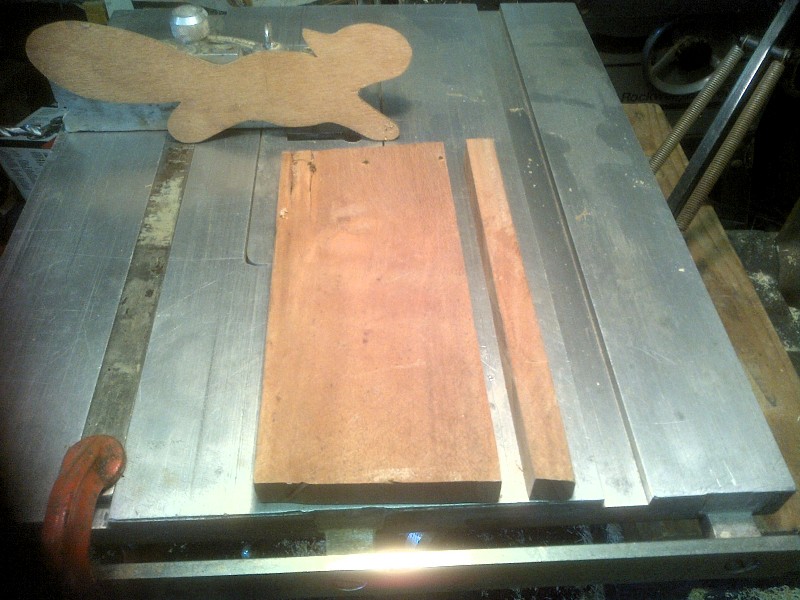

This is the wood, cut from a pallet board.

[ATTACH]25849[/ATTACH]

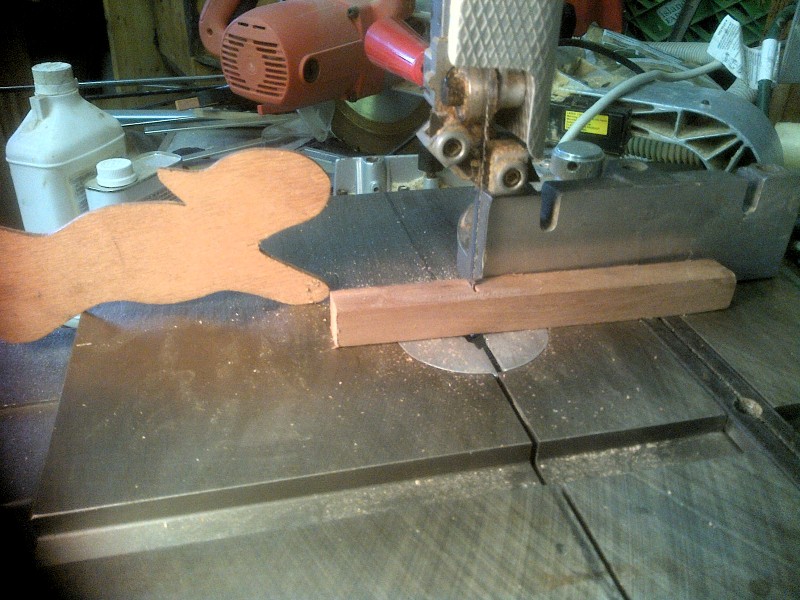

Cutting the blanks to length, (SS bandsaw)

[ATTACH]25850[/ATTACH]

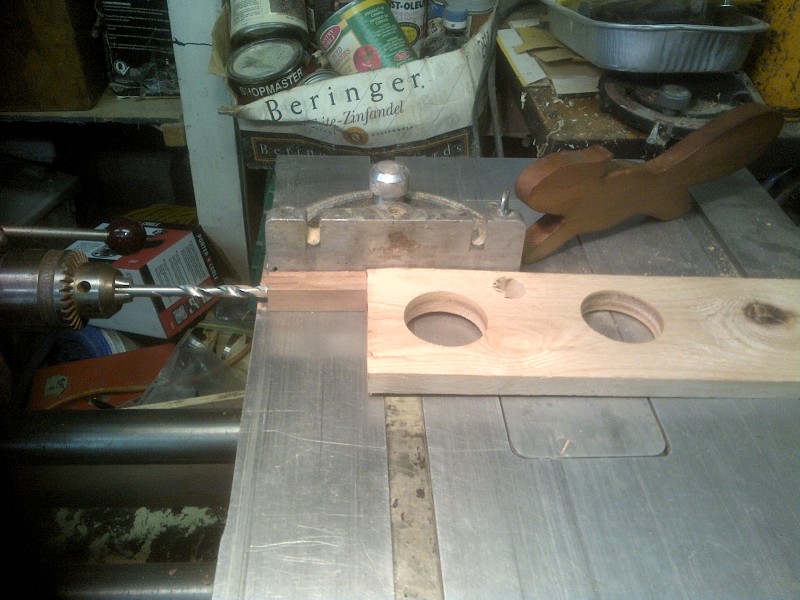

Drilling the blanks, (10 ER)

[ATTACH]25851[/ATTACH]

Glued in the tubes with medium superglue.

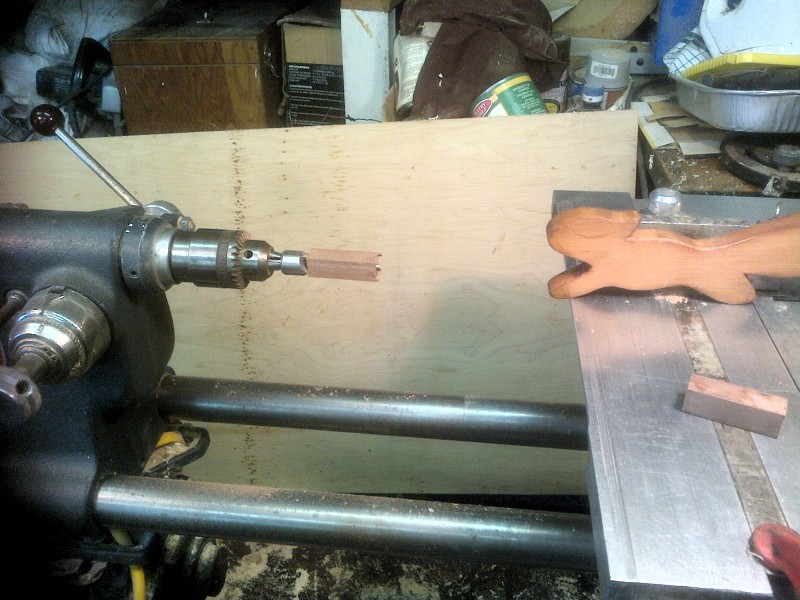

Trimming the blanks.

[ATTACH]25854[/ATTACH]

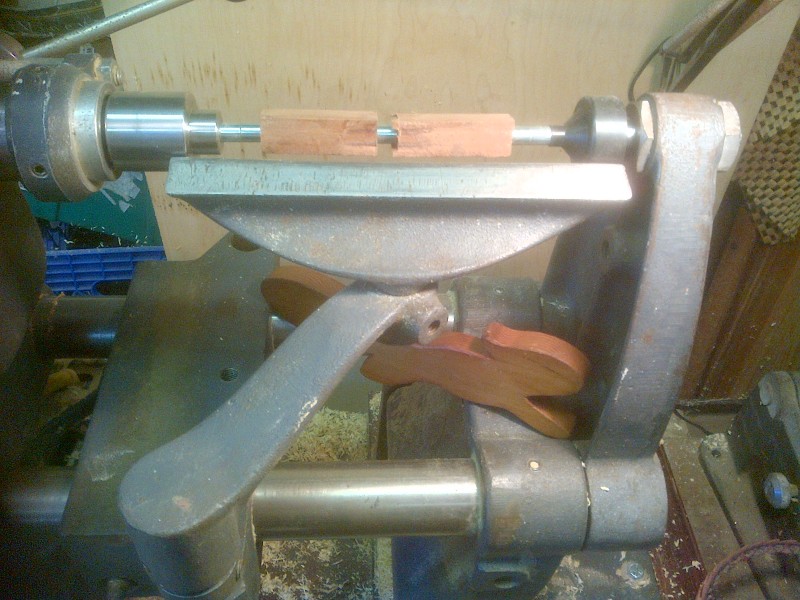

Blanks on mandrel with mandrel saver.

[ATTACH]25852[/ATTACH]

continued
Attachments
blanks cut to length.jpg
blanks cut to length.jpg (142.39 KiB) Viewed 9053 times
blanks drilled.jpg
blanks drilled.jpg (117.9 KiB) Viewed 9056 times
blanks on mandrel.jpg
blanks on mandrel.jpg (124.79 KiB) Viewed 9054 times
blanks trimmed.jpg
blanks trimmed.jpg (132.71 KiB) Viewed 9055 times
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Post by rpd »

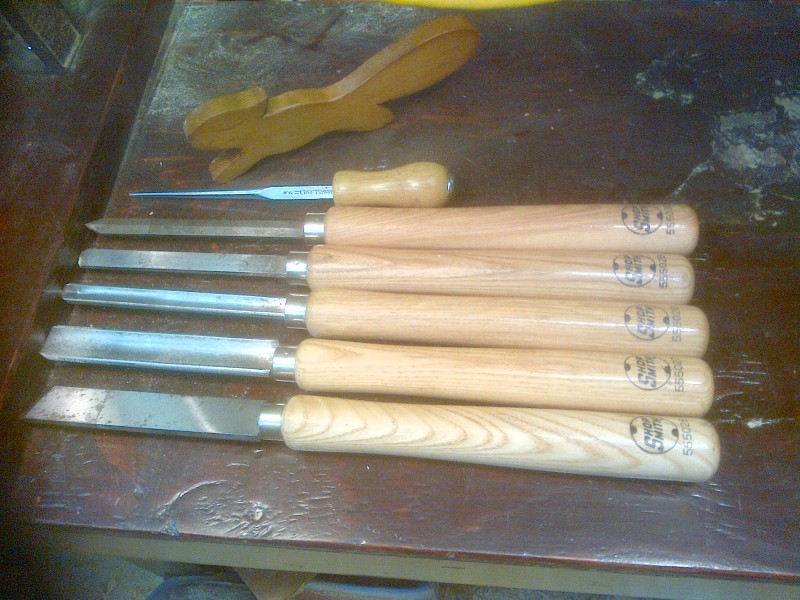

This is my set of ShopSmith chisels and a tube insertion tool I made from a Craftsman punch and a recycled handle. I used the skew to turn the pen.

[ATTACH]25855[/ATTACH]

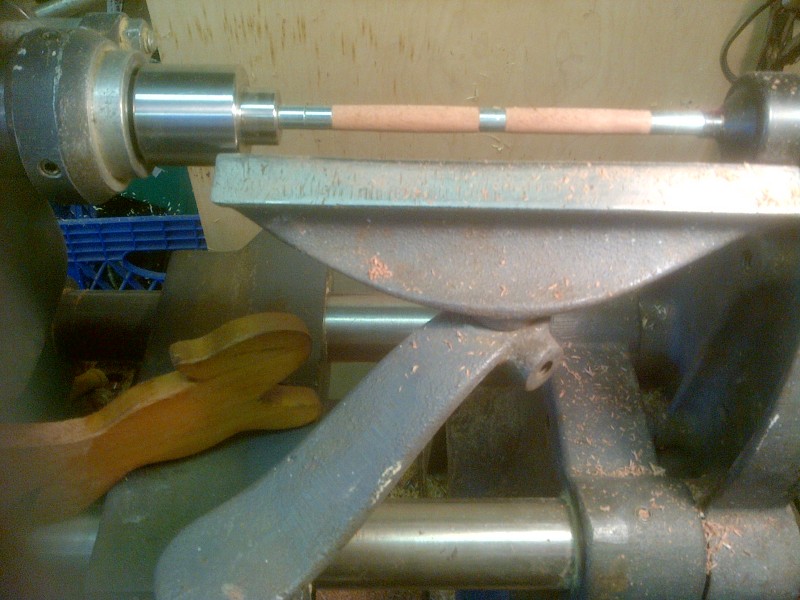

Here the blanks have been turned and sanded.

[ATTACH]25856[/ATTACH]

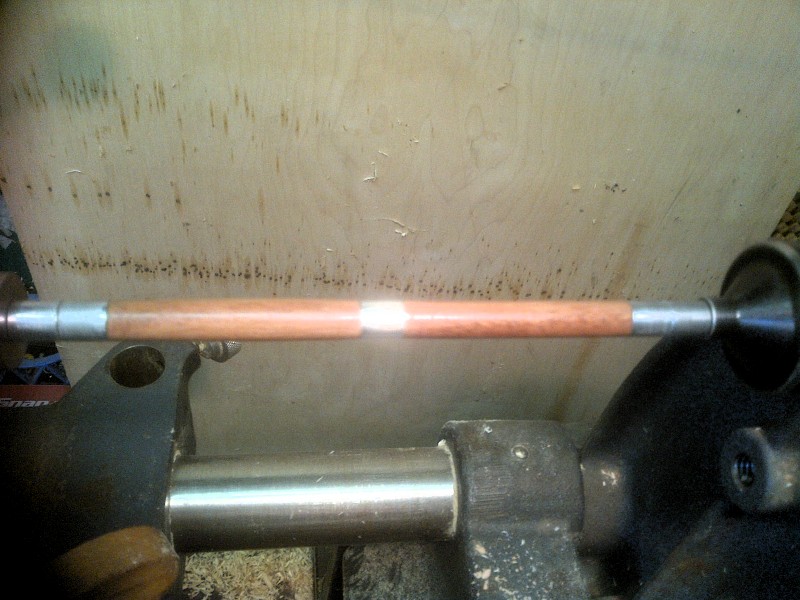

Finish applied, tung oil and medium superglue.

[ATTACH]25857[/ATTACH]

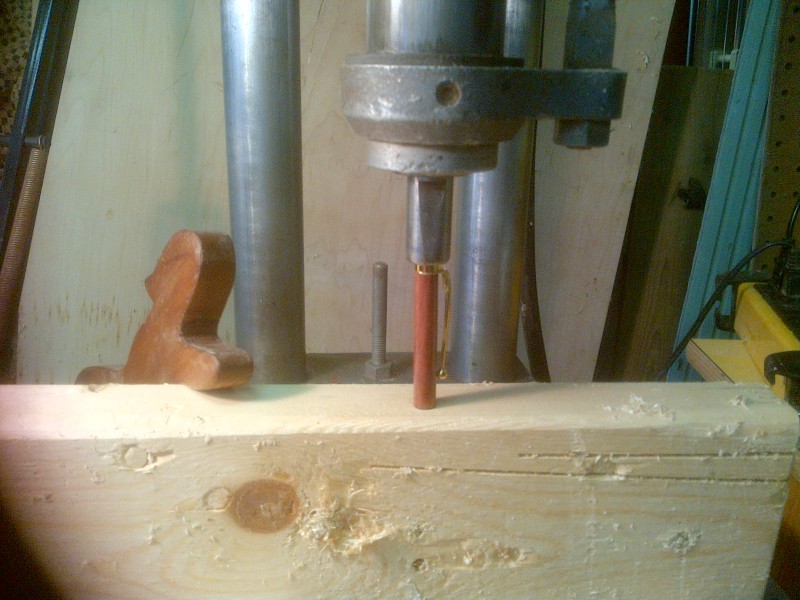

Assembled using my 10ER dedicated drill press.

[ATTACH]25858[/ATTACH]

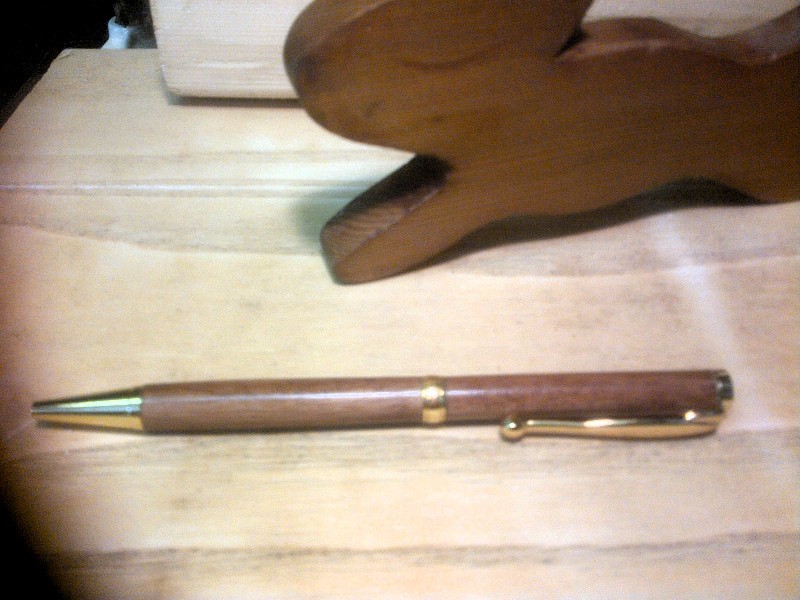

And here is the finished pen.:)

[ATTACH]25859[/ATTACH]
Attachments
blanks turned.jpg
blanks turned.jpg (108.75 KiB) Viewed 9050 times
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
terryd
Gold Member
Posts: 52
Joined: Sat Nov 24, 2007 12:48 am
Location: Overland Park

Post by terryd »

Nicely done, both pen and photo presentation.
Top
User avatar
fredsheldon
Platinum Member
Posts: 1175
Joined: Tue Jan 17, 2012 1:31 pm
Location: The Woodlands, Texas

Post by fredsheldon »

Nice job. I like your assistant.
Fred Sheldon
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Post by rpd »

fredsheldon wrote:Nice job. I like your assistant.

I included the ]popular demand[/URL], by Ed (reible).:D
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
User avatar
2centsworth
Gold Member
Posts: 268
Joined: Wed Oct 16, 2013 4:35 pm
Location: Georgetown, TX

Nicely done..

Post by 2centsworth »

Very nice both the pen and presentation. Glad to see how it can be done ! :D What's next ?
Jerry Penny
2centsworth
The Woodlands, Tx
SS 520 SN#518424 2000 (reversed motor), Shopsmith 10 E (shorty) fully restored by Skip with DC motor, Shopsmith 10 ER fully restored by Skip with DC motor, Shopsmith 10 ER (under going restoration), Greenie Shorty sanding station, Greenie Mini jointer station, SS Bandsaw power station, SS Planner, SS overhead pin router, SS Belt Sander, SS Strip Sander,, SS Jigsaw, SS Dust Collector, Ringmaster, and still having fun looking for more !
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Post by rpd »

2centsworth wrote:What's next ?
I am going to do more pens for now but when that wears thin I think I will do some bowls.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
drl
Gold Member
Posts: 231
Joined: Mon Dec 11, 2006 2:28 pm
Location: Brooklyn Park, MN

Post by drl »

Nice job on your first pen and doing a CA finish besides. You are now hooked on pen turning.
Regards,
Dwight
Top
User avatar
idcook
Gold Member
Posts: 472
Joined: Wed Mar 06, 2013 4:48 pm
Location: New York (Alley cat country), New York

Post by idcook »

Great presentation. Nice job on the pen.
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

pens and wands

Post by rpd »

I spent some quality time in the shop this weekend.:)

[ATTACH]25901[/ATTACH]

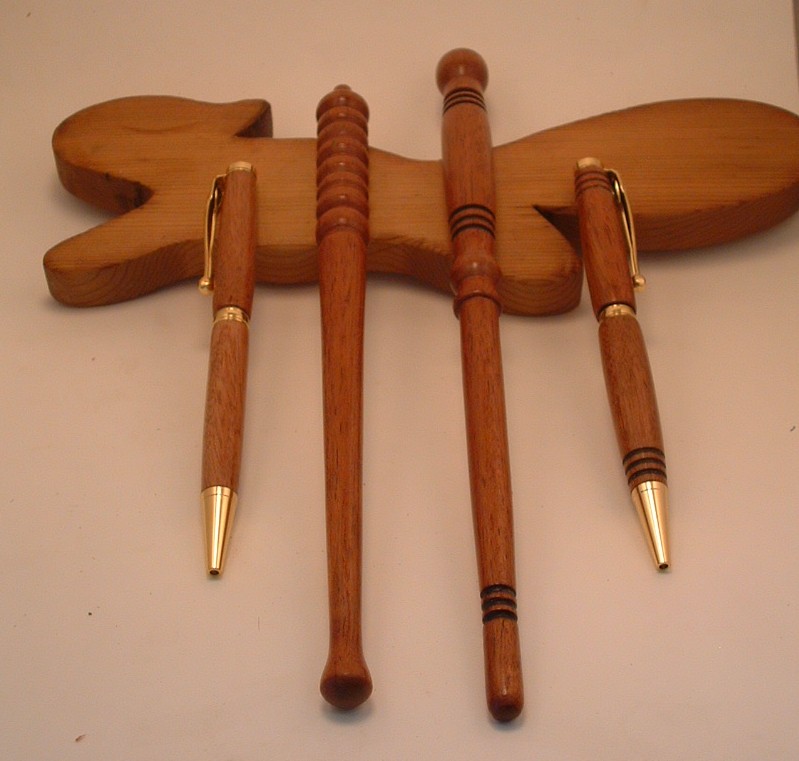

Left to right: pen #2, wand for my granddaughter(age four), wand and pen set for my son outlaw's birthday present.
Attachments
pens and wands.JPG
pens and wands.JPG (93.94 KiB) Viewed 8905 times
