Post For Dial Indicator
Moderator: admin
-
mountainbreeze
- Platinum Member
- Posts: 511
- Joined: Sun Jan 30, 2011 9:58 pm
- Location: Ocala, FL
idh

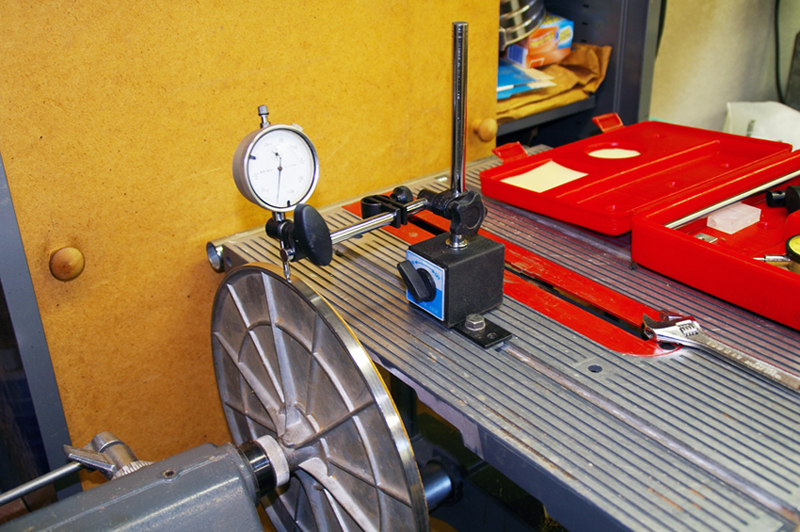

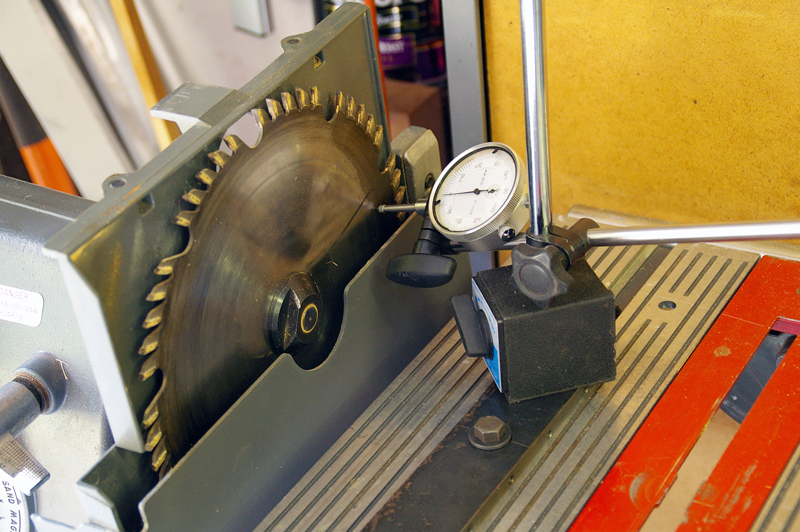

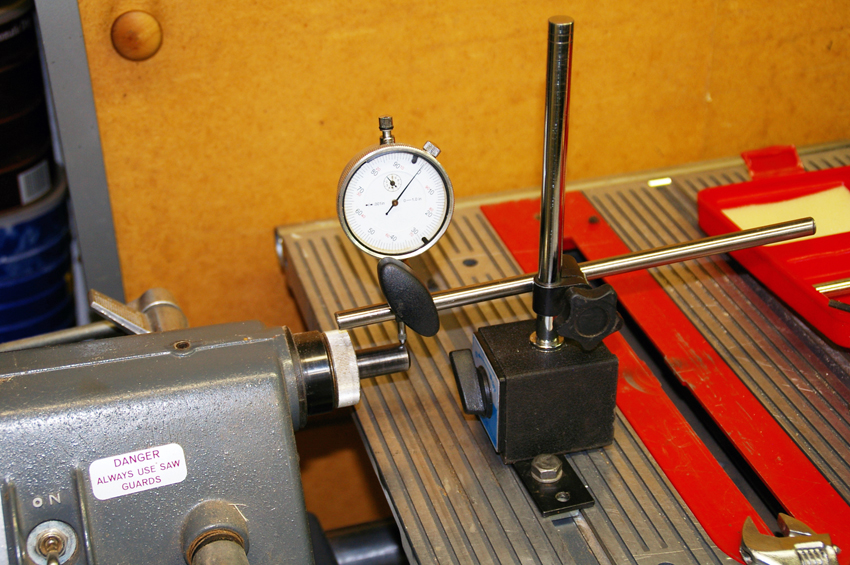

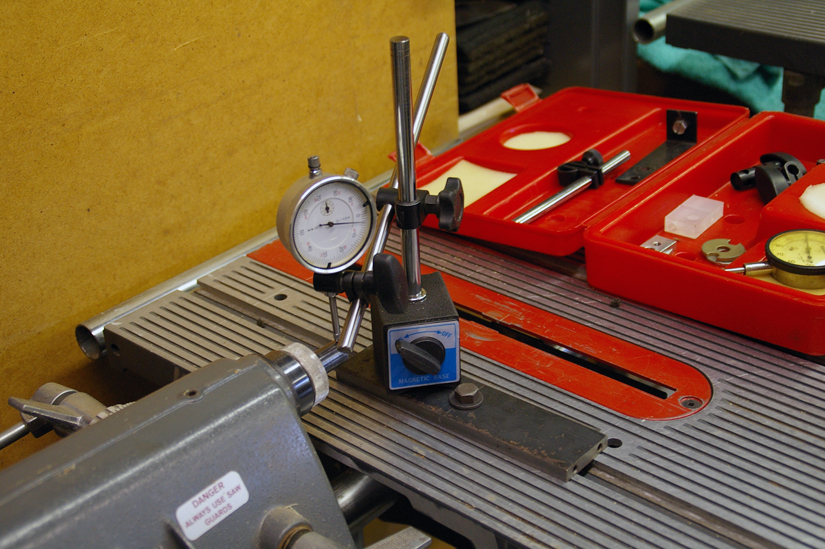

I really like your idea of using the carriage as a foundation. Since we are talking taking measurements for run out, wobble and such for consideration, I use a different approach. I take advantage of the miter slot and Shopsmith sliding "Tee nut". I use a steel plate as a foundation for my "On and Off" magnetic base for my dial indicator. I had a spare piece of 3/8" drill rod to expand the length of reach if necessary. Care needs to be taken to lock down the headstock and table before taking any measurements.
[ATTACH]26626[/ATTACH]
[ATTACH]26627[/ATTACH]
[ATTACH]26628[/ATTACH]
[ATTACH]26629[/ATTACH]
Don G
I really like your idea of using the carriage as a foundation. Since we are talking taking measurements for run out, wobble and such for consideration, I use a different approach. I take advantage of the miter slot and Shopsmith sliding "Tee nut". I use a steel plate as a foundation for my "On and Off" magnetic base for my dial indicator. I had a spare piece of 3/8" drill rod to expand the length of reach if necessary. Care needs to be taken to lock down the headstock and table before taking any measurements.
[ATTACH]26626[/ATTACH]
[ATTACH]26627[/ATTACH]
[ATTACH]26628[/ATTACH]
[ATTACH]26629[/ATTACH]
Don G
- Attachments
-
- IMGP3936 re.jpg (473.22 KiB) Viewed 1104 times
-
- IMGP3938 re.jpg (487.55 KiB) Viewed 1104 times
-
- IMGP3940 re.jpg (481.75 KiB) Viewed 1104 times
-
- IMGP3942 re.jpg (490.22 KiB) Viewed 1105 times
Mark V 510, SS Bandsaw, SS Jig saw, DeWalt RAS, Tormek, Bosch Sabre Saw, Bosch Router, Porter Cable Router, Porter Cable biscuit jointer, IPM, Incra Jig, Jet mini lathe, Delta Drill Press, Delta lathe and etc.
-
rcplaneguy
- Platinum Member
- Posts: 549
- Joined: Mon Sep 23, 2013 6:33 pm
- Location: Chapel Hill, NC
That was quite a haul!billmayo wrote:For wood working tasks, I have seen quill spindle shafts with up to .005" play and still do a fair job of cutting and other tasks. I personally reject all quills with more than +-.001" play. I send a few dozen rejected quill shafts to the salvage yard recently along with more 2000 pds of rusty and corroded Shopsmith parts (2 pickup truck loads). I cleared about 25% of my storage shed.
John
