transfer punch set

Post by lyall »

stopped at Harbor Freight to today to get a few things.
Got a transfer punch set 3/32" to 1/2" (28 piece set). sure will make it easier transferring holes to another piece/s. Better than trying to use a pencil or a center punch in the hole to mark in on the other piece and always being off just a little.
Top
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Re: transfer punch set

Post by reible »

I've had a set for long while and use them often. They are really handy and I'm sure you will enjoy your set.

Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Top
richardrouse
Gold Member
Posts: 220
Joined: Tue Jul 21, 2015 7:16 pm
Location: Haines City FLorida

Re: transfer punch set

Post by richardrouse »

Have the same set. 12 bucks well spent! Transferring holes was never easier. Also use them to fix oopses when making pens.
Top
User avatar
BuckeyeDennis
Platinum Member
Posts: 3812
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: transfer punch set

Post by BuckeyeDennis »

I picked up a set this afternoon, and already have a good use for them. Thanks for posting!!!
Top
charlese
Platinum Member
Posts: 7501
Joined: Fri Dec 08, 2006 10:46 pm
Location: Lancaster, CA

Re: transfer punch set

Post by charlese »

Never having used a transfer punch, I am curious as to the possible uses.

I understand that a punch shaft can be inserted through a hole of a certain size to mark the exact spot to drill another hole, but where and why is this tool used.

Please explain to this old guy!
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Top
User avatar
reible
Platinum Member
Posts: 11283
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Re: transfer punch set

Post by reible »

They appear but are not always noted in posts I've done. Two that come to mind are:

http://www.shopsmith.com/ss_forum/begin ... t5117.html

And a recent one:

http://www.shopsmith.com/ss_forum/viewt ... ch#p204850

Some people like me have used these for years, perhaps picked up when I was working in a machine shop back in the late 1960's, it has been so long I don't even remember. You know I think it may have even been before that now that I'm remembering using them to mark gaskets when working on cars and motorcycles....... whoooo that is a long time ago.

Some people substitute brad point drill bits which works too but not as nice as the punches.

Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
Top
User avatar
JPG
Platinum Member
Posts: 35598
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: transfer punch set

Post by JPG »

charlese wrote:Never having used a transfer punch, I am curious as to the possible uses.

I understand that a punch shaft can be inserted through a hole of a certain size to mark the exact spot to drill another hole, but where and why is this tool used.

Please explain to this old guy!
Think pattern and several 'blanks'.

The pattern is positioned over a blank, the punch is inserted into the hole in the pattern, and struck. The dimple in the center of the transfer punch makes a ding in the blank. The pattern hole is sized to the punch. The final hole may be an entirely different size from the pattern hole.

It allows locating the center of a hole with a pattern or a mating part.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
User avatar
db5
Platinum Member
Posts: 1192
Joined: Mon Jun 06, 2011 6:20 pm
Location: Oklahoma City

Re: transfer punch set

Post by db5 »

A recommendation: Telling us what you got and how wonderful it is is okay. However, one picture, just one would help. Taking pictures and posting them is mice nuts on this site. So, instead of asking us to figure out what your acquired send a picture. Sort of like telling us that you hung out last night with a gorgeous babe compared to posting a picture with the two of you side by side (if she truly was gorgeous) not just attending a Clinton rally.
Top
User avatar
jsburger
Platinum Member
Posts: 6584
Joined: Fri Jul 21, 2006 4:06 pm
Location: Hooper, UT

Re: transfer punch set

Post by jsburger »

db5 wrote:A recommendation: Telling us what you got and how wonderful it is is okay. However, one picture, just one would help. Taking pictures and posting them is mice nuts on this site. So, instead of asking us to figure out what your acquired send a picture. Sort of like telling us that you hung out last night with a gorgeous babe compared to posting a picture with the two of you side by side (if she truly was gorgeous) not just attending a Clinton rally.
Dang! Did you have a bad day? I don't ever have days like that.
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Top
wespex
Bronze Member
Posts: 3
Joined: Tue Apr 14, 2015 9:05 am
Location: Tulsa Area

Re: transfer punch set

Post by wespex »

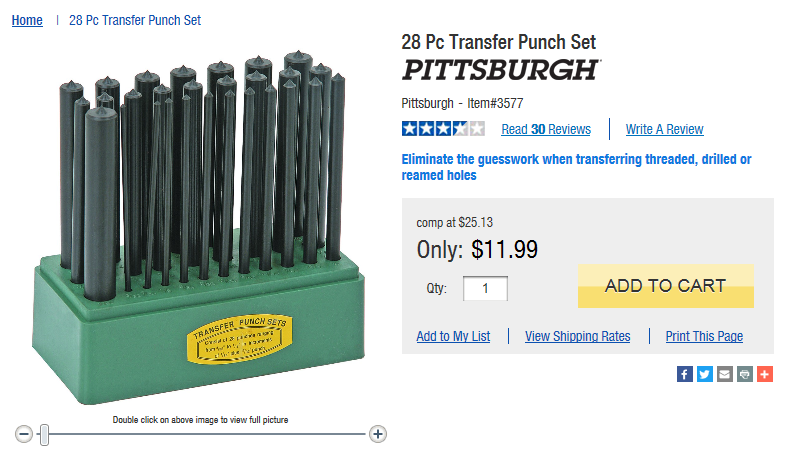

HF Transfer Punch Set
HF Transfer Punch Set

Code: Select all

Tulsa, area
---------------------------------------------------------------------------
1956 Mark V               (Dedicated drill press)
1992 Mark V 510           Bandsaw, Jigsaw, Jointer & Belt Sander
1995 Mark V 510           Extra Bandsaw, Jointer & Belt Sander
1994 Power Station        Extra Jointer
1961 Sawsmith RAS 700000
---------------------------------------------------------------------------
[/b]
