turning wood into a snare drum shell

randy1 · Post by **randy1** » Mon Sep 29, 2008 2:30 pm

Hi, I would like to turn a piece of wood into a perfect acoustic snare drum shell. On shop smith's video I've seen a kind of lathe duplicator, which gently slides through the surface of the wood, without using a free hand-held tool. The shell needs to be 14" diameter x 5" deep (empty inside - 3/4" thick). Any information greatly received. Randy.

charlese · Post by **charlese** » Tue Sep 30, 2008 9:12 pm

Hi Randy! Welcome to the Forum! I'm kinda surprised you haven't had several suggestions by now, but here goes at least one idea:

First of all a question. Is the 14" diameter the inside diam. or outside?

You could turn a 14" cylinder on the lathe very easily, but how would you get the center of the cylinder removed. I cannot think of a way to do this, unless you turn two cylinders of 2 1/2" long and saw the centers with a scroll saw. You can then sand the insides with a drum sander and join the two cylinders to make a 5" one.

That, however is not my favored method. I would cut 16 pieces of 3/4 wood 3" long and 5" wide. Then trim a 11.5 degree angle on each end. Assemble these with glue and a band clamp. This will give you a 16 sided polygon that is a bit smaller than 14" inside diameter. Now all you have to do is sand the outside to a circle.

Once a circle is made on the outside diameter, I would cover it with veneer of your choice.

I relay know nothing of drum making, but this may give you a start.

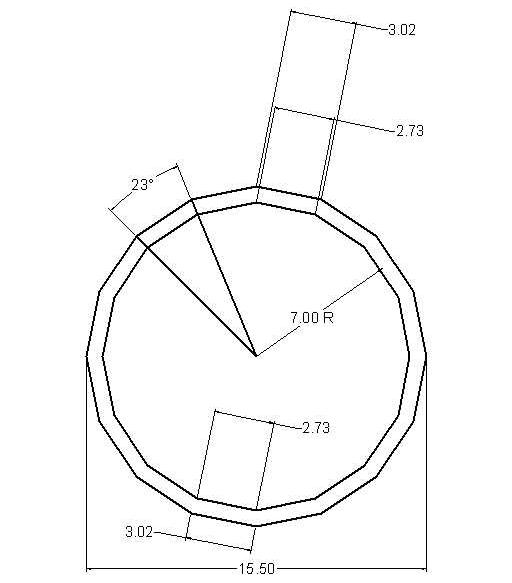

The sketch shows the angle for one segment to be 23 degrees. That is an error in my programming. It is really 22.5 degrees.

[ATTACH]2110[/ATTACH]
