Here's some more - -

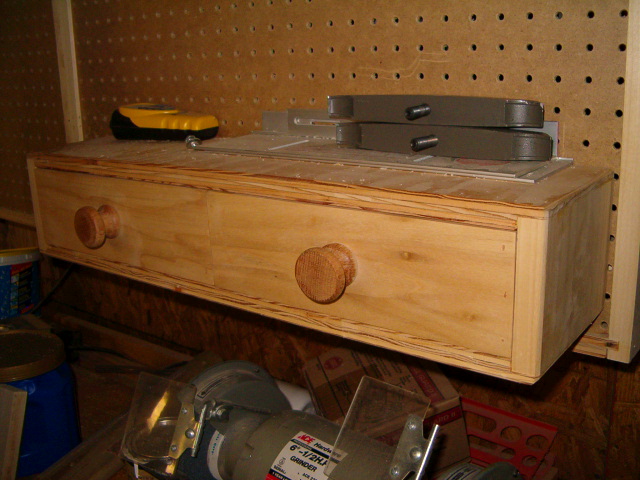

In order to mount the shelves, hangers, drawers, you have to make a champher on the upper back edge, above the hooks. this will allow the hanger to get close enough to the peg board for the "L" hook to slide in a hole. (see the last photo on page 1)
Best Use of Cabinates
Moderators: HopefulSSer, admin
- Attachments
-

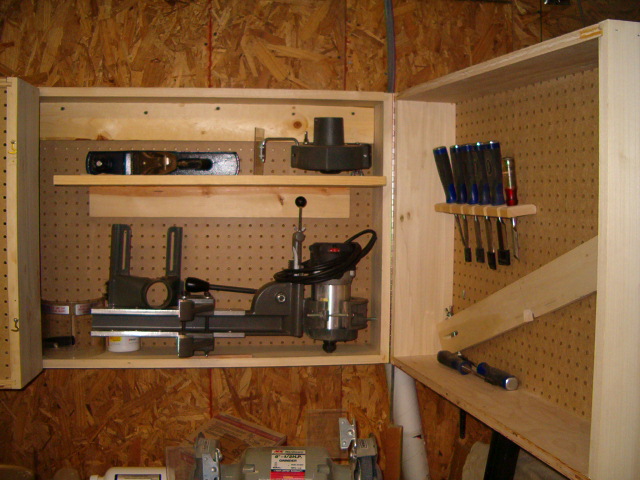

- HPIM1789.jpg (128.88 KiB) Viewed 2545 times
-

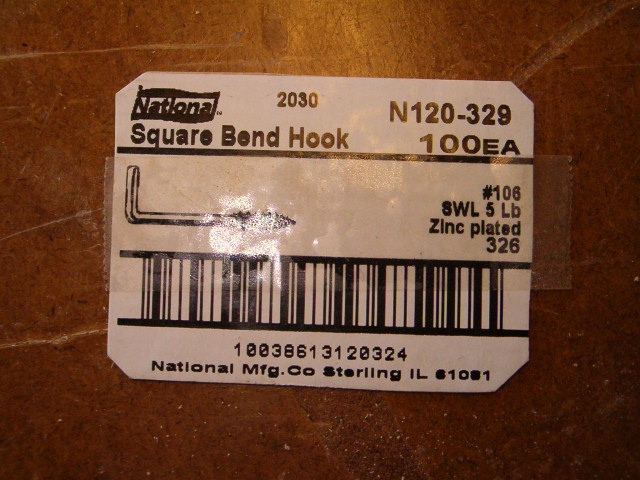

- HPIM1791.jpg (109.67 KiB) Viewed 2531 times
-

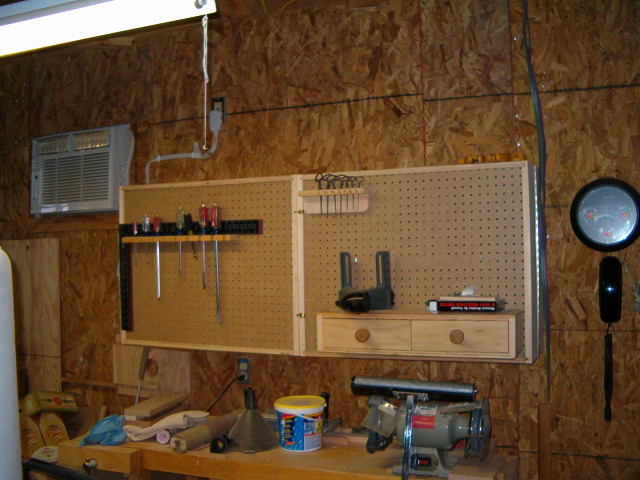

- SS_storage_cabinet.jpg (136.32 KiB) Viewed 2538 times
-

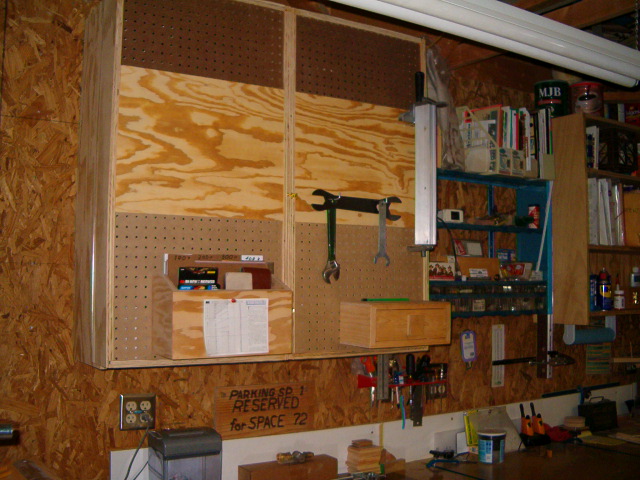

- Library_-_cabinet_-_outside.jpg (135.4 KiB) Viewed 2537 times
-
- HPIM1787.jpg (128.64 KiB) Viewed 2530 times
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Chuck in Lancaster, CA
-
- Silver Member
- Posts: 16
- Joined: Sun Nov 23, 2008 10:06 pm
- Location: FL
tool and accessory holder
GREAT samples, I've begun the shop redux.
I've been watching the Maintenance and Alignment DVD from Rick Davis and see he has some sort of wooden shelf built/attached under his lower the lower rail of his SS to hold the sanding disks, lathe tools, etc. Anyone have a template or plan for this?
I've been watching the Maintenance and Alignment DVD from Rick Davis and see he has some sort of wooden shelf built/attached under his lower the lower rail of his SS to hold the sanding disks, lathe tools, etc. Anyone have a template or plan for this?
Knottythumbs
- a1gutterman
- Platinum Member
- Posts: 3653
- Joined: Tue Jan 09, 2007 12:45 am
- Location: "close to" Seattle
You could make your own, and I think that there are plans around, but here is the one that Rick used: http://www.shopsmith.com/ownersite/catalog/mvmisc_accesoryshelf.htmknottythumbs wrote:GREAT samples, I've begun the shop redux.
I've been watching the Maintenance and Alignment DVD from Rick Davis and see he has some sort of wooden shelf built/attached under his lower the lower rail of his SS to hold the sanding disks, lathe tools, etc. Anyone have a template or plan for this?
Tim
Buying US made products will help keep YOUR job or retirement funds safer.
Buying US made products will help keep YOUR job or retirement funds safer.
-
- Silver Member
- Posts: 16
- Joined: Sun Nov 23, 2008 10:06 pm
- Location: FL
Accessory shelf
Thanks for the picture, I plan to make my own. How does it attach to the SS? Anyone got a template? If not, I'll plot my own this week.
Knottythumbs
- tom_k/mo
- Platinum Member
- Posts: 856
- Joined: Mon Jul 14, 2008 3:58 pm
- Location: St. Louis, MO
- Contact:
With lag bolts through holes in the legs,knottythumbs wrote:Thanks for the picture, I plan to make my own. How does it attach to the SS? Anyone got a template? If not, I'll plot my own this week.
ShopSmith MarkV-520 with Belt Sander, Jointer, Band Saw, Strip Sander, Scroll Saw and Biscuit Jointer SPTs and a DC-3300...
Woodworking Hobbyist (Check out all my Woodworking Plans (http://vbwhiz.isa-geek.net/plans)
Aspiring Sandcarver: Breaking glass one grain at a time.
Black Powder Shooter (love the smell of burning sulfur).
Woodworking Hobbyist (Check out all my Woodworking Plans (http://vbwhiz.isa-geek.net/plans)
Aspiring Sandcarver: Breaking glass one grain at a time.
Black Powder Shooter (love the smell of burning sulfur).
Well Knotty nice to see that you got many recommendations on what to do and how to do for renovating your garage into a shop. A long time before this conversation was going on and by this time your garage would have been successfully converted into a shop. I am more likely interested to view the pics of the modified cabinets. So if possible please do upload the pics as it may be useful to me in my day to day work.
Thanks in advance,
Andy.
Thanks in advance,
Andy.
