trying to find parts numbers

[Wlardinois86]

Got a handful of parts that I'm not sure what they are or what number they are.

trying to sell them anyone here maybe could identify?

[br549]

If you post pictures, I'm sure someone can try.

Not everyone likes to click on links to photo-hosting sites, so it would be more convenient if you could post pictures here. Keep pixel size under 2050 wide and under 1180 high and under 2 MB per picture. Maximum of 10 pictures per post. If you need more help in figuring out how to post pictures, look for a post entitled "How to Post a Picture" (currently on page 7 of the Community Forum, last post dated Sept 30, 2018)

[Wlardinois86]

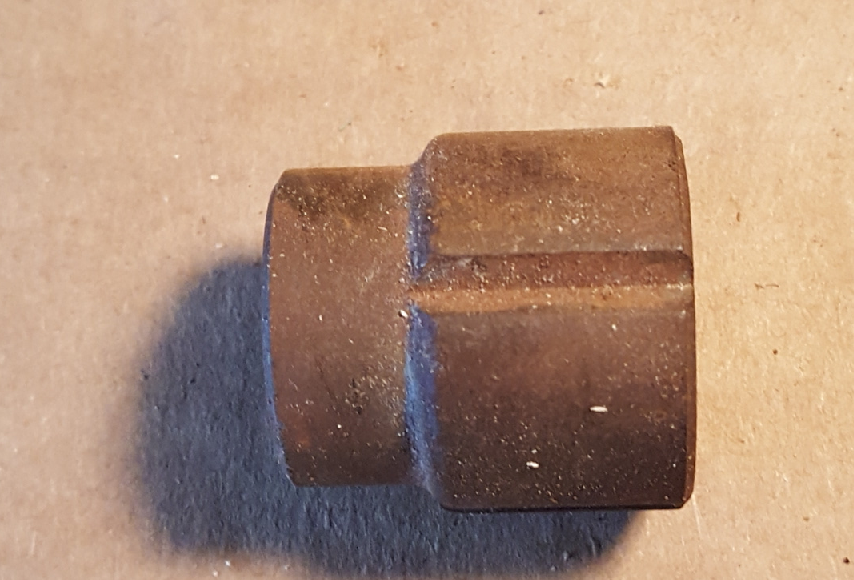

part number 1

[Wlardinois86]

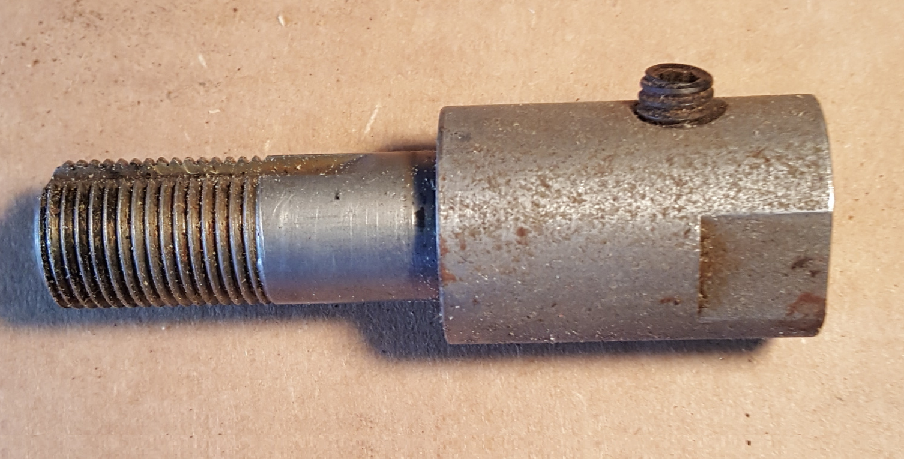

part 2

[Wlardinois86]

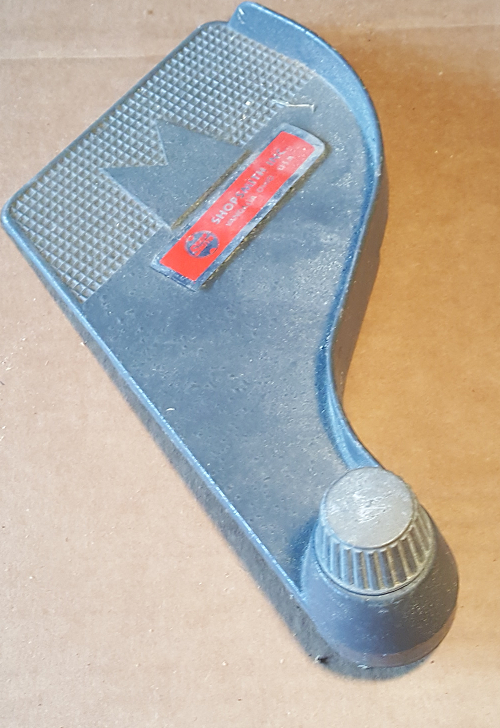

part 3

[BobCoates1953]

Don't know if this helps but don't have part numbers, but first is tool hub(or for on the head) for a power mount adapter. Second is a arbor for saw or grinder etc missing nut add washers. Last is cutter guard for the jointer.

Bob

[chapmanruss]

Part 1 is the Upper Drive Hub Assembly (includes set screw), the current part number is 503570. Yours looks to be a older one maybe from a Greenie or Goldie Mark 5. It may have came from the Power Mount Coupler Kit P/N 22 001.

Part 2 is P/N 22 031 the 5/8" Arbor missing the machined spacer, 2 machined washers, keyed washer and nut. Made from 1954 to 1964. In 1964 this arbor became P/N 505506 (version 1) named the 5/8" Universal Arbor and the black protective coating was added. The current 505506 (version 4) is now the 5/8" Molder/Dado Arbor.

Part 3 is P/N 502653 the Cutter Guard Assembly from the older 4" Jointers. Yours would be from sometime between 1973 and the early 1980's. These guards still had the Magna "M" with a Shopsmith Inc. sticker. This guard has been replaced by the current Jointer Feather Guard and can be bought as a retro fit P/N 555480.

[Wlardinois86]

THANKS
