Shaper Fence

Post by bakirkland »

I am missing the hold down bolts for my over table shaper fence. I don't seem to see the fence in the service parts section. Any help would be appreciated.
User avatar
dusty
Platinum Member
Posts: 21358
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

Re: Shaper Fence

Post by dusty »

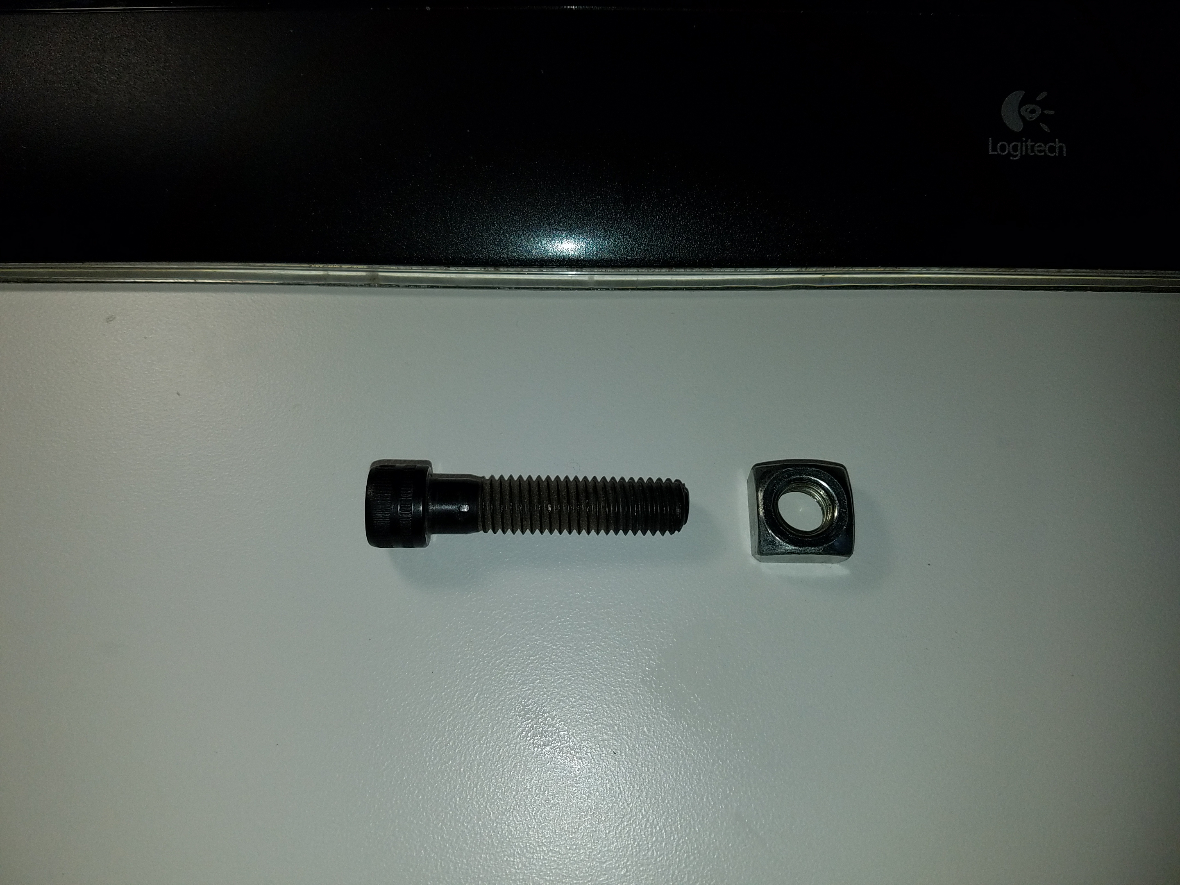

The bolts are 3/8" -16x 1 3/4 socket head cap screw. There is a flat washer and the 3/8" x 16 square nut.

454475 - the cap screw
120394 - flat washer
515110 - 3/8 - 16 nut

This data is applicable to the 510 shaper fence. Hope you don't have a 500. :)
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
chapmanruss
Platinum Member
Posts: 3448
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Shaper Fence

Post by chapmanruss »

If you need the parts Dusty listed for the 510/520 Shaper Fence they are common hardware parts and should be able to be found locally and cheaper.

If you need the parts for the 500 Shaper Fence they are

Clamp P/N 5130789 $13.64 (not sure if this is each or a pair so a call to Shopsmith would needed)

Clamp Screw P/N 426370 $3.95 each

Washer P/N 120394 $3.95 each

The Clamp screw is an Allen Wrench Cap Screw and a plain washer. I recommend getting the Clamps and buying the washers and cap screws locally. Shopsmith's minimum price for parts is $3.95 to help cover their costs of getting, stocking and handling of parts.

Sorry I do not know the size of the washer and cap screw but if needed I can get it. My 500 Shaper fence is stored. I believe they are 3/8"-16 since the washers are the same for the 500 and 510/520.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
bakirkland
Bronze Member
Posts: 2
Joined: Mon Jan 14, 2019 11:54 am

Re: Shaper Fence

Post by bakirkland »

Thanks guys, if is a 510 fence and this is exactly what I needed
