10ER Lathe height and Universal Tool Rest

Post by larryhrockisland »

Made some plywood blocks to get the lathe up to 47" to center line of the spindle and I have the universal tool rest mounted too. The PO did the hanging drawers.
Attachments
10ER and donut chuck1A.JPG
10ER and donut chuck1A.JPG (128.66 KiB) Viewed 21964 times
10ER and donut chuck2A.JPG
10ER and donut chuck2A.JPG (141.59 KiB) Viewed 21964 times
Larry Hargrove
Rock Island, Ok
1981 Mark V 500>510>520(98922)
19?? Mark V 500>Power Pro headstock 556176 06-17-11 factory exchange program original serial unknown
1957 Mark V 500 (350389)
1953 10ER
Another 10ER
Bandsaw 2012 Jointer 2012
Bandsaw, Jointer, other goodies
Craftsman table saw, Delta 46-460 Midi lathe
User avatar
JPG
Platinum Member
Posts: 31660
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: 10ER Lathe height and Universal Tool Rest

Post by JPG »

larryhrockisland wrote:Made some plywood blocks to get the lathe up to 47" to center line of the spindle and I have the universal tool rest mounted too. The PO did the hanging drawers.
Do be careful when near the back side of that chuck!!!!! :eek: :eek: :eek: :eek:
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
larryhrockisland
Gold Member
Posts: 96
Joined: Sun Aug 19, 2007 10:47 pm

Re: 10ER Lathe height and Universal Tool Rest

Post by larryhrockisland »

JPG wrote:
larryhrockisland wrote:Made some plywood blocks to get the lathe up to 47" to center line of the spindle and I have the universal tool rest mounted too. The PO did the hanging drawers.
Do be careful when near the back side of that chuck!!!!! :eek: :eek: :eek: :eek:
Totally Agree! I did put acorn nuts on the ends so it wouldn't be the raw end of the bolt and I have thought about painting them red too. I do stay on the front side and only use this to finish the bottom of the bowl. This is the first one I've made and I'm open to safer suggestions. I do like that the bowl is totally captured by the donut chuck.
Larry Hargrove
Rock Island, Ok
1981 Mark V 500>510>520(98922)
19?? Mark V 500>Power Pro headstock 556176 06-17-11 factory exchange program original serial unknown
1957 Mark V 500 (350389)
1953 10ER
Another 10ER
Bandsaw 2012 Jointer 2012
Bandsaw, Jointer, other goodies
Craftsman table saw, Delta 46-460 Midi lathe
User avatar
BuckeyeDennis
Platinum Member
Posts: 3188
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: 10ER Lathe height and Universal Tool Rest

Post by BuckeyeDennis »

That universal tool rest looks good on a 10ER ... this is first time I’ve seen a pic of them mated up. Any issues mounting it?

As for the protruding bolts on your chuck, one option is to use threaded hex standoffs in between the chuck plates. You could leave them screwed on to the back chuck plate. Reasonably long standoffs (limited by your minimum workpiece length), plus maybe a couple of sets of front-plate screws in different lengths, should give you a good length-capacity range.
User avatar
ChrisNeilan
Platinum Member
Posts: 1454
Joined: Sun Oct 27, 2013 5:30 pm
Location: Waterford, Connecticut
Contact:

Re: 10ER Lathe height and Universal Tool Rest

Post by ChrisNeilan »

Yes, tell us how you mounted the universal rest. I have one still in the box. I leave my 10er in the garage so I can do some outdoor turning in the nice weather. The neighbors are amazed when the curlies fly! My main shop is in the basement.
Chris Neilan

Shopsmith Mark 7, Shopsmith Mark V 1982, shortened, Shopsmith 10 ER; Craftsman table saw (1964); Powermatic 3520B lathe
User avatar
JPG
Platinum Member
Posts: 31660
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: 10ER Lathe height and Universal Tool Rest

Post by JPG »

I am guessing the 'center bolt' goes through the table height crank tapped hole in the top of the carriage.


But then what is that chuck of wood under the carriage for????

Perhaps the other holes in the round part are used?
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
larryhrockisland
Gold Member
Posts: 96
Joined: Sun Aug 19, 2007 10:47 pm

Re: 10ER Lathe height and Universal Tool Rest

Post by larryhrockisland »

ChrisNeilan wrote:Yes, tell us how you mounted the universal rest. I have one still in the box. I leave my 10er in the garage so I can do some outdoor turning in the nice weather. The neighbors are amazed when the curlies fly! My main shop is in the basement.
Depends on which 10 you have. I have 2 10ER's, see my sig,they have two different carriages. One needed a spacer and one didn't.

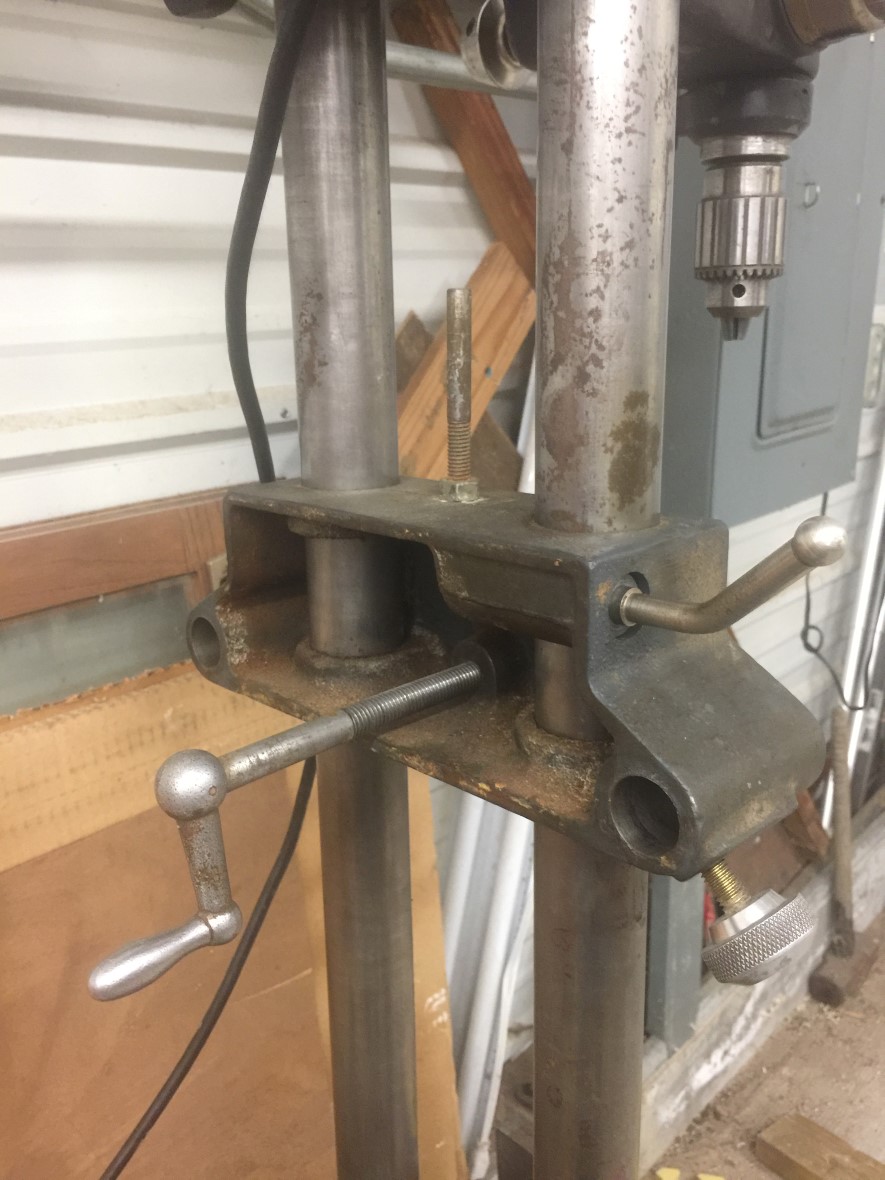

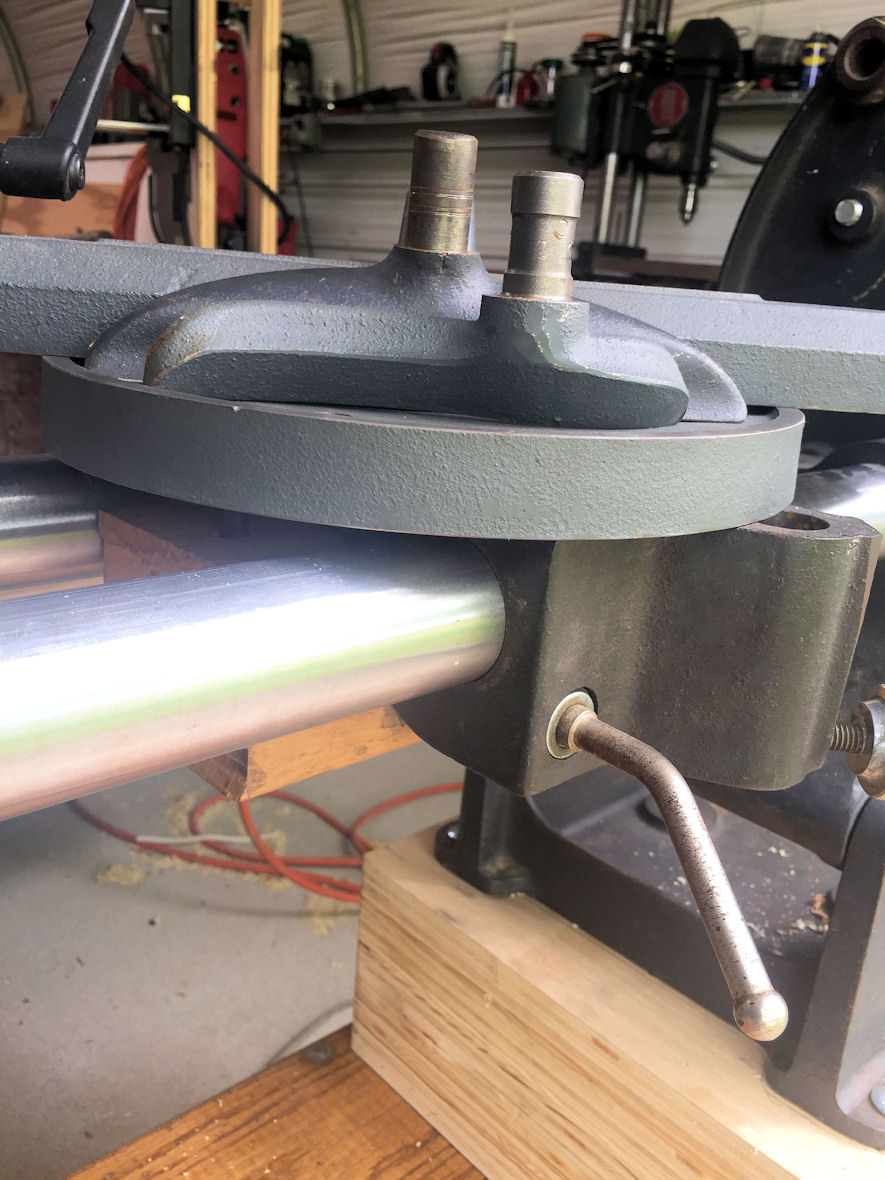

Ser.# 91629
Ser.# 91629
Ser# ER36037
Ser# ER36037

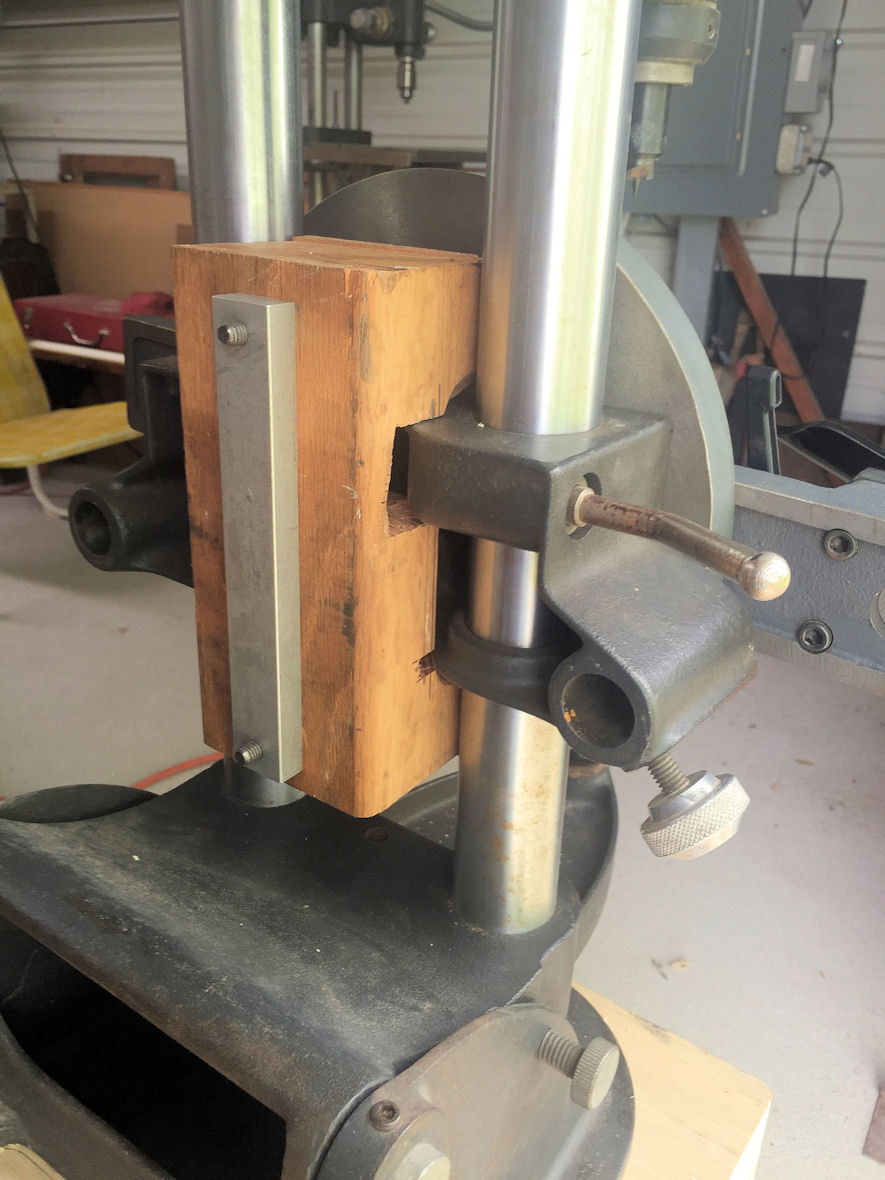

Mounted with spacer
Mounted with spacer
I bought a Robust 9"tool rest with 1" shaft to allow more height adjustment.

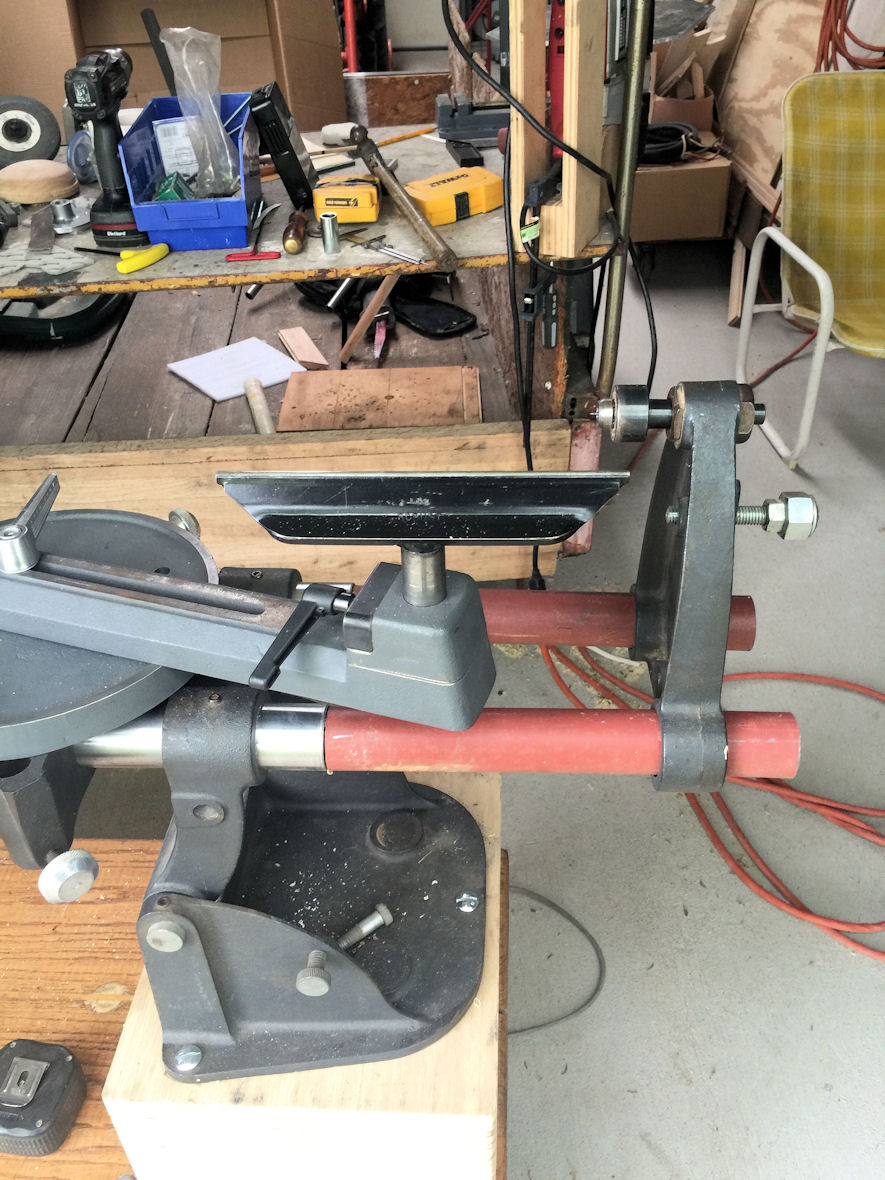

9" Robust tool rest
9" Robust tool rest
The stock SS tool rest is just barely below centerline. The specialty toolrests that came with my UTR package will go 5/16" below centerline. I don't know how well that works with the Easy Wood Tools

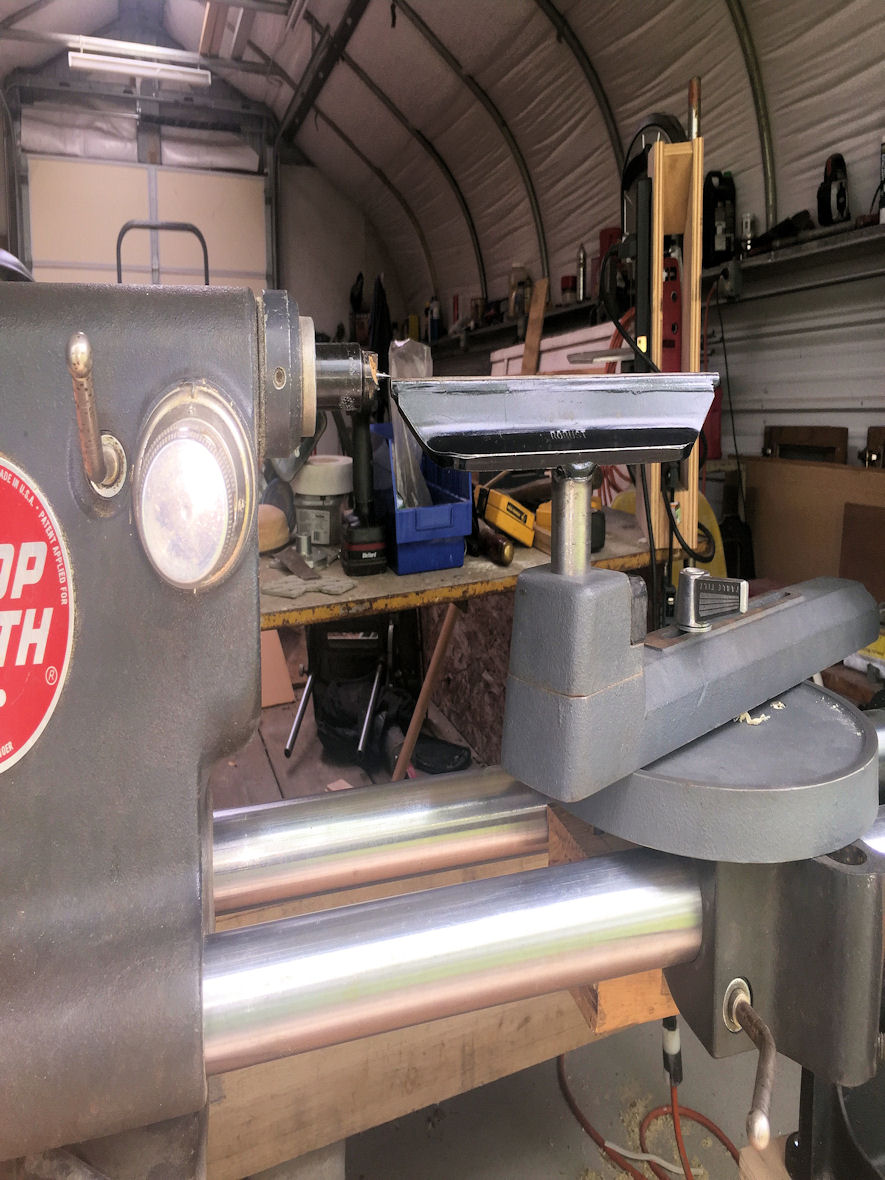

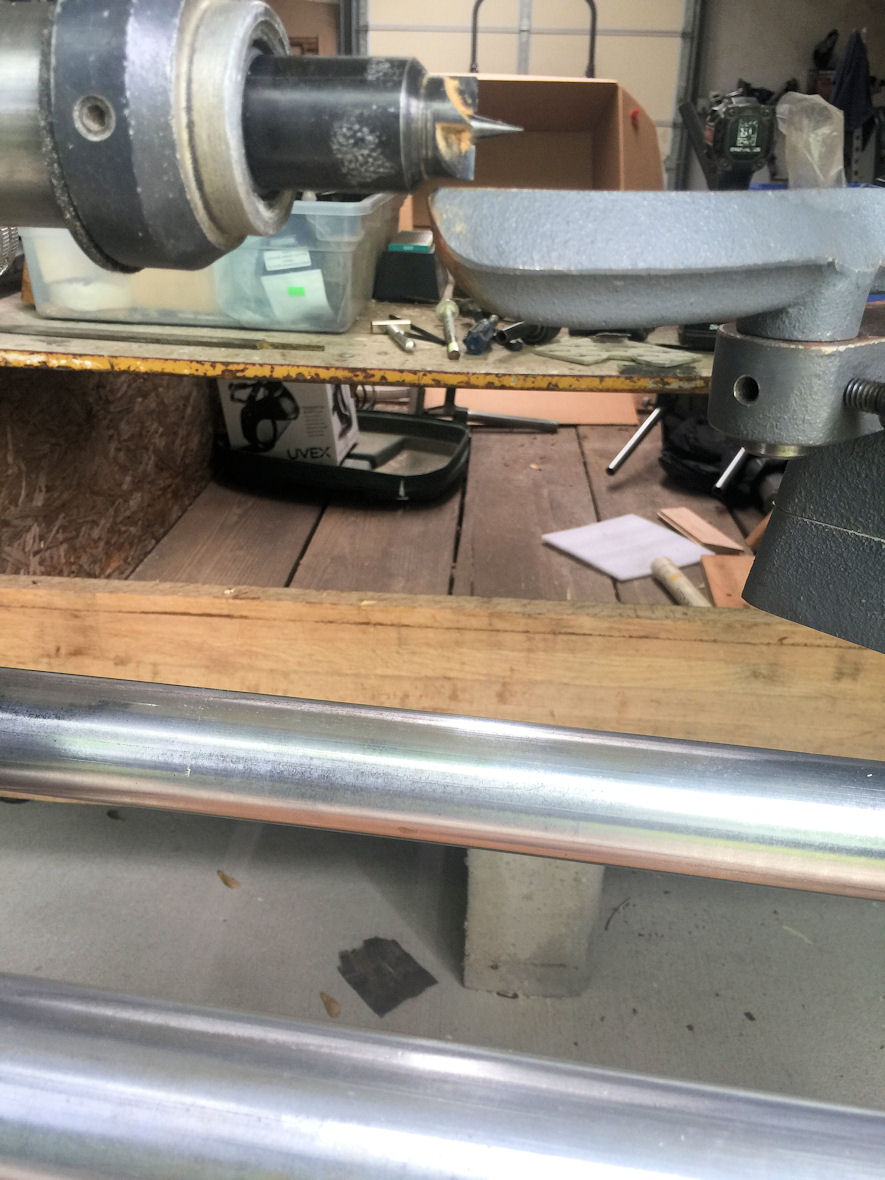

Stock tool rest
Stock tool rest

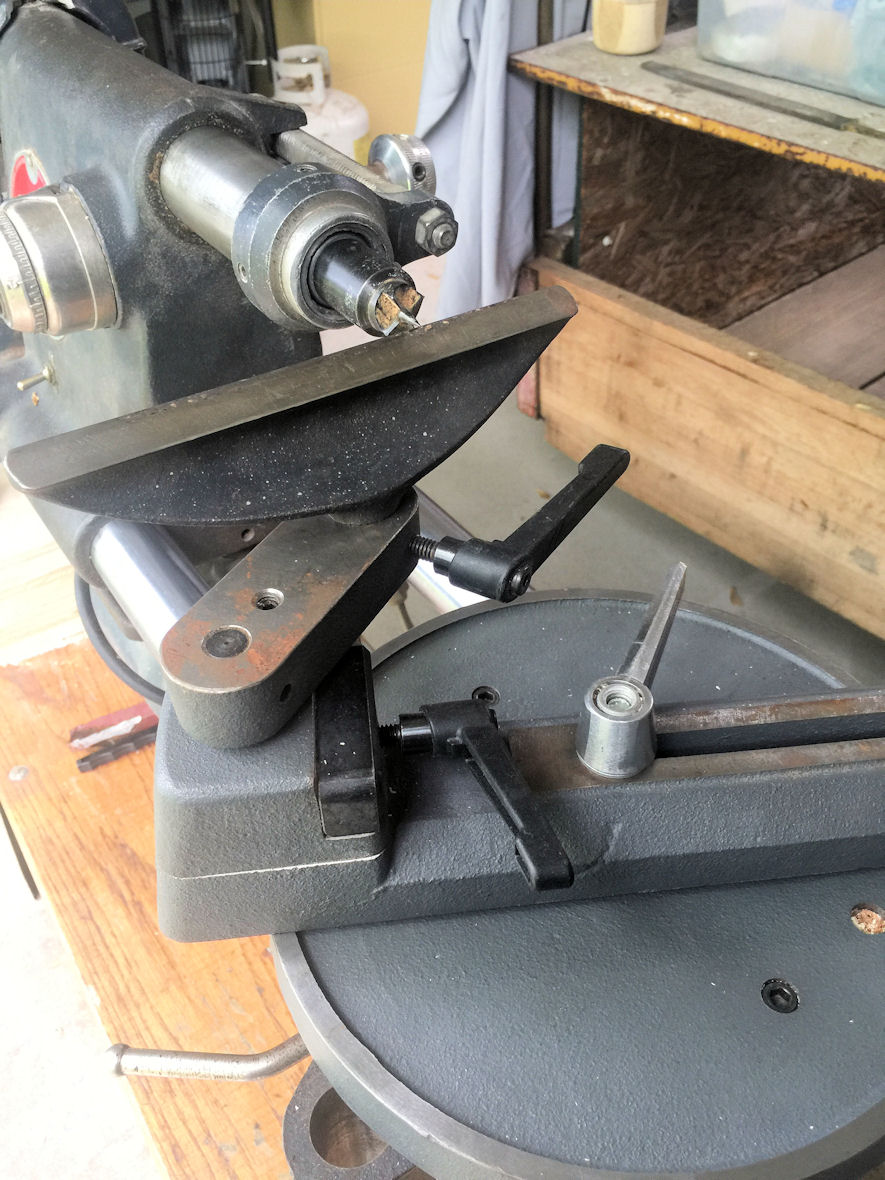

"S" shaped specialty tool rest
"S" shaped specialty tool rest
Stock tool rest and S shape tool rest
Stock tool rest and S shape tool rest
And finally, A mock up of an extension for the tailstock that will let you turn spindles 8 to 10" longer with the UTR without needing another carriage(I think, depending on your tool rest. This is the 9" Robust shown. I know there are other threads about waytube extensions. With the speed changer mounted I have 27" between centers. this extension would allow 38".

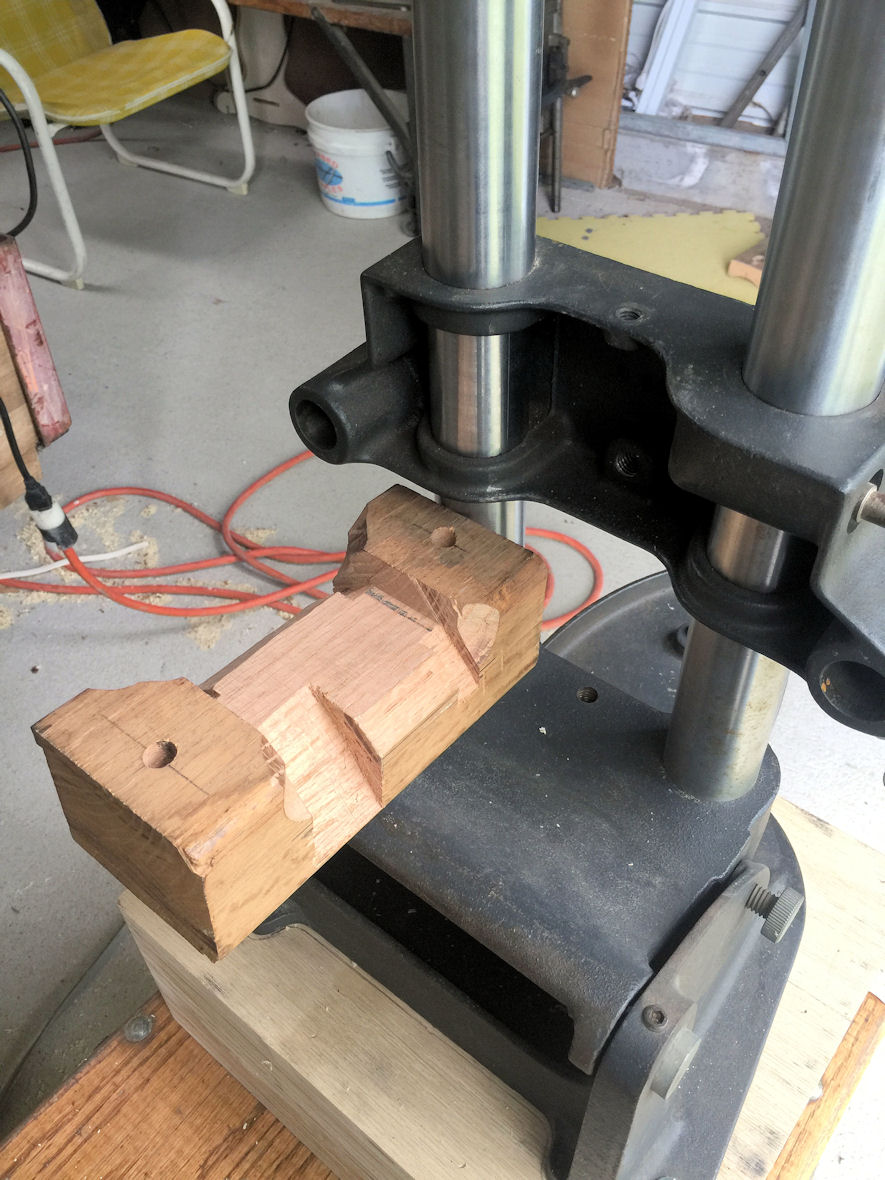

Extension idea
Extension idea
Headstock and UTR tight to the tailstock with full extension on the spindle and two different live centers.

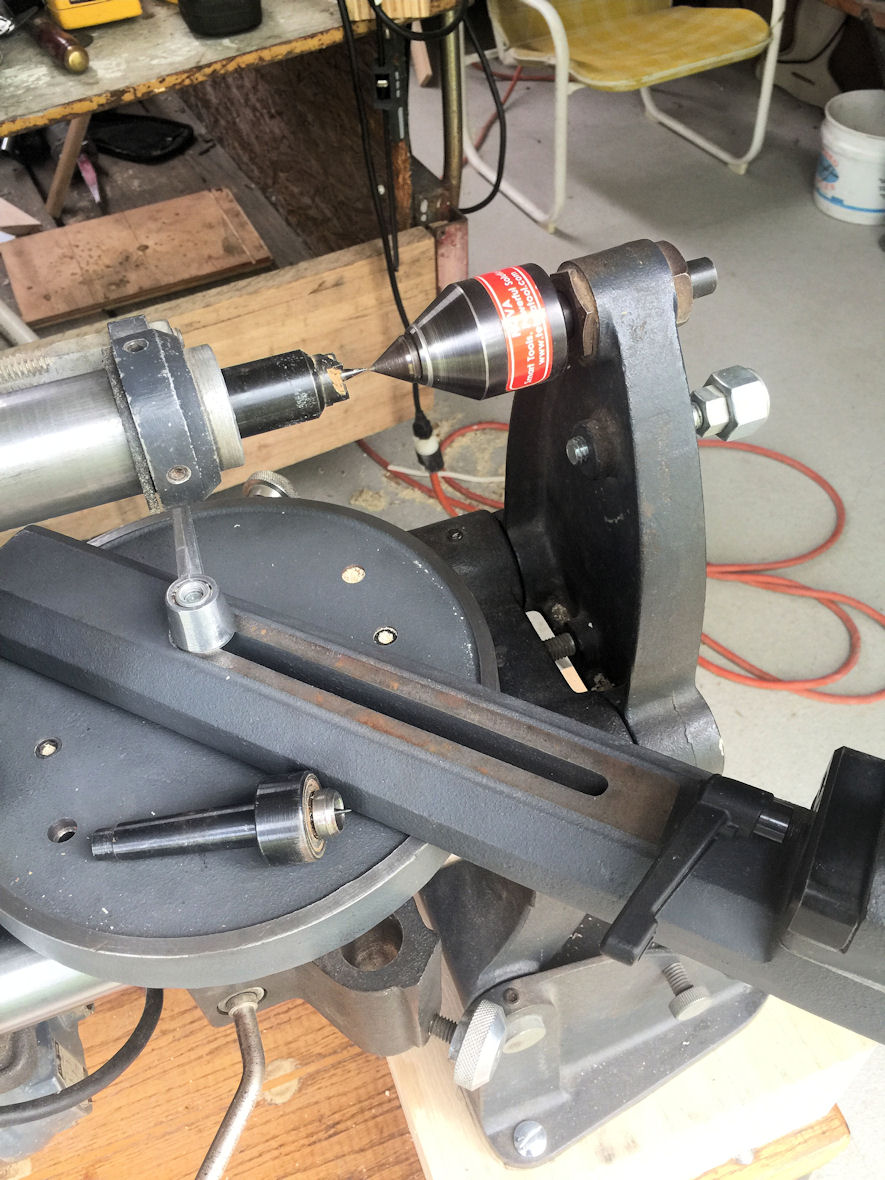

Craftsman, I think, live center
Craftsman, I think, live center
Nova live center
Nova live center
I also have a morse taper extension if needed.
Sorry for the long post, but I did get practice resizing pictures, attaching and placing them inline. :D
Cheers!
Larry Hargrove
Rock Island, Ok
1981 Mark V 500>510>520(98922)
19?? Mark V 500>Power Pro headstock 556176 06-17-11 factory exchange program original serial unknown
1957 Mark V 500 (350389)
1953 10ER
Another 10ER
Bandsaw 2012 Jointer 2012
Bandsaw, Jointer, other goodies
Craftsman table saw, Delta 46-460 Midi lathe
larryhrockisland
Gold Member
Posts: 96
Joined: Sun Aug 19, 2007 10:47 pm

Re: 10ER Lathe height and Universal Tool Rest

Post by larryhrockisland »

JPG wrote:I am guessing the 'center bolt' goes through the table height crank tapped hole in the top of the carriage.


But then what is that chuck of wood under the carriage for????

Perhaps the other holes in the round part are used?

The center bolt is a carriage bolt that nests in a recess in the base plate, it doesn't pass through the carriage. I probably could have used 2x spacer but needed something because there aren't enough threads otherwise. I'll double-check tomorrow and take a few more pics.
Larry Hargrove
Rock Island, Ok
1981 Mark V 500>510>520(98922)
19?? Mark V 500>Power Pro headstock 556176 06-17-11 factory exchange program original serial unknown
1957 Mark V 500 (350389)
1953 10ER
Another 10ER
Bandsaw 2012 Jointer 2012
Bandsaw, Jointer, other goodies
Craftsman table saw, Delta 46-460 Midi lathe
User avatar
ChrisNeilan
Platinum Member
Posts: 1454
Joined: Sun Oct 27, 2013 5:30 pm
Location: Waterford, Connecticut
Contact:

Re: 10ER Lathe height and Universal Tool Rest

Post by ChrisNeilan »

Thanks for the info!
Chris Neilan

Shopsmith Mark 7, Shopsmith Mark V 1982, shortened, Shopsmith 10 ER; Craftsman table saw (1964); Powermatic 3520B lathe
User avatar
BuckeyeDennis
Platinum Member
Posts: 3188
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: 10ER Lathe height and Universal Tool Rest

Post by BuckeyeDennis »

Awesome job on the photo’s, Larry, thanks much!

So it looks like the tool-rest height is the only significant compatibility issue, and that’s only an issue when using the short articulated arm on the UTR. If you mount a longer aftermarket tool rest in place of the short arm, can still you reach the back side of bowls and such? It seems to me that rigidity should be at least as good in that configuration.
