lathe duplicator
Moderator: admin
is there a specific name for this part only? The circled part? That can't be the entire duplicator part, worth $461 on shopsmith.com.....can it? Obviously in the package includes the mounts etc.. but ya.
I borrowed the image and circled it from a post in this thread. I am thinking of having a metal machining friend build me one instead of buying as I am cheap, LOL! I think I can build the guide etc. myself.
I borrowed the image and circled it from a post in this thread. I am thinking of having a metal machining friend build me one instead of buying as I am cheap, LOL! I think I can build the guide etc. myself.
-
shipwright
- Platinum Member
- Posts: 1165
- Joined: Tue Dec 15, 2009 7:28 pm
- Location: Vancouver Island, Canada
- Contact:
That's my lathe duplicator. As stated earlier, It was made by a previous owner so you can't buy one even if you wanted to. Your machinist friend can easily make one though.rele wrote:is there a specific name for this part only? The circled part? That can't be the entire duplicator part, worth $461 on shopsmith.com.....can it? Obviously in the package includes the mounts etc.. but ya.
I borrowed the image and circled it from a post in this thread. I am thinking of having a metal machining friend build me one instead of buying as I am cheap, LOL! I think I can build the guide etc. myself.
Paul M
Paul M ........ The early bird gets the worm but the second mouse gets the cheese
Re: lathe duplicator
Found a Rand lathe duplicator on CL last week. The ebay link doesn't work any longer so here is one as purchased used. Had to replace a spring, repair the crank handle, and replace a couple of snap rings. No manual included and possibly missing template brackets. Spindle holders are attached to the mounts. I haven't tried making anything yet.
- Rand Lathe Duplicator for Shopsmith.jpg (20.75 KiB) Viewed 7686 times

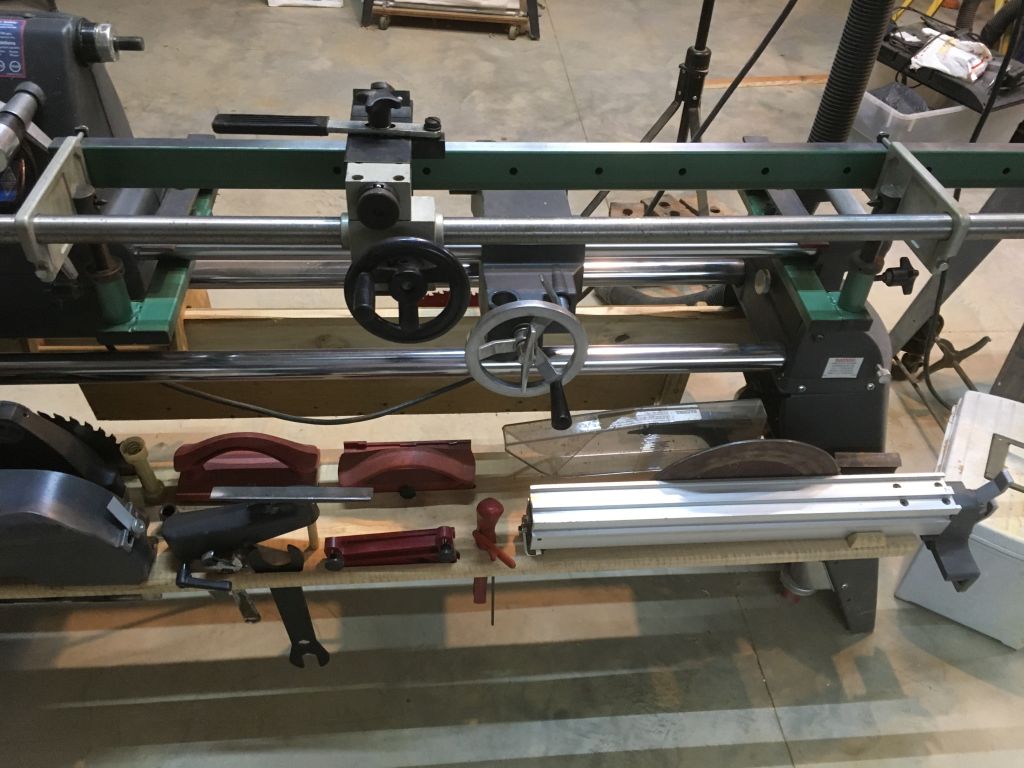

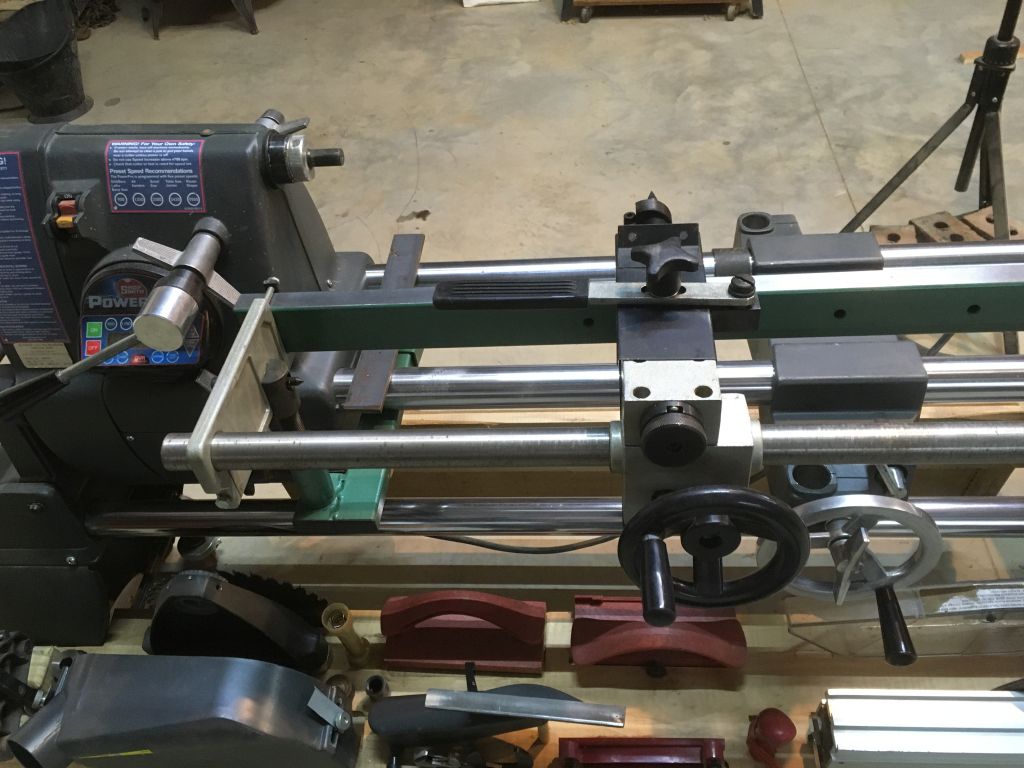

- Mounted on a Shopsmith Mark 7
- IMG_0378.JPG (119.86 KiB) Viewed 7686 times
- IMG_0379.JPG (123.07 KiB) Viewed 7686 times

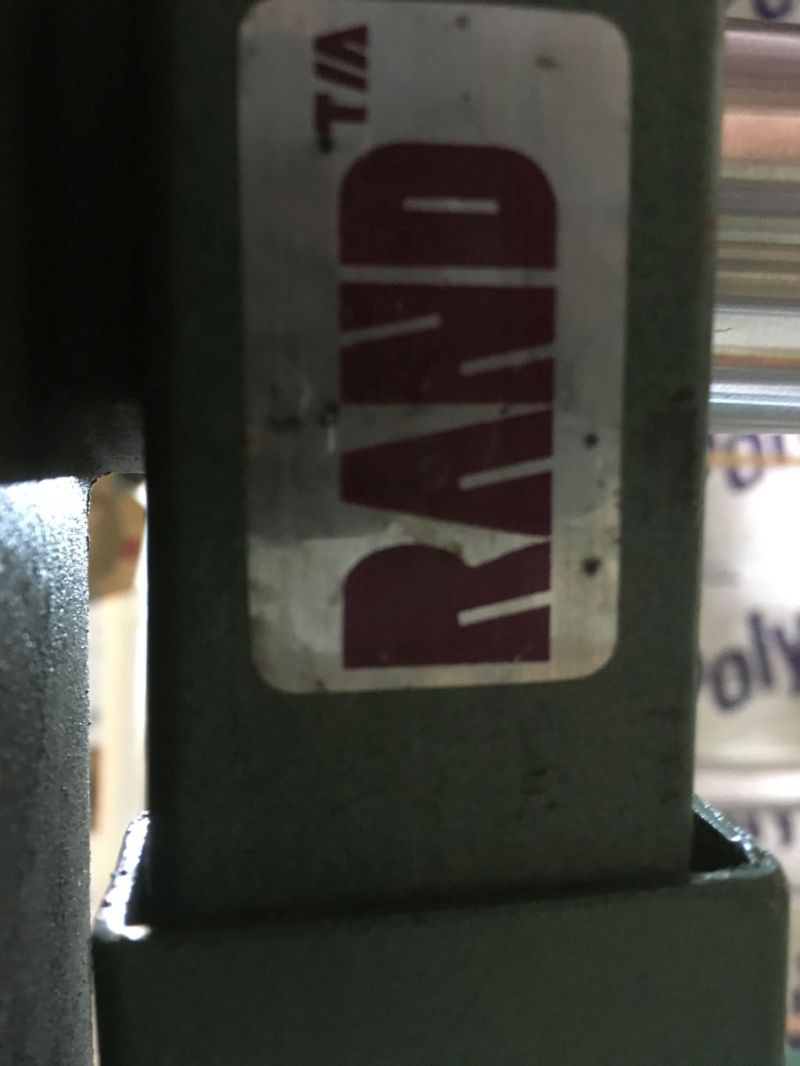

- Name is on the bottom of support
- IMG_0381.JPG (61.77 KiB) Viewed 7686 times

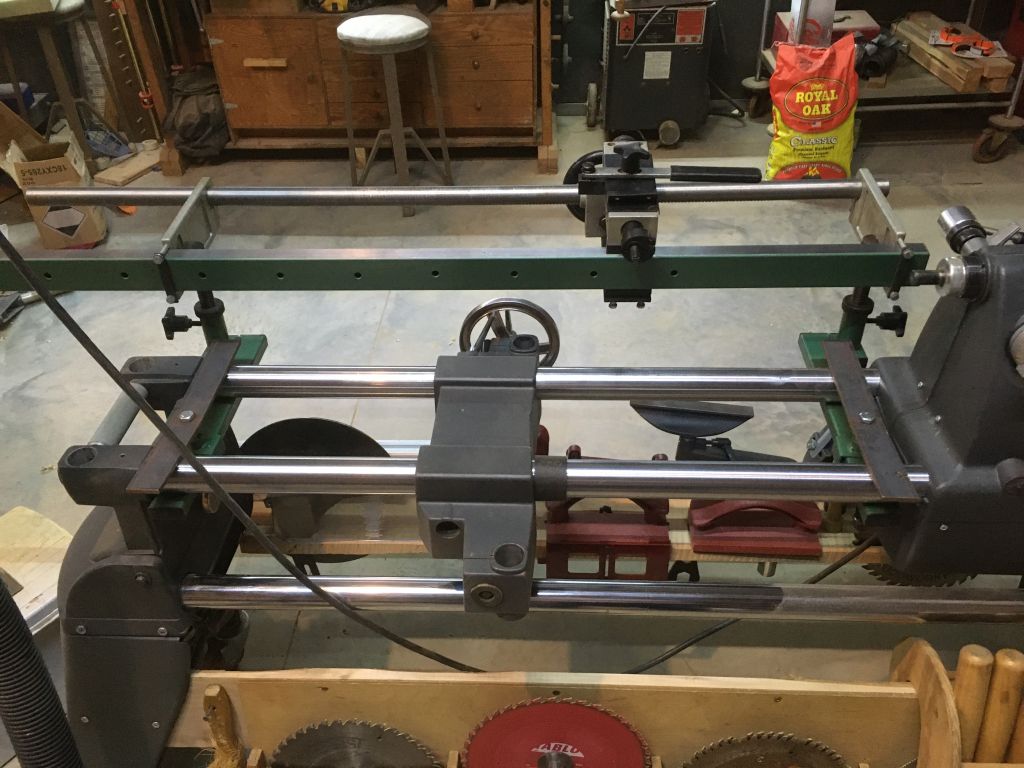

- From the backside
- IMG_0382.JPG (130.95 KiB) Viewed 7686 times
Mark 7 Power Pro, Mark V 510, Mark VII (early 1960s) Headstock wall mount drill press on Mark 5 way tubes, Mark 5 Shorty with reversible motor, Overhead Pin Router, Power station with band saw, Jointers, Belt Sanders, Strip Sander, Scroll saw, Jigsaw, Shopsmith Lathe Duplicator, Craftsman 2.5 hp 13" Planer/molder, Craftsman 5 hp 12-inch planer molder, myriad Shopsmith accessories, Harbor Freight sawmill with extensions to cut 22' logs.Re: lathe duplicator
Nice! I didn't even know there were aftermarket lathe duplicators that would readily attach to the Mark V. That RAND unit looks very stout. Let us know how it works out...
RF GuyMark V 520 (Bought New '98) | 4" jointer | 6" beltsander | 12" planer | bandsaw | router table | speed reducer | univ. tool rest
Porter Cable 12" Compound Miter Saw | Rikon 8" Low Speed Bench Grinder w/CBN wheels | Jessem Clear-Cut TS™ Stock Guides
Festool (Emerald): DF 500 Q | RO 150 FEQ | OF 1400 EQ | TS 55 REQ | CT 26 E
DC3300 | Shopvac w/ClearVue CV06 Mini Cyclone | JDS AirTech 2000 | Sundstrom PAPR | Dylos DC1100 Pro particulate monitor
-
SkullsquadronX
- Gold Member
- Posts: 143
- Joined: Fri Apr 26, 2019 10:43 am
- Location: Honesdale, Pennsylvania
Re: lathe duplicator
That looks like a great fine, clean and sturdy. I like it and good luck with it.
