My Ultimate Shopsmith Storage Solution

Post by tdubnik »

[ATTACH]3135[/ATTACH] [ATTACH]3136[/ATTACH] [ATTACH]3137[/ATTACH]

[ATTACH]3138[/ATTACH] [ATTACH]3139[/ATTACH]

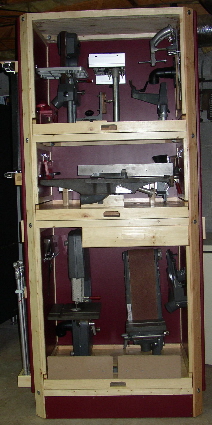

I mentioned a couple of times that I was working on a storage cabinet to hold my SS SPTs and accessories. I finally finished it yesterday. My goal was to have all of my SPTs in one place that was conveniently located to my Shopsmith. This cabinet will be located within 5 feet.

This thing holds a ton. I revised various parts a couple of times trying to get it just right for me. I am very happy with the outcome.

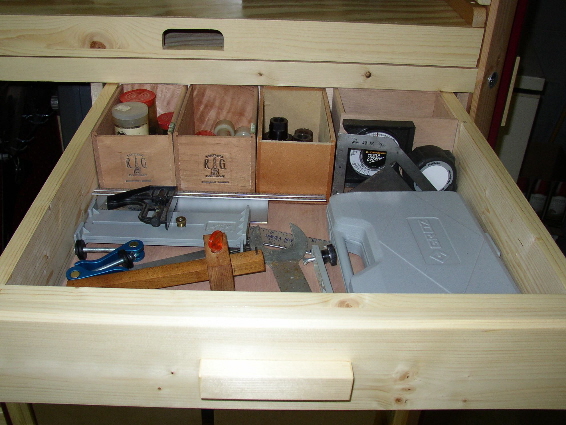

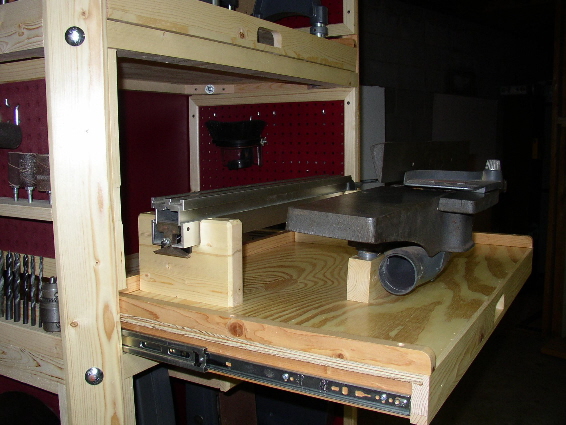

The SPTs are mounted on pull out trays supported by full extension drawer slides. I added a drawer to hold the various small parts, measuring tools, etc. The inside is lined with pegboard that is accessible from both the inside and from the sides which open up. The sides are actually doors that open and provide additional storage as you can see. They are each mounted on 4 heavy duty concealed hinges. The outside of the left door holds the connector tubes and floating tables.

The dimensions are 42" wide, 22" deep, and 91" tall. This equates to about 6.4 square feet of floor space which is much more efficient than my old method of placing them wherever I could find an empty spot.


The first pictures are in this post. Additional pictures follow.
Attachments

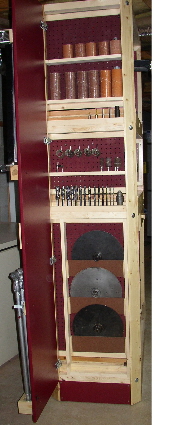

Left Side.jpg
Left Side.jpg (59.66 KiB) Viewed 26304 times

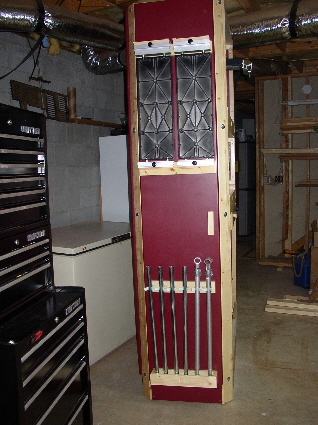

Left Door Storage.jpg
Left Door Storage.jpg (112.89 KiB) Viewed 26283 times

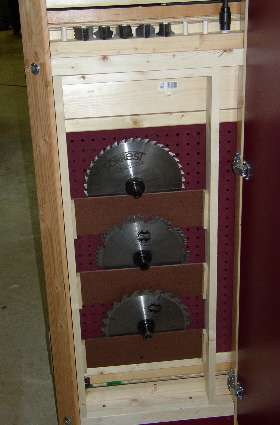

Saw Blade & Shaper.jpg
Saw Blade & Shaper.jpg (89.89 KiB) Viewed 26296 times
User avatar
tdubnik
Platinum Member
Posts: 545
Joined: Wed Nov 12, 2008 8:04 am
Location: Talmo, GA

Post by tdubnik »

[ATTACH]3140[/ATTACH] [ATTACH]3141[/ATTACH]

[ATTACH]3142[/ATTACH] [ATTACH]3143[/ATTACH]

Additional pictures.
Attachments
Strip Sander Extension Table.jpg
Strip Sander Extension Table.jpg (163.51 KiB) Viewed 26156 times

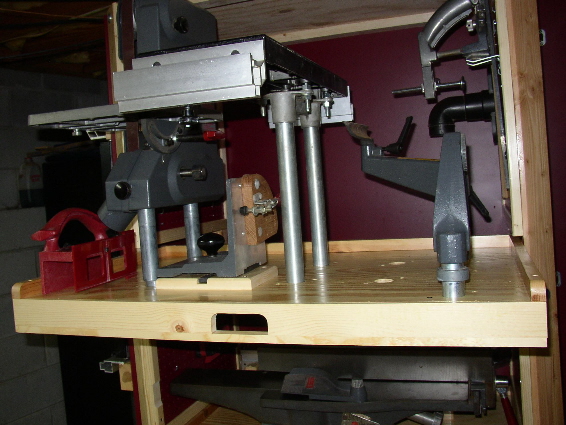

Middle Tray.jpg
Middle Tray.jpg (160.47 KiB) Viewed 26085 times

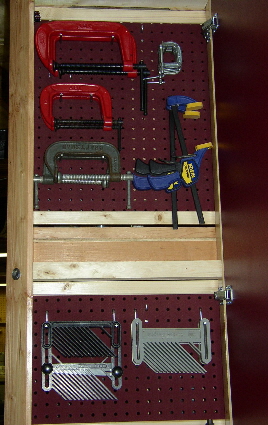

Clamps & Featherboards.jpg
Clamps & Featherboards.jpg (101.33 KiB) Viewed 26085 times

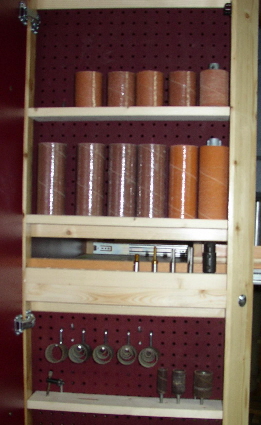

Drum Sander Router Bit Storage.jpg
Drum Sander Router Bit Storage.jpg (78.96 KiB) Viewed 26101 times
weelildaddy

Post by weelildaddy »

Bravo, Bravo Tdubnik. Beautiful preplanning, and execution. This should be an inspiration to us all.

Arno
gregf
Gold Member
Posts: 178
Joined: Mon Mar 17, 2008 2:19 pm
Location: Richwood, OH

Post by gregf »

Very nice.
Richwood, OH
There is no such thing as an unsafe tool, only unsafe owners. If you make a machine idiot-proof, God will invent a better idiot.
User avatar
dusty
Platinum Member
Posts: 20361
Joined: Wed Nov 22, 2006 6:52 am
Location: Tucson (Wildcat Country), Arizona

The Ultimate Shopsmith Storage Solution

Post by dusty »

This looks to be a excellent solution to your storage needs. It not only organizes everything by giving it a home but it protects. Congratulations on a job well done.

The only criticism might me height and that would only be applicable for a shorty like myself. It appears that the jointer would hit me at about chest height and might be a bit difficult for me to manhandle (manage without dropping).
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
User avatar
nuhobby
Platinum Member
Posts: 2175
Joined: Fri Sep 21, 2007 4:34 am
Location: Indianapolis

Post by nuhobby »

What an inspiration! Thanks for sharing.
Chris
User avatar
tdubnik
Platinum Member
Posts: 545
Joined: Wed Nov 12, 2008 8:04 am
Location: Talmo, GA

Post by tdubnik »

dusty wrote:This looks to be a excellent solution to your storage needs. It not only organizes everything by giving it a home but it protects. Congratulations on a job well done.

The only criticism might me height and that would only be applicable for a shorty like myself. It appears that the jointer would hit me at about chest height and might be a bit difficult for me to manhandle (manage without dropping).
It is a little taller than I would have liked but when I took measurements it pretty much dictated the height for me. I'm 6'2" so the jointer hits me a little over waist high. I put it on the middle shelf so I wouldn't have to bend for the bottom or be a weight lifter for the top.

You could probably build 2 sections side by side half height. It would take up more floor space but could work for a shorter cabinet.

For those interested, I also posted this project at Lumberjocks here:

http://lumberjocks.com/projects/13258
User avatar
beeg
Platinum Member
Posts: 4695
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis, Mo.

Post by beeg »

Looks great and usable. A job well done.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.

Bob
nutball
Gold Member
Posts: 63
Joined: Wed Jul 26, 2006 1:28 pm
Location: North Carolina

Post by nutball »

Very impressive!!
cdmclain
Gold Member
Posts: 34
Joined: Tue Dec 25, 2007 11:08 pm
Location: Texas

Post by cdmclain »

Wow! How many hours did it take you to design and build? Did you make drawings or sketches first?
cdmclain
North Texas

PowerPro Mark 7 & Mark 5 510, Bandsaw/PowerStation, Scrollsaw, Jointer, Pro Planer, Beltsander/PowerStation, Strip Sander, Ringmaster, DC3300
