Re: First time purchaser

Post by chapmanruss »

Cecil,

In the additional pictures you posted I see some of the "missing" accessories I listed. Unfortunately, there is an additional broken part seen in the picture next to the Drill Chuck. It is the Arm of the Table Riser that goes on the Table Assembly Post. It is shown in the instruction sheet below.

_

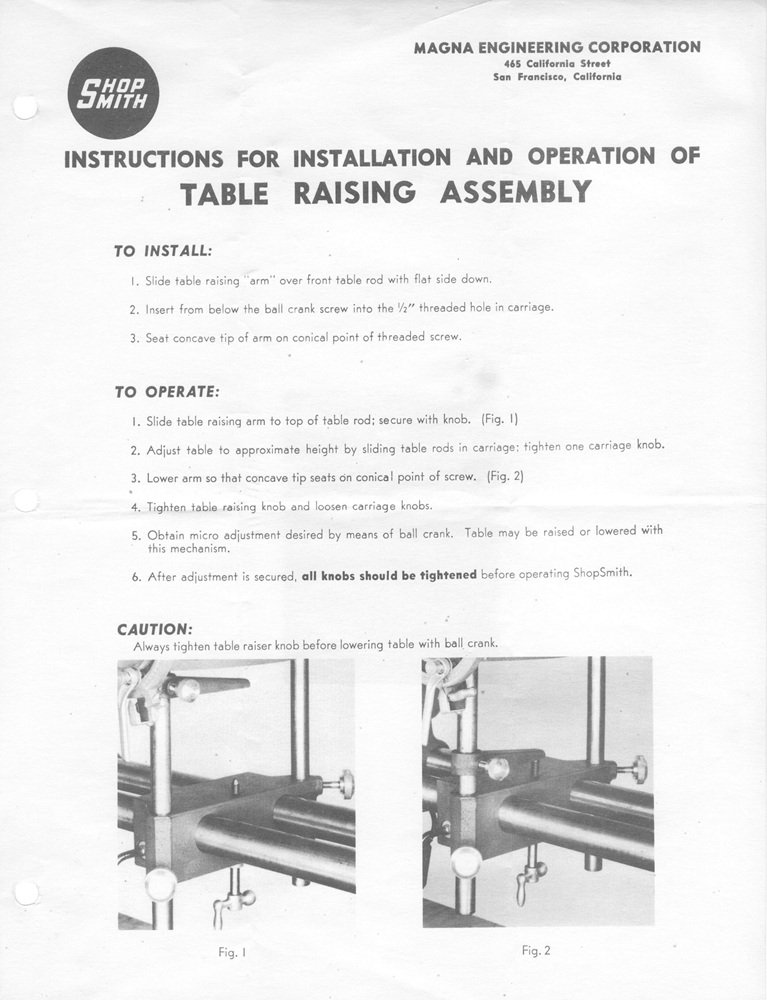

Table Raising Assembly r.jpg
Table Raising Assembly r.jpg (99.11 KiB) Viewed 13069 times
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
