chapmanruss wrote: ↑Tue Jun 24, 2025 1:29 pm
If you can post pictures of the Bench Ends, I would appreciate seeing the differences.

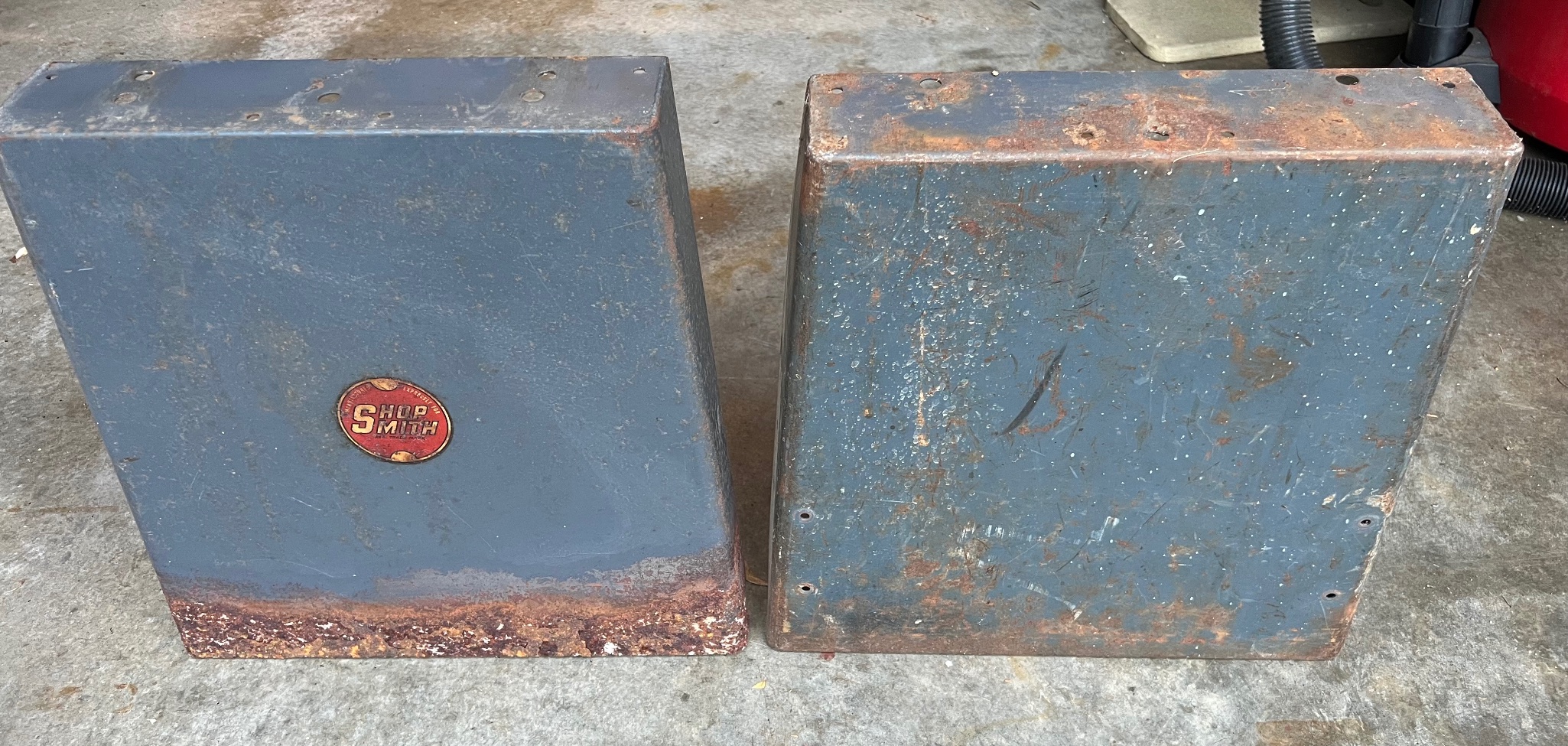

Here are some pics to illustrate the comparison.
.
.

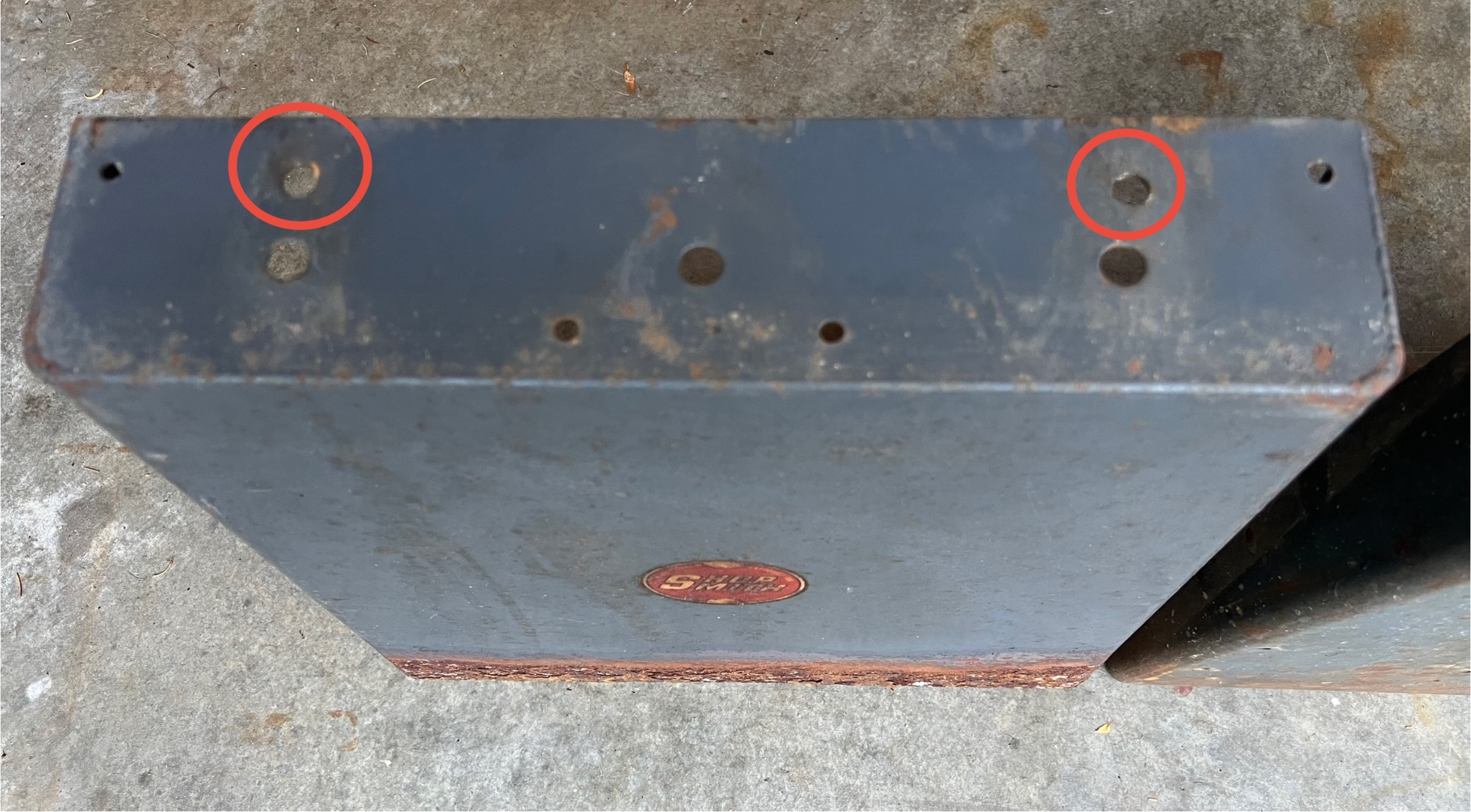

The older bench leg (original to my recently restored 10E) has the original sticker and no holes for caster assemblies. The three main holes in the top for pivot base or tail rest attachment are in a straight line (I’ve circled two additional owner-drilled holes).
.
The newer bench leg has no sticker, but has holes for caster assemblies. Its three primary holes are offset.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N R51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1957 Magna-Line Model 710 Bench Saw, S/N 34162 (restored)
Interesting. The early Bench end with the SS decal has the same "extra" holes as the one in the picture I posted. Was it factory or similarly done by owners for mounting the Headrest?
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
