chapmanruss wrote: ↑Tue Jun 24, 2025 1:29 pm
If you can post pictures of the Bench Ends, I would appreciate seeing the differences.
Here are some pics to illustrate the comparison.
.
.
The older bench leg (original to my recently restored 10E) has the original sticker and no holes for caster assemblies. The three main holes in the top for pivot base or tail rest attachment are in a straight line (I’ve circled two additional owner-drilled holes).
.
The newer bench leg has no sticker, but has holes for caster assemblies. Its three primary holes are offset.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N R51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1957 Magna-Line Model 710 Bench Saw, S/N 34162 (restored)
Interesting. The early Bench end with the SS decal has the same "extra" holes as the one in the picture I posted. Was it factory or similarly done by owners for mounting the Headrest?
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.

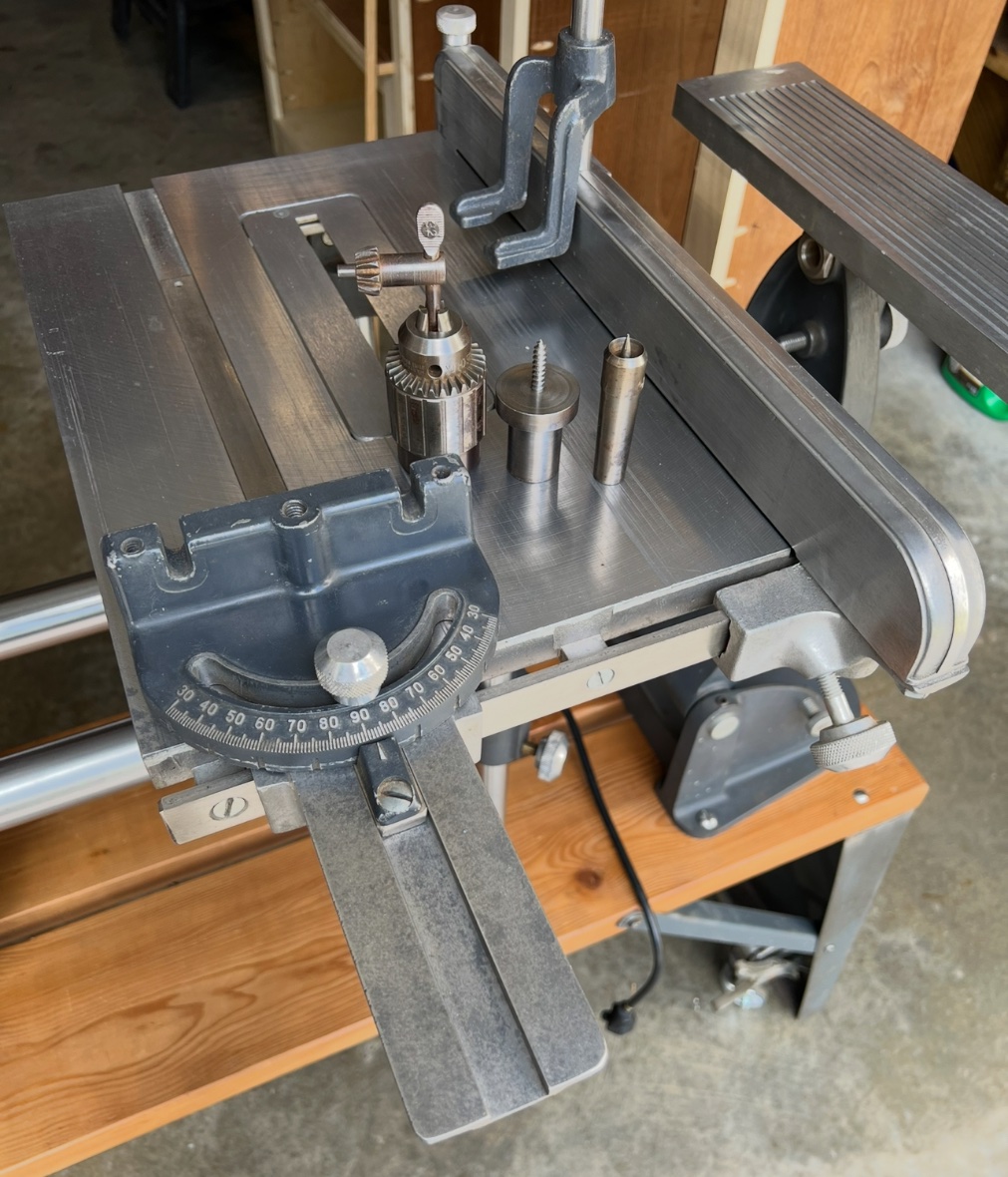

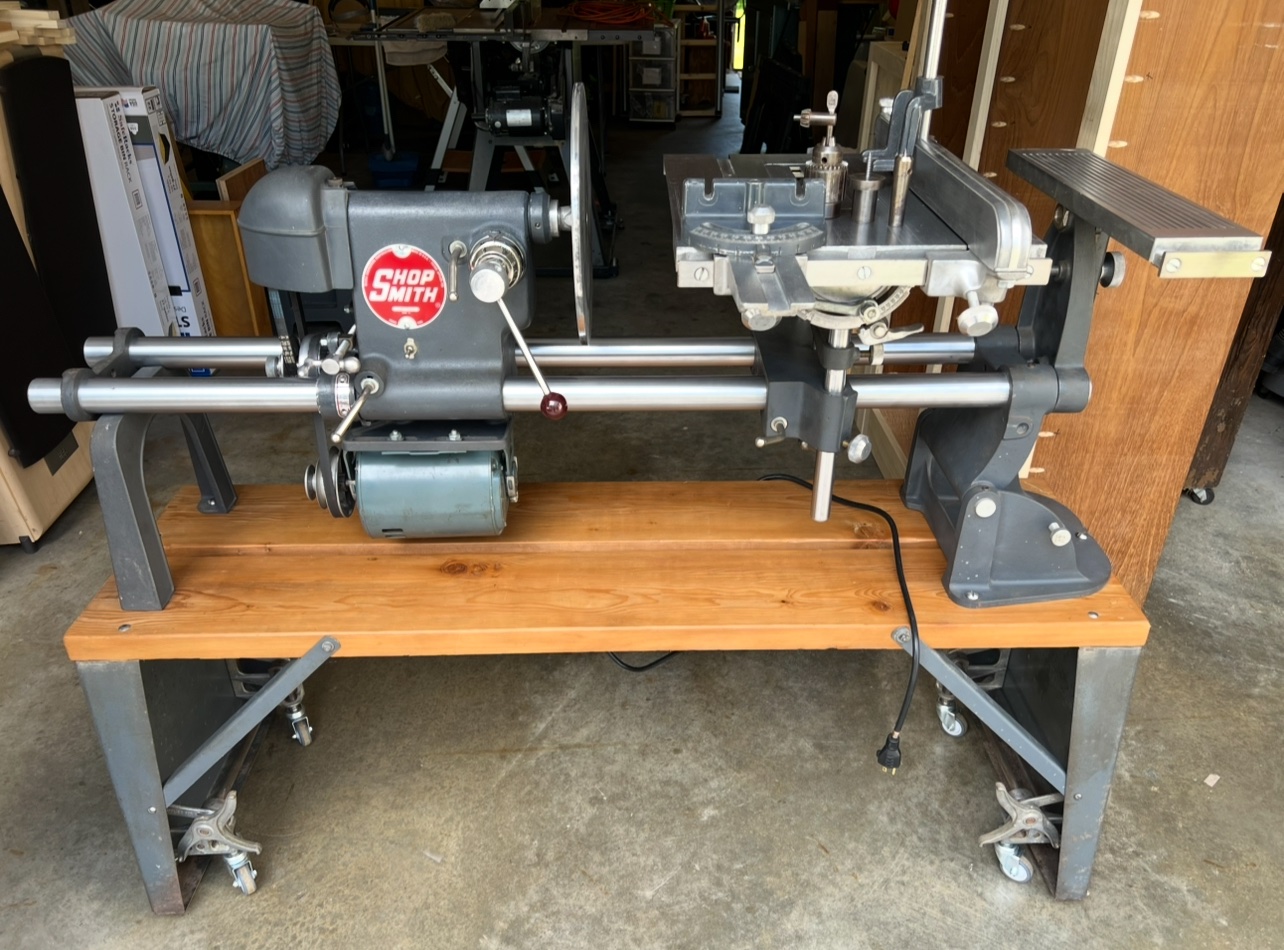

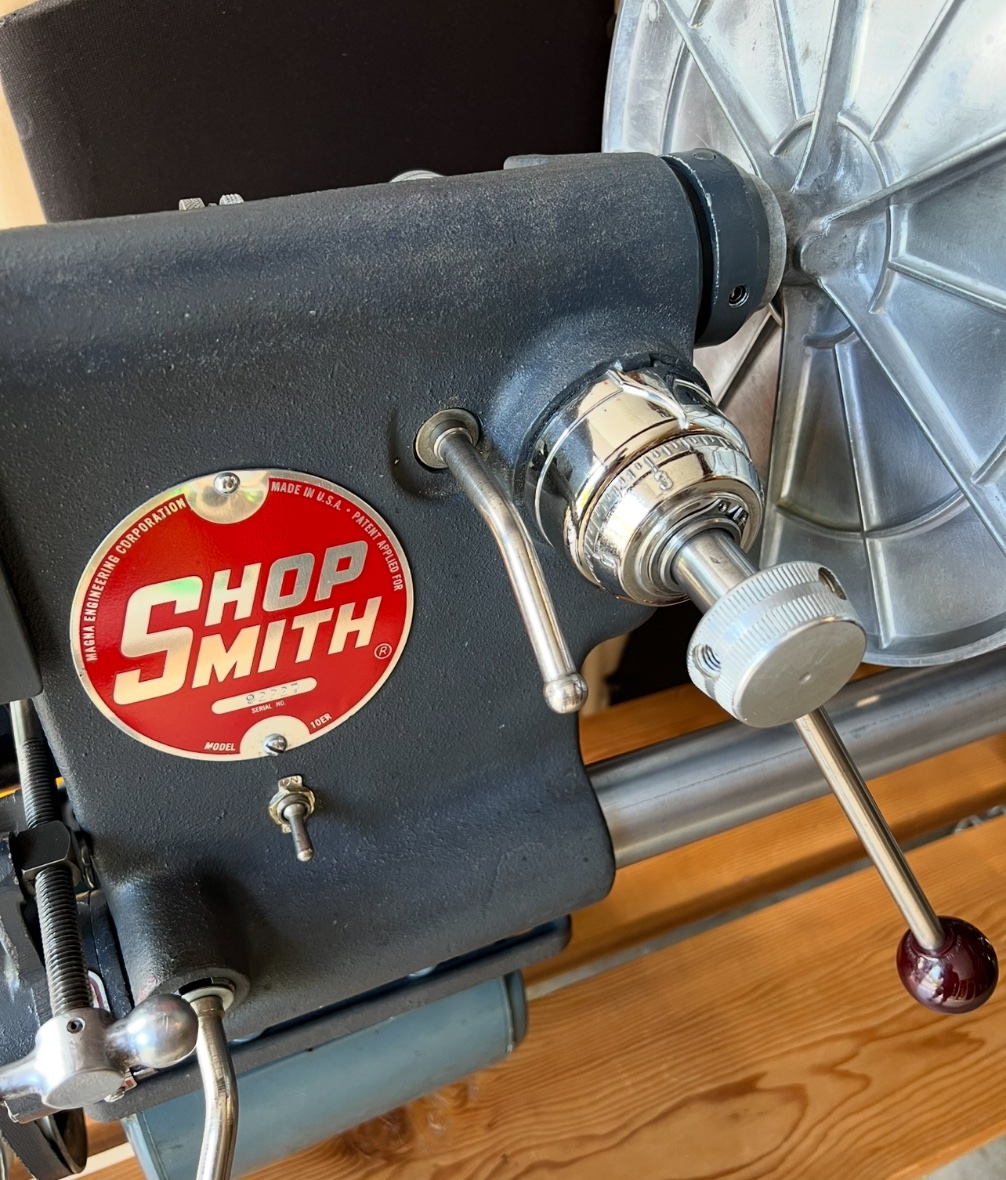

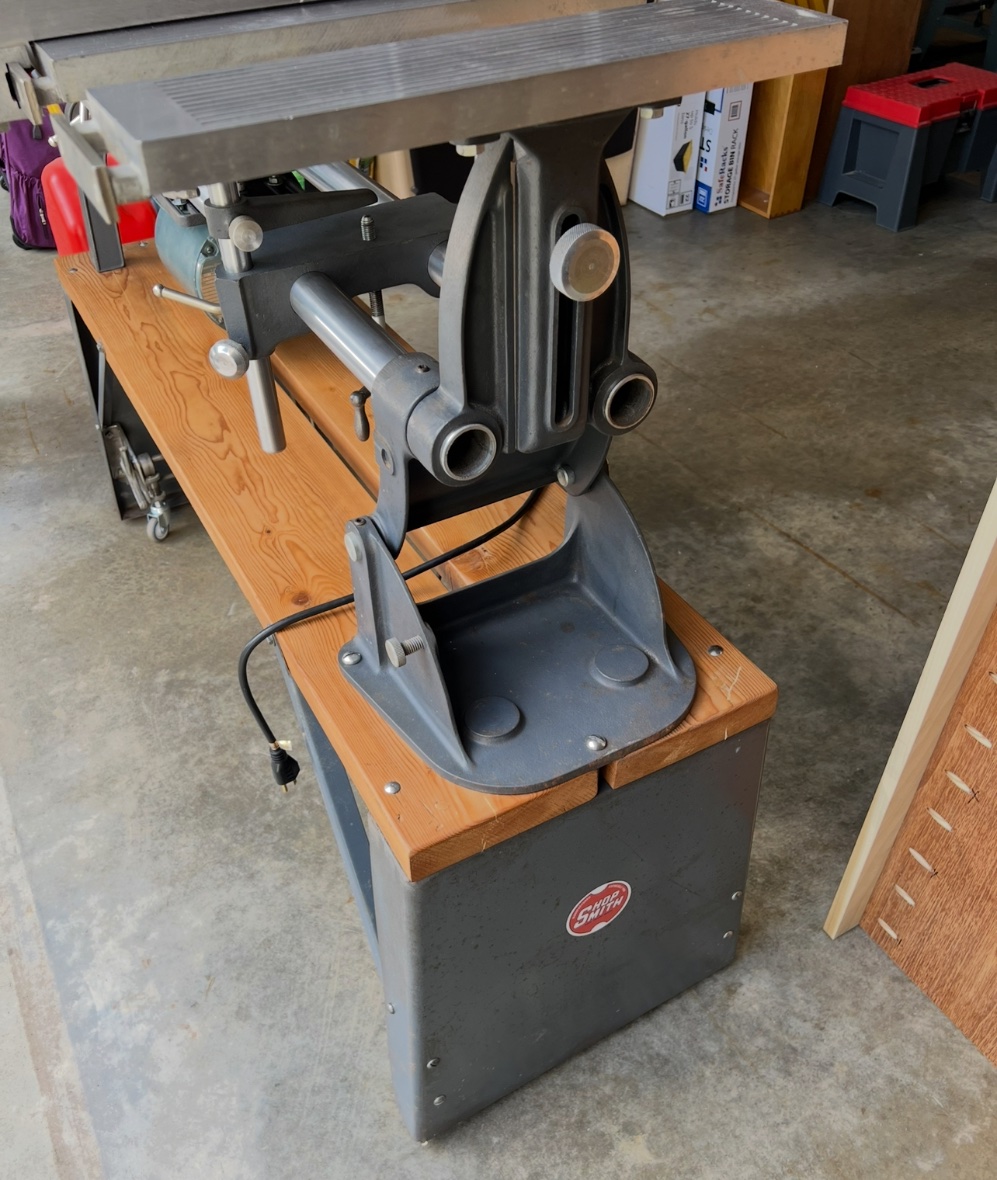

This was a very quick restoration project, due to the fact that the machine was in pretty good shape to start. It had some surface rust on the bench ends to deal with, but minor enough to avoid a paint job even there. Also the plating on the quill depth gauge and spring housing are still in great shape after polishing…

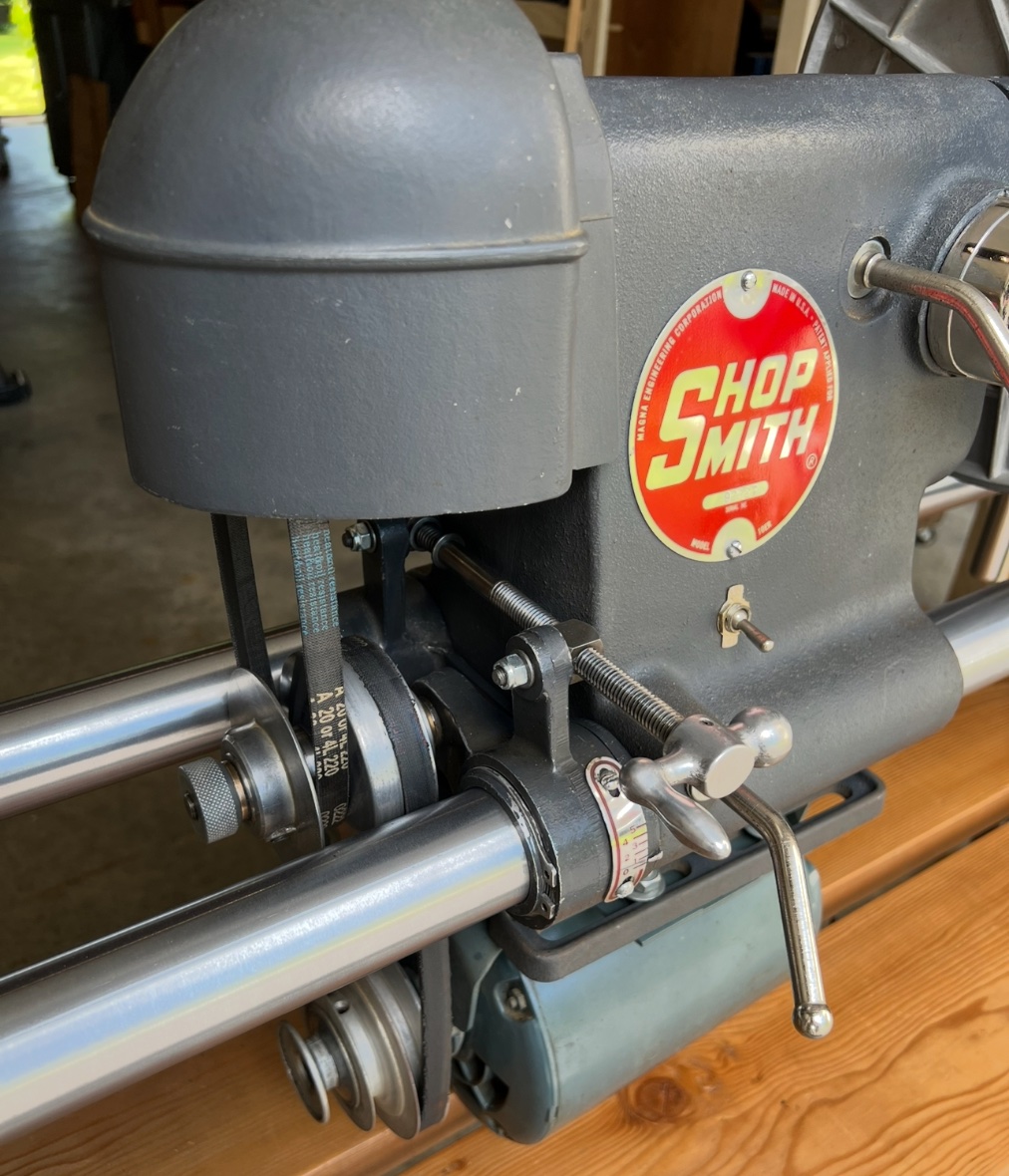

The big upgrade it received was the addition of a speed changer - this is one I picked up on a business trip to Orange County, CA last year. Got it for $75 from a gentleman who used to do a lot of Model 10 restorations, and this was about the last piece he had left. He had been dropping the price for months with no takers!
Anyway, the overall system cleaned up very nicely, and is now looking for a new home in Massachusetts…
.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1952 10ER, S/N R51721 (restored as dedicated drill press)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1957 Magna-Line Model 710 Bench Saw, S/N 34162 (restored)
Do I see the thin-walled Way Tubes? Does it have the hollow Table Posts?

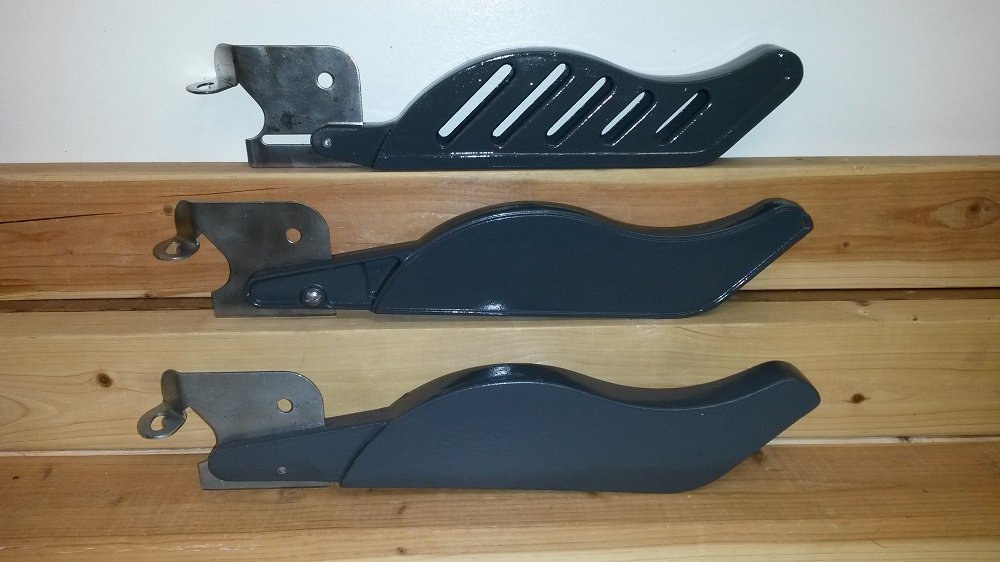

I don't see the Upper Saw Blade Guard and was wondering if it has the later plain one seen on the bottom in the picture below.
_
Saw Guards with Splitters r.jpg (79.14 KiB) Viewed 28 times
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
