A-34 Jigsaw Mounting Bolt
Moderator: admin
Re: A-34 Jigsaw Mounting Bolt
Thanks again folks!
Bill
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
-
chapmanruss
- Platinum Member
- Posts: 4223
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: A-34 Jigsaw Mounting Bolt

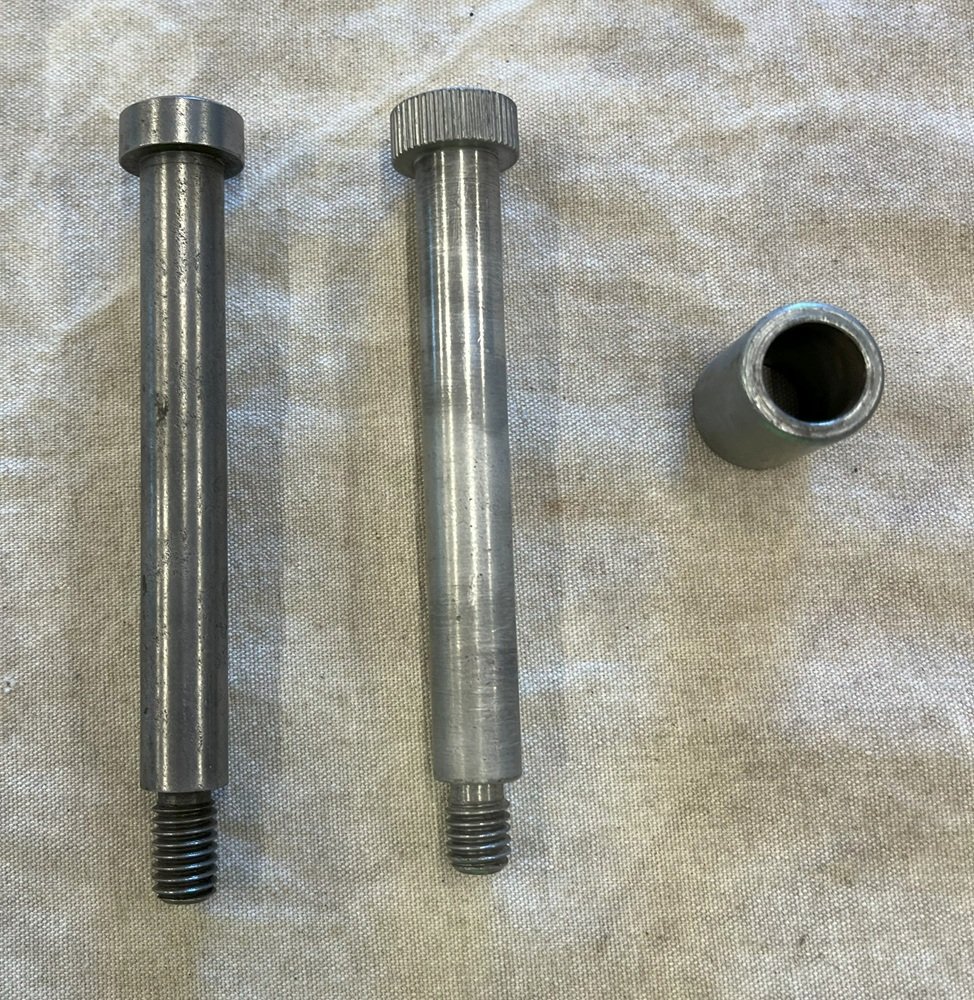

In my first post here, I showed a picture of the Mounting Bolt and Spacer. The picture below includes a non-OEM Mounting Bolt I received with a Jig Saw. It is the one on the left. You can see the difference in the overall length of the bolt and the length of the threaded end. This bolt can be used but does require washers to use as spacers. Without spacers the bolt does come in contact with the Drive Sleeve Spacer inside the Headstock before the Jig Saw is tightly mounted. This non-OEM Bolt can easily be spotted, when seen on its own, by the difference in the bolt's smooth sided head.
_
_
- Mounting Bolts.jpg (336.22 KiB) Viewed 21 times
Russ
