SketchUp 101

mikelst · Post by **mikelst** » Mon Jul 20, 2009 11:04 am

Another great lesson Tom,
Thank you

mbcabinetmaker · Post by **mbcabinetmaker** » Mon Jul 20, 2009 4:58 pm

Man if school had been this much fun I would be a lot smarter today!:D

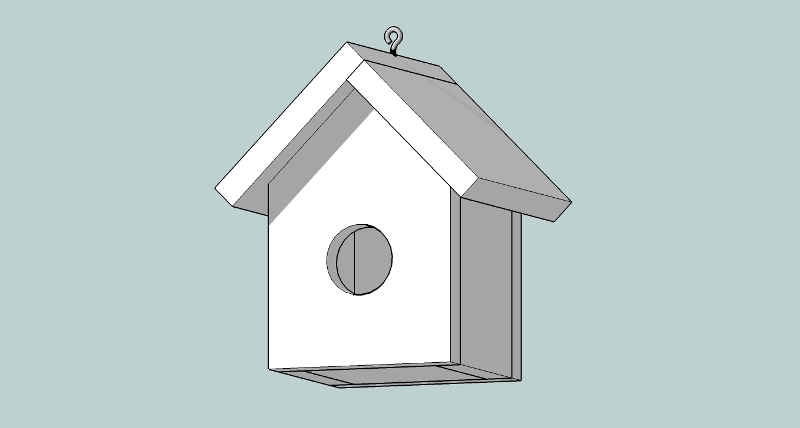

[ATTACH]5339[/ATTACH]

There is still time to catch up if anyone would like to join the class.

mbcabinetmaker · Post by **mbcabinetmaker** » Mon Jul 20, 2009 5:30 pm

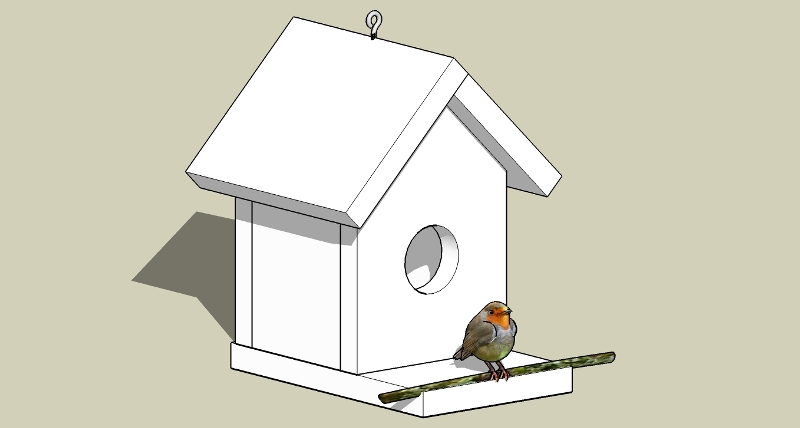

For extra credit. I love these 3D warehouse attachments.

[ATTACH]5340[/ATTACH]

etc92guy · Post by **etc92guy** » Wed Jul 22, 2009 11:45 pm

I completed lesson 1. Sure learned a lot....and with the layering/entity knowledge it would have made the garage cabinet design I did a lot more useful.

shydragon · Post by **shydragon** » Thu Jul 23, 2009 7:59 pm

How do you dimension diameters? I found something for angular dimensions.

tom_k/mo · Post by **tom_k/mo** » Thu Jul 23, 2009 8:42 pm

shydragon wrote:How do you dimension diameters? I found something for angular dimensions.

Check THISout... Sorry, didn't get the sound with this vid, but one is with the Dimension tool and the other is manually typing in dimension with Text tool (and I typed it in wrong too)

shydragon · Post by **shydragon** » Thu Jul 23, 2009 9:38 pm

Thanks, without the sound, I had to play it over several times. Finally, I realized I had to edit the group in order to pick that feature. Worked like a charm.

tom_k/mo · Post by **tom_k/mo** » Fri Jul 24, 2009 9:49 am

The next lesson is now available. This lesson re-enforces the construction techniques learned before, shows how to build and use your own custom components, uses Follow-Me to create routings, and the Intersect function to help define complex shapes easily.

Lesson 5 - Construction of a Stile/Rail framed Raised Panel cabinet door.

shydragon · Post by **shydragon** » Fri Jul 24, 2009 8:55 pm

In lesson 5, Under Stile Construction, your telling us to "Click on the Molding Shape Rail". Watching the video, it is the Stile, which made more sense. I generally try to follow your written instructions 1st, and if I run into trouble, I watch the video.

tom_k/mo · Post by **tom_k/mo** » Fri Jul 24, 2009 9:36 pm

Thanks, think I got it fixed.
