Caster assembly exploded view?

heathicus · Post by **heathicus** » Sat Mar 20, 2010 12:25 pm

Does anyone have an exploded parts view of the caster assembly? I'm trying to put mine back together and and exploded view would sure help. I can't find one in my manual or on the web site.

mickyd · Post by **mickyd** » Sat Mar 20, 2010 3:09 pm

Heath...see if this helps you out. I have some other shots I can send you if you need them.
.
.

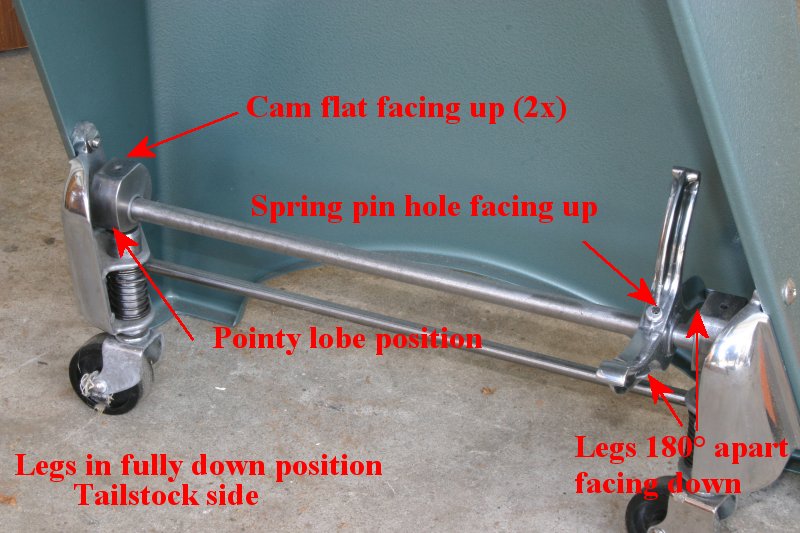

[ATTACH]8212[/ATTACH]
.
.
It's a real good brain exercise putting these thing back together even with the photos. The cam / shaft holes were originally drilled as a matching set so each cam only has one position where it's hole lines up with the shaft hole. With them disassembled, put the cam on the shaft and sight thru the hole to make sure they line up exactly then mark them with a marker. 'Dry fit' everything together before you insert any of the spring pins. Once you think you have it, again, make sure you mark everything. When you install the large shaft with the cams on it, don't install the pins in the cam until you've depressed the spring / lifter and slide the cam into position. You can do it!!!!

JPG · Post by **JPG** » Sat Mar 20, 2010 3:28 pm

Are you aware of the following?

https://forum.shopsmith.com/viewtopic.php?p=44799#post44799

All the parts are the same with the exception of the end castings which are left/right.

The tie rods may need to be paired up with the castings since it appears (sometimes) they are not drilled consistantly on center????

Keep in mind you are making a left/right pair, but that difference is how they are assembled, not because of parts differences.(end castings excepted)

Do not overlook the desired cam action( half raise followed by full raise followed by full drop ).

All this having been said, stand by for my ??? regarding 10E caster set!!!

mickyd · Post by **mickyd** » Sat Mar 20, 2010 3:38 pm

JPG...your cams are fixed to the shaft with set screws? My Mark 5 used spring pins.

JPG · Post by **JPG** » Sat Mar 20, 2010 4:25 pm

mickyd wrote:JPG...your cams are fixed to the shaft with set screws? My Mark 5 used spring pins.

Who said anything about set SCREWS????? I was referring to a caster set(i.e. a pair of them). BTW my ?? is regarding a 10E caster set. C 10E question thread.

mickyd · Post by **mickyd** » Sat Mar 20, 2010 5:01 pm

JPG40504 wrote:Who said anything about set SCREWS????? I was referring to a caster set(i.e. a pair of them). BTW my ?? is regarding a 10E caster set. C 10E question thread.

Your photo in one the Mark V threads you linked to above looked like cams holes were threaded.
http://www.shopsmith.net/forums/attachment.htm?attachmentid=5596&d=1250439280

JPG · Post by **JPG** » Sat Mar 20, 2010 5:26 pm

mickyd wrote:Your photo in the one the Mark V threads you linked out to above looked like cams were threaded.
http://www.shopsmith.net/forums/attachment.htm?attachmentid=5596&d=1250439280

Truth be told, YES! I had forgotten that they indeed are! Since I am currently messing with 10E vintage stuff, that 'detail' had 'slipped' my mind!

You can see the flat on the cam shaft and the set screw cup ring in the pix.

I do get it right. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Eventually!:D

heathicus · Post by **heathicus** » Sat Mar 20, 2010 5:45 pm

JPG40504 wrote:Are you aware of the following?

https://forum.shopsmith.com/viewtopic.php?p=44799#post44799

Doh! How did I miss that??

JPG40504 wrote:All this having been said, stand by for my ??? regarding 10E caster set!!!

I would help if I could, but I don't have the casters for the 10E/ER.

But THANK YOU JPG and MickyD!!!

heathicus · Post by **heathicus** » Sat Mar 20, 2010 7:28 pm

Casters are assembled and attached to the legs! Thanks, guys!
