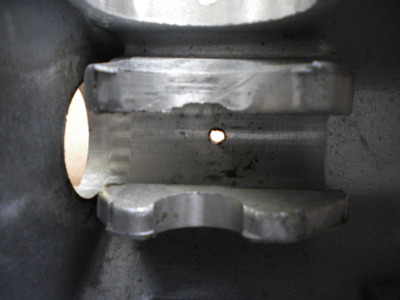

I went to paint the headstock casing yesterday and noticed a worn area. I think it's where the quill rests and spins. This will be my first attempt to attach a picture, so I hope it works, and I hope someone has some good news for me. I guess i need to know if anyone thinks that the casing is still good to use. Thanks again in advance.
Joe
mark v headstock question
Moderator: admin
mark v headstock question
- Attachments
-
- lunapic_128371705350759_1.jpg (46.4 KiB) Viewed 2984 times
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Since yer Greenie has a low SN, I assume it may be a sandcast headstock. If it has two tiny holes on the quill STOP side, it is an early sandcast headstock. These are much rougher in finish and precision than later die cast headstocks. They are also thicker!
The area you are concerned about is not intentionally a bearing surface. It IS possible that the quill feed pinion gear has been rubbing there at some point in time. If it is still rubbing, I would file down the casting until it no longer rubbed.
The actual bearing are out toward the end of the quill feed shaft. The quill feed shaft should be reasonably tight(no excess play/wobble) in the bearings.
The quill LOCK end has a sleeve for a bearing, and the quill STOP end bearing is inside the quill return spring housing.
The area you are concerned about is not intentionally a bearing surface. It IS possible that the quill feed pinion gear has been rubbing there at some point in time. If it is still rubbing, I would file down the casting until it no longer rubbed.
The actual bearing are out toward the end of the quill feed shaft. The quill feed shaft should be reasonably tight(no excess play/wobble) in the bearings.
The quill LOCK end has a sleeve for a bearing, and the quill STOP end bearing is inside the quill return spring housing.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Early Mark V Greenie Headstock Casing
Yes, The above is excellant information. I find I may have to grind additional clearance in the casing to prevent the quill feed assembly teeth from rubbing the housing.JPG40504 wrote:Since yer Greenie has a low SN, I assume it may be a sandcast headstock. If it has two tiny holes on the quill STOP side, it is an early sandcast headstock. These are much rougher in finish and precision than later die cast headstocks. They are also thicker!
The area you are concerned about is not intentionally a bearing surface. It IS possible that the quill feed pinion gear has been rubbing there at some point in time. If it is still rubbing, I would file down the casting until it no longer rubbed.
The actual bearing are out toward the end of the quill feed shaft. The quill feed shaft should be reasonably tight(no excess play/wobble) in the bearings.
The quill LOCK end has a sleeve for a bearing, and the quill STOP end bearing is inside the quill return spring housing.
Bill Mayo bill.mayo@verizon.net
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)
-
JPG
- Platinum Member
- Posts: 35457
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
That is indeed GOOD NEWS, and a surprise to boot! Wonder if the design was altered, or problems reconsidered or ??????nuhobby wrote:Oh... just off topic, but I thought I'd mention.
PowerPro upgrade can fit the sand-cast "A" headstock. All specific instructions are included in the manual. (Better news than the grapevine had last year.)
FWIW the 'misssing' access hole would not be a hindrance since 10 hr oiling is no longer a maintenance requirement!!!Hooraah!
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
thanks
billmayo wrote:Yes, The above is excellant information. I find I may have to grind additional clearance in the casing to prevent the quill feed assembly teeth from rubbing the housing.
Thanks guys, I'll take a careful look when I start putting this thing back together.
Rather than start a new thread I'll ask here: How do I determine if my greenie (SN: 309753) is a sand-cast "A" headstock?JPG40504 wrote:That is indeed GOOD NEWS, and a surprise to boot! Wonder if the design was altered, or problems reconsidered or ??????
FWIW the 'misssing' access hole would not be a hindrance since 10 hr oiling is no longer a maintenance requirement!!!Hooraah!
Sincerely,
Ron309753
