Dusty,
Just the wonders of photography, small looks big and big looks small. My shop is too small and a mess like most woodworkers. I have been turning pens and goblets with my SS so I will do my best to set it up for box joints today and take a pic of the jig.
ldh
Stand alone router table
Moderators: HopefulSSer, admin
SS Box Joints
Dusty,

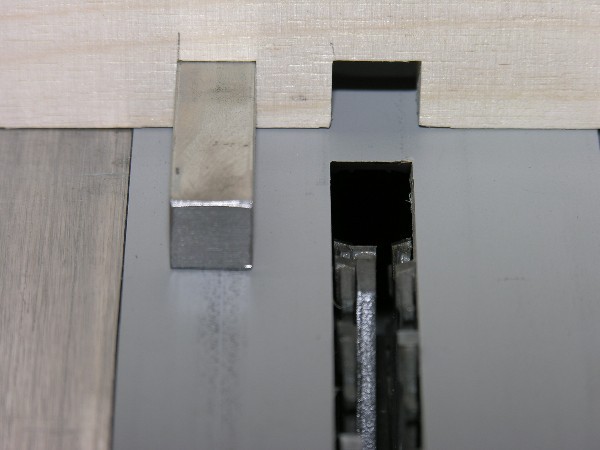

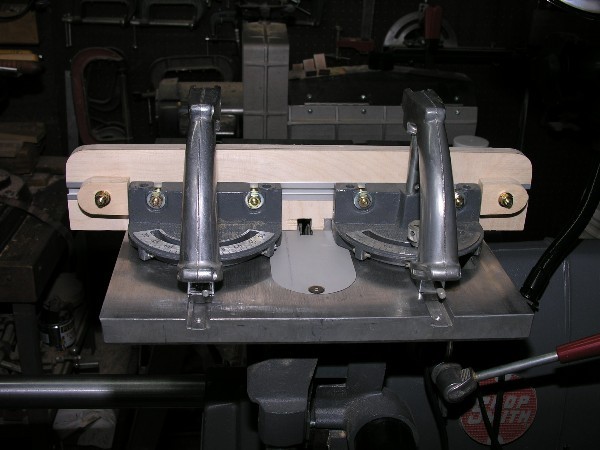

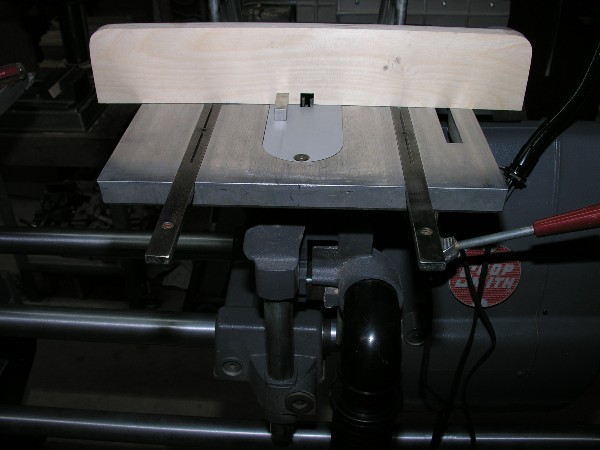

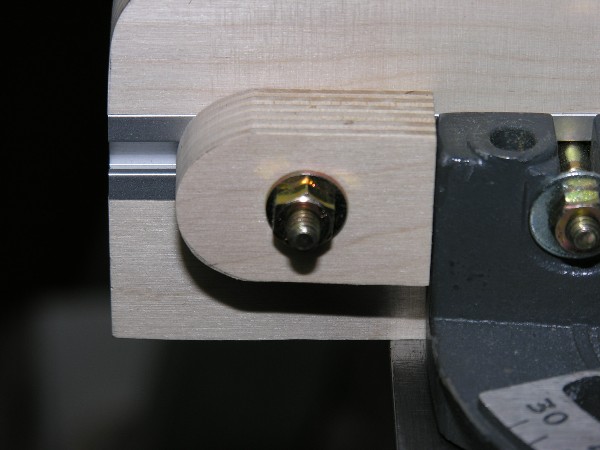

Perhaps a little out of tune in that this thread was on router tables and I got into box joints, anyway this another method that I use with my Mark V. It is a simple jig, but by using feeler gauges I can dial it in very quickly. The one in the pics is a 1/2" jig.

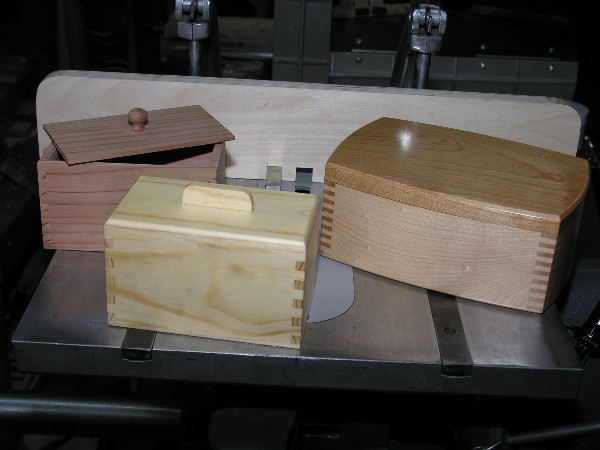

The box joints in the little boxes were cut with the router sled.
If there are any questions give me a ping.
ldh
Perhaps a little out of tune in that this thread was on router tables and I got into box joints, anyway this another method that I use with my Mark V. It is a simple jig, but by using feeler gauges I can dial it in very quickly. The one in the pics is a 1/2" jig.
The box joints in the little boxes were cut with the router sled.
If there are any questions give me a ping.
ldh
- Attachments
-
- Copy of DSCN1190.JPG (50.82 KiB) Viewed 7841 times
-
- Copy of DSCN1191.JPG (61.16 KiB) Viewed 7818 times
-
- Copy of DSCN1193.JPG (48.88 KiB) Viewed 7821 times
-
- Copy of DSCN1195.JPG (43.55 KiB) Viewed 7819 times
-
- Copy of DSCN1196.JPG (53.66 KiB) Viewed 7820 times
-
Greenvilleguy
- Gold Member
- Posts: 240
- Joined: Thu Jul 20, 2006 12:55 pm
- Location: Greenville, SC
Wow! Turning pens and goblets -- that's really a strange combo. To me, pens are the easiest turning project there is, while goblets require hollowing end grain -- which I find very difficult to do well. They also require delicate work on the stem. (I cheat and turn a jam chuck to fit the tail stock live center and the inside of the goblet. This way, I have both ends supported.)
Doug
Greenville, SC
Greenville, SC
Hi idh! No questions, but did want to comment! Nice jig, nice boxes, nice job! and nice photos! Ain't woodworking fun? Keep posting photos, we are hungry for them! I'm rather jealous of the good looking jig. Makes mine look like "Slap togethers" (which I guess they are!).
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Chuck in Lancaster, CA
Chuck,
There are good ideas in most every jig and I just try to put as many of those good ideas that I see into my jigs. I have a couple of sharpening jigs that work fairly well with bench and lathe chisels. It would be nice if folks would post pics of their jigs and fixtures for the SS. I am always looking for an easier or more accurate mouse trap. I have one of the old OPRs and that makes jig construction a bit easier. I will get the pics posted.
ldh
There are good ideas in most every jig and I just try to put as many of those good ideas that I see into my jigs. I have a couple of sharpening jigs that work fairly well with bench and lathe chisels. It would be nice if folks would post pics of their jigs and fixtures for the SS. I am always looking for an easier or more accurate mouse trap. I have one of the old OPRs and that makes jig construction a bit easier. I will get the pics posted.
ldh
