JPG40504 wrote:Does that mean you have an 'original' Mark VII belt from Magna American? If so measure it! Please! I am am about to continue pursueing the 'correct' size. I have measured what I think is relevant on the MVII and will do the same on a M5 and determine the belt size from that 'input'.
That cam is a cnc milled aluminum cam courtesy of hdoilcan(and about $80!)]may[/B] still have 'extras'.
What 'bit' did you use to mill the cam?
I actually have two Shopsmith belts that have the same number as the Mark VII manual for sure. Both are on headstocks. I would have to pull a third apart to see. Two are on functional machines. The third headstock that I just finished is the spare. It looks fairly new and still measured a 1/2" wide. The belt was cogged. I took it to Napa and they measured it to be the 29.5. The Napa belt is deeper. I would not have thought it would make any difference but it was to short. I think a thirty would work. The previous owner of that one had a 31 on it and that was too long. I will try to get a tape on it tomorrow.
redleg wrote:I actually have two Shopsmith belts that have the same number as the Mark VII manual for sure. Both are on headstocks. I would have to pull a third apart to see. Two are on functional machines. The third headstock that I just finished is the spare. It looks fairly new and still measured a 1/2" wide. The belt was cogged. I took it to Napa and they measured it to be the 29.5. The Napa belt is deeper. I would not have thought it would make any difference but it was to short. I think a thirty would work. The previous owner of that one had a 31 on it and that was too long. I will try to get a tape on it tomorrow.
I used a 1/4" carbide tipped straight bit.
Thank You, and TIA!
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange

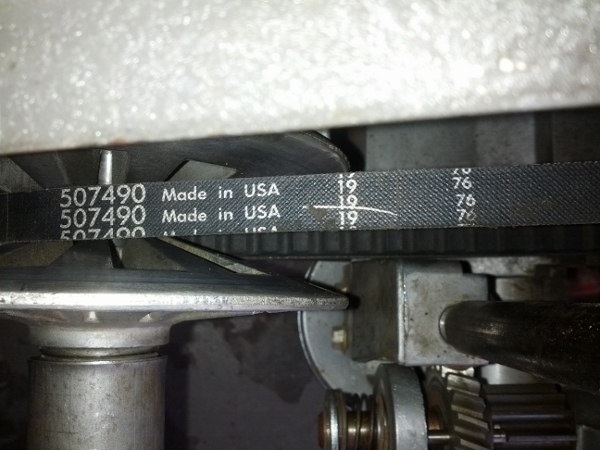

The Mark VII parts manual (2/66) that I have lists the belt as Belt - Motor Drive 507490. I measured the belt on the machine: outer circumference was 30 1/8", height 5/16", and 1/2" width. The Napa belt I tried was XL 25 9295 which was slightly small. Here is a picture of the belt on the machine with the original part number. If anyone knows what the 19 and 76 mean please let me know. Coincident or not 76cm equals 29.9213" and 19mm equals 0.748031"? The 19 would seem wide if that was the case.
[ATTACH]24822[/ATTACH]
Attachments
IMG_20140423_141214 (600x450).jpg (146.35 KiB) Viewed 2272 times
redleg wrote:The Mark VII parts manual (2/66) that I have lists the belt as Belt - Motor Drive 507490. I measured the belt on the machine: outer circumference was 30 1/8", height 5/16", and 1/2" width. The Napa belt I tried was XL 25 9295 which was slightly small. Here is a picture of the belt on the machine with the original part number. If anyone knows what the 19 and 76 mean please let me know. Coincident or not 76cm equals 29.9213" and 19mm equals 0.748031"? The 19 would seem wide if that was the case.
[ATTACH]24822[/ATTACH]
So, my best guess at what I will try is a Duralast 17300 from auto zone.
.53 width 30.15 od internal cogged.IIRC
P.S. $1.99
╔═══╗
