Speed control and ???

[JPG]

86,88,89

speed control base etc..jpg (31.61 KiB) Viewed 2404 times

Bill Mayo is a forum member with vast experience with SS rebuilding etc..

He also is Billstoolz on e-bay. PM him. He may not respond real quickly(health issues).
http://www.ebay.com/itm/Shopsmith-Mark- ... 51cfc507a1

[beeg]

IIUC, the control sheave is a goner. A broken quadrant gear is unusual, but seems consistent with your description of it breaking down.

With that kind of damage to the quadrant gear, the arms that it attaches to and pivots are likely at least bent. If they can be returned to normal, ok.

The arms where the quadrant gear attaches to the speed control bracket appears fine to me. Not having anything to compare it to it seems to fit the arm correctly and I can screw the arm in and out to its fullest extent with ease. Now I admit that I have nothing other than my own observation to base that on.[/b]

If not add

513700 Speed Control Bracket ... $24.36.

Bill Mayo has a kit of parts that improves upon the tension pin pivot shaft.

can you explain first what pieces we are up grading and who Bill Mayo is? Forgive my ignorance, I am not sure what you mean by the "tension pivot pin shaft"

Bill Mayo is a member here that contributes much knowledge here. He also repairs Mark5's and others. He's come up with a way to keep the porkchop from uneven wear.
Item H here, and ya may need Item G?

http://www.shopsmith.com/service/mostfr ... dparts.htm

[dsinsley]

Bill Mayo is a member here that contributes much knowledge here. He also repairs Mark5's and others. He's come up with a way to keep the porkchop from uneven wear.
Item H here, and ya may need Item G?

http://www.shopsmith.com/service/mostfr ... dparts.htm[/quote]

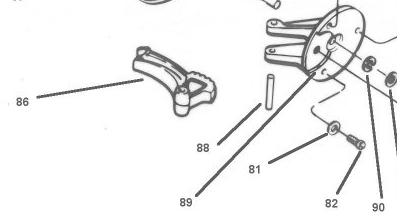

Those pictures help a lot thanks. I know I need "I" the control sheave assembly. I also need at least H the quadrant assembly. Looking at that, mine sheared off right where the metal pin that holds the spring goes through the arm. The bracket that holds the arm really looks as if it is fine. The remaining piece of the arm with the teeth moves well and freely, no broken or even chipped teeth. The bracket does not look bent in the slightest. So likely I will buy only the quadrant assembly and not the bracket.

Thanks again for that picture.

[billmayo]

I found many years ago that a bolt replacing the roll pin to hold the quadrant will keep the speed control bracket arm from bending. I have offered this improvement for many years without any negative feedback. Contact me off-line if more questions. The results of no oiling or insufficient oiling of the headstock causes most of these speed control problems. Thanks.

[dsinsley]

I found many years ago that a bolt replacing the roll pin to hold the quadrant will keep the speed control bracket arm from bending. I have offered this improvement for many years without any negative feedback. Contact me off-line if more questions. The results of no oiling or insufficient oiling of the headstock causes most of these speed control problems. Thanks.

Bill Thanks,

I have seen your upgrade kit on ebay and likely will be buying one.

[dsinsley]

Looking on eBay I see that they sell the control sheave assembly bearing. My control sheave itself seems fine it is just missing the bearing and the clip. Is it advisable to buy this replacement and put it in my sheave or am I asking for trouble.

[JPG]

Looking on eBay I see that they sell the control sheave assembly bearing. My control sheave itself seems fine it is just missing the bearing and the clip. Is it advisable to buy this replacement and put it in my sheave or am I asking for trouble.

That would depend upon the condition of the control sheave at the end where the bearing goes.

Do you have the loop/clip and roll pin?

[dsinsley]

I have it all but its not in great shape. The sheave itself looks fine to me. I will try to take a picture of it and post it. The bearings I see on ebay come with the bearing and pin and clip etc.

[dsinsley]

ok so hopefully this works. this is what is left of the quadrant assembly and speed control assembly.

[dsinsley]

nope did not attach pics. whats the secret?
